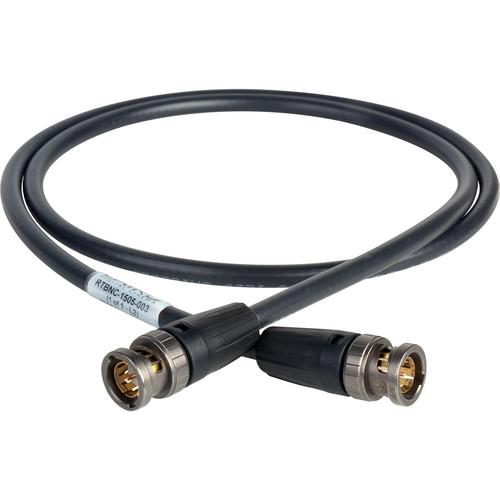

Product description The 3' UHD BNC to UHD BNC 4K/8K 20 AWG RG59 SDI Coaxial Cable from Laird Digital Cinema features Neutrik's rearTWIST UHD BNC connectors and Belden RG6 Cable. Designed for extended bandwidth for 4K and 8K video applications. Neutrik's rearTWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface.
The 20 AWG Belden SDI coaxial cable features a solid 0.023" bare copper conductor, gas-injected foam HDPE insulation, Duofoil and tinned copper braid shield (95% coverage), and a PVC jacket. - High frequency optimized contact pin and insulator for UHD transmissions
- Fully compatible with conventional BNC chassis connectors
In the Box Laird Digital Cinema UHD BNC to UHD BNC 4K/8K 20 AWG RG59 SDI Coaxial Cable (3') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema UHD BNC to UHD BNC 4K 8K 20 AWG RG59 SDI Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema RTBNC-1505-003 Specs | Cable Length | 3' / 0.9 m | | Shielding | 95% Copper Braid | | Wire Gauge | 20 AWG | | Coaxial Type | RG-59 | | Maximum Impedance | 75 Ohms | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 8.5 x 7.6 x 0.8" |
