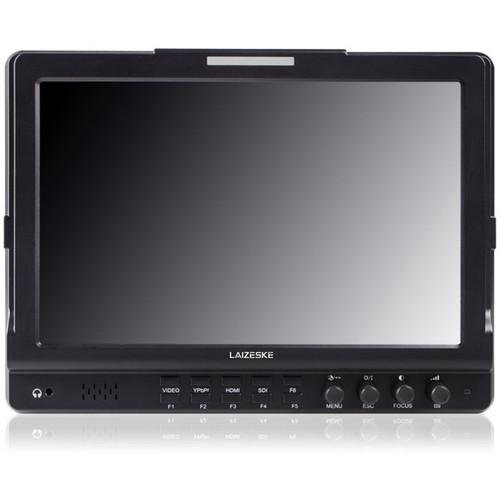

Product description The 10.1" 1280 x 800 HDMI Camera-Top IPS Monitor from Laizeske features a 1280 x 800 resolution and a 16:10 aspect ratio. With a 650 cd/m2 brightness output, 800:1 contrast ratio, and 178° vertical and horizontal viewing angles, the IPS panel provides you with a larger image than your camera's built-in viewfinder or LCD screen. The monitor comes with image measurement functions such as Focus Assist, Center Marker, Safe Frame, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel, and Image Freeze. These functions are assignable across six function buttons on the front panel. Prevent strain on your by viewing the built-in camera screen on a larger display. You can monitor the display via 3.5mm stereo headphone jack on the front panel and the built-in speaker. - Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. It shows red highlight over parts of the monochrome image in focus.
- 3-Color Tally Light
- The monitor comes with DB-9 input signal. The front Tally lights with 3-color display are controlled via DB-9 ports on the rear panel.
- Flexible Battery System
- The monitor is powered from a 4-pin XLR connector or a 12 VDC input with the included power adapter.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Pixel-to-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1).
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Other Features
-
- Camera mode
- Image freeze
- Zoom all (Up/Down and Left/Right zoom)
- Custom color temperature
UPC: 711583466731 In the Box Laizeske 10.1" 1280 x 800 HDMI Camera-Top IPS Monitor with Peaking Focus Mini HDMI Cable Sunshade Shoe Mount Adapter L-Series Battery Plate Tally Kit U-Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 10.1" 1280 x 800 HDMI Camera-Top IPS Monitor with Peaking Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR1018 Specs | Screen Size | 10.1" (25.7 cm) | | Resolution | 1280 x 800 | | Pixel Pitch | 0.1695 x 0.1695 mm | | Aspect Ratio | 16:10 | | Brightness | 650 cd/m2 | | Contrast Ratio | 800:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 89°/89°/89°/89° | | Input | 1 x HDMI
3 x BNC (YPbPr)
1 x BNC (Video)
2 x RCA Audio (L/R)
1 x DB-9 Tally | | Output | 1 x HDMI
3 x BNC (YPbPr)
1 x BNC (Video) | | Audio Output | Stereo headphone, speaker | | HDMI Format Support | 480i/576i/480p/576p
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/24psF/23.98/ 23.98psF | | Input Voltage | 6 to 36 VDC | | Power Consumption | ≤12 W | | Power Connector | DC / 4-pin XLR | | Battery Plate | L-series type (standard)
D28S, LP-E6, V-mount, Gold mount (Optional) | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Mounting Thread | 1/4"-20 threaded socket (3 sides, left/right/bottom) | | Dimensions | 10.2 x 7.6 x 1.5" (25.8 x 19.2 x 3.9 cm) | | Weight | 28.6 oz (810 g) |
