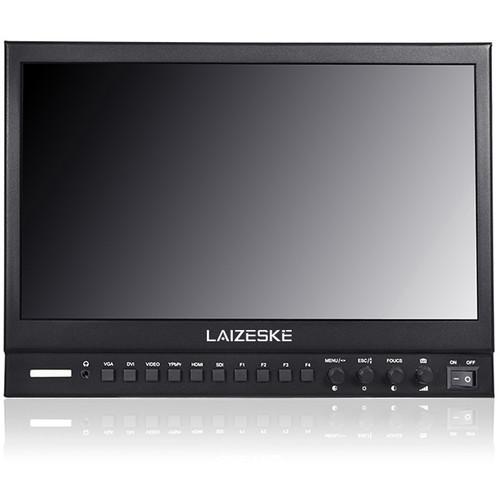

User Manual for Laizeske 13.3" Full HD IPS Multiformat Pro HDMI Broadcast LCD Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske 13.3" Full HD IPS Multiformat
- Product category: Production Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Production Monitors
|
User manual for the Laizeske 13.3" Full HD IPS Multiformat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|
Product description The 13.3" Full HD IPS Multiformat Pro HDMI Broadcast LCD Monitor from Laizeske is suitable for applications like TV news production, broadcasting house, TV broadcasting truck, and other fields. This 13.3" IPS LCD display offers a native resolution of 1920 x 1080 and wide viewing angle of 170° both horizontally and vertically. It features HDMI, YPbPr, DVI-I, video, and audio L/R inputs and HDMI, YPbPr, and video loop-through outputs. It also features one 3.5mm stereo headphone jack on the front panel, and built-in speaker. The monitor features front and rear 3-color (red, green, and yellow) tally lights, which are controlled via a DB-9 port on the rear side. It comes with a V-mount battery plate on the rear side for battery mounting. The monitor can either be powered using the included 12 VDC adapter or via lithium batteries through a standard 4-pin XLR connector. Its full aluminum casing offers durability. - IPS panel with 1920 x 1080 native resolution
- Wide viewing angle of 170° both horizontally and vertically
- HDMI, YPbPr, DVI-I, video, and audio (L/R) inputs
- HDMI, YPbPr, and video loop-through outputs
- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in 3-color LED tally indicators
- Four assignable shortcut keys (F1, F2, F3, and F4) on the front panel for easy access
- Peaking focus assist (red highlight over parts of the monochrome image in focus)
- Check field (red, green, blue, and mono) assists in adjusting the camera color settings
- Camera mode function (full screen mode)
- Pixel to pixel with 1:1 mapping without scaling
- Safe marker (80%, 85%, 90%, 93%, 96%, and 2.35:1) for view finding and composition
- Image flip (horizontal, vertical, and horizontal and vertical modes)
- U/D and L/R zooming and zoom all mode
- Power using included 12 VDC supply or standard 4-pin XLR connector
- Full aluminum case for durability
- Includes a portable sunshade
UPC: 711583466472 In the Box Laizeske 13.3" Full HD IPS Multiformat Pro HDMI Broadcast LCD Monitor Mini HDMI Cable V-Mount Battery Plate 1.5A Power Adapter Tally Kit Portable Sunshade U-Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 13.3" Full HD IPS Multiformat Pro HDMI Broadcast LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR133H Specs | Monitor Type | IPS LCD panel | | Screen Size | 13.3" (33.8 cm) | | Resolution | 1920 x 1080 | | Pixel Pitch (H x V) | 0.1533 x 0.1533 mm | | Display Colors | 16.7M (8-bit) | | Aspect Ratio | 16:9 | | Viewing Angle | 85°/85° (L/R)
85°/85° (U/D) | | Brightness | 400 cd/m
