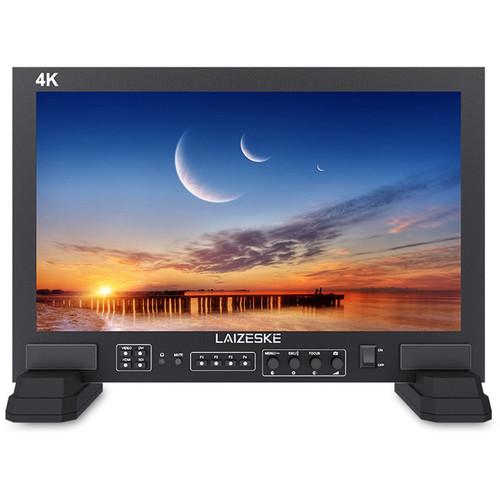

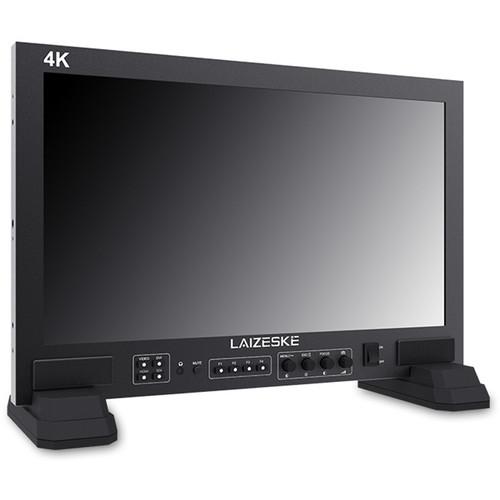

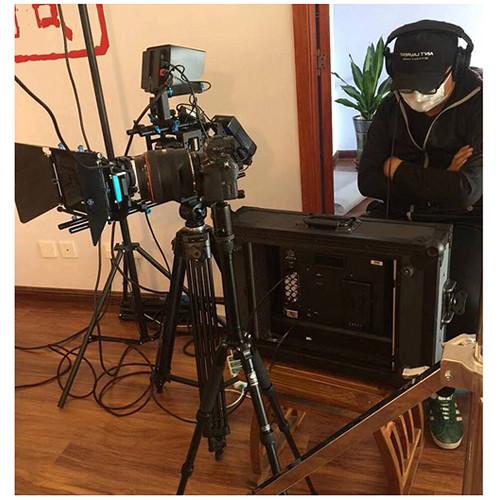

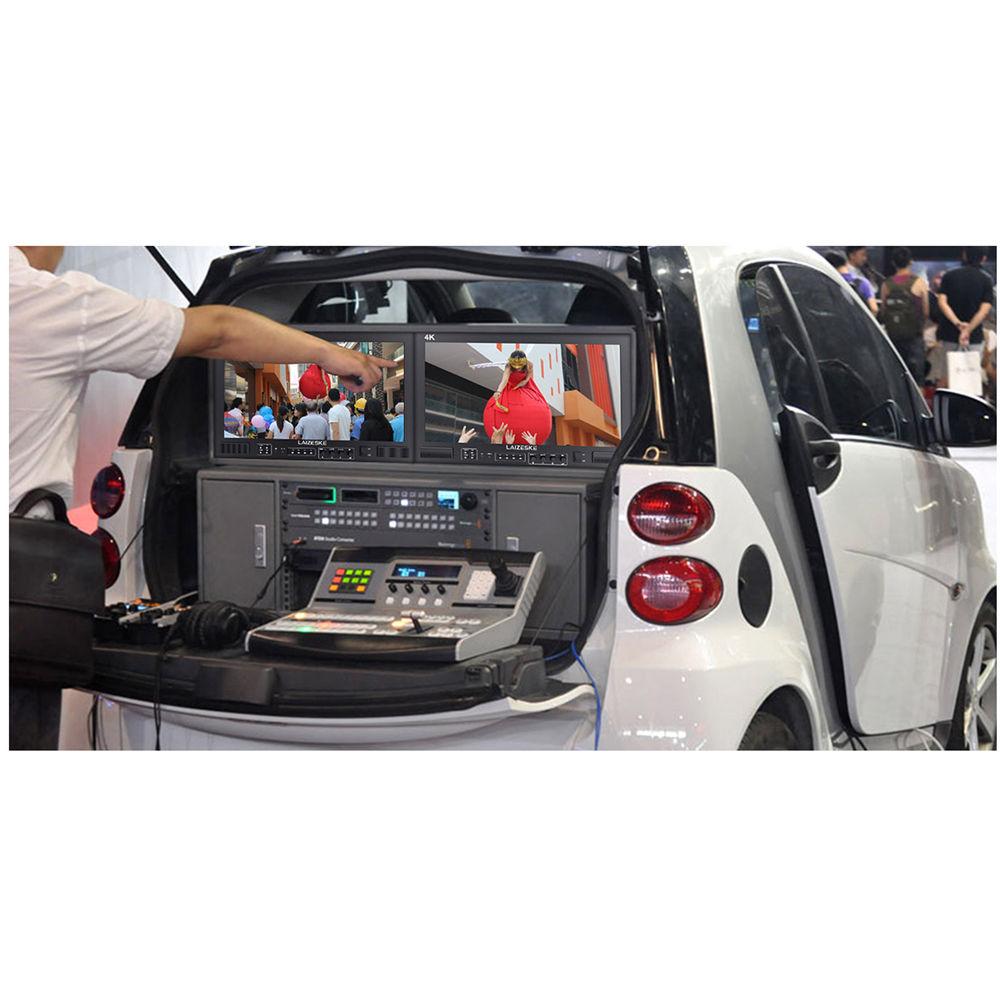

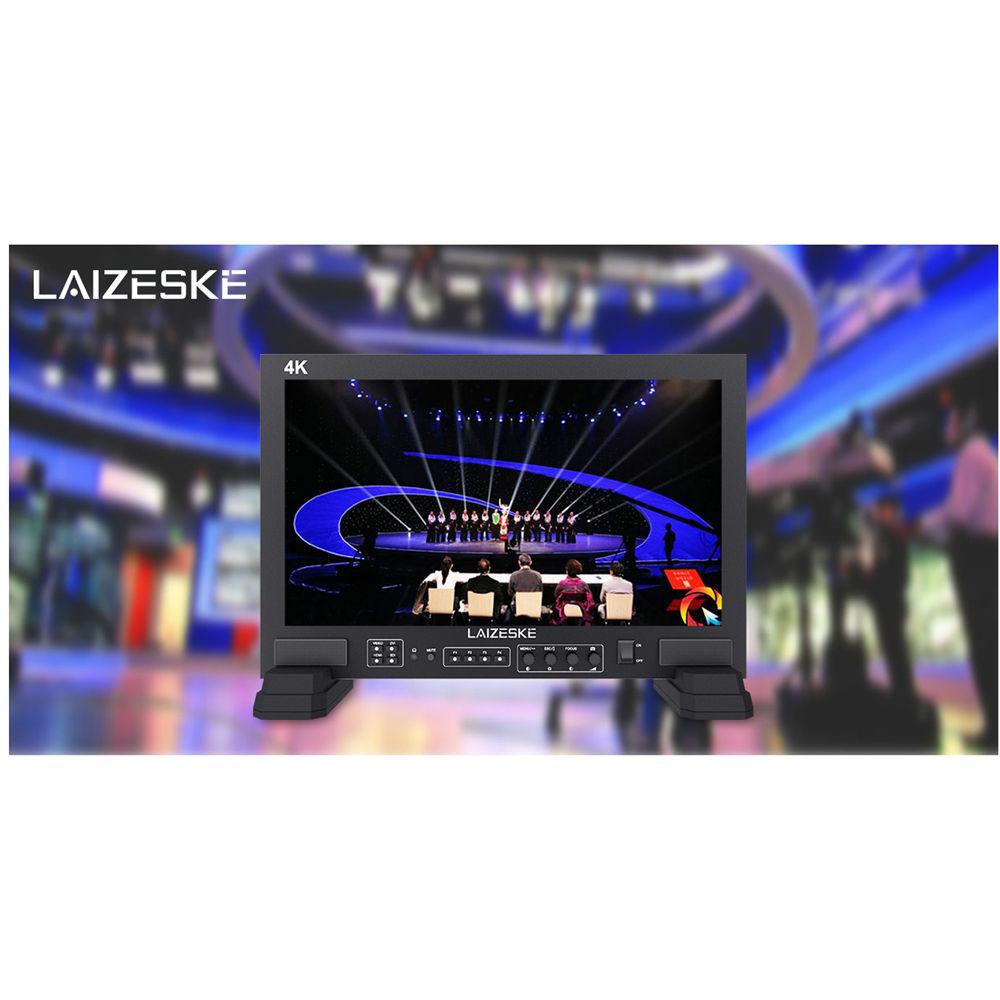

Product description The 17.3" 1920 x 1080 Broadcast Studio Monitor from Laizeske supports 4K HDMI input/loop-out and is suitable for broadcast control rooms, transfer facilities, and production house. It uses Rec.709 HD color standard and the color calibration technology. The monitor features four rotary encoder switches for immediate access to menu, saturation, brightness, contrast, focus, and camera mode. You can use a push button for peaking, pixel-to-pixel, camera mode, center marker, screen marker, and other functions.

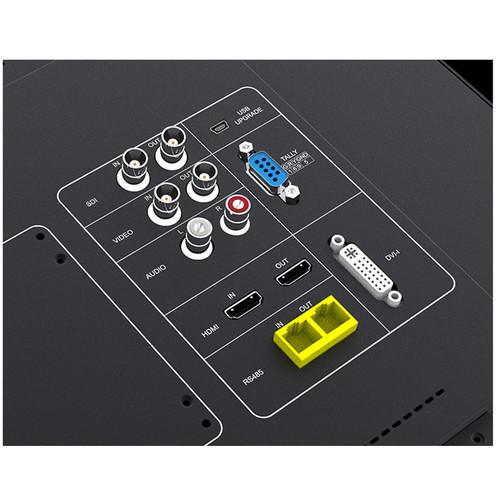

The monitor comes with HDMI, 3G-SDI, video, audio (L/R), RS-485, and DVI inputs. It also features HDMI, 3G-SDI, video, and RS-485 loop-through outputs. This monitor supports UMD and Text-Tally display of TSL 3.1/4.0 protocol with 0-126 TSL address selection (maximum 16 letters displayed). It can be powered by an DC adapter or lithium batteries. The monitor has a flexible battery system that supports V-mount and Gold mount battery plates. - Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. It shows red highlight over parts of the monochrome image in focus.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Pixel-To-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1).
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Other Features
-
- Full HD 1920 x 1080, colorful display
- Four assignable shortcut keys (F1, F2, F3, and F4) for fast access to the functions you need
- UMD and text-tally display (TSL 3.1/4.0 protocol)
- UMD inputs via RS-485 port and outputs via RS-485 port
- Camera mode
- Monitoring via a front panel 3.5mm stereo headphone jack and a built-in speaker
- Built-in LED tally indicators (Red, Green, Yellow)
- Zoom all (Up/Down and Left/Right zoom)
- Image freeze
- Full metal shell to prevent heat dissipation
- Custom color temperature
- Machined aluminum design
- 16.7 million color images
UPC: 711583466274 In the Box Laizeske 17.3" 1920 x 1080 Broadcast Studio Monitor Mini HDMI Cable V-Mount Battey Plate 3A Power Adapter Tally Kit 2 x Stand Feet Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 17.3" 1920 x 1080 Broadcast Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRF173 Specs | Screen Size | 17.3" (43.9 cm) | | Resolution | 1920 x 1080 | | Color Depth | 16.7 million | | Pixel Pitch | H x V: 0.1989 x 0.1989 mm | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 80°/80°/60°/80° | | Input | 1 x BNC (3G-SDI)
1 x HDMI
1 x DVI-I
1 x BNC (Video)
2 x RCA Audio (L/R)
1 x RS-485 | | Output | 1 x BNC (3G-SDI)
1 x HDMI
1 x BNC (Video)
1 x RS-485 | | Audio Output | Stereo headphone, speaker | | HDMI Format Support | 480i/576i/480p/576p
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF
4K UHD 3840 x 2160p: 30/29.97/25/24/23.98 Hz, 4096 x 2160p (24 Hz) | | SDI Format Support | 480i/576i
720p: 60/59.94/50/30/29/25/24/23.98
1080i: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF | | Input Voltage | 9 to 24 VDC | | Power Consumption | ≤27 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | Without Stand Feet: 16.7 x 11.2 x 1.4"(42.5 x 28.4 x 3.6 cm) | | Weight | 7.1 lb (3.2 kg) | | | | Package Weight | 10.05 lb | | Box Dimensions (LxWxH) | 20.9 x 16.0 x 6.3" |
