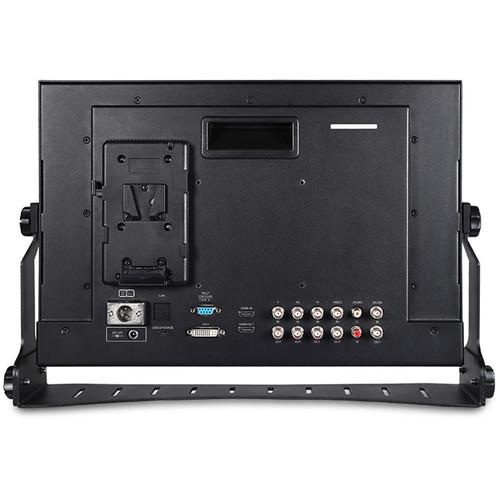

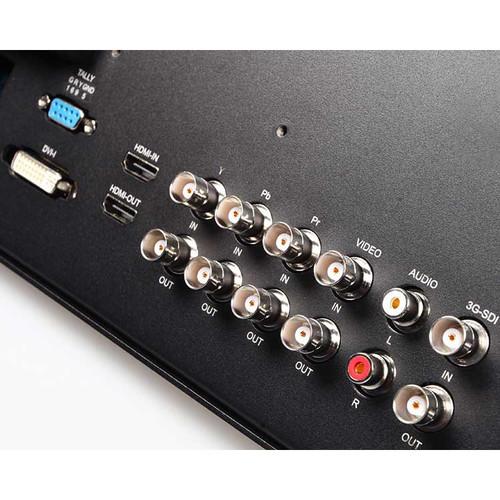

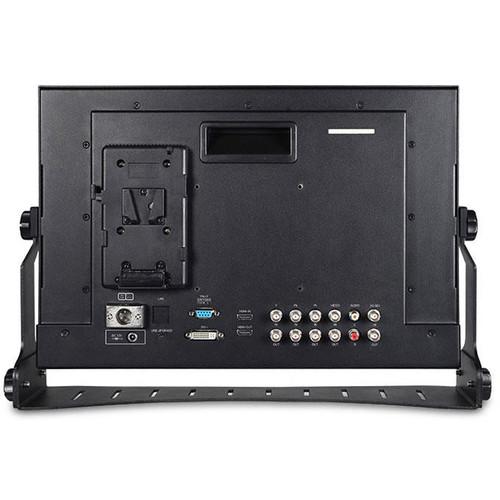

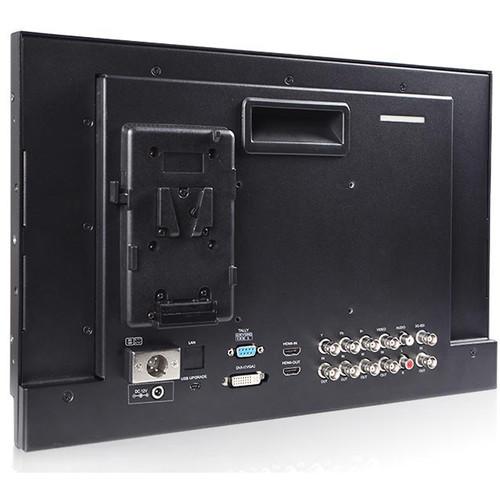

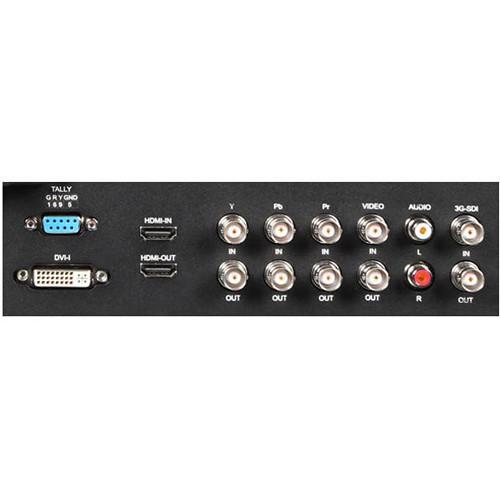

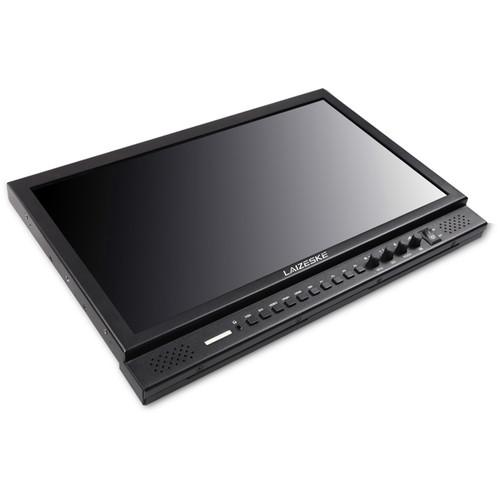

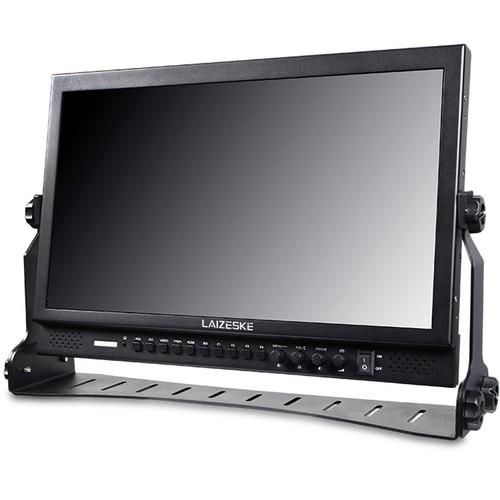

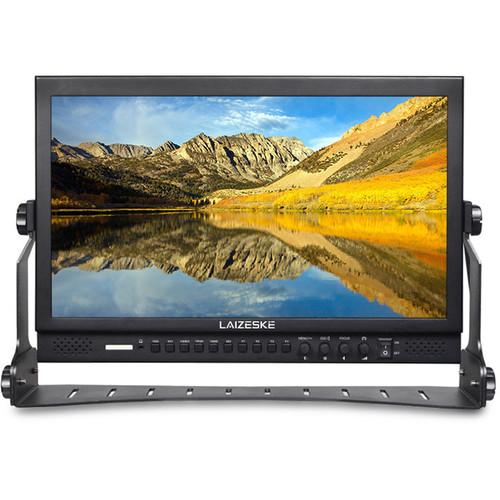

Product description The 17.3" Full-HD Carry-On Broadcast Director Monitor from Laizeske features a native resolution of 1920 x 1080 and a brightness of 400 cd/m². The monitor's rear panel contains 3G-SDI, HDMI, DVI, component, and composite inputs; outputs consist of 3G-SDI, HDMI, component, and composite. The monitor can accept and loop out 4K video, both DCI and UHD, via its HDMI input and output ports. Incoming 4K images are downscaled to the monitor's 1920 x 1080 native resolution.
The monitor can display a live picture on multiple displays at the same time while maintaining the original video quality. Furthermore, it features professional monitoring tools such as focus peaking, markers, monochrome, r/g/b-only, pixel-to-pixel mapping, and image flip for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field with separately sold V-mount batteries. - Peaking focus assist (red highlight over parts of the monochrome image in focus)
- Check field (red, green, blue, mono)
- Safe marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image flip (horizontal and vertical)

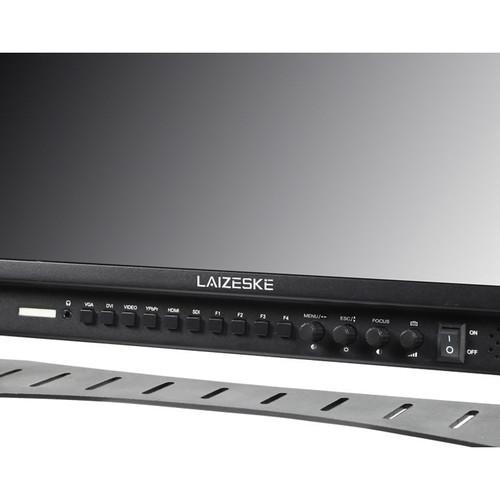

- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in LED tally indicators (red, green, yellow)
- Power using included 12V supply or via standard 4-pin XLR
- Wide viewing angles with 1920 x 1080 resolution
UPC: 711583466205 In the Box Laizeske 17.3" Full-HD Carry-On Broadcast Director Monitor with HDMI and 3G-SDI Mini HDMI Cable V-Mount Battery Plate Power Adapter Tally Kit Sunshade Suitcase Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 17.3" Full-HD Carry-On Broadcast Director Monitor with HDMI and 3G-SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske CO173S Specs | Screen Size | 17.3" / 43.9 cm | | Color Depth | 16.7 million | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.1989 x 0.1989 mm | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Backlight | LED | | Viewing Angle | 80°/80° (L/R)
60°/80° (U/D) | | Input | 1 x BNC, 3G-SDI
1 x HDMI
3 x BNC, component
1 x DVI-I
1 x BNC, composite
2 x RCA, audio (L/R) | | Output | 1 x BNC, 3G-SDI
1 x HDMI
3 x BNC, component
1 x BNC, composite | | Audio Output | 3.5 mm stereo headphone
Speaker | | Format Support | HDMI:
4096 x 2160p 24
3840 x 2160p 30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p/480p
576i/480i
SDI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576i
480i | | Input Voltage | 9 to 24 VDC | | Power Consumption | 26 W max | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 16.7 x 11.2 x 1.38" / 42.6 x 28.5 x 3.5 cm (panel only)
19.8 x 12.0 x 9.1" / 50.3 x 30.5 x 23.0 cm (with suitcase) | | Weight | 23.6 lb / 10.7 kg (with suitcase) | | | | Package Weight | 23.6 lb | | Box Dimensions (LxWxH) | 20.8 x 16.3 x 6.2" |
