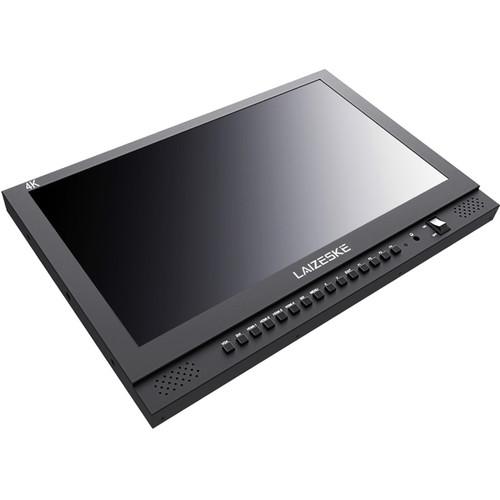

User Manual for Laizeske 17.3" IPS 4K UHD Broadcast Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske 17.3" IPS 4K UHD Broadcast
- Product category: Production Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Production Monitors
 |
User manual for the Laizeske 17.3" IPS 4K UHD Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|

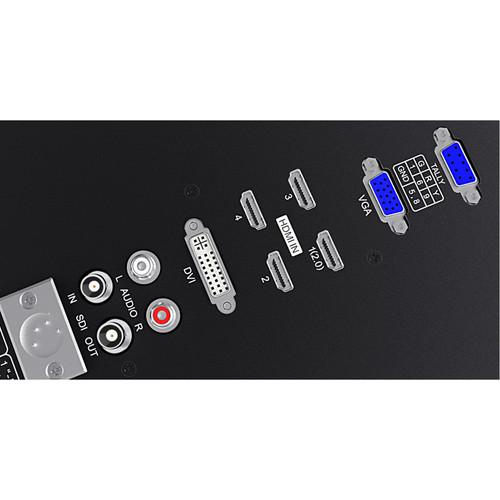

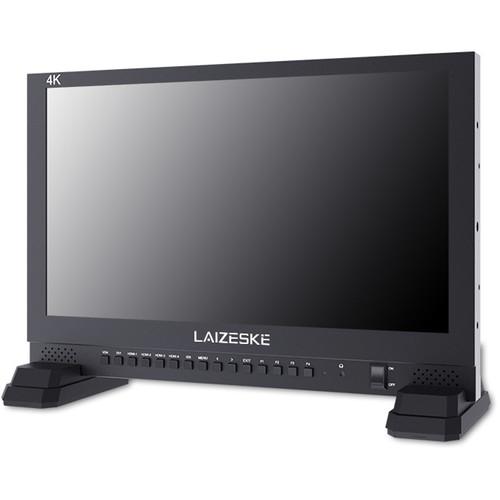

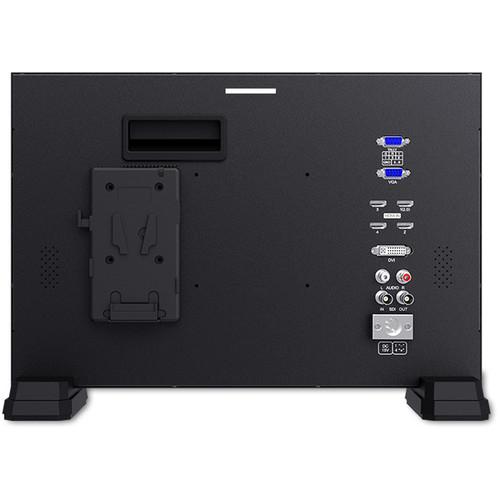

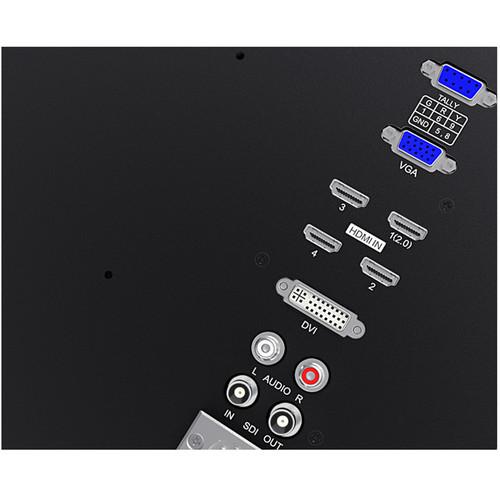

Product description The 17.3" IPS 4K UHD Broadcast Monitor from Laizeske features a quad split display with a maximum resolution of 3840 x 2160 and 400 cd/m² brightness. The rear panel features four 4K HDMI inputs, one 3G-SDI input and loop-through output, DVI, VGA, supports quad view, dual view, single view monitoring functions, allowing you to get suitable multi-camera monitoring in any location.

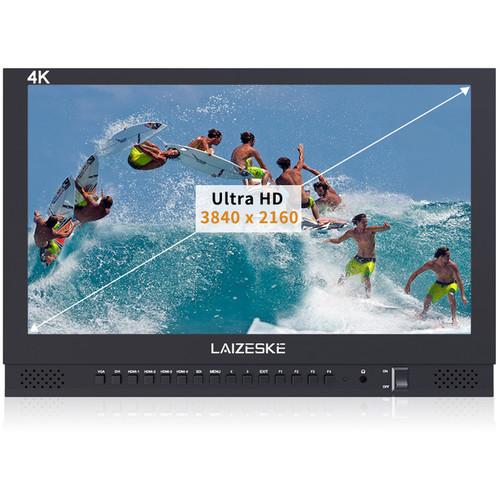

Furthermore, the monitor features clear LCD screens with tally so it's a fine solution for live broadcasts. It includes green, red, and yellow tally signals. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel so you get full compatibility with switchers or automation systems. It is designed to handle the stress of professional broadcast, television, film, and commercial production on the road or in your studio - Wide viewing angles with 4K resolution (3840 x 2160) resolution

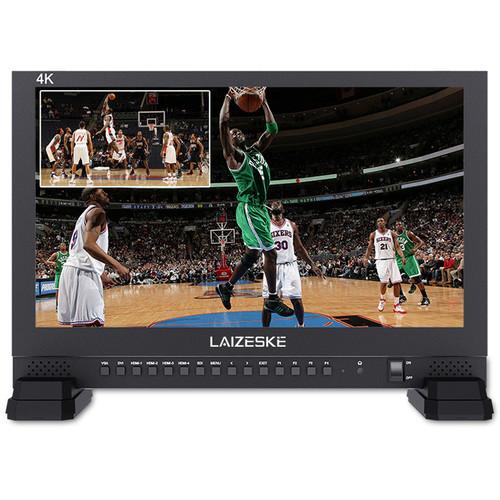

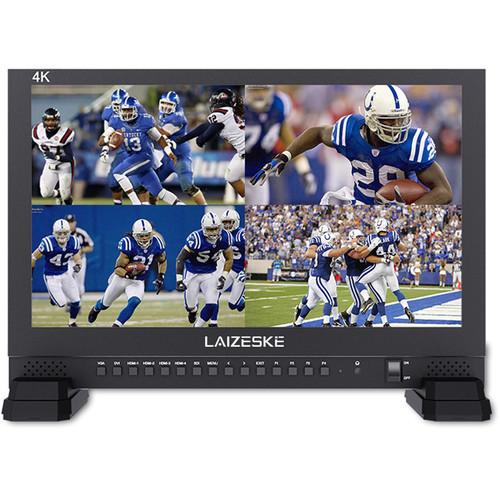

- Quad split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist (red highlight over parts of the monochrome image in focus)
- Image flip (0°, 90°, 180°, 270°)
- Check field (Red, Green, Blue, Mono)
- Screen marker (80%, 85%, 90%, 93%, 96%)
- Line color (Red, Green, Blue, White)
- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in LED tally indicators (Red, Green, Yellow)

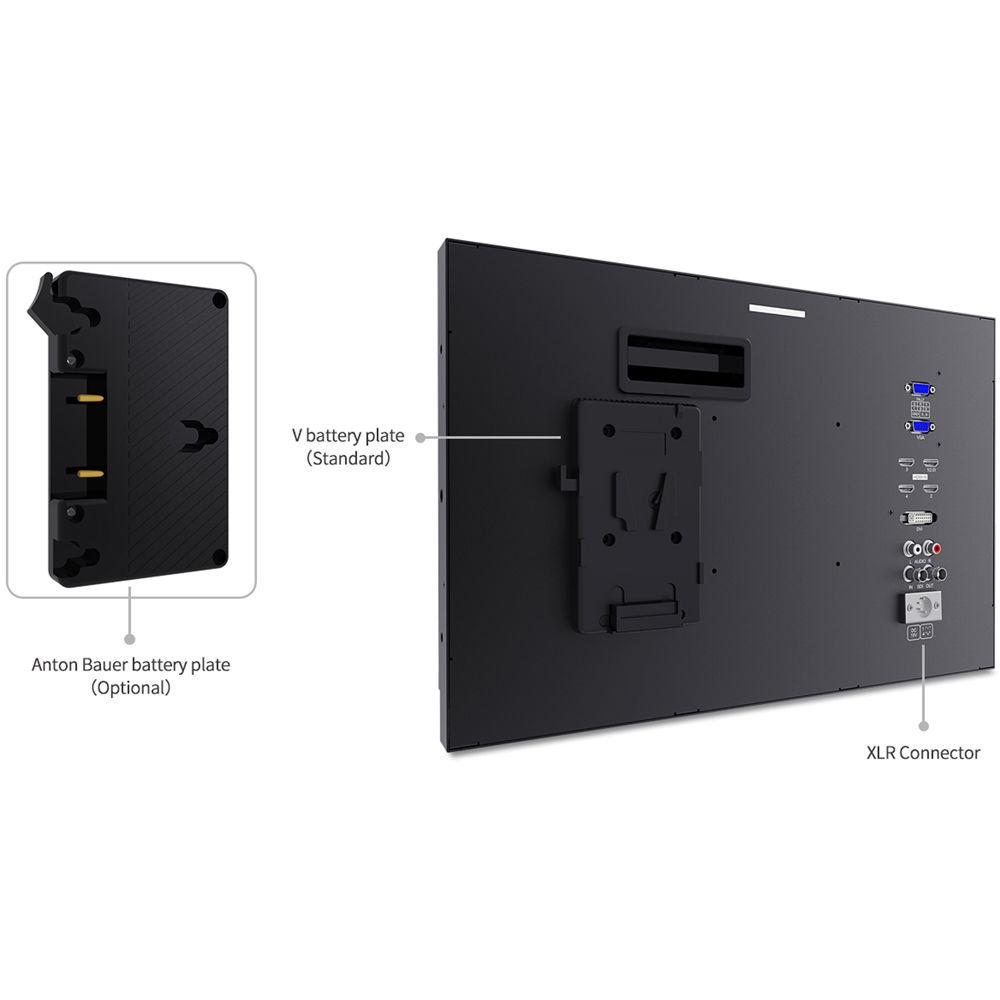

UPC: 711583466267 In the Box Laizeske 17.3" IPS 4K UHD Broadcast Monitor Mini HDMI Cable V-Mount Battery Plate 3A Power Adapter Tally Kit Mounting Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 17.3" IPS 4K UHD Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske 4KDR173 Specs | Screen Size | 17.3" (43.9 cm) | | Color Depth | 16.7 million (8-bit) | | Resolution | 3840 x 2160 | | Pixel Pitch | 0.0995 x 0.0995 mm | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m
