User Manual for Laizeske 3.5" 3G-SDI & HDMI LCD Electronic Viewfinder Click to enlarge the picture
Contents of the user manual for the Laizeske 3.5" 3G-SDI & HDMI LCD
- Product category: Viewfinders Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Viewfinders
 |
User manual for the Laizeske 3.5" 3G-SDI & HDMI LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|

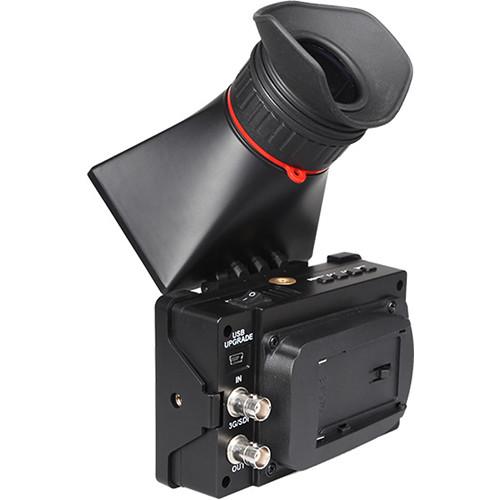

Product description The 3.5" 3G-SDI & HDMI LCD Electronic Viewfinder from Laizeske is an efficient monitoring solution for camcorders or DSLRs having an SDI or HDMI output. This electronic viewfinder allows you to operate with the correct form factor for video; with the camera in-line to your rod system (the most stable way) and your eye in the viewfinder offset. In addition, the brightness, contrast, hue, and saturation can also be adjusted. It features a 3.5" TFT LCD screen attached to the viewfinder loupe. This LCD panel offers a native resolution of 800 x 480, and supports input resolutions up to 1920 x 1080. When viewing through the optical loupe, you can adjust the diopter by rotating the dial in either direction until the image becomes clear. This electronic viewfinder is suitable for both indoor as well as outdoor filming. - 3.5" TFT display with 800 x 480 native resolution and color reproduction for video monitoring
- Audio monitoring via 3.5mm stereo headphone jack

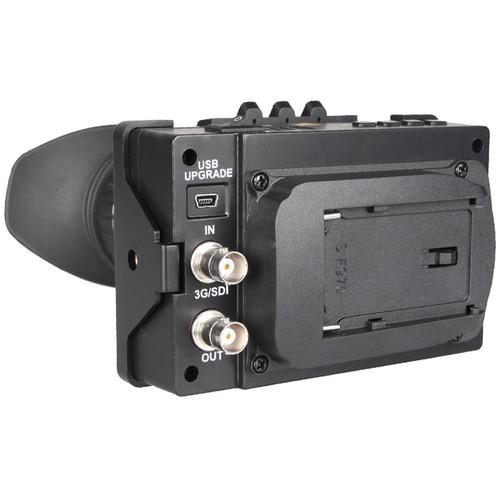

- 3G-SDI and HDMI inputs, and 3G-SDI loop-through output
- Wide viewing angles of 160°, both horizontally and vertically
- Viewfinder loupe attached to the LCD can be flipped open
- Optical loupe attached to the viewfinder body is completely detachable
- Diopter can be adjusted when viewing through the optical loupe
- Picture Control Functions
-
- Peaking focus assist (red highlight over parts of the monochrome image in focus)
- Check field (red, green, blue, and mono) assists in adjusting the camera color settings
- Camera mode function (full-screen mode)
- Pixel-to-pixel with 1:1 mapping without scaling
- Center marker
- Safe marker (80%, 85%, 90%, 93%, 96%, and 2.35:1) for composition assist
- Image flip (horizontal, vertical, and horizontal/vertical modes)
- Image freeze
- U/D and L/R zooming, and zoom-all mode
- Custom color temperature
UPC: 612520499440 In the Box Laizeske 3.5" 3G-SDI & HDMI LCD Electronic Viewfinder Mini HDMI Cable Magnifier L-Series Battery Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 3.5" 3G-SDI & HDMI LCD Electronic Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske EVF35S Specs | Screen Size | 3.5" (8.9 cm) | | Resolution | 800 x 480 | | Pixel Pitch (H x V) | 0.0315 x 0.0945 mm | | Aspect Ratio | 15:9 | | Brightness | 315 cd/m
