User Manual for Laizeske 4.5" 280 x 800 3G-SDI 4K HDMI On-Camera IPS Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske 4.5" 280 x 800 3G-SDI
- Product category: On Camera Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske On Camera Monitors
 |
User manual for the Laizeske 4.5" 280 x 800 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|

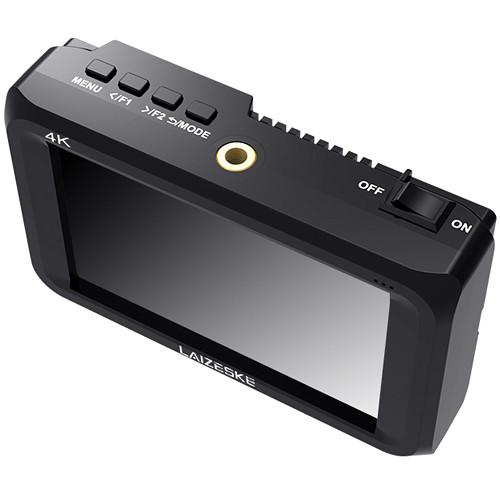

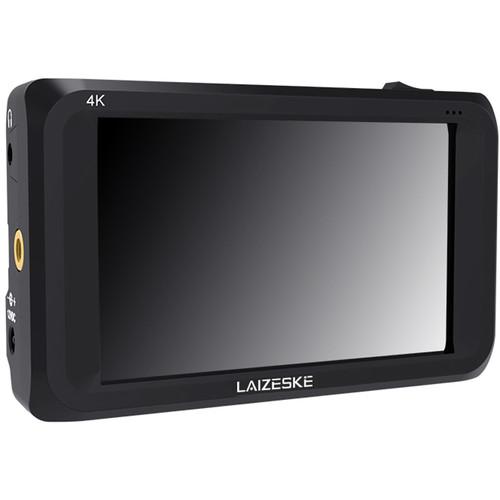

Product description The 4.5" 280 x 800 3G-SDI 4K HDMI On-Camera IPS Monitor from Laizeske features an 8-bit IPS LCD panel with 160°/160° viewing angle. This portable on-camera monitor features 3G-SDI and 4K HDMI inputs for connecting professional SDI and HDMI cameras. It also includes an SDI output, allowing it to display while sending live signals to other monitors simultaneously. It can display the video on multiple displays at once while maintaining the original signal quality. You can also monitor audio using the 3.5mm stereo headphone jack or the built-in speaker.

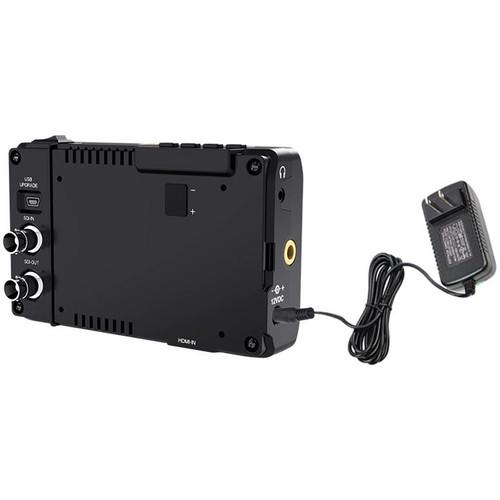

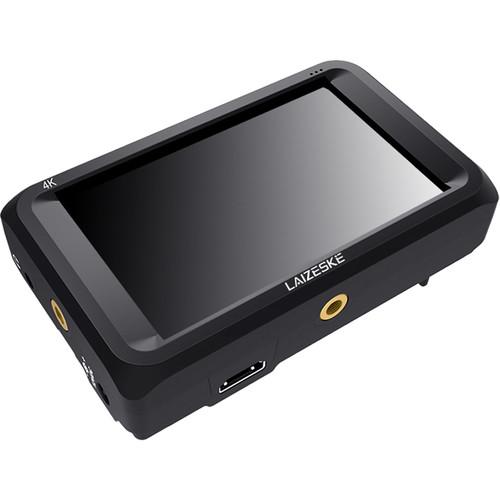

Equipped with three 1/4"-20 threaded holes, this monitor can be mounted on a DSLR's hot shoe, or attached to an articulating arm on a stabilizer, camera rig, or production crane. It can be powered via its 12 VDC connector, or using the included L-series type battery plate. Batteries and additional battery plates (D28S/D54, LP-E6, U60) are sold separately. - Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. It shows red highlights over parts of the monochrome image in focus.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Pixel-to-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker

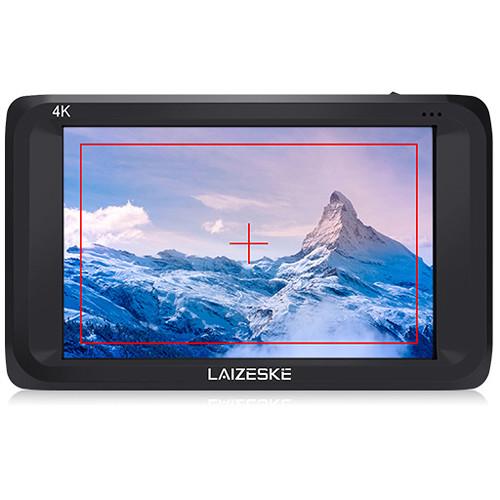

- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1).
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or both vertically and horizontally together.
- Other Features
-
- Zoom-all (up/down and left/right zoom)
- Custom color temperature
- Image freeze
- SDI and HDMI inputs; SDI loop-through output
- Camera mode
- Monitoring via 3.5mm stereo headphone jack
- Lightweight design

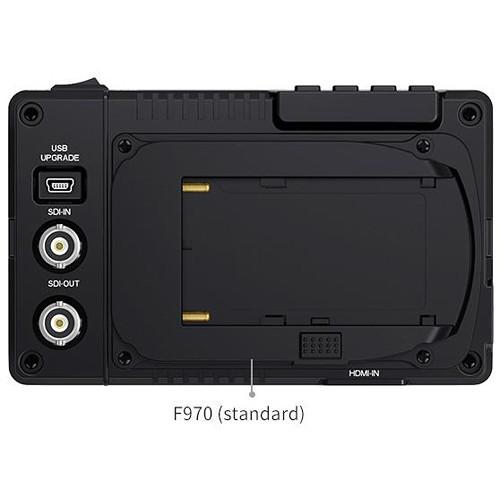

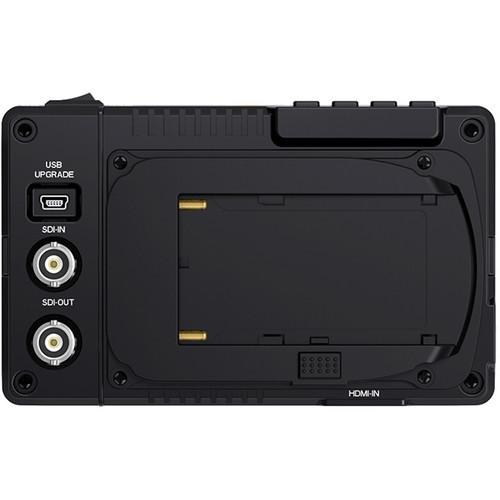

UPC: 612520499433 In the Box Laizeske 4.5" 280 x 800 3G-SDI 4K HDMI On-Camera IPS Monitor Mini HDMI Cable Shoe Mount Adapter L-Series Battery Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 4.5" 280 x 800 3G-SDI 4K HDMI On-Camera IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRS45 Specs | Screen Size | 4.5" / 11.4 cm | | Resolution | 1280 x 800 | | Color Depth | 16.8 million (8-bit) | | Pixel Pitch | 0.0757 x 0.0252 mm | | Aspect Ratio | 16:10 | | Brightness | 470 cd/m2 | | Contrast Ratio | 900:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 80°/80°/80°/80° | | Input | 1 x BNC (SDI)
1 x HDMI | | Output | 1 x BNC (SDI) | | Audio Output | 3.5 mm headphone | | SDI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576i
480i | | HDMI Format Support | 4096 x 2160p: 24
3840 x 2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576p / 576i
480p / 480i | | Input Voltage | 7 to 18 VDC | | Power Consumption | ≤7 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Dimensions | 5.0 x 3.0 x 1.2" / 12.8 x 7.8 x 3.1 cm | | Weight | Without Battery Plate: 8.5 oz / 240 g
With Battery Plate: 9.5 oz / 270 g | | | | Package Weight | 1.19 lb | | Box Dimensions (LxWxH) | 8.05 x 5.05 x 3.2" |
