User Manual for Laizeske 4.5" 4K HDMI On-Camera IPS Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske 4.5" 4K HDMI On-Camera IPS
- Product category: On Camera Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske On Camera Monitors
 |
User manual for the Laizeske 4.5" 4K HDMI On-Camera IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|

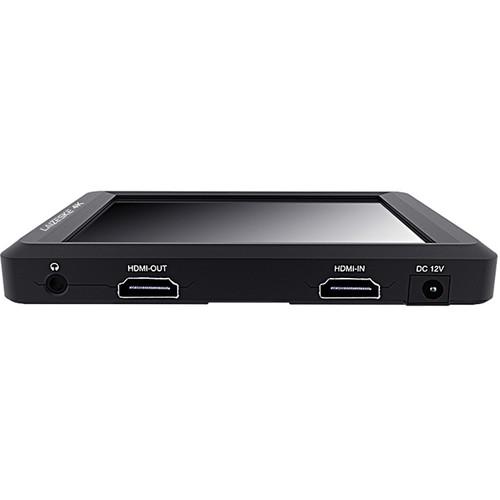

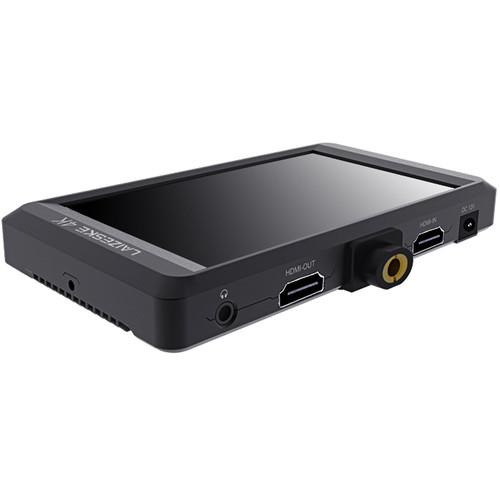

Product description The 4.5" 4K HDMI On-Camera IPS Monitor from Laizeske features a 1280 x 800 resolution, 470 cd/m2 brightness output, and 160° vertical and horizontal viewing angles for viewing detailed content. You can monitor the display via 3.5mm stereo headphone jack. The monitor has both HDMI input and loop-out, allowing it to not only display live signals but also send them out to other monitors simultaneously.
The monitor is powered using 12 VDC input or compatible rechargeable battery with an L-series plate (or optional D28S/D54, LP-E6, and U60 battery plates). It has the ability to display live picture on multiple displays at once while still maintaining the original video quality. Equipped with standard 1/4" mount points, it can be attached to cameras and rigs. With the 1/4" hole, you can sit on a table using the built-in kick stand or securely attach it to the top of your camera. - Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. It shows red highlight over parts of the monochrome image in focus.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Pixel-To-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1).
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Other Features
-
- Camera 5D II Mode
- Image freeze
- Zoom all (Up/Down and Left/Right zoom)
- Custom color temperature
- Monitoring via 3.5mm stereo headphone jack
- 4K HDMI input and loop-through output

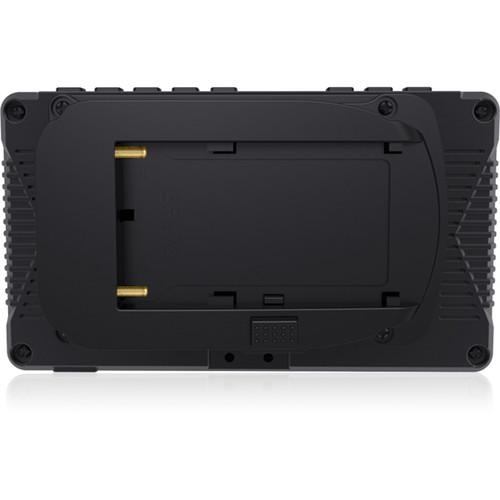

UPC: 612520499426 In the Box Laizeske 4.5" 4K HDMI On-Camera IPS Monitor Mini HDMI Cable Shoe Mount Adapter L-Series Battery Plate 1/4" Screw Lock Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 4.5" 4K HDMI On-Camera IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRF45 Specs | Screen Size | 4.5" (11.4 cm) | | Color Depth | 16.8 million (8-bit) | | Resolution | 1280 x 800 | | Pixel Pitch | H x W: 0.07575 x 0.02525 mm | | Aspect Ratio | 16:10 | | Brightness | 470 cd/m2 | | Contrast Ratio | 900:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 80°/80°/80°/80° | | Input | 1 x HDMI | | Output | 1 x HDMI | | Audio Output | Headphone, Speaker | | HDMI Format Support | 480i/576i/480p/576p
720p: 60/59.94/50/30/29/25/24/23.98
1080i: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF
4K UHD 3840 x 2160p: 30/29.97/25/24/23.98 Hz, 4096 x 2160p (24 Hz) | | Input Voltage | 7 to 18 VDC | | Power Consumption | ≤5 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Dimensions | 5 x 2.8 x 0.6" (12.6 x 7.2 x 1.6 cm) | | Weight | Without Battery Plate: 6 oz (170 g)
With Battery Plate: 7 oz (200 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 3.2" |
