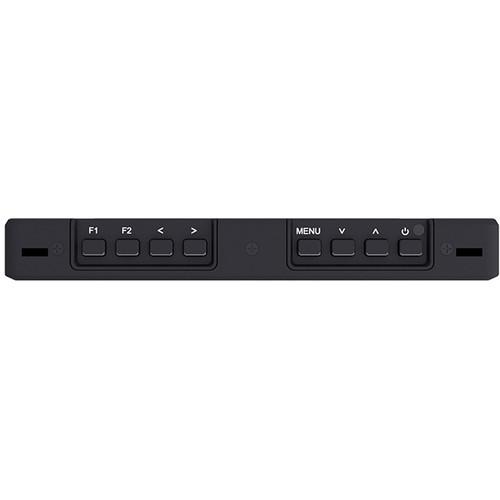

Product description The 5.7" 4K HDMI On-Camera IPS Monitor from Laizeske has an IPS panel with a 460 cd/m2 brightness output and features a 1920 x 1080 resolution for viewing detailed high-definition content. The focus peaking indicators displays red, green, or blue overlays, indicating exactly which parts of the image are in focus. In addition, false color tools make it easy to set exposure by highlighting specific color ranges of luminance with a solid color overlay.

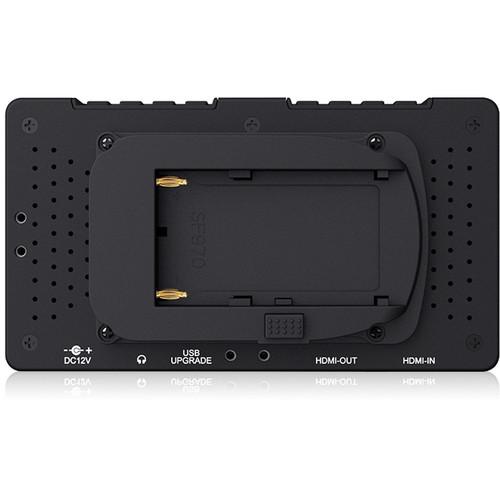

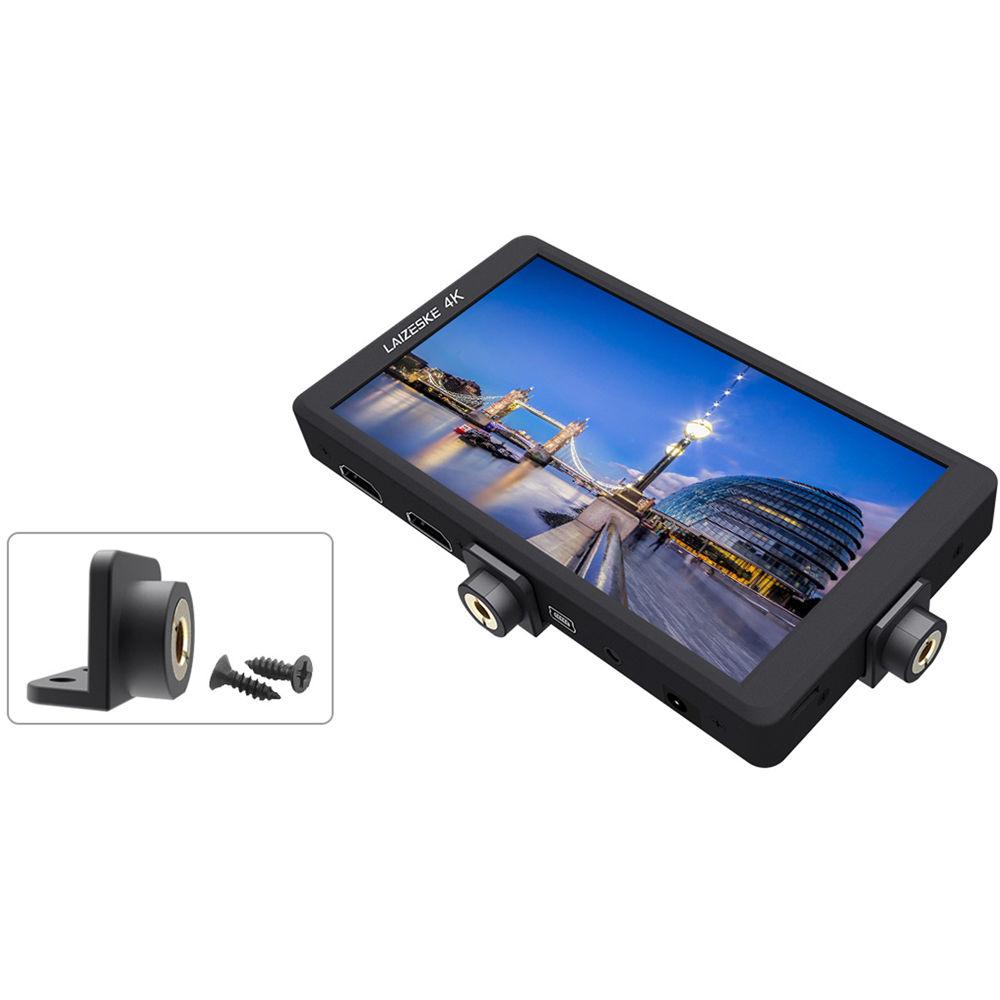

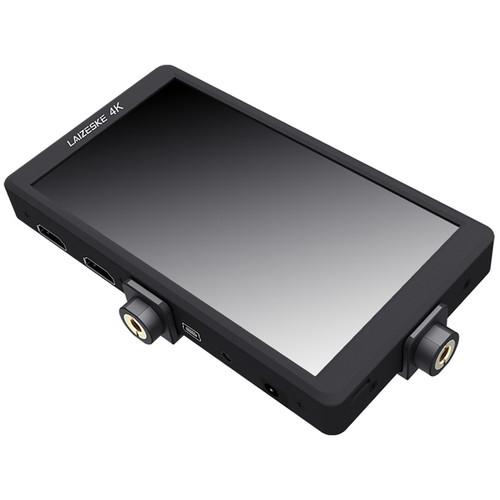

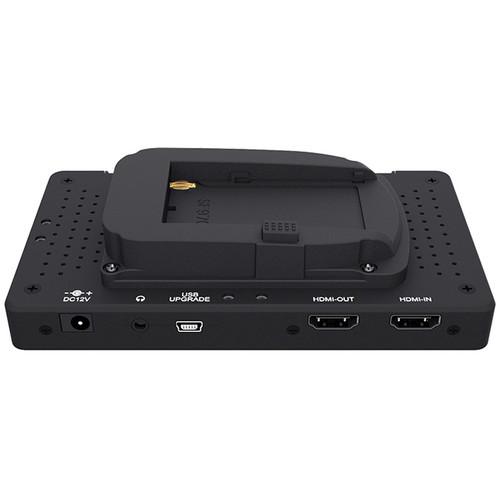

Equipped with standard 1/4" mount points, the monitor can be attached to cameras and rigs. With the 1/4" hole, you can sit on a table using the built-in kick stand or securely attach it to the top of your camera. The monitor can be powered using 12 VDC input or a rechargeable battery with an L-series plate (or optional D28S/D54, LP-E6, and U60 battery plates). - Brightness Histogram

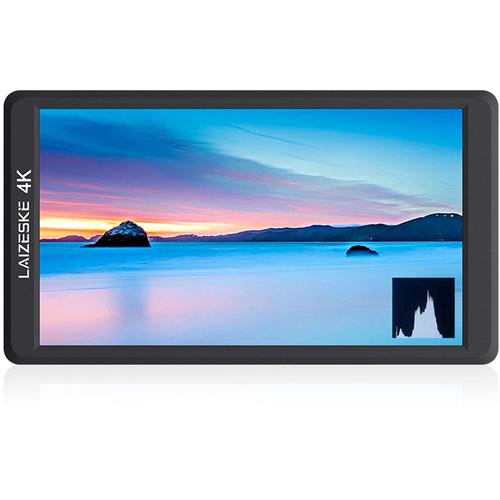

- You can use this quantitative tool to check picture brightness. It shows the distribution of brightness in an image as a graph of brightness along the horizontal axis, and a stack of the number of pixels at each level of brightness along the vertical axis.
- Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. You can switch the outline color between red, green, and blue, depending on the different tone of the subject.
- False Color
- The false color filter helps set the camera exposure. As the camera iris is adjusted, elements of the image change color based on the brightness values.
- Exposure Function
- Used to assist in exposure adjustment in the zebra pattern mode, it is considered overexposed and displays the moving warning lines onto the overexposed areas. It can be adjusted from 1 to 100 IRE.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Zoom In (4x, 9x, 16x)
- Image magnification retains HD signal in any part, an amplification for high-quality close-up.
- Anamorphic Mode
- The built-in selection of no-squeeze, 1.3x, or 2.0x allows you to use anamorphic lenses or adapters and see the image de-squeezed, even if your camera does not do so in-camera. The 2.0x mag mode magnifies the center of your image, allowing you to check the focus of your scaled image.
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Nine Grid
- You can zoom one of the images to make it full-screen. You can switch the mark color between red, green, blue, white, and black, depending on the different tone of the subject.
- Pixel-To-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1). You can also switch the mark color between red, green, blue, white, and black.
- Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Frame blanking zone includes six levels, from 0-6 (transparent to black).
- Other Features
-

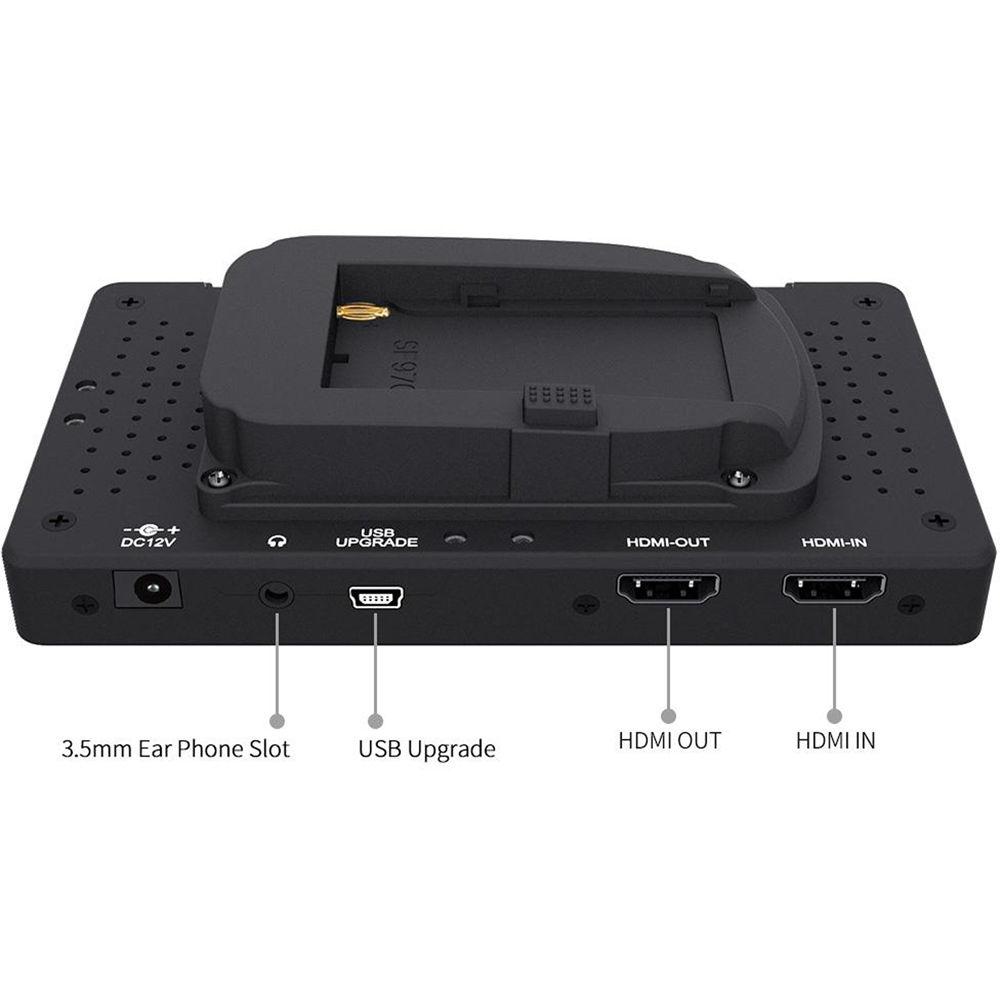

- 3.5mm earphone slot
- Slim design with 18.6mm thickness
- IPS panel with 170° viewing angles
- Camera mode
- Image freeze function

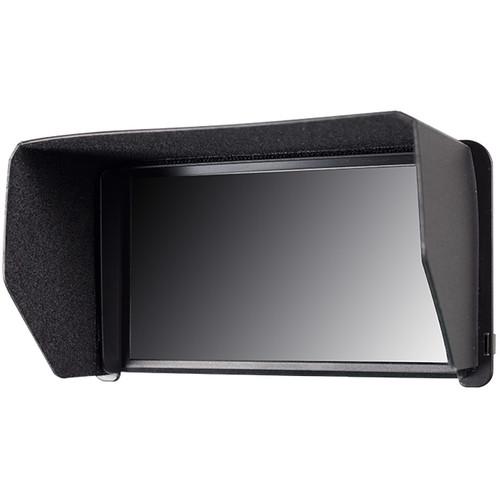

- Portable sunshade
- Zoom all function
- Color temperature adjustment
UPC: 612520499419 In the Box Laizeske 5.7" 4K HDMI On-Camera IPS Monitor Mini HDMI Cable Sunshade Shoe Mount Adapter L-Series Battery Plate 1/4" Screw Lock Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 5.7" 4K HDMI On-Camera IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRF57 Specs | Screen Size | 5.7" / 14.5 cm | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.0657 x 0.0219 mm | | Aspect Ratio | 16:9 | | Brightness | 460 cd/m2 | | Contrast Ratio | 1200:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 85°/85°/85°/85° | | Input | 1 x HDMI | | Output | 1 x HDMI | | Audio Output | Stereo headphone | | HDMI Format Support | 480i / 576i
480p / 576p
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF
3840 x 2160p: 30/29.97/25/24/23.98 Hz
4096 x 2160p 24 | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤8 W | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Mounting Thread | 1/4"-20 threaded socket | | Battery Plate | L-series type (standard)
D28S/D54, LP-E6, U60 (optional) | | Dimensions | 5.8 x 3.2 x 0.7" / 14.8 x 8.2 x 1.9 cm | | Weight | Without Plate: 9.9 oz / 280 g
With Plate: 10.9 oz / 310 g | | | | Package Weight | 1.63 lb | | Box Dimensions (LxWxH) | 7.45 x 4.95 x 3.2" |
