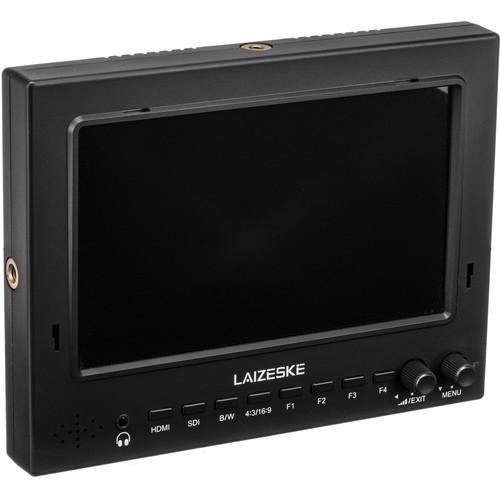

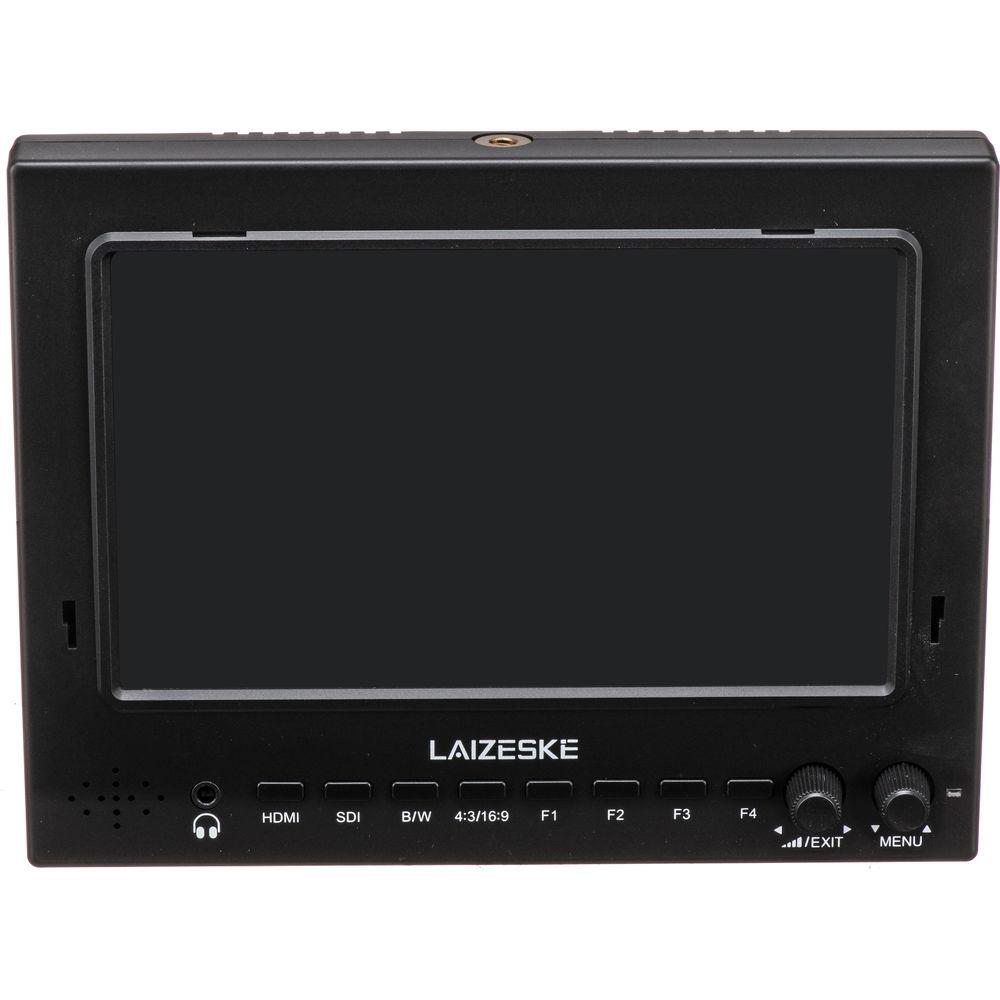

Product description The 7" 1024 x 600 3G-SDI HDMI Camera-Top Field IPS Monitor from Laizeske features a 1024 x 600 resolution and a 16:9 aspect ratio. With a 600 cd/m2 brightness output, 800:1 contrast ratio, and 170° vertical and horizontal viewing angles, the IPS panel provides you with a larger image than your camera's built-in viewfinder or LCD screen. The monitor comes with image measurement functions such as Focus Assist, Center Marker, Safe Frame, Check Field, Camera Mode, Image Flip, Pixel-to-Pixel, and Image Freeze. You can monitor the display via 3.5mm stereo headphone jack and the built-in speaker. The monitor is powered using included 12V supply or standard 4-pin XLR. - Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. It shows red highlight over parts of the monochrome image in focus.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Pixel-to-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1).
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Other Features
-

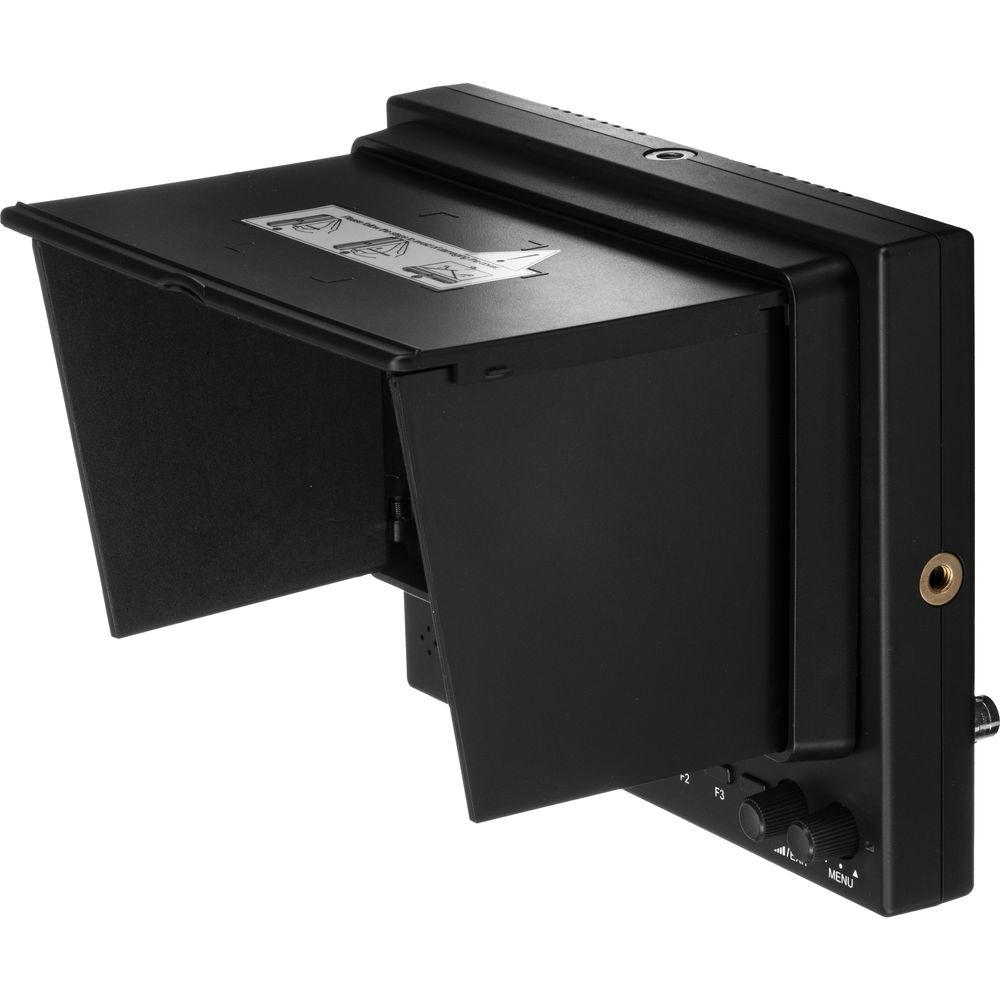

- Foldable Sunshade
- Six shortcut keys
- Zoom all (Up/Down and Left/Right zoom)
- Custom color temperature
- Image freeze

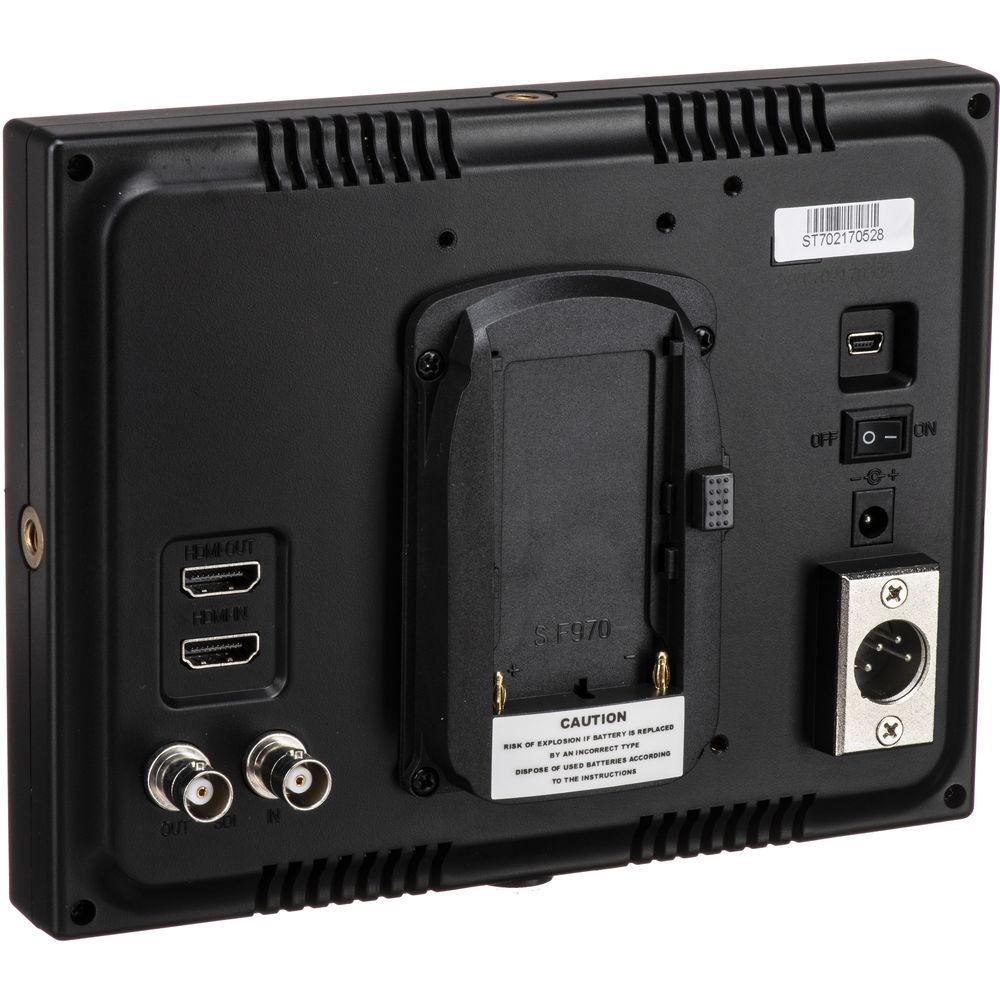

- SDI and HDMI inputs and loop-through outputs
- Camera mode
- 170° viewing angle
- Wide color gamut LCD panel
- Double function knobs for menu selection and volume control
UPC: 612520499402 In the Box Laizeske 7" 1024 x 600 3G-SDI HDMI Camera-Top Field IPS Monitor with Peaking Focus Mini HDMI Cable Sunshade Shoe Mount Adapter L-Series Battery Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 7" 1024 x 600 3G-SDI HDMI Camera-Top Field IPS Monitor with Peaking Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR702 Specs | Screen Size | 7" (17.8 cm) | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Brightness | 600 cd/m2 | | Contrast Ratio | 800:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 85°/85°/85°/85° | | Input | 1 x BNC (SDI)
1 x HDMI | | Output | 1 x BNC (SDI)
1 x HDMI | | Audio Output | Stereo headphone, speaker | | HDMI Format Support | 480i/576i/480p/576p
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/24psF/23.98/23.98psF | | SDI Format Support | 480i/576i
720p: 60/59.94/50/30/29/25/24/23.98
1080i: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/24psF/23.98/23.98psF | | Input Voltage | 6 to 24 VDC | | Power Consumption | ≤9 W | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Dimensions | 7.6 x 5.8 x 1.1" (194 x 148 x 28.5 mm) | | Weight | 18.4 oz (521 g) | | | | Package Weight | 2.49 lb | | Box Dimensions (LxWxH) | 11.5 x 9.0 x 3.25" |
