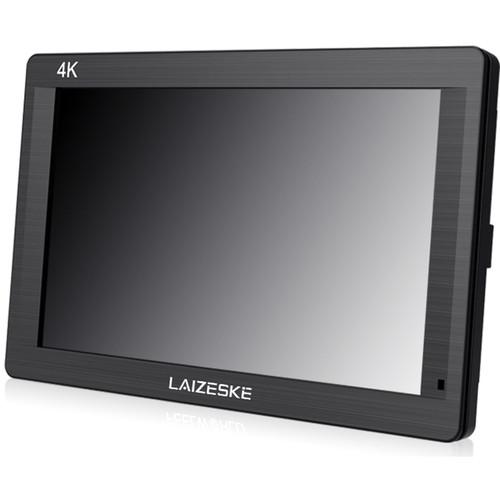

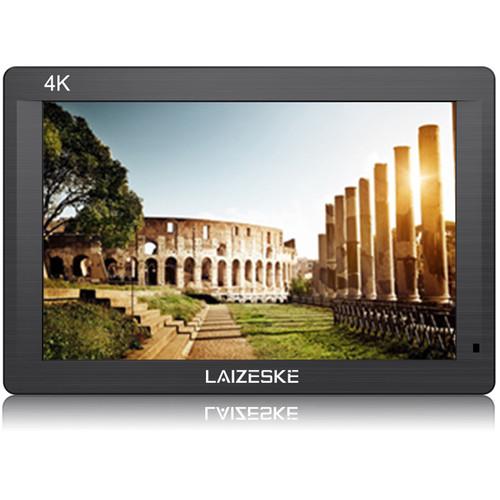

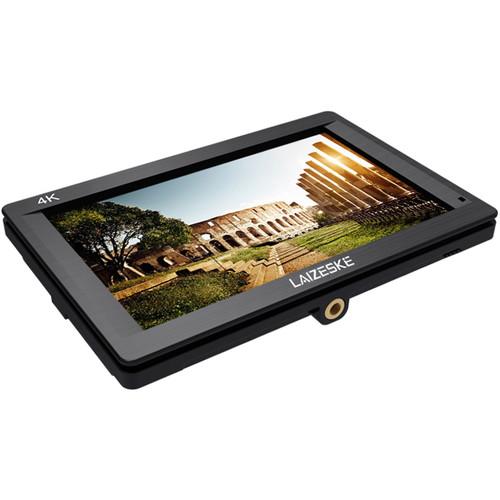

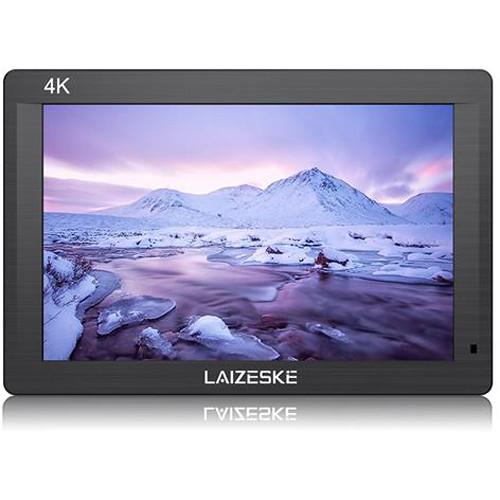

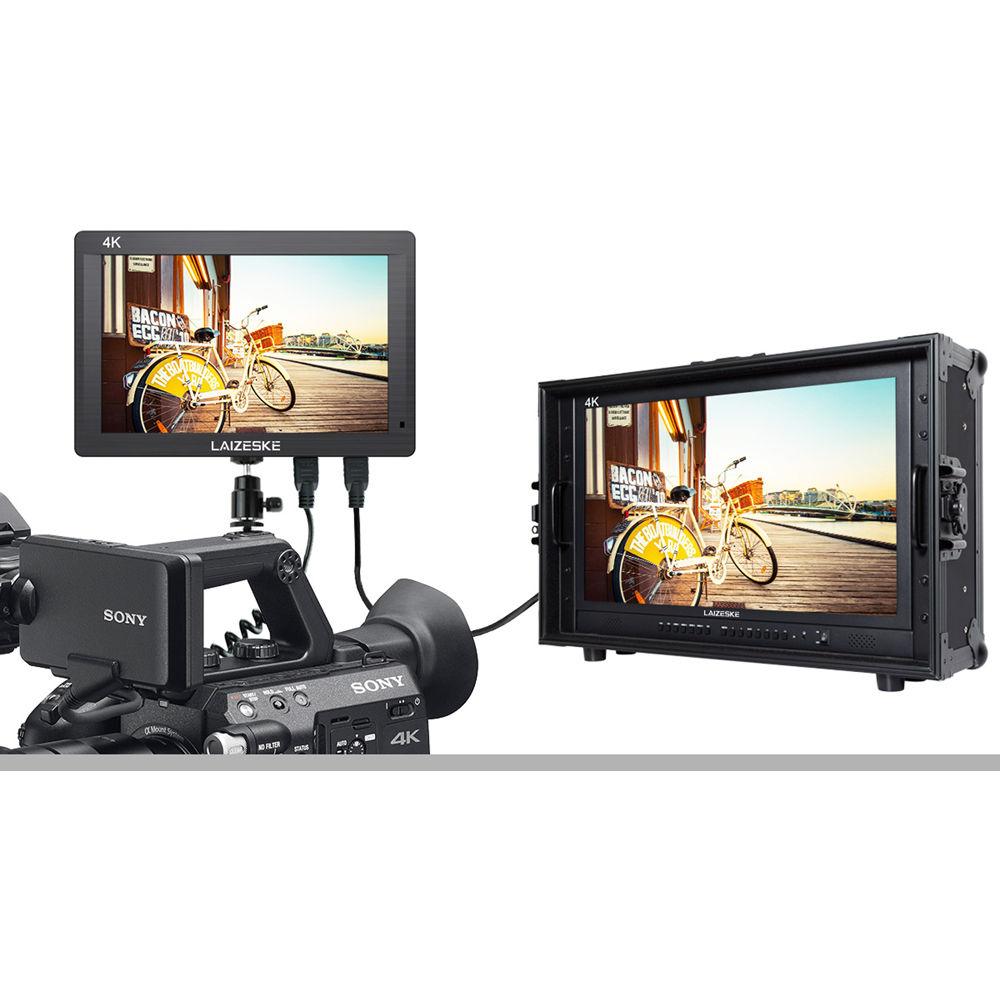

Product description The 7" 4K HDMI On-Camera IPS Monitor from Laizeske has an IPS panel with a 450 cd/m2 brightness output, and features a 1920 x 1200 resolution for viewing detailed high-definition content. It has both HDMI in and loop-through out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. The monitor features a built-in speaker and a 3.5mm earphone slot.

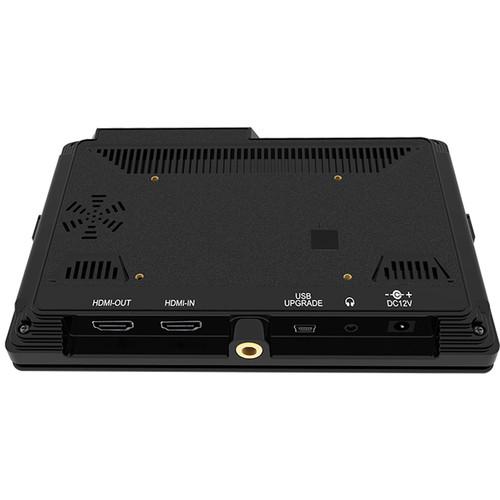

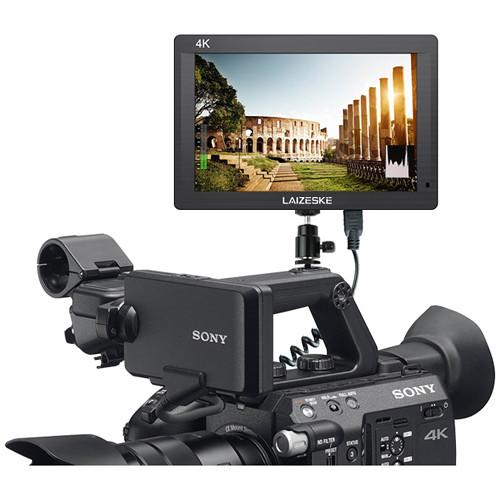

This monitor is also equipped with a 1/4"-20 threaded mount on the bottom for installing on a tripod, shoulder rig, camcorder kit, handheld stabilizer, or a camera crane. The shoe mount adapter can be used for connecting to a DSLR, slider, and other shooting components to facilitate the shooting and monitoring of different scenes. - Brightness Histogram
- You can use this quantitative tool to check picture brightness. It shows the distribution of brightness in an image as a graph of brightness along the horizontal axis, and a stack of the number of pixels at each level of brightness along the vertical axis.
- Embedded Audio Monitoring
- The audio level meters provide numerical indicators and headroom levels, generating accurate audio level displays to prevent errors during monitoring. The audio meter is green initially but turns yellow and red when it exceeds -20 and -9 dB respectively.
- Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. You can switch the outline color between red, green, and blue, depending on the different tone of the subject.
- False Color
- The false color filter helps set the camera exposure. As the camera iris is adjusted, elements of the image change color based on the brightness values.
- Exposure Function
- Used to assist in exposure adjustment in the zebra pattern mode, it is considered overexposed and displays the moving warning lines onto the overexposed areas. It can be adjusted from 1 to 100 IRE.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Zoom In (4x, 9x, 16x)
- Image magnification retains HD signal in any part, an amplification for high-quality close-up.
- Anamorphic Mode
- The built-in selection of no-squeeze, 1.3x, or 2.0x allows you to use anamorphic lenses or adapters and see the image de-squeezed, even if your camera does not do so in-camera. The 2.0x mag mode magnifies the center of your image, allowing you to check the focus of your scaled image.
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Nine-Grid
- You can zoom one of the images to make it full-screen. You can switch the mark color between red, green, blue, white, and black, depending on the different tone of the subject.
- Pixel-to-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1). You can also switch the mark color between red, green, blue, white, and black.
- Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Frame blanking zone includes six levels, from 0-6 (transparent to black).
- Flexible Battery System
- This monitor has a flexible battery system that supports the included L-Series battery plate, as well as the separately available D28S/D54, LP-E6, and U60 battery plates. It can also be powered by an adapter (optional).
- Other Features
-
- Full HD (1920 x 1200) resolution
- 3.5mm earphone slot
- Lightweight design with 0.9" thickness
- IPS panel with 160° viewing angles
- Camera mode
- Image freeze function
- Zoom-all function
- Hidden port design to protect plug connectors
- 323 ppi pixel density
- Color temperature adjustment

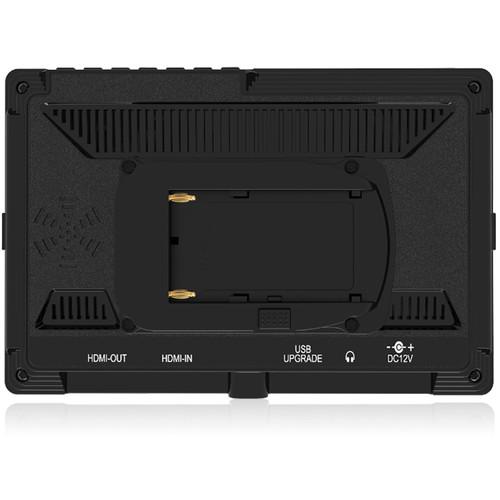

- HDMI input/output, and USB for upgrade
- Standard shoe mount (360° rotation)

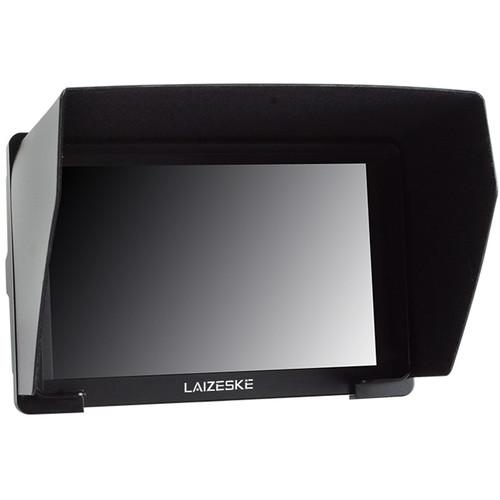

UPC: 612520464707 In the Box Laizeske 7" 4K HDMI On-Camera IPS Monitor Mini HDMI Cable Sunshade Shoe Mount Adapter L-Series Battery Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 7" 4K HDMI On-Camera IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRH7 Specs | Screen Size | 7" (17.8 cm) | | Resolution | 1920 x 1200 | | Pixel Pitch | 0.07875 x 0.07875 mm | | Aspect Ratio | 16:10 | | Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 80°/80°/80°/80° | | Input | 1 x HDMI | | Output | 1 x HDMI | | Audio Output | Stereo headphone, built-in speaker | | HDMI Format Support | 4096 x 2160p 24
3840 x 2160p 30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p / 576i
480p / 480i | | Input Voltage | 7 to 24 VDC | | Power Consumption | ≤8 W | | Mounting Thread | 1/4"-20 threaded socket (bottom) | | Battery Plate | L-Series type (standard)
D28S/D54, LP-E6, U60 (optional) | | Operating Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Dimensions | 7.0 x 4.7 x 0.9" (18.0 x 12.0 x 2.3 cm) | | Weight | Without Battery Plate: 10.9 oz (310 g)
With Battery Plate: 12 oz (340 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.9 x 6.4 x 3.2" |
