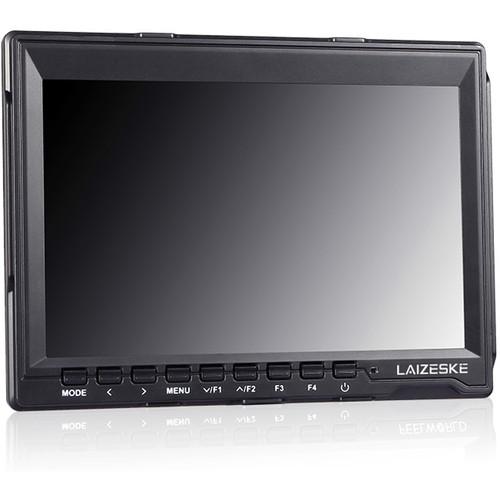

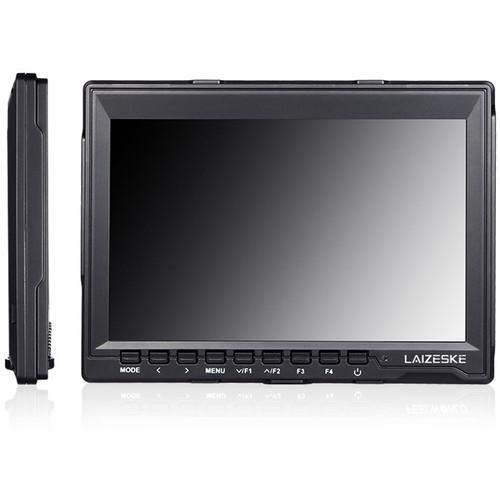

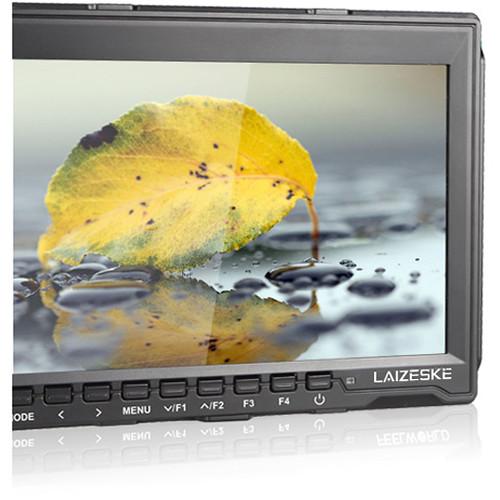

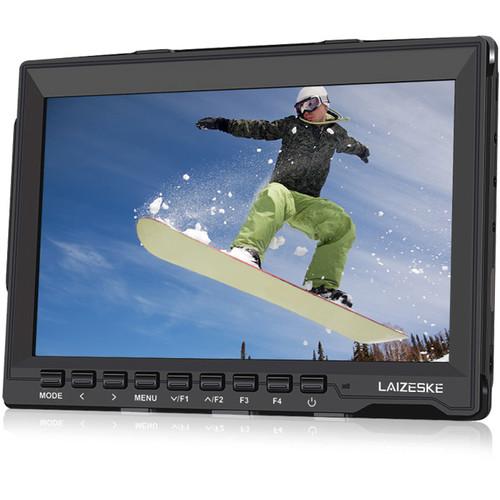

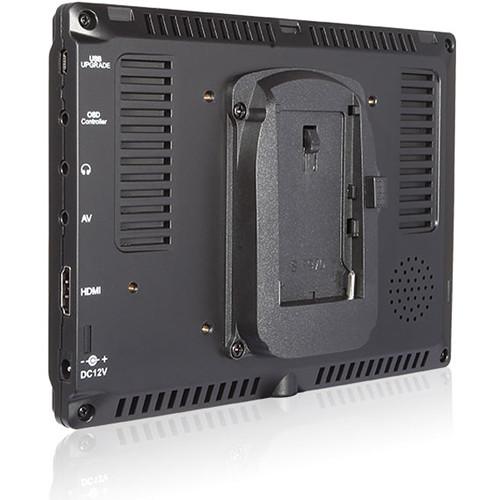

Product description The 7" IPS 1280 x 800 HDMI HD On-Camera Field Monitor from Laizeske is a portable LCD monitor designed for professional HDV and HDSLR cameras. With a slim design and 17mm thickness, it is compatible with Steadicam, DSLR rig, camcorder kit, handheld stabilizer, and video camera crane. The wide color gamut LCD panel features a 400 cd/m2 brightness output and 1280 x 800 resolution. The HDMI lock ensures the safety of signal transmission during a bad connection. - Peaking Focus Assist
- When the peaking filter is activated, the internal processor displays a colored highlight on the screen where sharp edges appear. It shows red highlight over parts of the monochrome image in focus.
- Check Field (Red, Green, Blue, Mono)
- Adjust camera color settings using the check field mode, using red, green, blue, or mono pixels to generate the image. Hue and saturation can be adjusted quickly and accurately in this environment.
- Pixel-To-Pixel
- You can enable the filmmaker to check the image from the 1:1 signal source without scaling.
- Center Marker and Safe Marker
- Safely set up your shot with composition markers (80%, 85%, 90%, 93%, 96%, and 2.35:1).
- Image Flip
- This feature allows you to flip the image vertically, horizontally, or vertically and horizontally together.
- Other Features
-
- Camera mode
- Image freeze
- Zoom all (Up/Down and Left/Right zoom)
- Custom color temperature

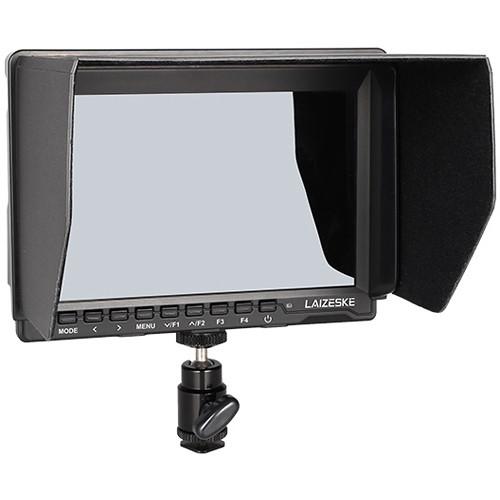

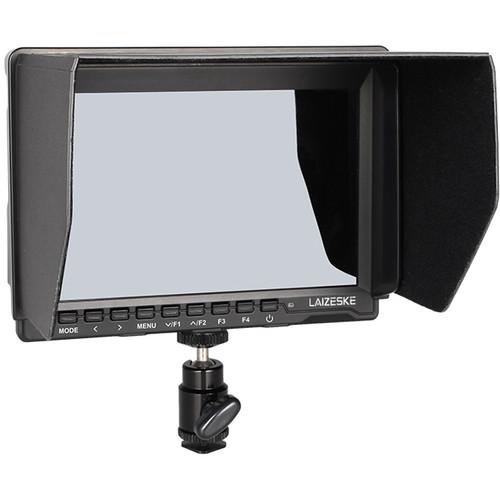

- Collapsible sunshade
- IPS panel
UPC: 711583466281 In the Box Laizeske 7" IPS 1280 x 800 HDMI HD On-Camera Field Monitor with Peaking Focus Mini HDMI Cable Sunshade Shoe Mount Adapter L-Series Battery Plate HDMI Plug Lock Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske 7" IPS 1280 x 800 HDMI HD On-Camera Field Monitor with Peaking Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR759 Specs | Screen Size | 7" (17.8 cm) | | Resolution | 1280 x 800 | | Pixel Pitch | 0.1177 x 0.1177 mm | | Aspect Ratio | 16:10 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Backlight | LED | | Viewing angle (L/R/T/B) | 89°/89°/89°/89° | | Input | 1 x HDMI
1 x AV
1 x OSD controller (Wire remote OSD controller) | | Audio Output | Stereo headphone, speaker | | HDMI Format Support | 480i/576i/480p/576p
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/24psF/23.98/ 23.98psF | | Input Voltage | 6.5 to 35 VDC | | Power Consumption | ≤5 W | | Power Connector | DC | | Battery Plate | L-series type (standard)

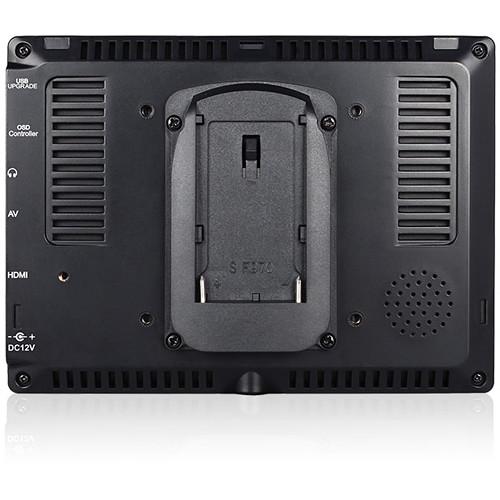

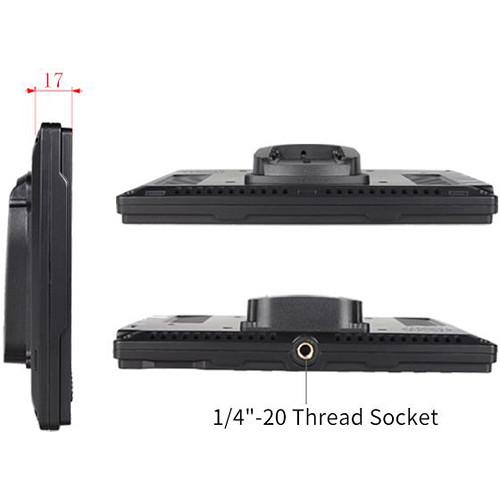

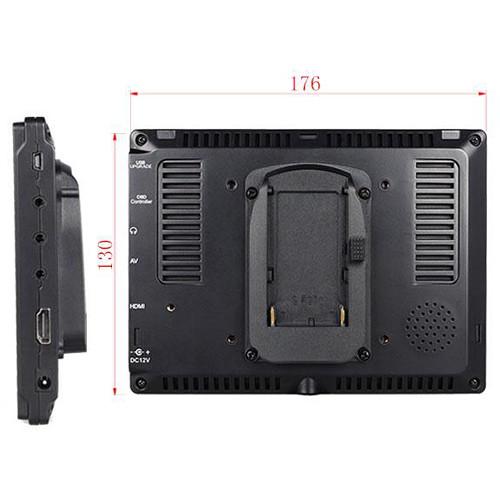

D28S, LP-E6 (Optional) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Mounting Thread | 1/4"-20 threaded socket (one bottom side) | | Dimensions | 6.9 x 5.1 x 0.7" (17.6 x 13 x 1.7 cm) | | Weight | 10.6 oz (300 g) |
