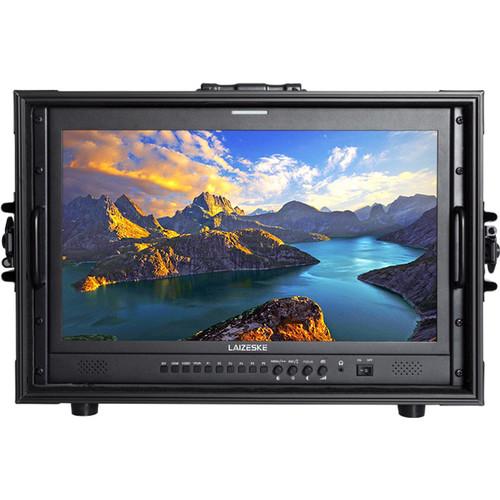

User Manual for Laizeske CO215S 21.5" Carry-On Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske CO215S 21.5" Carry-On Monitor
- Product category: Production Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Production Monitors
|
User manual for the Laizeske CO215S 21.5" Carry-On Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|
Product description The Laizeske CO215S 21.5" Carry-On Monitor is a road-ready monitoring solution for directors, focus pullers, or clients that require a display that's ready to go at any time. SDI, HDMI, component, and composite inputs are available for connecting HD or SD video sources. Those sources will show up on the 21.5" IPS LCD screen, whose 250 cd/m² brightness and 3000:1 contrast ratio offers rich color and sharp images for visual analysis. Monitoring tools such as focus peaking and markers are built-in, extending the functionality of the display. The display itself in enclosed in an aluminum travel suitcase which can be propped up on a flat surface for quick setups without a stand. Further ensuring that this monitor remains portable, a V-mount battery plate is provided next to the video inputs. All monitor functionality can be accessed via the easily reachable front-panel controls. - Wide viewing angles with 1920 x 1080 resolution
- Peaking focus assist (red highlight over parts of the monochrome image in focus)
- Check field (red, green, blue, mono)
- Safe marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image flip (horizontal, vertical)
- Monitoring via front panel 3.5mm stereo headphone port and built-in speaker
- Built-in LED tally indicators (red, green, yellow)
- Power using included 12V supply or use standard 4-pin XLR
UPC: 711583465840 In the Box Laizeske CO215S 21.5" Carry-On Monitor Mini HDMI Cable Power Adapter Tally Kit Sunshade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske CO215S 21.5" Carry-On Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske CO215S Specs | Screen Size | 21.5" / 54.6 cm | | Color Depth | 16.7 million | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Backlight | LED | | Viewing Angle | 89°/89° (L/R)
89°/89° (U/D) | | Input | SDI: 1 x BNC 3G/HD/SD-SDI
HDMI: 1 x HDMI type A
Component: 1 x 3BNC
Composite: 1 x BNC
Audio: 1 x 2RCA, stereo | | Output | SDI: 1 x BNC 3G/HD/SD-SDI
HDMI: 1 x HDMI type A
Component: 1 x 3BNC
Composite: 1 x BNC | | Audio Output | 3.5 mm stereo headphone port
Speaker | | HDMI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576p/576i
480p/480i | | Input Voltage | 12 VDC | | Power Consumption | ≤15 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 20.1 x 13.9 x 1.5" / 51.1 x 35.3 x 3.8 cm (without suitcase)
23.2 x 16.1 x 10.2" / 58.9 x 40.9 x 25.9 cm (with suitcase) | | Weight | 31.9 lb / 14.5 kg (with suitcase) | | | | Package Weight | 35.45 lb | | Box Dimensions (LxWxH) | 24.9 x 19.3 x 12.8" |
