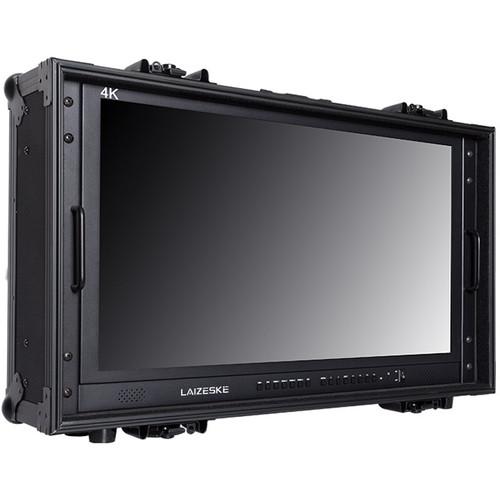

User Manual for Laizeske CO280S 28" 4K Carry-On Production Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske CO280S 28" 4K Carry-On Production
- Product category: Production Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Production Monitors
|
User manual for the Laizeske CO280S 28" 4K Carry-On Production contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|
Product description For high-resolution productions on the go, the Laizeske CO280S 28" 4K Carry-On Production Monitor is built into a heavy-duty travel suitcase. Pop off the front and rear covers to access the screen, I/O, and power options. The full capacity of the 3840 x 2160 UHD resolution 10-Bit LCD panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, or up to 60 fps by the single HDMI 2.0 input. Other inputs available on the back panel include SDI (with a loop-through output), DVI, and VGA. Video signals input via any of these ports will be properly scaled to fit the entire screen. Multiple inputs can be viewed simultaneously using the quad-view or picture-in-picture modes. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor's built-in speakers or the 3.5mm headphone output. For power, this monitor accepts a wide range of voltages ranging from 12 to 24 VDC. In the studio, the included power supply connects to mains power, while in the field the monitor will accept battery power via the built-in V-mount plate. The included tally connector passes tally information through to the monitor when connected to a switcher. A sunshade is included for increased visibility outdoors. Features - Center/aspect ratio markers
- Front-panel speakers and headphone output
UPC: 711583466656 In the Box Laizeske CO280S 28" 4K Carry-On Production Monitor Mini HDMI Cable Power Adapter Tally Kit Sunshade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske CO280S 28" 4K Carry-On Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske CO280S Specs | Screen Size | 28" / 71.1 cm | | Color Depth | 10-bit | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Brightness | 300 | | Contrast Ratio | 1000:1 | | Backlight | LED | | Viewing Angle | 170/160° (H/V) | | Input | SDI: 1 x BNC, 3G-SDI
HDMI: 1 x HDMI type A v2.0, 3 x HDMI type A v1.4
DVI: 1 x DVI-I
VGA: 1 x DE-15
Audio: 1 x 2RCA, stereo | | Output | SDI: 1 x BNC, 3G-SDI | | Audio Output | 3.5 mm stereo headphone port
Speaker | | HDMI Format Support | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576p/576i
480p/480i | | SDI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
576i
480i | | Input Voltage | 12-24 VDC | | Power Consumption | Up to 45 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | Monitor Only: 28.8 x 16.1 x 1.5" / 73.1 x 41 x 3.9 cm
With Suitcase: 30.7 x 18.5 x 9.8" / 78 x 47 x 25 cm | | Weight | 47.8 lb / 21.7 kg | | | | Package Weight | 51.4 lb | | Box Dimensions (LxWxH) | 32.8 x 20.5 x 12.8" |
