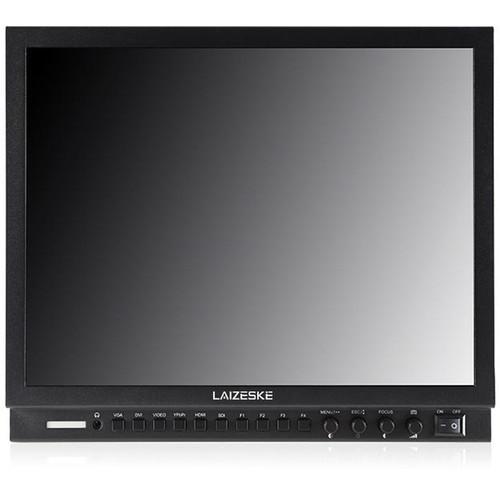

User Manual for Laizeske DR150H 15" LCD Production Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske DR150H 15" LCD Production Monitor
- Product category: Production Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Production Monitors
|
User manual for the Laizeske DR150H 15" LCD Production Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|
Product description With the Laizeske DR150H 15" LCD Production Monitor you can monitor SD or HD video signals from professional, consumer, analog, or digital video sources. HDMI, DVI, component, and composite video connections are available for input, and HDMI, component, and composite connections have outputs as well. The 1024 x 768 resolution LCD panel features an 800:1 contrast ratio and a 350 cd/m² brightness for use in studio environments. In the field, the DR150H can be powered by a separately available V-mount battery using the integrated plate. In adverse lighting conditions, use the included hood to shield the display from glare and reflections. A tabletop U-bracket, power supply, and mini HDMI cable are included as well. Features - 1024 x 768 resolution panel
- HDMI, YPbPr, DVI-I, video, and audio (L/R) inputs
- HDMI, YPbPr, and video loop-through outputs
- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in 3-color LED tally indicators
- Four assignable shortcut keys (F1, F2, F3, and F4) on the front panel for easy access
- Peaking focus assist (red highlight over parts of the monochrome image in focus)
- Check field (red, green, blue, and mono) assists in adjusting the camera color settings
- Camera mode function (full screen mode)
- Pixel to pixel with 1:1 mapping without scaling
- Safe marker (80%, 85%, 90%, 93%, 96%, and 2.35:1) for view finding and composition
- Image flip (horizontal, vertical, and horizontal and vertical modes)
- U/D and L/R zooming and zoom all mode
- Power using included 12 VDC supply or standard 4-pin XLR connector
- Full aluminum case for durability
- Includes a portable sunshade
UPC: 711583466212 In the Box Laizeske DR150H 15" LCD Production Monitor Mini HDMI Cable Power Supply Tally Kit Sunshade U-Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske DR150H 15" LCD Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR150H Specs | Screen Size | 15" / 38.1 cm | | Resolution | 1024 x 768 | | Pixel Pitch (H x V) | 0.297 x 0.297 mm | | Aspect Ratio | 4:3 | | Viewing Angle | 80°/80° (L/R)
65°/80° (U/D) | | Brightness | 350 cd/m
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
