User Manual for Laizeske DR215DSW 21.5" Full HD 3G-SDI HDMI IPS LED-Backlit Production Monitor Click to enlarge the picture
Contents of the user manual for the Laizeske DR215DSW 21.5" Full HD 3G-SDI
- Product category: Production Monitors Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Production Monitors
|
User manual for the Laizeske DR215DSW 21.5" Full HD 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|

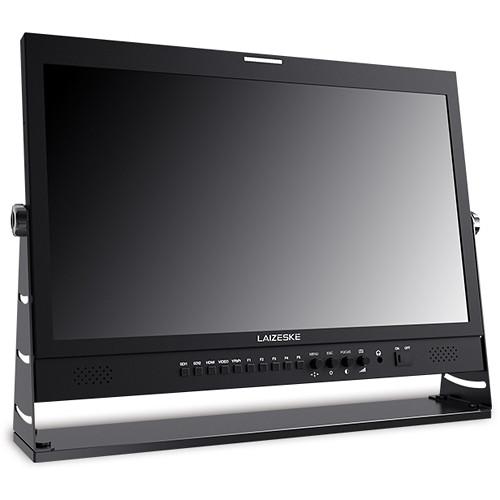

Product description The DR215DSW 21.5" 3G-SDI/ HDMI IPS Production Monitor from Laizeske features an IPS LCD display with a native resolution of 1920 x 1080 and wide color gamut for precise color restoration. This LED-backlit panel offers 178° wide viewing angle and contrast ratio of 3000:1. Its rear panel features two 3G/SD-SDI, HDMI, and YPbPr inputs, and outputs that support all HD, SD, and analog video signals. For audio, the monitor features left/right audio inputs, one 3.5mm stereo headphone jack on the front panel, and a built-in speaker.
The monitor comes with a three-color (red, green, and yellow) tally light, which can be controlled via a DB-9 port on the rear side. The built-in waveform monitoring functions allow for simultaneous viewing of two independent sources with convenient switching between monitoring or scope views whenever required. In the All Scopes Mode, the video shrinks approximately to the size of the display and tiles your choice of vectorscope, histogram, and waveform on the border.
The monitor comes with a V-mount battery plate that attaches to the rear side for battery mounting. It can either be powered using the included 12 VDC adapter, or via lithium-ion batteries through a standard 4-pin XLR connector. - 1920 x 1080 Full HD resolution
- Suitable for pre-production, post-production, and color calibration applications
- Two 3G/HD/SD-SDI, HDMI, YPbPr, and audio (L/R) inputs
- Two 3G/HD/SD-SDI, HDMI, and YPbPr outputs
- Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
- Built-in LED tally indicators
- SDI 1, SDI 2, HDMI, video, and YPbPr signal switches on the front panel
- Five assignable shortcut keys (F1, F2, F3, F4, and F5) for easy access to assigned functions
- Four rotary encoder switches provide access to menu, brightness, contrast, focus, and camera mode
- Waveform (RGB, YUV, Y luminance) feature assists in correcting the image exposure
- Vectorscope allows users to monitor color gamut range in real time
- Color histogram is a graphical display of the distribution of tones (red, green, and blue)
- Brightness histogram is a quantitative tool to check the picture brightness
- Embedded audio meter can generate accurate audio level displays to prevent errors during monitoring
- Peaking focus assist four-color (red, green, blue, and white) optional highlight over parts of the image in focus
- False color filter assists in setting the camera exposure
- Zebra exposure assists in exposure adjustment
- Check field (gray, red, green, and blue) assists in adjusting the camera color settings
- Internal color bars analyze the monitor image color and adjusts tone, brightness, etc.
- Camera mode (full-screen mode)
- Scan mode (auto, overscan, and full-screen)
- Pixel-to-pixel with 1:1 mapping without scaling
- Real-time video zoom-in (standard, 4x, 9x, and 16x)
- Anamorphic mode (1.3x, 2.0x, and 2.0x mag)
- Image flip (horizontal, vertical, and horizontal/vertical modes)
- Nine-grid view with single-grid zooming function
- Safe area (80%, 85%, 90%, 93%, and 96%)
- Marker type (16:9, 4:3, 2.35:1, and 1.85:1)
- Marker color (red, green, blue, white, gray, black, cyan, purple, and yellow) depending on tone of the subject
- Color temperature adjustment
- Includes a collapsible sunshade for optimal contrast when shooting outdoors
- Power using included 12 VDC supply or standard 4-pin XLR connector
- Durable machined aluminum housing
UPC: 711583466663 In the Box Laizeske DR215DSW 21.5" Full HD 3G-SDI/ HDMI IPS LED-Backlit Production Monitor Mini HDMI Cable V-Mount Battery Plate Power Adapter Tally Kit Collapsible Sunshade U-Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske DR215DSW 21.5" Full HD 3G-SDI HDMI IPS LED-Backlit Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR215DSW Specs | Applications | Suitable for pre-production, post-production, and color calibration | | Monitor Type | IPS LCD panel | | Screen Size | 21.5" / 54.6 cm | | Resolution | 1920 x 1080 | | Pixel Pitch (H x V) | 248.25 x 248.25
