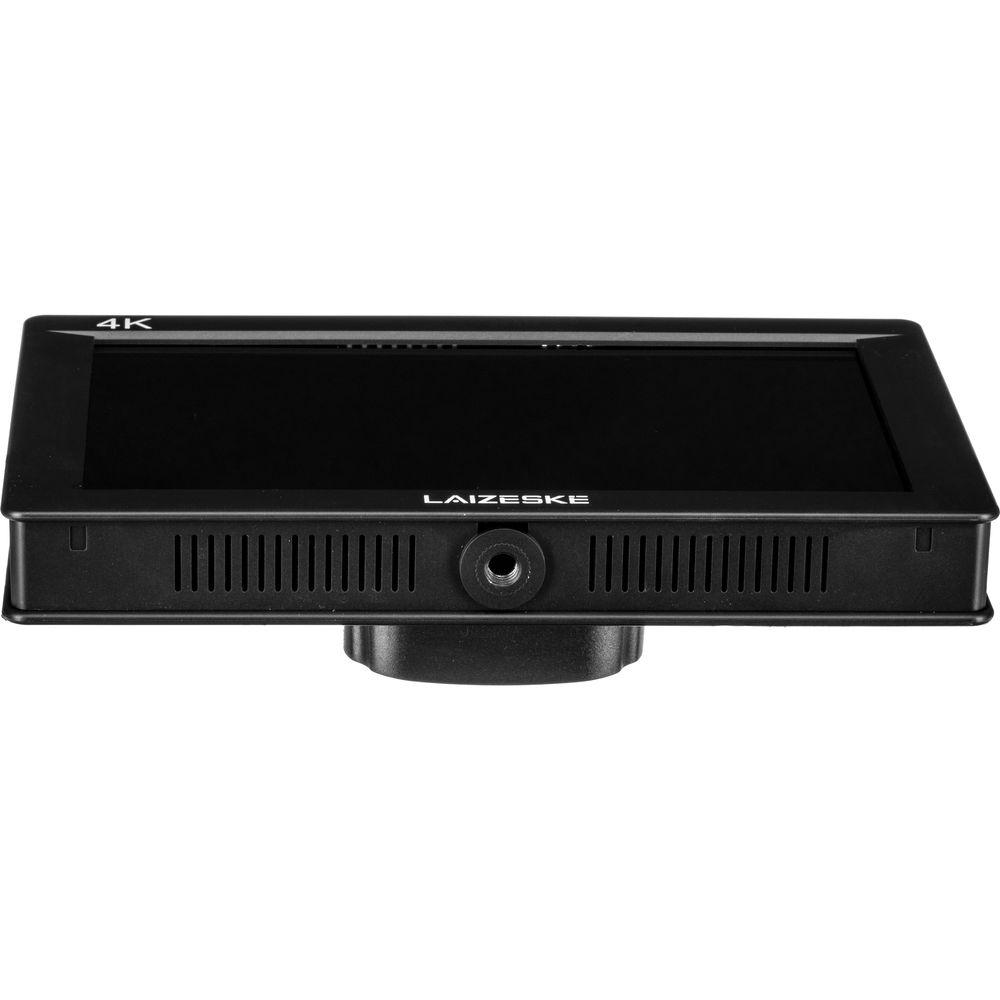

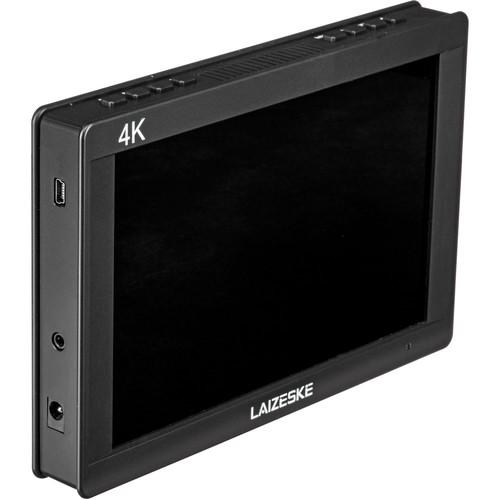

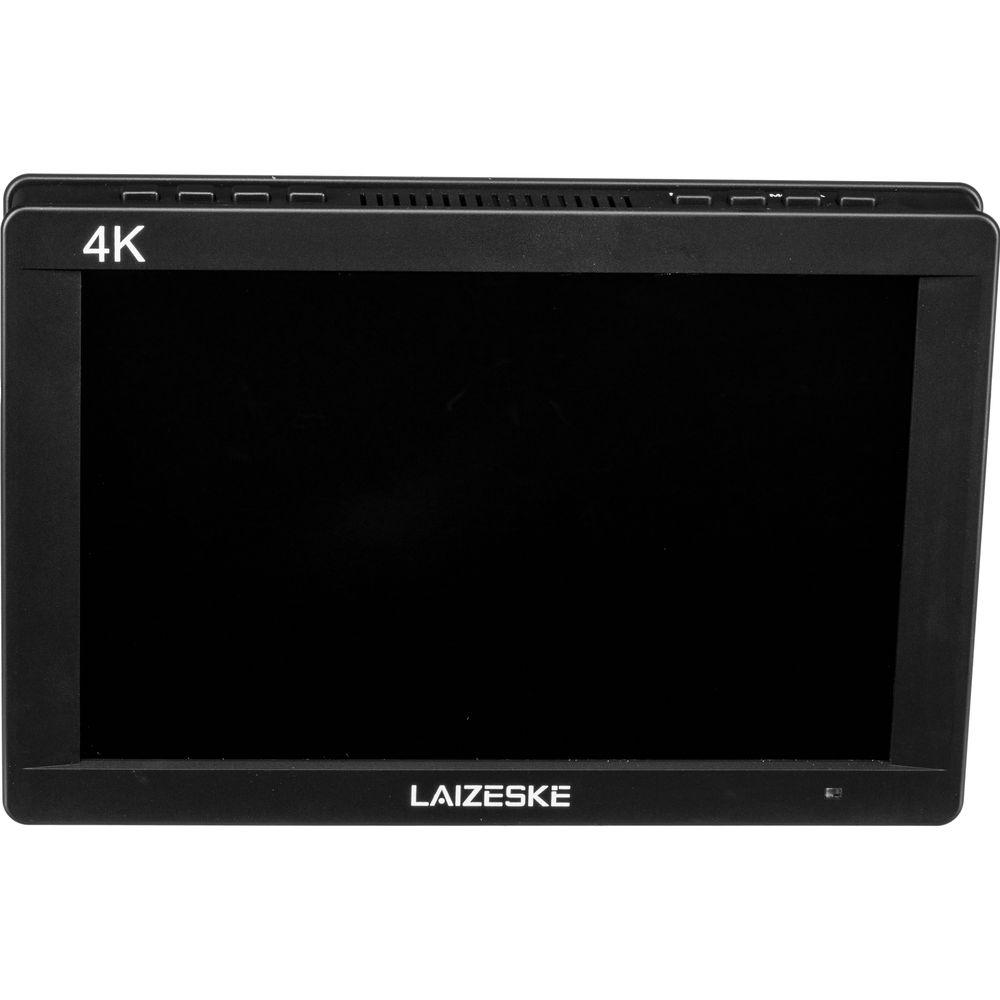

Product description The DR703 7" On-Camera SDI/HDMI Monitor from Laizeske features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and a 450 cd/m² measured brightness for easy viewing indoors. Inputs and outputs of the SDI and HDMI variety are offered for connecting both professional and consumer video sources. Over HDMI, DCI and UHD 4K resolutions are supported; DCI at 24 fps, and UHD up to 30 fps. The SDI input supports HD and SD resolutions up to 60 fps.Monitoring features that can help you achieve your desired image are built in. These include histogram, zebras, and false color for exposure monitoring, focus peaking, zoom, nine-grid, and 1-to-1 pixel mapping for critical focus, plus image flip, markers, anamorphic de-squeeze, and camera mode for checking your composition. An HDMI to Mini HDMI cable, sun hood, and shoe mount adapter are all included with the monitor. - Key Features
-
- Histogram
- Focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid zoom
- Embedded audio meters
- Camera mode
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel mapping
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Color temperature adjustment
UPC: 610877751747 In the Box Laizeske DR703 7" On-Camera SDI/HDMI Monitor HDMI to Mini HDMI Cable Shoe Mount Adapter Sun Hood L-Series Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske DR703 7" On-Camera SDI HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DR703 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160° (80/80)

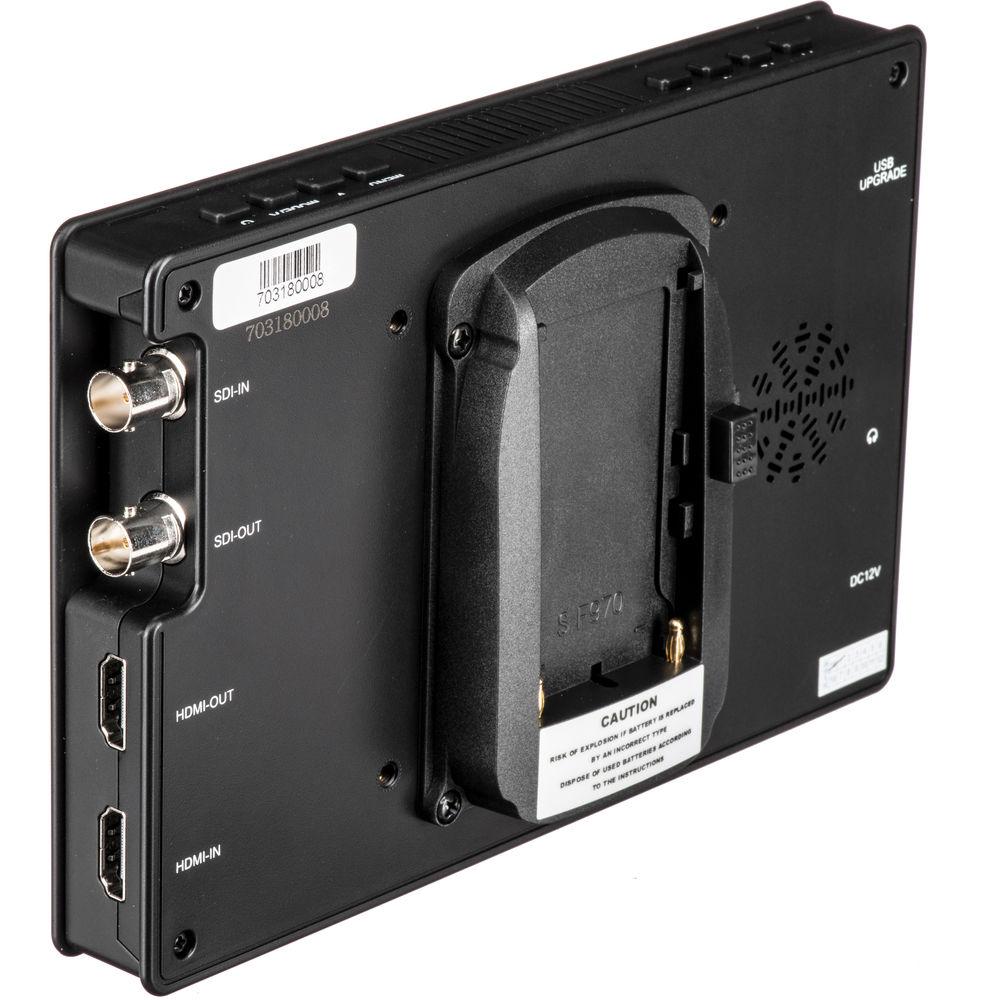

Vertical: 160° (80/80) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 323 ppi | | Color Gamut | 100% Rec. 709 | | Real-Time LUT Monitoring | No | | | | Video | 1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 1.4b) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.4b) Output | | Embedded Audio | HDMI: 2-Channel
SDI: 2-Channel | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | 1 x USB 2.0 (Proprietary) | | Card Slot | None | | | | Video Format | SDI
1080p
1080PsF
1080i
720p
NTSC
PAL
HDMI
DCI 4K
UHD 4K
1080p
1080PsF
1080i
720p
576p
480p
NTSC
PAL | | | | DC Input Power | 6 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 9 W (Maximum) | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C
-22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 7.09 x 4.72 x 0.87" / 180 x 120 x 22 mm | | Weight | 0.70 lb / 320 g
0.77 lb / 350 g, Including Battery Plate | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.9 x 6.4 x 3.2" |
