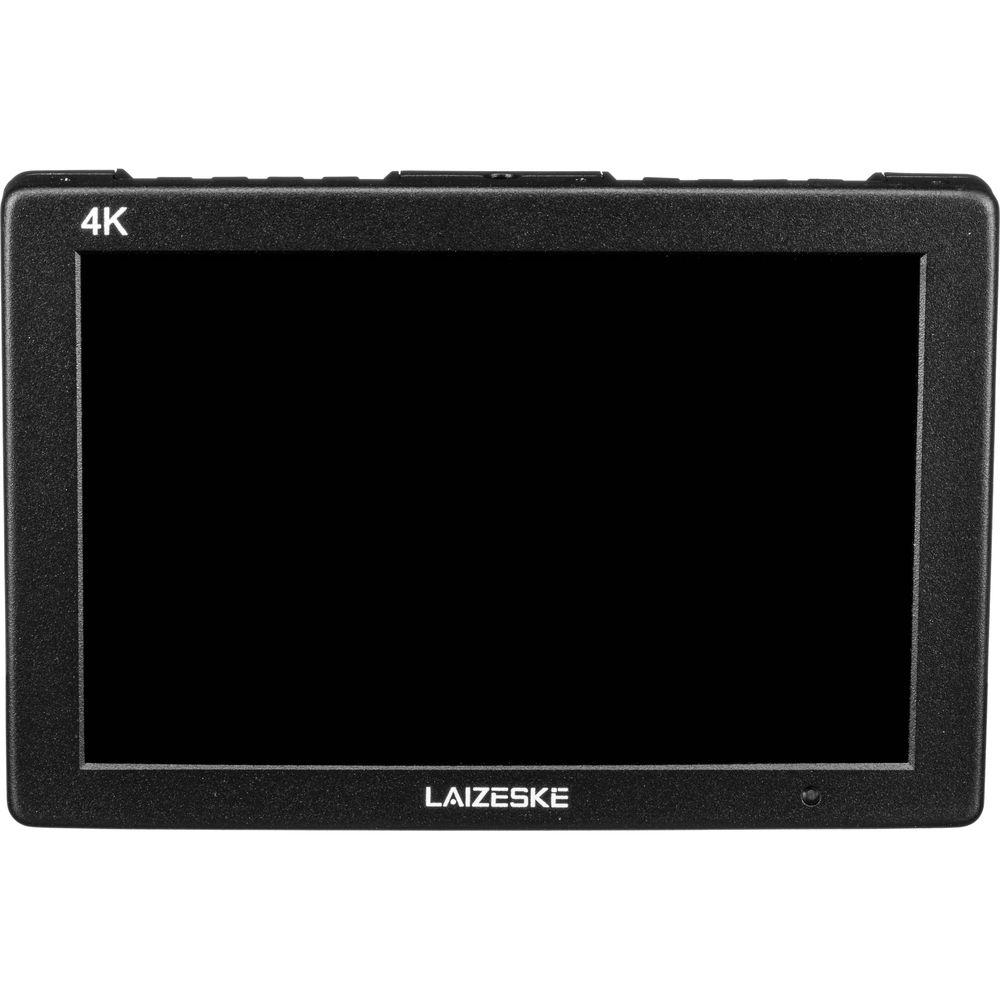

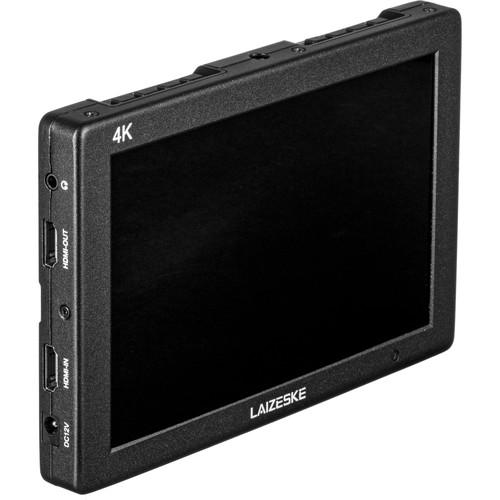

Product description The DRT7 7" On-Camera HDMI 4K Monitor from Laizeske features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and a 450 cd/m² brightness for easy viewing indoors. The monitor features one HDMI input and one HDMI loop output for connecting both professional and consumer video sources.

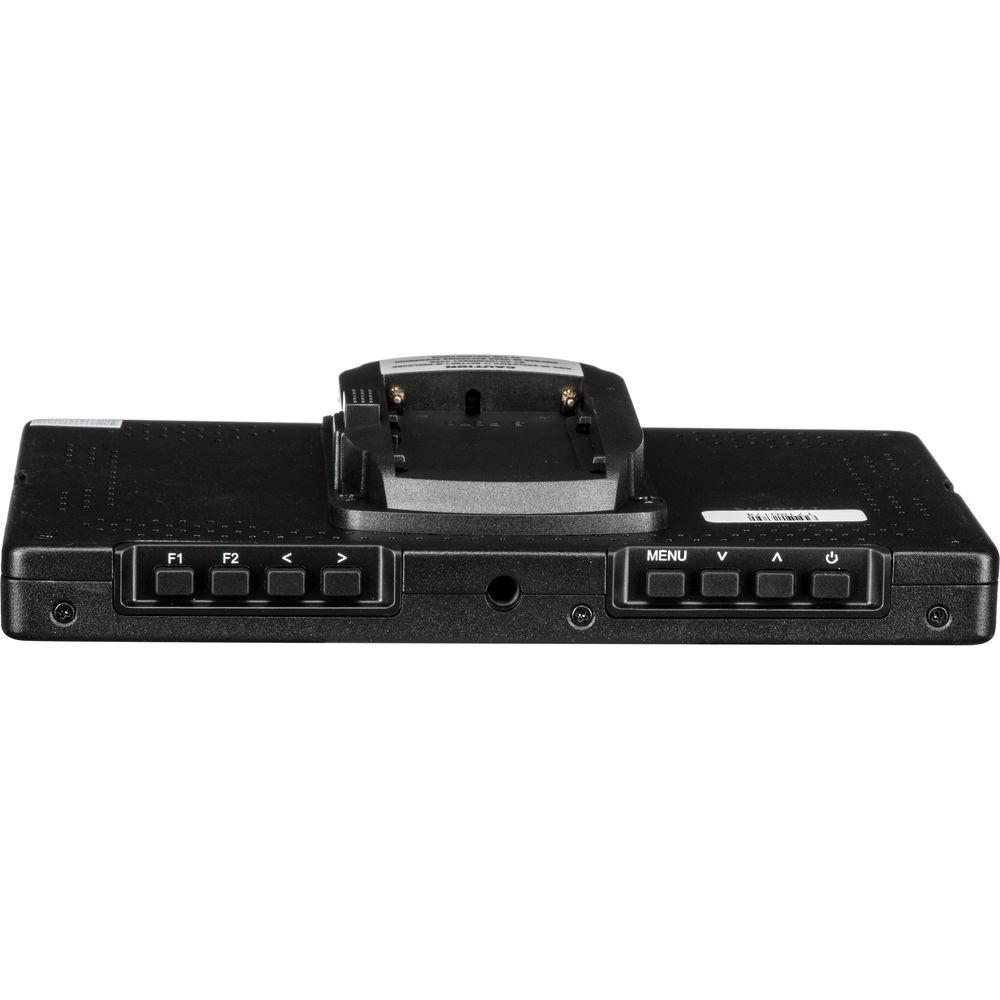

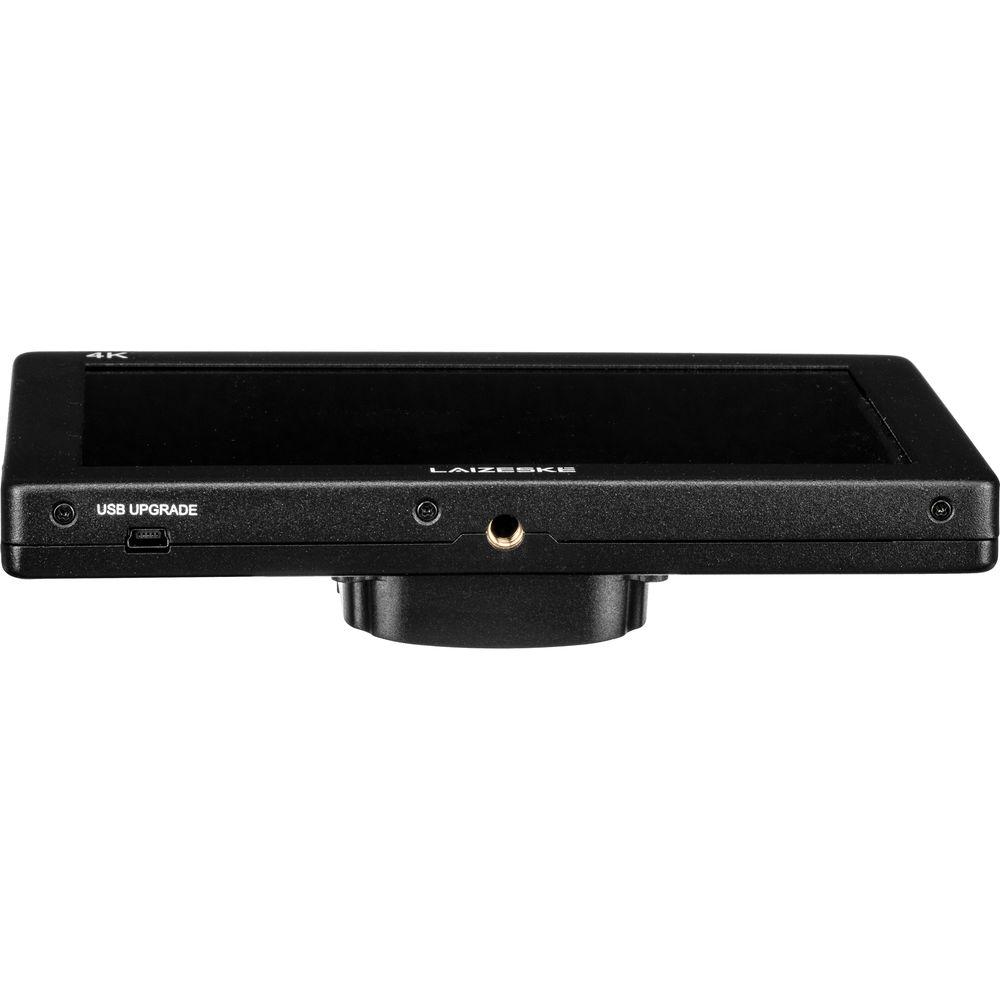

Over HDMI, DCI and UHD 4K resolutions are supported; DCI at 24 fps, and UHD up to 30 fps. It also supports HD and SD resolutions up to 60 fps, and its HDMI loop-out port shares the signal to additional monitors. It is constructed with a durable metal housing and features a 3.5mm headphone jack and a built-in speaker. The housing has 1/4"-20 mounting threads on both the top and bottom to mount it on an articulating arm, cage, rig, or the included hot shoe adapter.

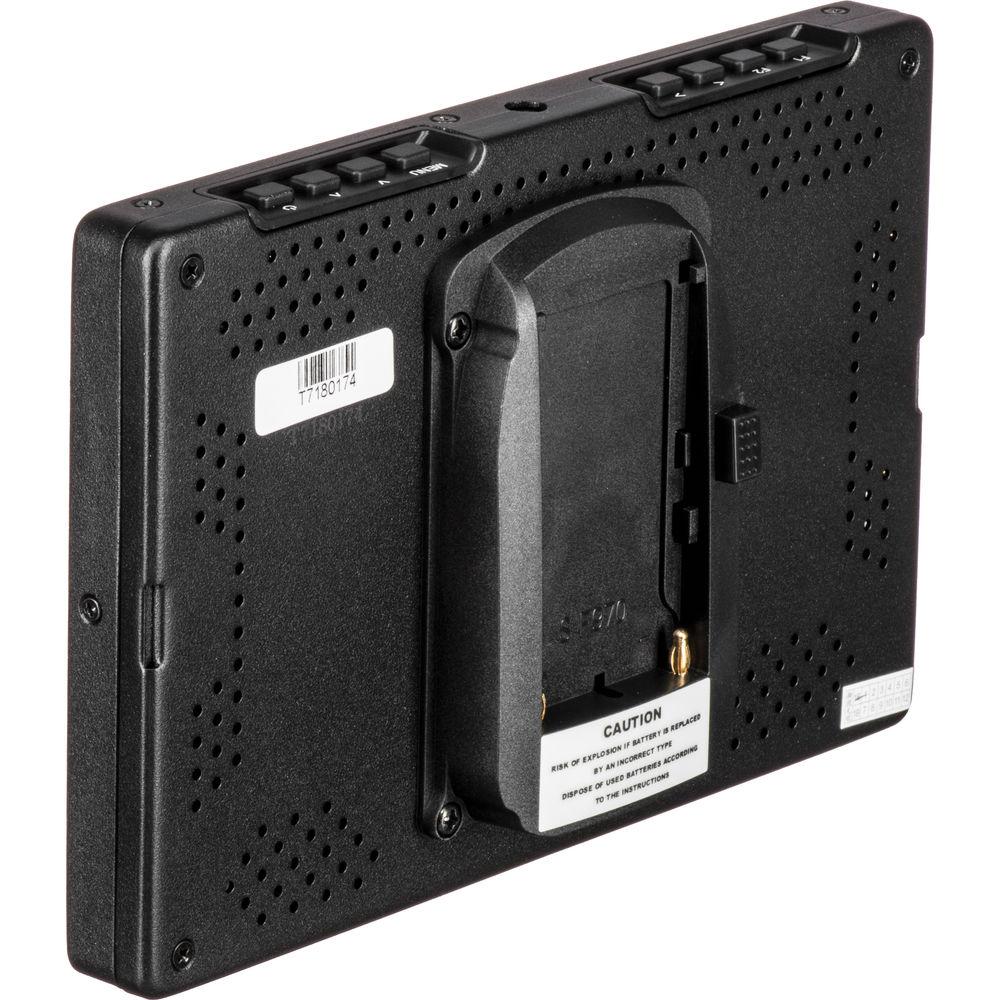

Monitoring features that can help you achieve your desired image are built in. These include histogram, zebras, and false color for exposure monitoring, focus peaking, zoom, nine-grid, and 1-to-1 pixel mapping for critical focus, plus image flip, markers, anamorphic de-squeeze, and camera mode for checking your composition. An HDMI to mini HDMI cable, NP-F970 L-series battery plate, and sun hood are also included with the monitor. - Display
- 7" IPS LED with 1920 x 1200 resolution, 450 cd/m
|
Upload User Manual
Have you got an user manual for the Laizeske DRT7 7" On-Camera HDMI 4K Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRT7 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160° (80/80)
Vertical: 160° (80/80) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 323 ppi | | Color Gamut | 100% Rec. 709 | | Real-Time LUT Monitoring | No | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Input
1 x HDMI Type A (HDMI 1.4b) Output | | Embedded Audio | HDMI: 2-Channel | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | 1 x USB 2.0 (Proprietary) | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p
480p
NTSC
PAL | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 8 W (Maximum) | | | | Mounting | 2 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C
-22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 7.09 x 4.72 x 0.71" / 180 x 120 x 18 mm | | Weight | 0.70 lb / 320 g
0.77 lb / 350 g, Including Battery Plate | | | | Package Weight | 1.995 lb | | Box Dimensions (LxWxH) | 8.95 x 6.35 x 3.15" |
