User Manual for Laizeske DRW151 SDI HDMI Wireless Transmitter Receiver System Click to enlarge the picture
Contents of the user manual for the Laizeske DRW151 SDI HDMI Wireless Transmitter
- Product category: Wireless Transmission Systems Laizeske
- Brand: Laizeske
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laizeske Wireless Transmission Systems
 |
User manual for the Laizeske DRW151 SDI HDMI Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laizeske product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laizeske user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laizeske product will considerably shorten its lifespan!
|

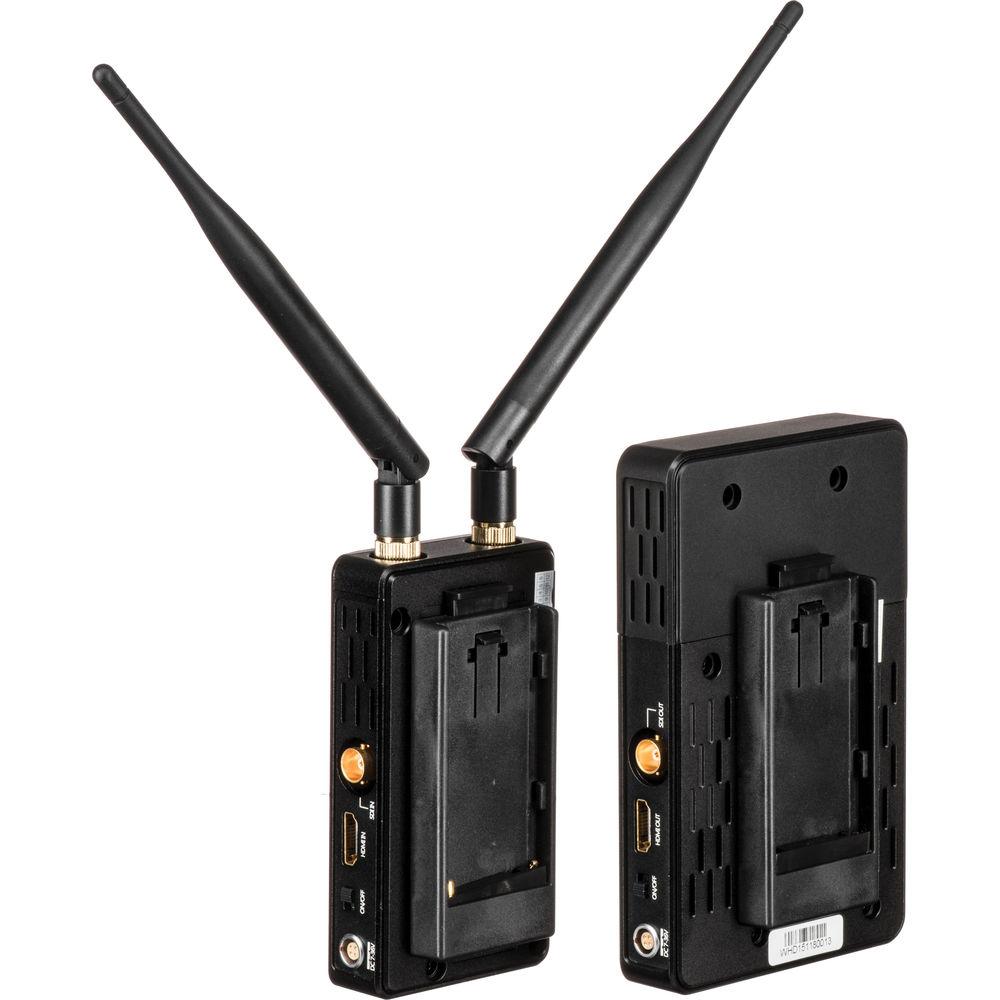

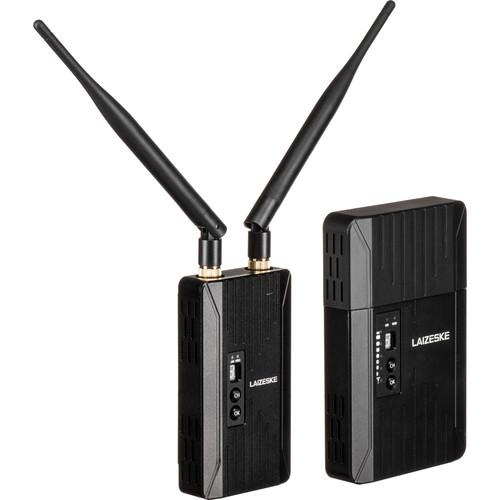

Product description Whether your camera is mounted on a stabilizer or your director wants to move around the set untethered, the Laizeske DRW151 SDI/HDMI Wireless Transmitter/Receiver System lets you monitor an HDMI or SDI video feed from up to 492' away on the 5 GHz band. Both the SDI and HDMI outputs on the receiver are active simultaneously, so video from a consumer-grade source can be shown on a broadcast monitor and vice versa. The transmission can be up to 1080p resolution at 60 fps, and since no compression is used, no extra artifacting will mar the image. Both the transmitter and receiver can be powered via D-Tap power source using the included power cables or with a Sony L-series battery via the built-in battery plates. Features - WHDI (MIMO/OFDM) technology
- Uncompressed SDI and HDMI inputs/outputs
- Up to 1080p 60 fps with less than 1 frame of latency
- 492' line-of-sight transmission distance
- One transmitter can transmit to multiple receivers
- Power via D-Tap or Sony L-series batteries
- 1/4"-20 threads for securing to your rig
- Supports 7-36V input voltage
UPC: 610877751242 In the Box Laizeske DRW151 SDI/HDMI Wireless Transmitter/Receiver System 2 x D-Tap Power Cables 2 x Antennas Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laizeske DRW151 SDI HDMI Wireless Transmitter Receiver System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaizeske DRW151 Specs | Inputs | 3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x HDMI type A | | Outputs | 3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x HDMI type A | | Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
576i
480i | | Frequency Band | 5.1-5.9 GHz | | Modulation Mode | OFDM 16QAM | | Transmission Distance | Up to 492' / 150 m (line-of-sight) | | Latency | Up to 1 ms | | Power | Input: 4-pin LEMO
Voltage: 7-36 VDC
Consumption: Up to 6.5 W | | Environmental | Operating Temperature: 32 to 114°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C | | Dimensions | Transmitter: 4.8 x 2.6 x 1" / 122 x 67 x 25 mm
Receiver: 6 x 3.7 x 1" / 152 x 95 x 26 mm | | Weight | Transmitter: 9.5 oz / 270 g
Receiver: 14.1 oz / 400 g | | | | Package Weight | 6.365 lb | | Box Dimensions (LxWxH) | 14.4 x 11.9 x 5.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
