User Manual for LandAirSea Systems GPS Tracking Key 2 Click to enlarge the picture
Contents of the user manual for the LandAirSea Systems GPS Tracking Key 2
- Product category: GPS Tracking LandAirSea Systems
- Brand: LandAirSea Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LandAirSea Systems GPS Tracking
 |
User manual for the LandAirSea Systems GPS Tracking Key 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LandAirSea Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LandAirSea Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LandAirSea Systems product will considerably shorten its lifespan!
|
Product description Land Air Sea's GPS Tracking Key 2 is an ultra portable and compact GPS tracker that can be placed inside, outside, or underneath a vehicle thanks to its integrated magnetized, water-resistant mount. Two AAA batteries are required to power the device. It is capable of recording up to 100 hours of a vehicle's location data to internal flash memory. To review GPS data logs, simply transfer the files to your Windows or Mac computer and upload them to Flashback, a cloud-based service where data is stored for two weeks and is accessible on-demand via your password-protected account. You can transfer and store data logs to your computer or opt for unlimited Flashback cloud storage for a yearly subscription.
This GPS data logger works internationally. It's accurate within 7' and continuously logs driving speed, making it an optimal monitoring solution for private or fleet vehicles. Additionally, the tracker logs GPS location data, the date and time of every stop made, arrival addresses, miles traveled, and even lets you print easy-to-read text based reports.
Lastly, this tracker is powered by two AAA batteries that can provide up to 2 weeks of battery life on two hours of driving time per day. Note: The GPS Tracking Key 2 will work with any computer that has a USB port and web-browser. Land Air Sea strongly recommends using Google Chrome or Mozilla Firefox as your browser. - General Overview
-
- Ultra portable and compact design
- GPS tracking accuracy within 7" (2.5 m)
- Water-resistant magnetized mount allows the GPS Key Tracker 2 to be installed inside, outside, or underneath a vehicle
- Continuously logs driving speed and displays each day's maximum driving speed
- Logs the GPS location, date, and time of every stop
- Quick data download; the GPS Tracking Key 2 plugs into your Window or Mac computer's USB port for quick file transfer and storage
- GPS location data is compatible with Google Earth
- Flashback, a cloud-based software is available on-demand for 2 weeks; user also have the option to opt for unlimited Flashback cloud service for $35

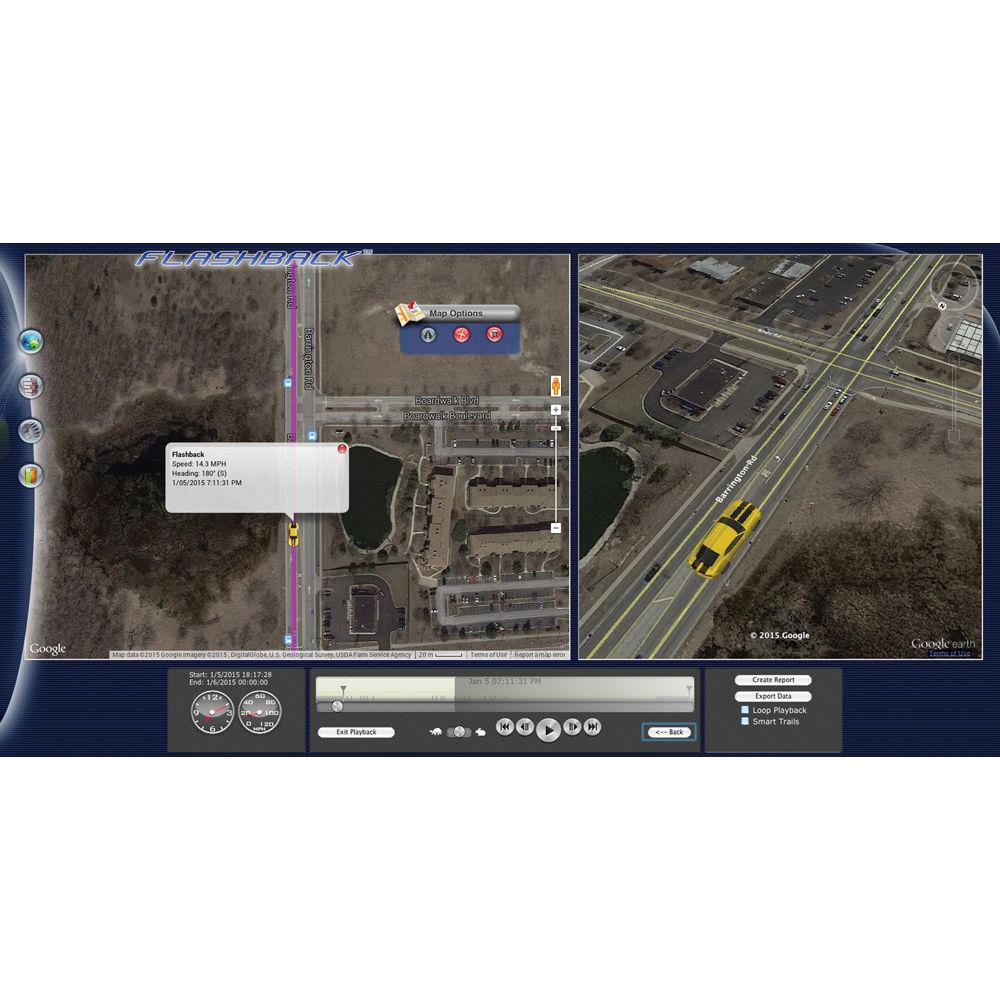

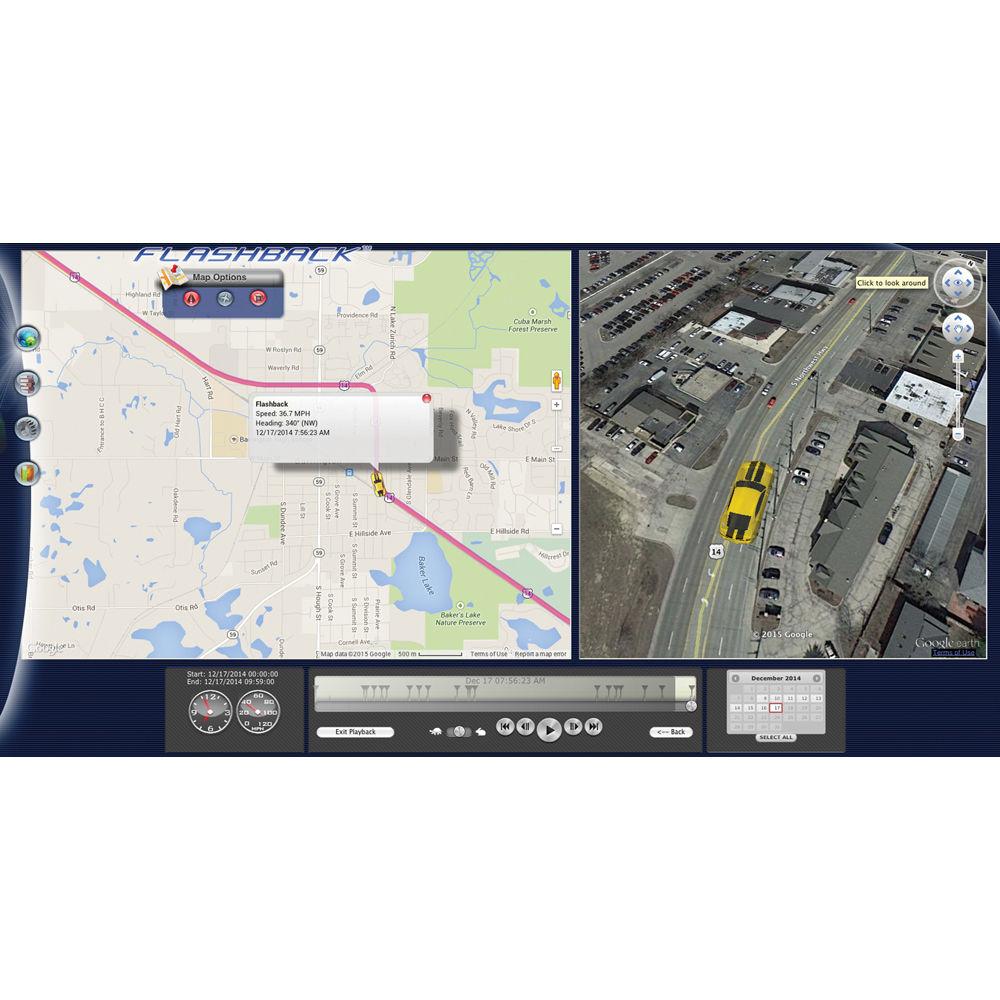

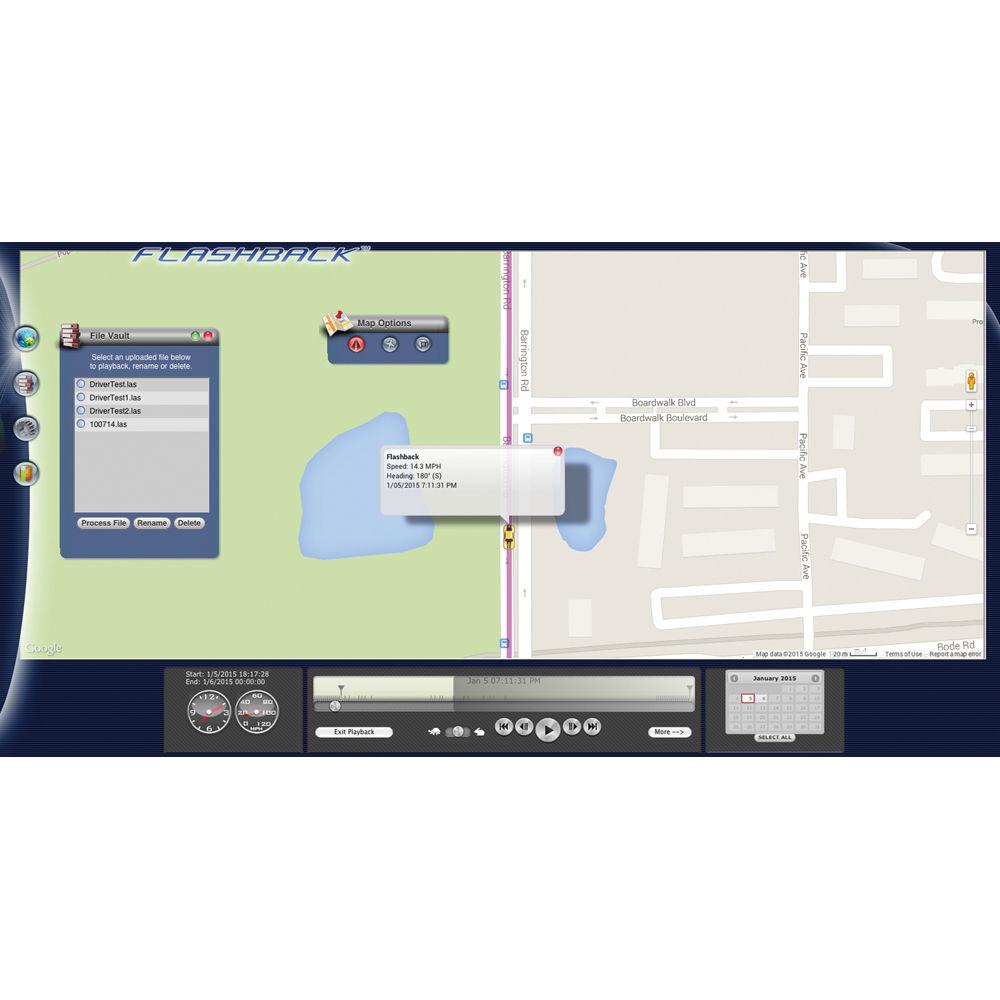

- See a vehicle's travel route visually with historical playback over a digital street map

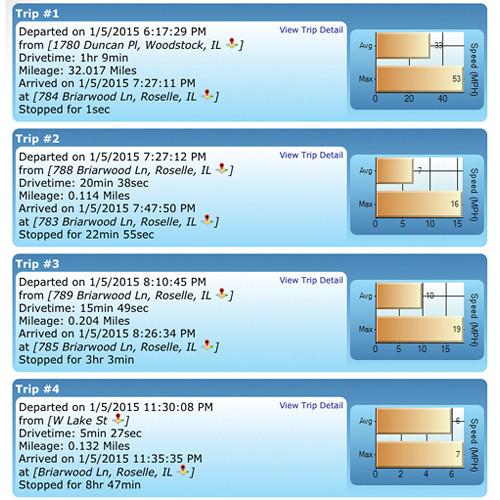

- Easily generate text-based reports that detail departure times, driving times, locations with arrival times, distance traveled, and stop times
In the Box LandAirSea Systems GPS Tracking Key 2 Limited 1-Year Warranty User Manual PDF 189.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the LandAirSea Systems GPS Tracking Key 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLandAirSea Systems 1515 Specs | Maximum Number of Satellites | 16 | | Horizontal Accuracy | 7' / 2.5 m | | Communication Protocol | NMEA | | Data Output | Flash memory (non-volatile) | | Storage Capacity | Approximately 100 hours of driving time | | Operating Systems Supported | Windows 2000 / Windows XP / Windows Vista
Mac OS X | | System Requirements | CPU: Pentium 3,500 MHz
RAM: 128 MB
Hard Disk: 400 MB free space
Network Speed: 128 kb/s
Graphics Card: 3D capable w/ 16 MB or VRAM
Screen: 1024 x 768; 16-bit high color screen | | Recommended Configuration Supported | CPU: Pentium 4 2.4 GHz+ or AMD 2400 xp+
RAM: 512 MB
Hard Disk: 2 GB free space
Network Speed: 768 kb/s
Graphics Card: 3D capable w/ 32 MB of VRAM
Screen: 1280 x 1024; 32-bit true color screen | | Power Source | 2 x AAA batteries | | Battery Life (approx.) | 3 weeks at 1 hour of driving per day
2 weeks at 2 hours of driving per day
1 week at 4 hours of driving per day | | Power Draw | Track Mode: 49 mA
Sleep Mode: 0.072 mA | | Sleep Mode Entry | 2 minutes without movement | | Cold Start GPS Acquisition Time | 41 seconds | | Warm Start | 33 seconds | | Housing Material | Water-resistant ABS plastic | | Mount Type | Magnet | | Operating Temperature | -15 to 185°F / -26 to 85°C | | Dimensions (L x W x H) | 3.8 x 1.5 x 1.3" / 96.5 x 38.1 x 33.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.39 lb | | Box Dimensions (LxWxH) | 8.85 x 5.95 x 2.15" |
