User Manual for LandingZone 2.0 PRO Dock for the 13" MacBook Air Click to enlarge the picture
Contents of the user manual for the LandingZone 2.0 PRO Dock for the
- Product category: Docking Stations & Port Replicators LandingZone
- Brand: LandingZone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LandingZone Docking Stations & Port Replicators
 |
User manual for the LandingZone 2.0 PRO Dock for the contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LandingZone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LandingZone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LandingZone product will considerably shorten its lifespan!
|

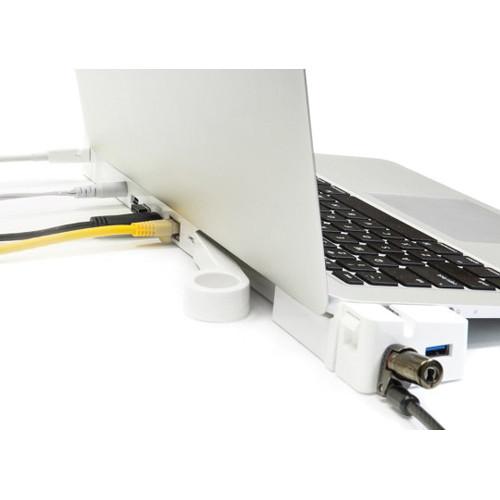

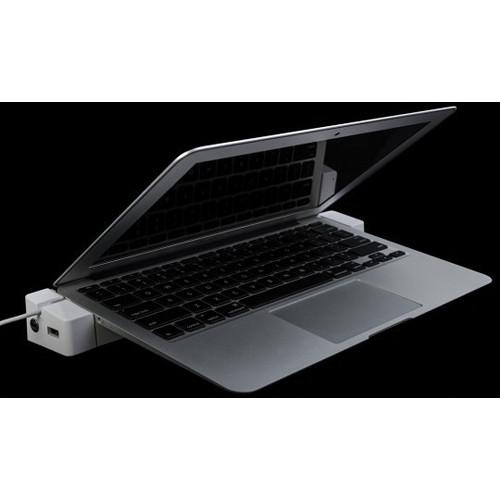

Product description The Landing Zone 2.0 PRO is designed for easy docking of select 13" MacBook Air notebook computers. This docking station has an integrated lever that allows you to dock and undock your MacBook Air in a single step. With four USB 3.1 Gen 1 Type-A (USB 3.0) ports, you'll have multiple interfaces for connecting high-speed devices. Mini DisplayPort and Gigabit Ethernet connections are also built-in for peripheral and Internet connectivity.

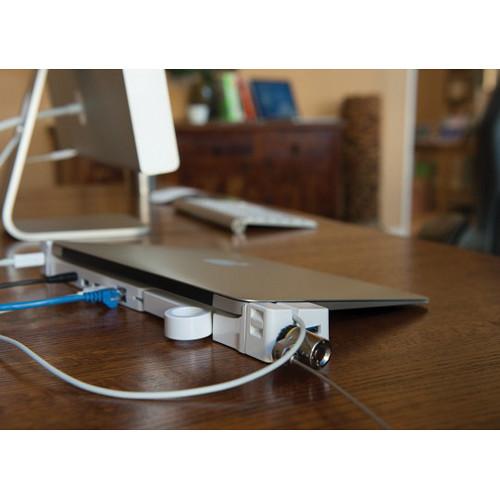

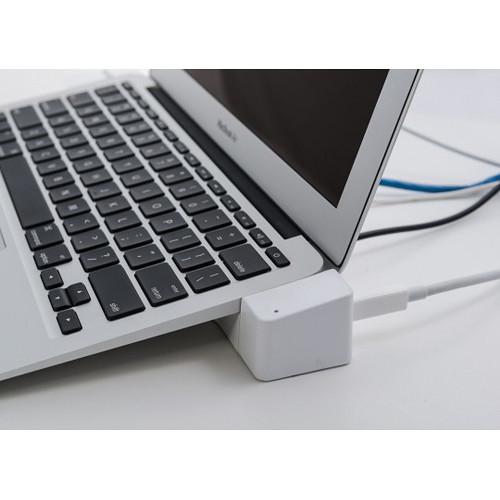

You can connect the Landing Zone 2.0 PRO to your MacBook Air with the lid opened or closed. The unit comes with its own AC adapter and has a pass-through port that allows you to use your original MacBook Air power adapter. This dock was designed with portability in mind.
Please note that the Landing Zone 2.0 PRO is only compatible with MacBook Air models made from 2012 to 2017. It is not compatible with the 2018 MacBook Air. General Features - Power adapter with wide range of input voltage (100 to 240 VAC)

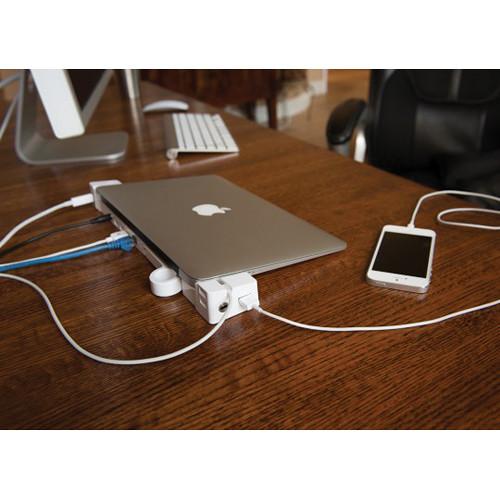

- Supports the connecting and charging of iPhone, iPad, and iPod
- Use with Macbook Air's lid opened or closed

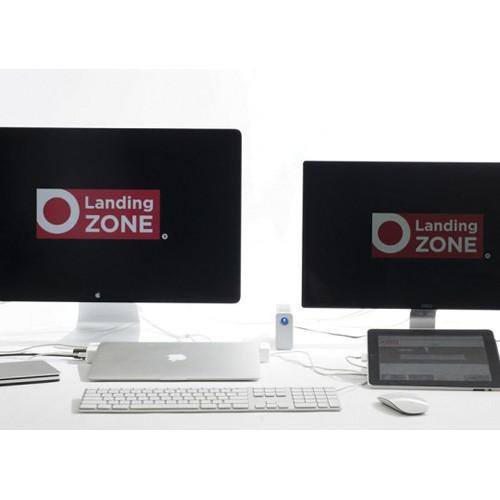

- Connect a monitor, hard drive, printer, smart phone, tablet, and much more
- Use at home, office, or while you travel
- Four USB 3.1 Gen 1 (USB 3.0) Ports
- Four USB 3.1 Gen 1 (USB 3.0) ports allow you to connect a variety of peripherals
- Mini DisplayPort
- A Mini DisplayPort allows you to connect monitors and other devices
- MagSafe 2 Power
- Use your MacBook's MagSafe power connector to charge your laptop
- Gigabit Ethernet Port
- Bring full Ethernet functionality to your MacBook Air
- LED Status Light
- Shows you if your MacBook Air is running without having to open the lid
- Kensington Security Slot
- The Kensington Security Slot provides additional security for your MacBook Air. Lock your system with most standard Kensington Laptop Locks (ClickSafe Locks may not be compatible). A solid steel bar inside the LandingZone ensures strength in the LandingZone's build quality. Kensington Laptop Locks sold separately.
UPC: 854333004231 In the Box LandingZone 2.0 PRO Dock for the 13" MacBook Air (2012 to 2017) Power Adapter Lever Lock Travel Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LandingZone 2.0 PRO Dock for the 13" MacBook Air in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLandingZone LZ006A Specs | | | USB | 4 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x Mini DisplayPort | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-A Male | | Connection Type | Integrated Cable | | | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Compatibility | Apple MacBook Air 13" (2012 to 2017) | | | | Power Source | AC Adapter | | Power Port | Barrel Connector (Unspecified Diameter) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 0 to 90% | | Operating Altitude | 10,000' / 3048 m | | Storage Temperature | -13 to 113°F / -25 to 45°C | | Storage Altitude | 15,000' / 4572 m | | | | Lock Slot | Yes | | Weight | 12.6 oz / 358.3 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 16.8 x 3.9 x 2.6" |
