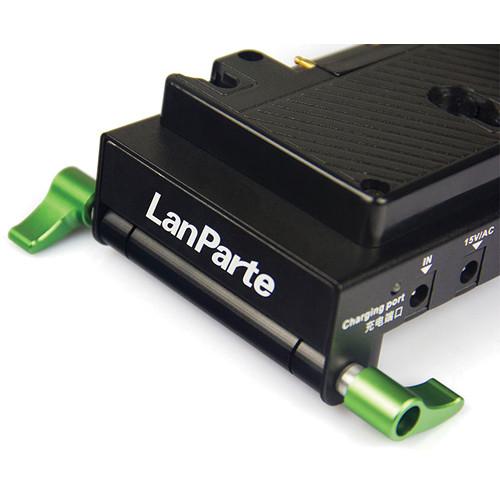

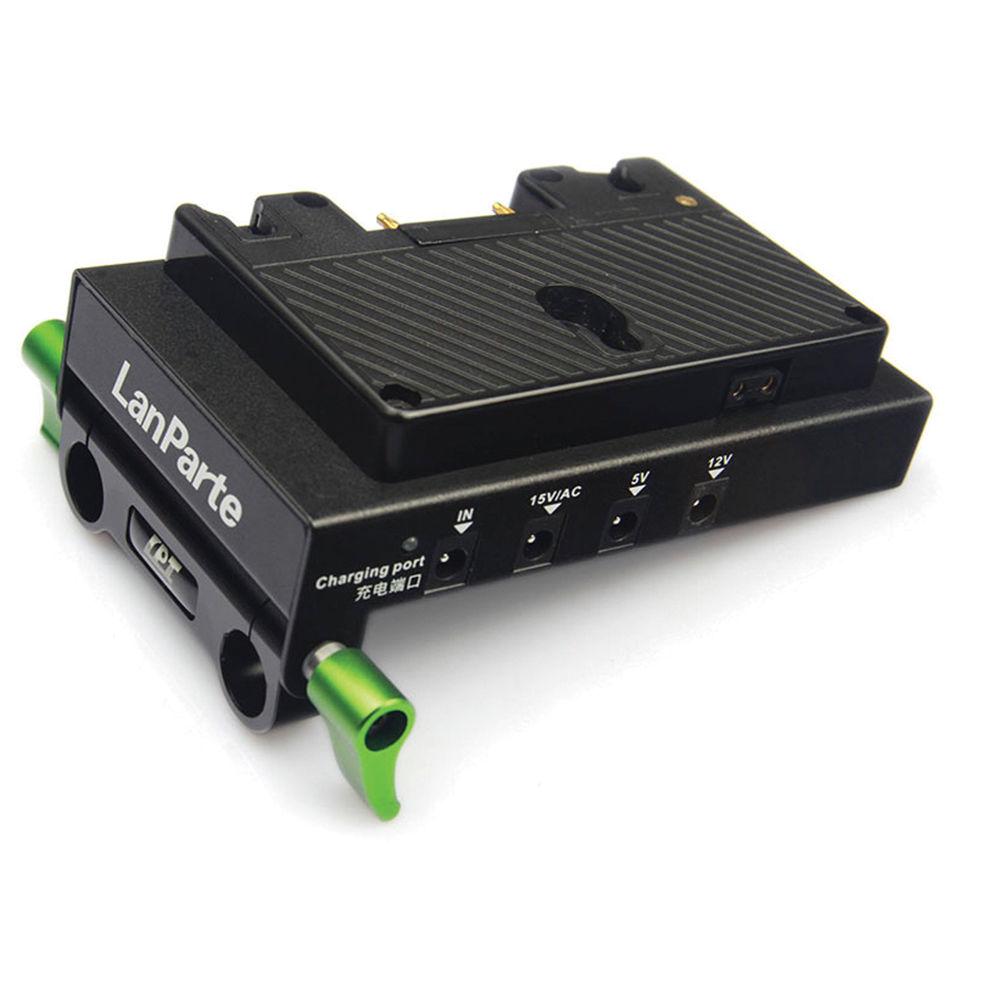

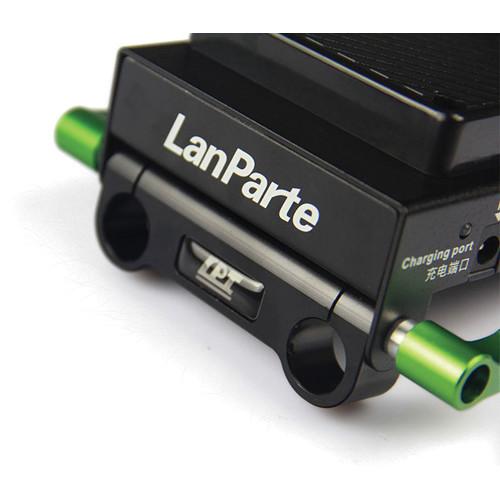

Product description Power your camera rig with the LanParte ABP-01 Gold-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig. - USB charging port for mobile devices
- Can be mounted to the back of the rig as counterweight
UPC: 840534110055 In the Box LanParte ABP-01 Gold-Mount Battery Pinch 3 x Yellow-Tip Camera DC Power Spring Cable for Battery Pinch (5.5/2.1mm) zfzavxqxvvusfucdzuzfvcswze Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm) AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte ABP-01 Gold-Mount Battery Pinch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

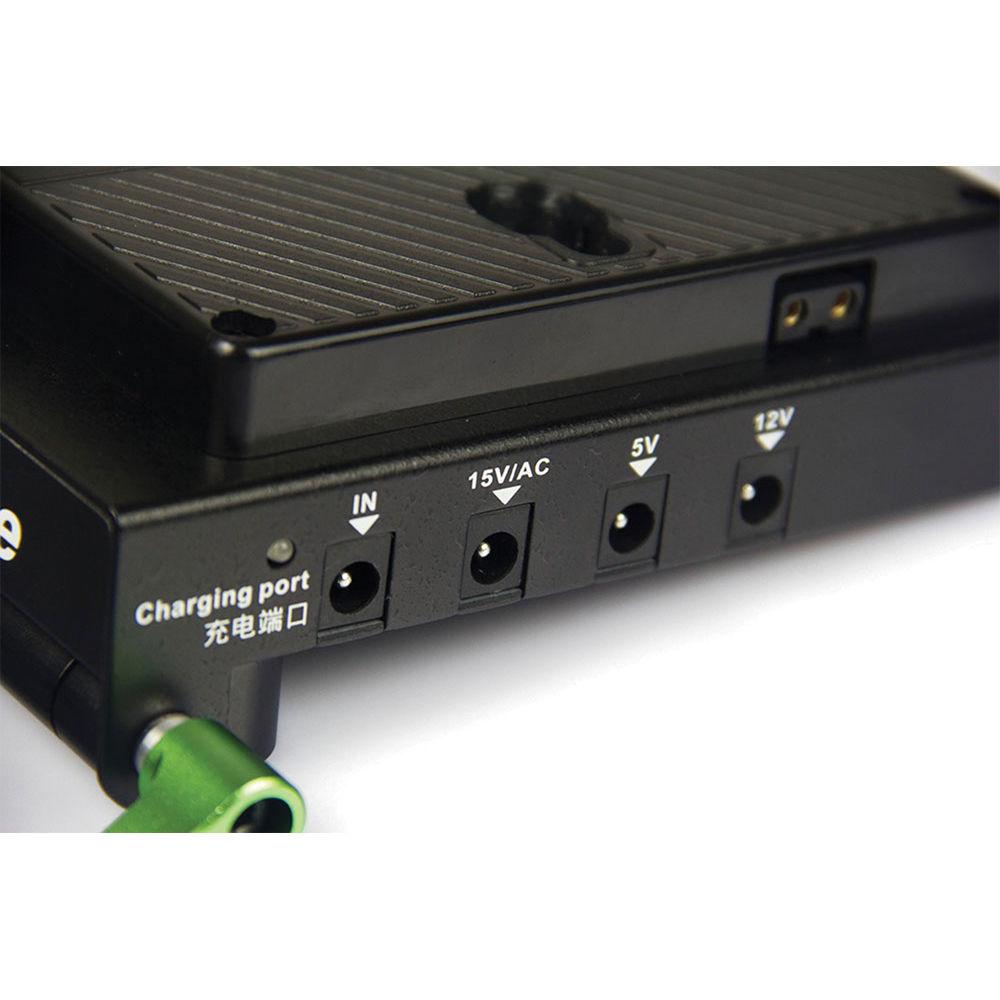

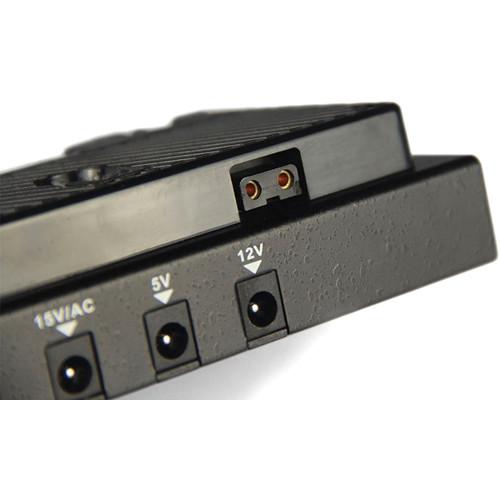

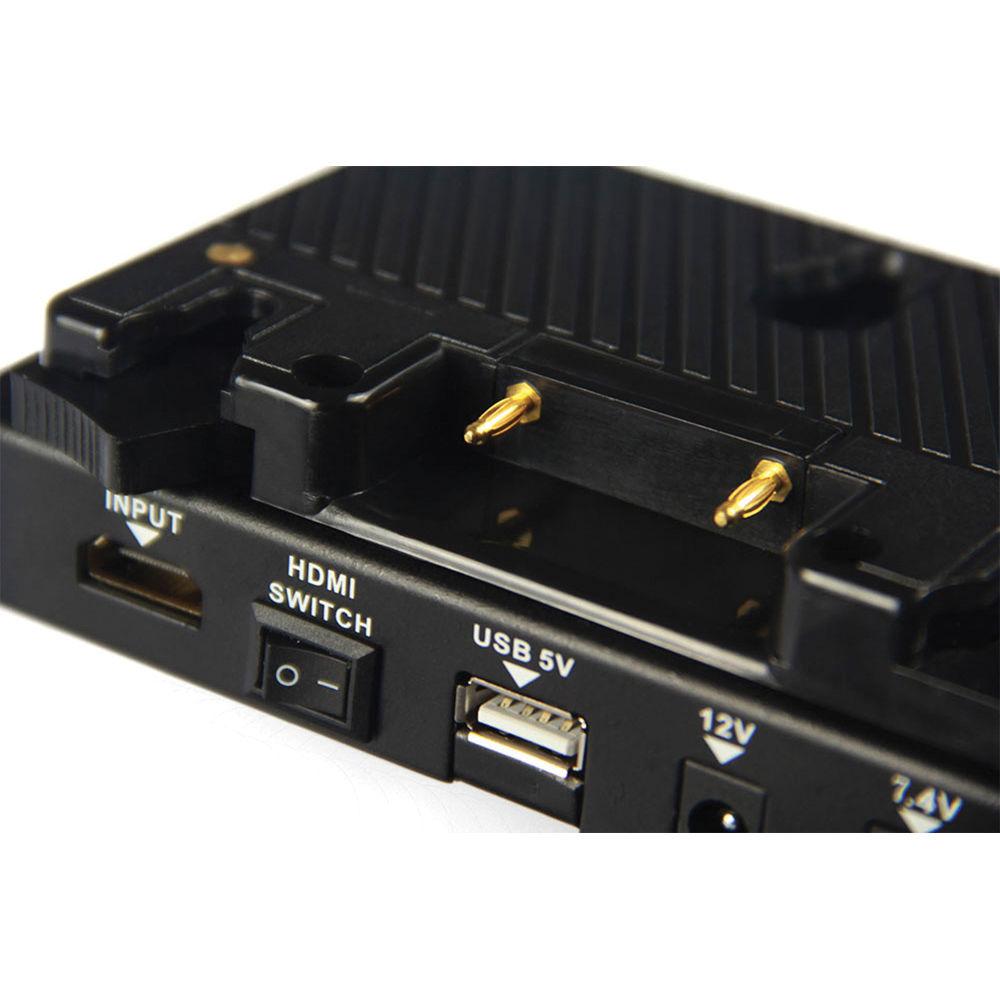

Technical parametersLanParte ABP-01 Specs | Connectors | Inputs:
1 x DC barrel charging

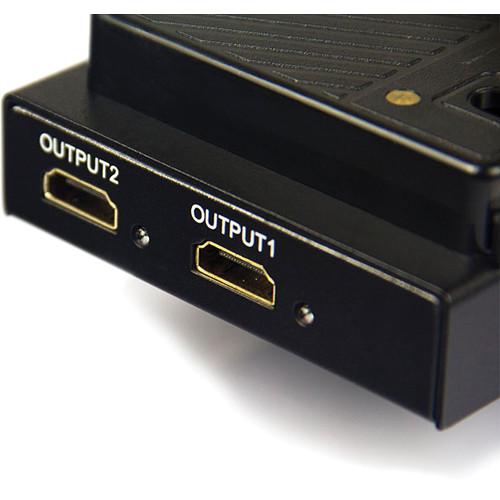

1 x HDMI splitter
Outputs:
1 x 5 VDC barrel, signal switch power
1 x 7.4 VDC barrel, DSLR power (requires adapter)
2 x 12 VDC barrel, monitor power
1 x 15 VDC barrel, Gold-Mount battery voltage
1 x D-Tap
1 x USB 5 VDC power
2 x HDMI splitter | | DC Output Voltage | 5, 7.4, 12, 15 VDC | | Dimensions | 10 x 7 x 4" (25.4 x 17.8 x 10.2 cm) | | Weight | 5 lb (2.3 kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.1 x 6.2 x 3.6" |
