User Manual for LanParte Basic Handle Kit for Sony FS5 Camera Click to enlarge the picture
Contents of the user manual for the LanParte Basic Handle Kit for Sony
- Product category: Camcorder Supports & Rigs LanParte
- Brand: LanParte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LanParte Camcorder Supports & Rigs
 |
User manual for the LanParte Basic Handle Kit for Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LanParte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LanParte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LanParte product will considerably shorten its lifespan!
|

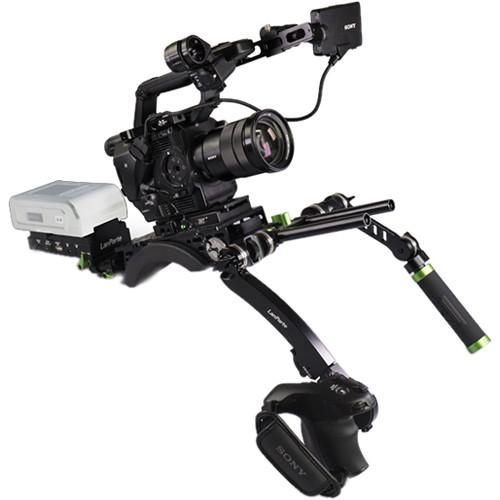

Product description The Lanparte Basic Handle Kit includes the FS5 Extension Arm, ARRI Rosette Handgrip, Double Arri Rosette Lock Threaded Hole with Double Rod Clamp, Top Cheese Plate for FS5, Magic-Arm, FS5 Monitor Extension Arm, V-Mount Shoulder Support (V2), V-Mount Battery Pinch, and Sony FS5 Camera DC Power Cable.
The FS5 Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip's controls.
Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp allows you to attach and adjust rosette-mount handgrips on your shoulder rig.
Use the Sony PXW-FS5 Utility Top Plate to add multiple accessory mounting–points to your camera.
Mount a 1/4"-20 accessory to your 15mm LWS rig with the Magic Arm and gain the flexibility to fit it in nearly any orientation you require.
The EVF Extension Arm for the Sony PXW-FS5 allows you to extend and reposition the EVF for increased viewing comfort.
Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder.
Power your camera rig with the VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management.
Use the DC Power Cable to provide power to your Sony PXW-FS5 camera via the LanParte V-Mount Battery Pinch (available separately). - Extension Arm for the Sony PXW-FS5 This LanParte Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. The extension arm adds almost 1' of length to the handgrip, and the included Arri-style rosette extension can be used to add just over 2" distance from the side of the camera rig. The rosette connection allows the arm to be positioned at whatever angle you prefer. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip's controls.
- Designed for the Sony PXW-FS5
- Fully adjustable 2" Arri-style rosette extension included
- Built-in 3-pin LANC cable maintains all handgrip controls
- Adds approximately 1' to the handgrip length, and 2" to the baseplate width
UPC: 840534107093 - Dual Rod Clamp with Rosettes Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp, from Lamparte, allows you to attach and adjust rosette-mount handgrips on your shoulder rig. The rosette adapters are 60-tooth ARRI-standard compatible and made of steel. UPC: 840534113292

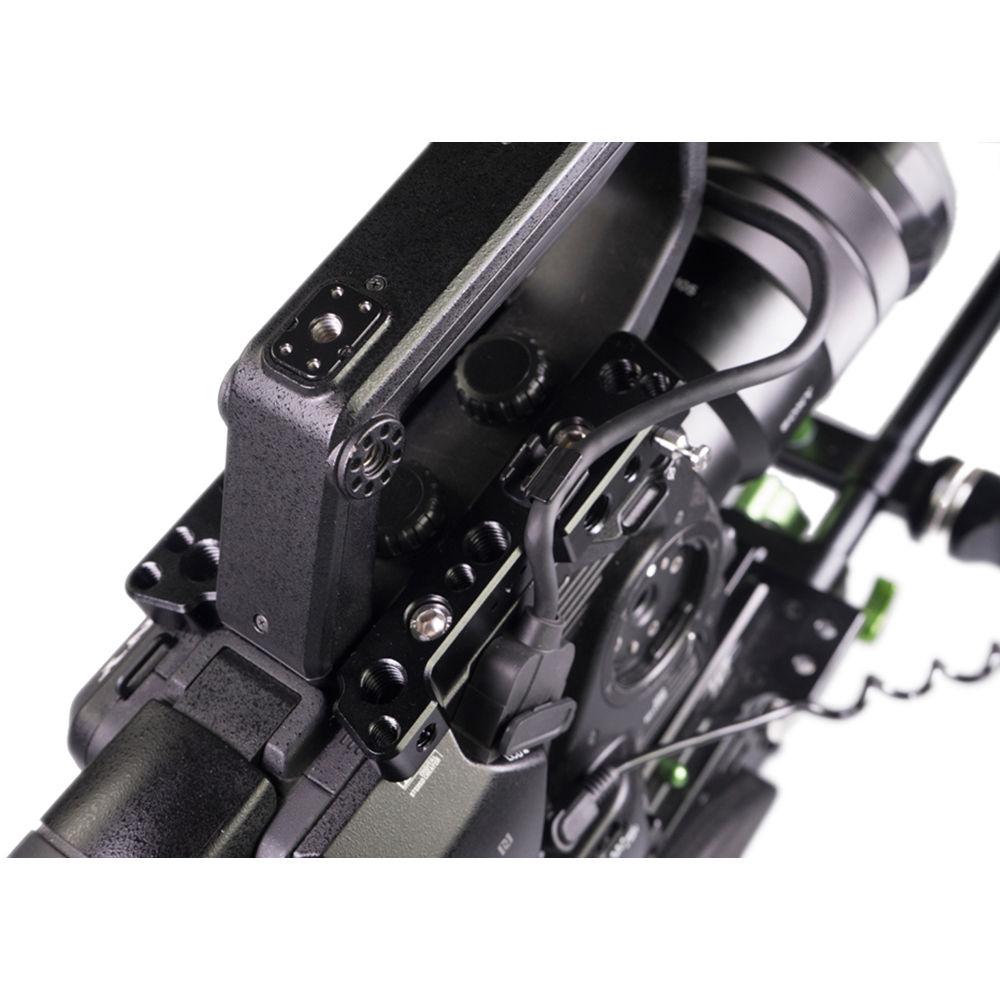

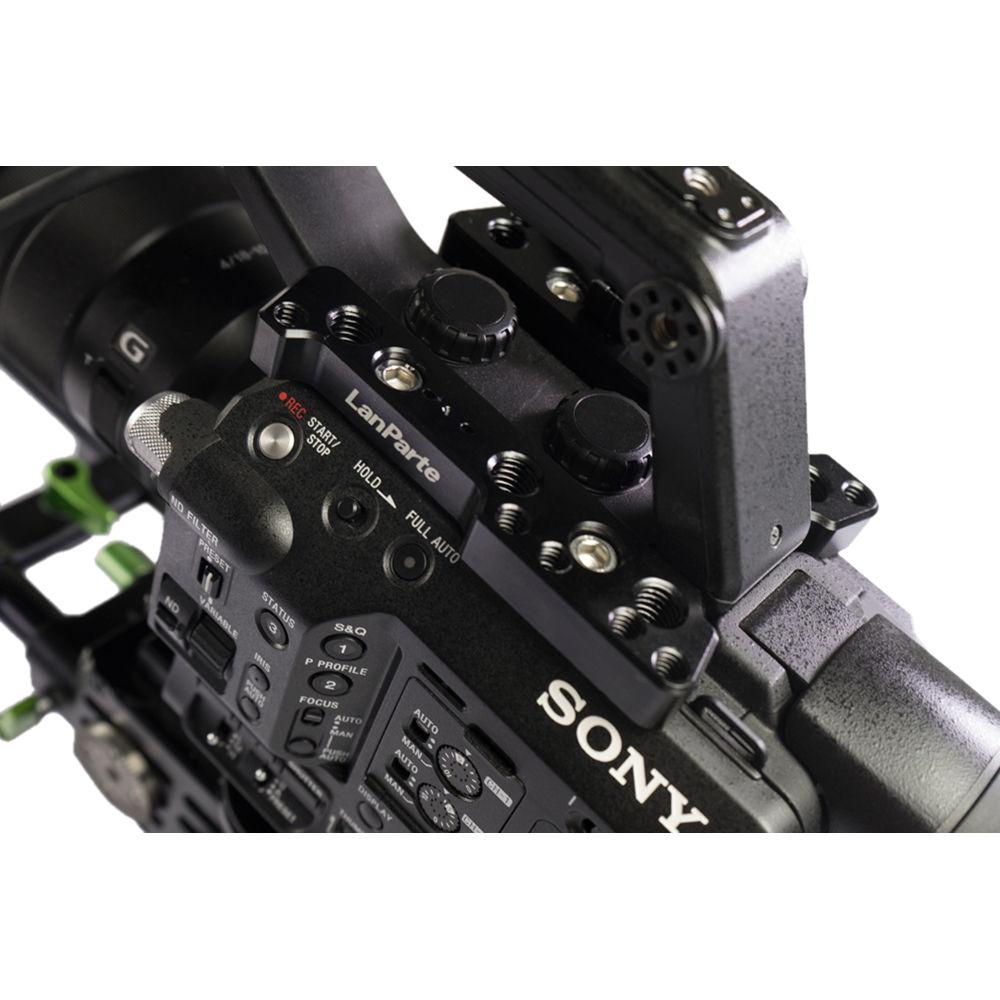

- Utility Top Plate for Sony PXW-FS5 Use the LanParte Utility Top Plate for the Sony PXW-FS5 to add multiple accessory mounting points to your camera. This cheese plate is composed of two pieces that mount to the top of the camera, fitting around the base of the original PXW-FS5 top handle. The plate features both 1/4"-20 and 3/8"-16 threaded holes. When installing the plate, the camera's EVF cable should be removed from its original location and relocated to the side of the cheese plate. UPC: 840534107116
- Magic Arm Mount a 1/4"-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.
- CNC machined aluminum construction

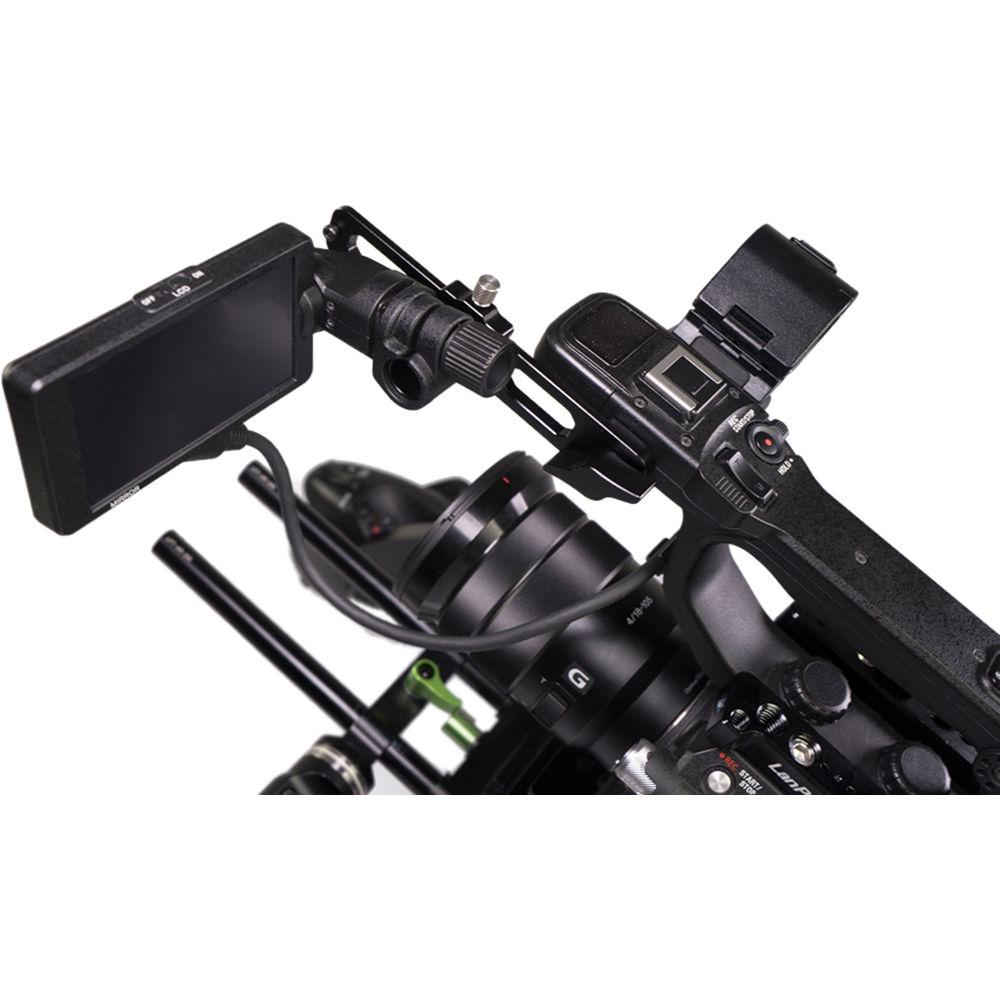

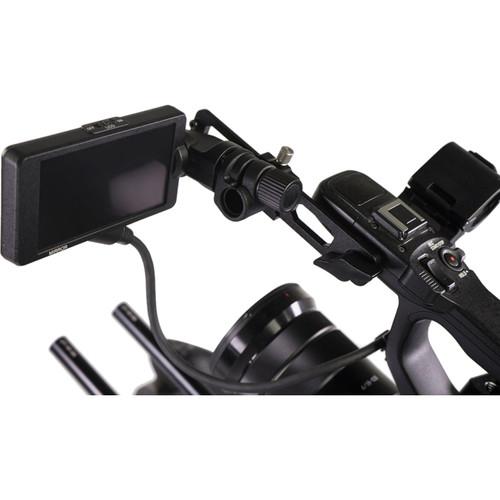

- EVF Extension Arm for Sony PXW-FS5 This LanParte EVF Extension Arm for the Sony PXW-FS5 allows you to extend and reposition the EVF for increased viewing comfort. No tools are necessary; the arm attaches to the camera's original EVF mount via a thumbscrew. Its rotatable design allows it to be positioned at multiple angles, and it slides to extend the EVF up to 4" from the mount. This lightweight arm is constructed from black-finished aluminum.
- Rotatable design increases viewing-angle options
- Extends the EVF up to 4" from its original mounting position
- Thumbscrew enables quick, tool-free installation
- Installs on the camera's original EVF mount
- Made from lightweight black-finished aluminum

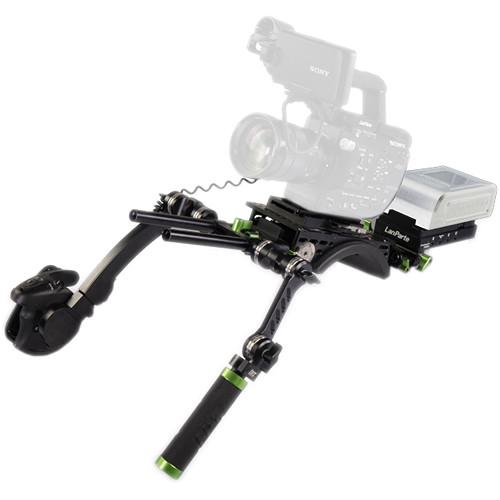

UPC: 840534107109 - V-Mount Shoulder Support V2 Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.
- V-Mount lock on bottom of shoulder support
- Quick release system with safety trigger
- Mountable on VCT-14 via the tail lock
- Hollow design, lightweight at 3 lb
- VBP-01 V-Mount Battery Pinch Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.
- USB charging port for mobile devices
- Can be mounted to the back of the rig as counterweight
UPC: 840534110031 - DC Power Cable for Sony FS5 Cinema Camera Use this DC Power Cable from LanParte to provide power to your Sony PXW-FS5 camera via the LanParte V-Mount Battery Pinch (available separately). The cable can also be used with any device accepting 12V power through a 2.1 x 5.5mm port.
- Allows the use of longer-running V-Mount batteries with the Sony PXW-FS5
- Works with the LanParte V-Mount battery adapter
- Compatible with any 12 VDC device with a 2.1 x 5.5mm port
UPC: 840534110345 In the Box Bundle Items Extension Arm for the Sony PXW-FS5 bfyyrecraftavruyecbevevwrf - Locking ARRI Rosette Extension Spacer
Dual Rod Clamp with Rosettes Utility Top Plate for Sony PXW-FS5 - 4 x Plate Mounting Screws
- Limited 1-Year Warranty (USA Only)
Magic Arm EVF Extension Arm for Sony PXW-FS5 - Limited 1-Year Warranty (USA Only)
V-Mount Shoulder Support V2 VBP-01 V-Mount Battery Pinch bfyyrecraftavruyecbevevwrf 3 x - Yellow-Tip Camera DC Power Spring Cable for Battery Pinch (5.5/2.1mm)
- Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm)
DC Power Cable for Sony FS5 Cinema Camera bfyyrecraftavruyecbevevwrf
Also Includes - Arri Rosette Handgrip (UG-03-H)
Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Basic Handle Kit for Sony FS5 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Extension Arm for the Sony PXW-FS5
| Material of Construction | Aluminum | | Dimensions (LxWxD) | 11.4 x 3.6 x 1.7" (29.0 x 9.1 x 4.3 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 11.6 x 3.9 x 2.2" | - Dual Rod Clamp with Rosettes
| Dimensions | 1.8 x 1.2 x 1.3" (4.5 x 3 x 3.2 cm) | | Weight | 3.5 oz (100 g) | | | | Box Dimensions (LxWxH) | 4.7 x 1.6 x 0.9" | - Utility Top Plate for Sony PXW-FS5
| Material of Construction | Aluminum | | Dimensions (LxHxD) | 4.0 x 1.0 x 0.3" (10.2 x 2.5 x 0.8 cm) | | Weight | 3.7 oz (104 g) | | | | Box Dimensions (LxWxH) | 4.5 x 1.7 x 0.6" | - Magic Arm
| Material | Rugged, anodized aluminum alloy | | Threads | 1/4"-20
3/8"-16 | | Dimensions | Height: 2.5" (63 mm)
Length Unfolded: 11" (280 mm)
Length Folded: 6.1" (155 mm) | | Weight | 11.6 oz (330 g) | | | | Box Dimensions (LxWxH) | 6.8 x 3.6 x 1.5" | - EVF Extension Arm for Sony PXW-FS5
| Material of Construction | Aluminum | | Sliding Range | 4" | | Dimensions (LxWxH) | 5.0 x 1.0 x 0.5" (12.7 x 2.5 x 1.3 cm) | | Weight | 1.8 oz (50 g) | | | | Box Dimensions (LxWxH) | 5.2 x 1.7 x 0.9" | - V-Mount Shoulder Support V2
| Dimensions | 12.0 x 3.3 x 5.0" (30.5 x 8.3 x 12.7 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 13.6 x 6.1 x 4.3" | - VBP-01 V-Mount Battery Pinch
| Connectors | Inputs:
1 x DC barrel charging
1 x HDMI splitter
Outputs:
1 x 5 VDC barrel, signal switch power
1 x 7.4 VDC barrel, DSLR power (requires adapter)
2 x 12 VDC barrel, monitor power
1 x 15 VDC barrel, V-Mount battery voltage
1 x D-Tap
1 x USB 5 VDC power
2 x HDMI splitter | | DC Output Voltage | 5, 7.4, 12, 15 VDC | | Dimensions | 10 x 7 x 4" (25.4 x 17.8 x 10.2 cm) | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 9.2 x 6.2 x 3.6" | - DC Power Cable for Sony FS5 Cinema Camera
| Length | 39.5" (100.3 cm) | | Weight | 1 oz (27 g) | | | | Box Dimensions (LxWxH) | 5.5 x 1.5 x 0.7" |
