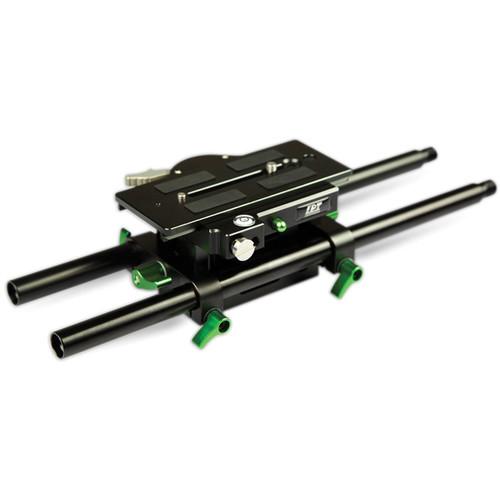

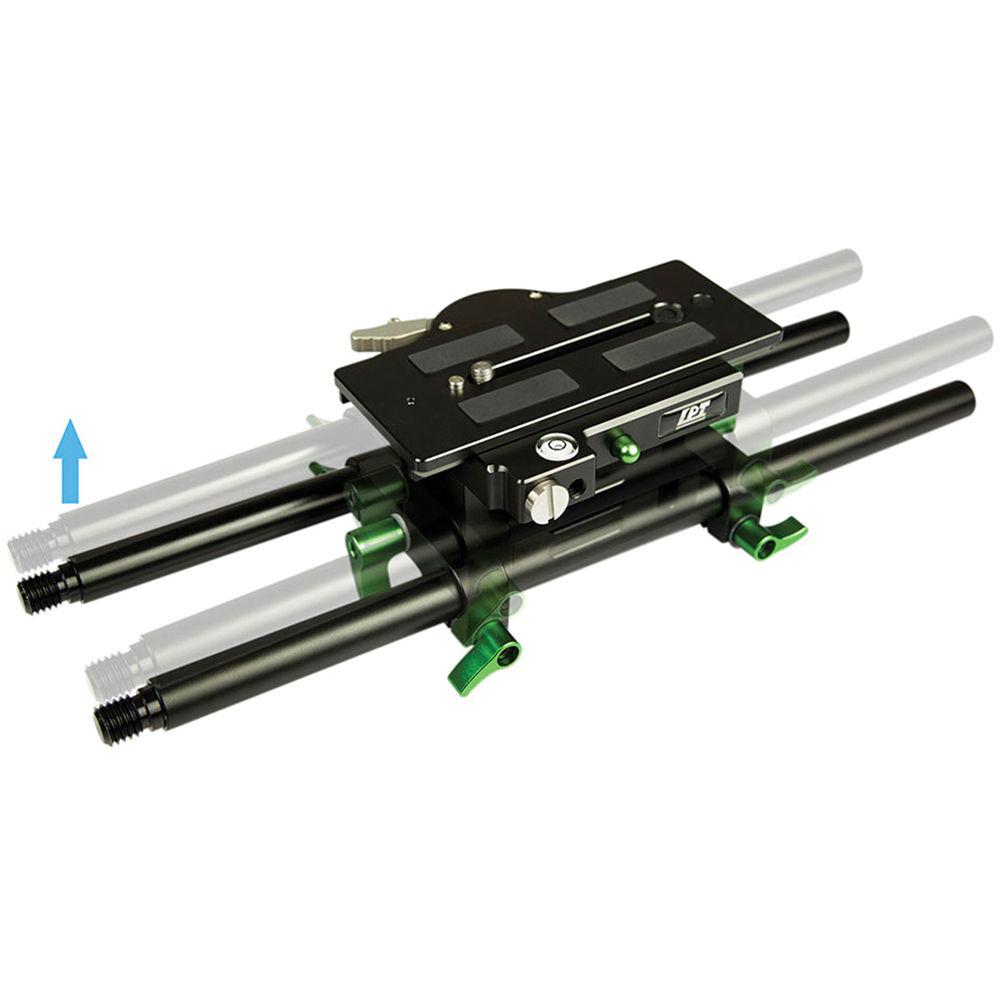

Product description The Lanparte Bridge Plate features a height-adjustable baseplate with dual 15mm LWS rod clamps and a quick-release camera plate. The height of the baseplate is adjustable up to 1.6" by loosening a single knob, allowing you to achieve proper lens height when using a matte box or follow focus. A pair of 11.8" long 15mm rods come included.

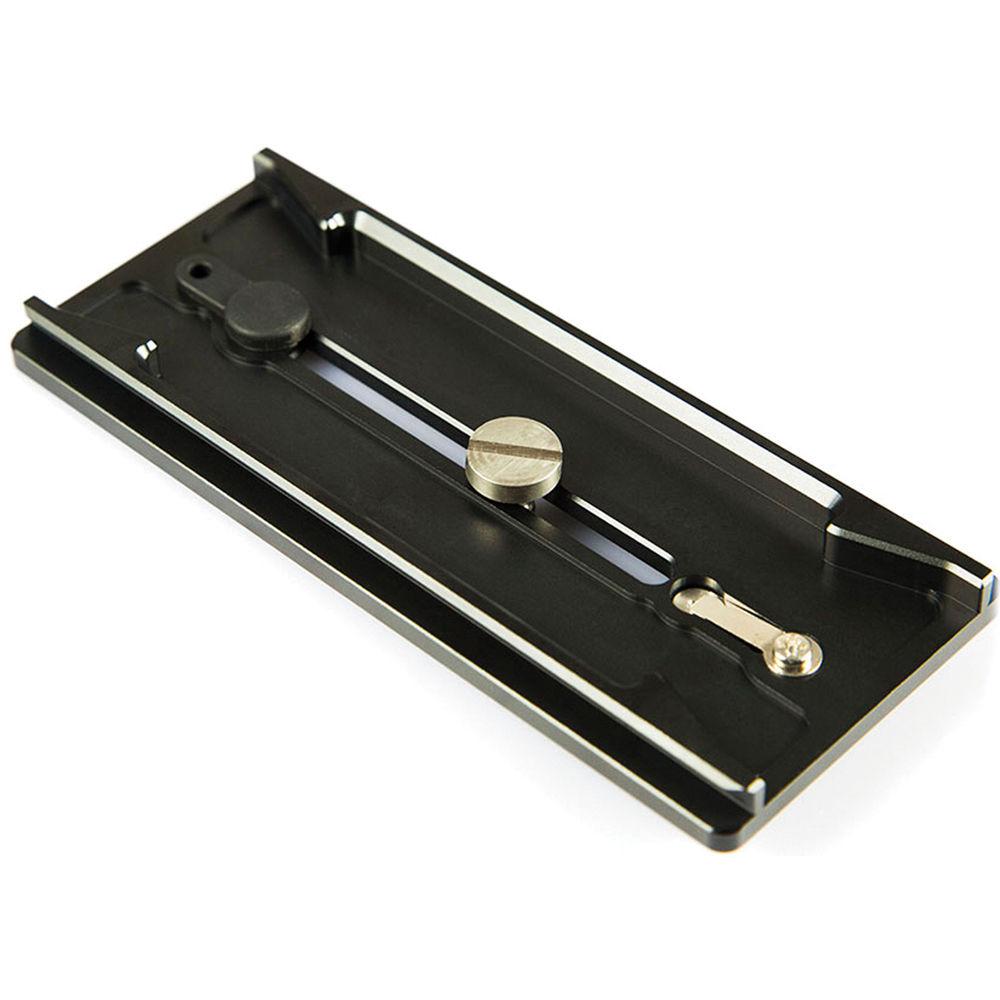

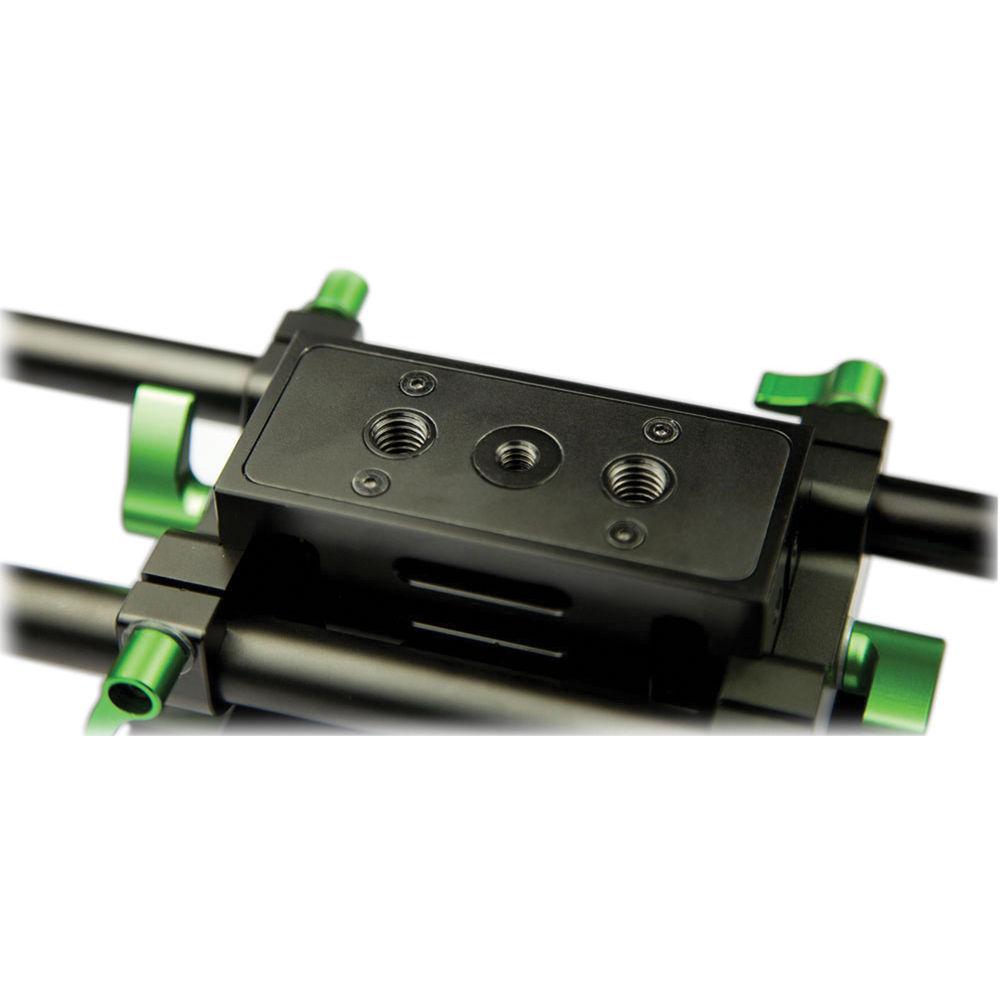

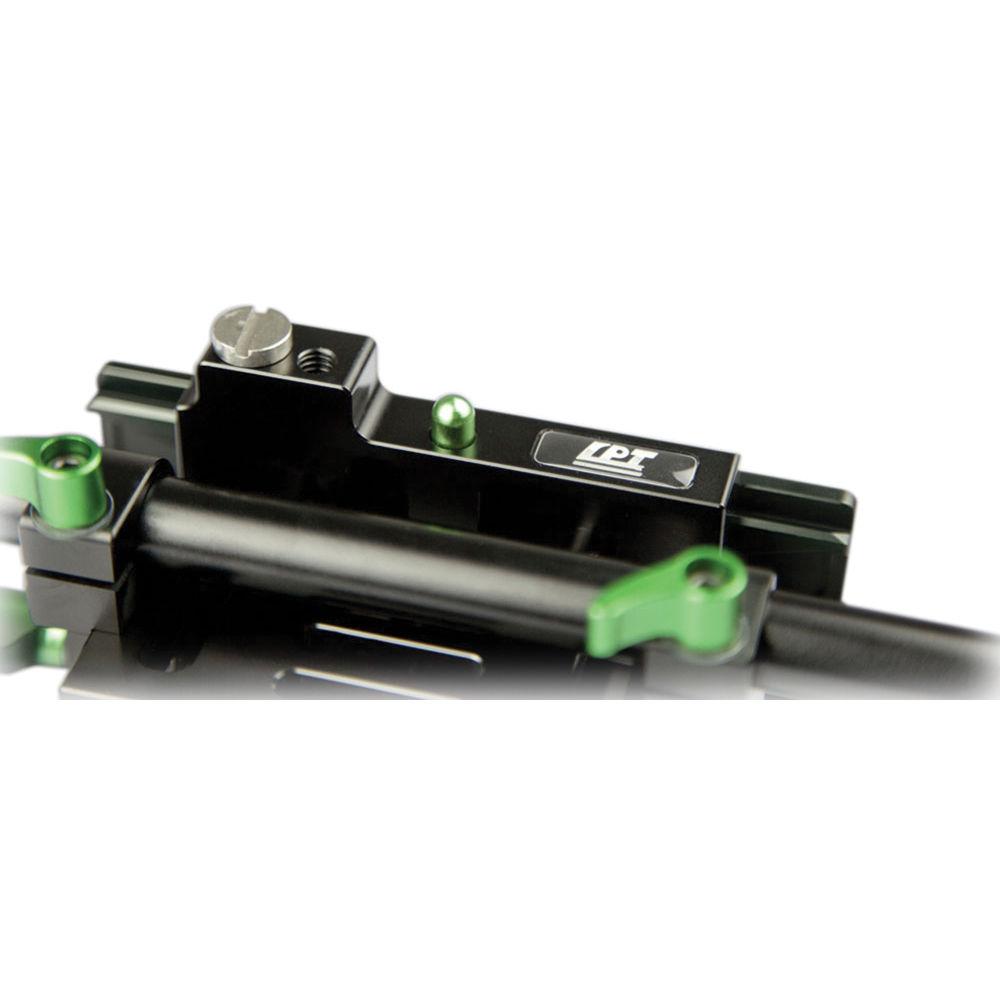

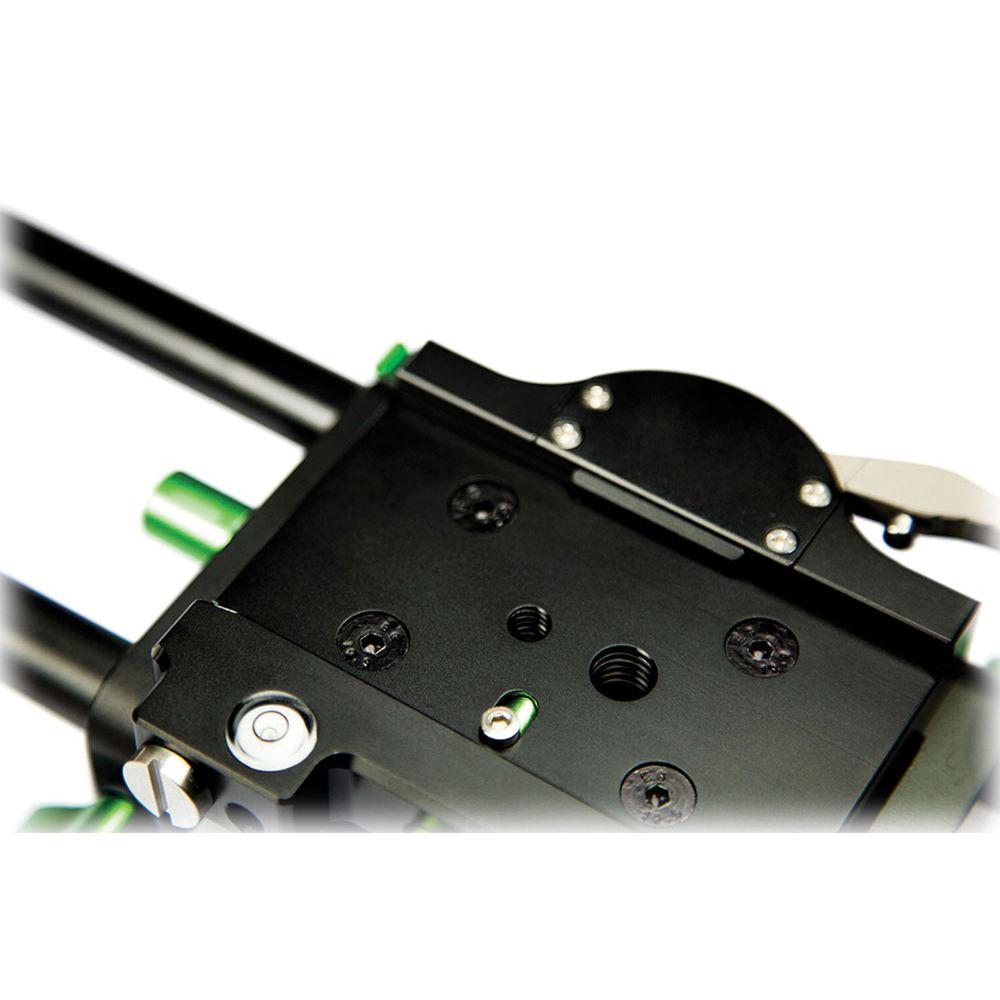

The quick-release plate features a dovetail design that slides or drops onto the baseplate, locking into place using a release lever. The plate includes 1/4"-20 and 3/8"-16 camera screws, with threads on the side of baseplate provided for storing the unused screw. A safety lock prevents the plate from sliding off the baseplate when attached. For mounting on tripods and other equipment, there are 1/4"-20 and 3/8"-16 threaded holes on the bottom of the baseplate. -
- Baseplate with 1.6" height adjustment
- 15mm LWS rod clamps threaded ends for rod extension
- Pair of 11.8" 15mm rods included
- Quick-release dovetail plate with 1/4"-20 and 3/8"-16 screws
- Release lever with integrated safety trigger
- 1/4"-20 and 3/8"-16 holes for storing unused camera screw

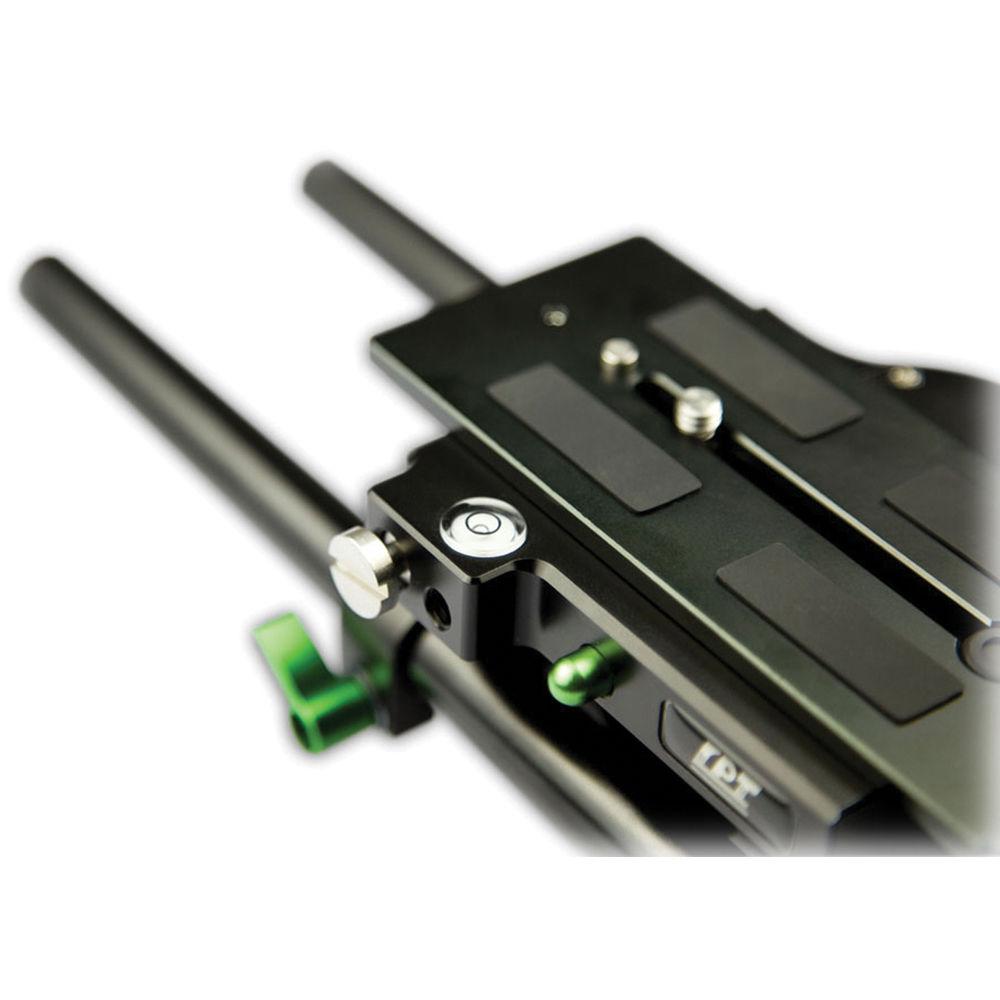

- Bubble level
- 1/4"-20 and 3/8"-16 tripod screws
- CNC machined aluminum construction

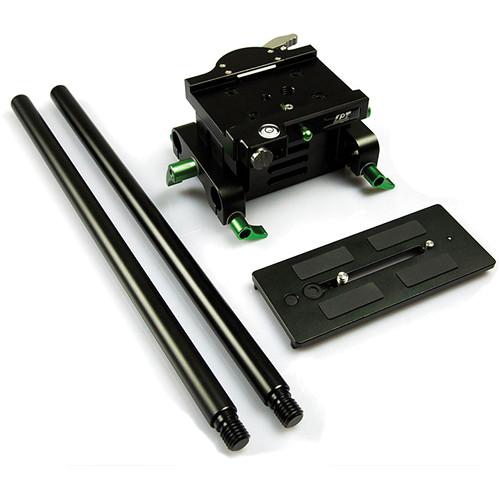

UPC: 840534106027 In the Box LanParte Bridge Plate QRP-02 Quick Release Plate fwrvwqvsutasvewwdrtbtxeqrazwratw 2 x 15mm Aluminum Rod (Pair, 11.8") 1/4"-20 Camera Screw 3/8"-16 Camera Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Bridge Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLanParte BP-02B Specs | Camera Screw(s) | 1/4"-20 and 3/8"-16 | | Mounting Interface | V-lock
1/4"-20 and 3/8"-16 threaded holes | | Rod Length | 11.8" / 300 mm | | Height Adjustment Range | 1.6" / 40 mm | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | 1.6 lb / 0.73 kg (including rods) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 15.9 x 6.4 x 3.7" |
