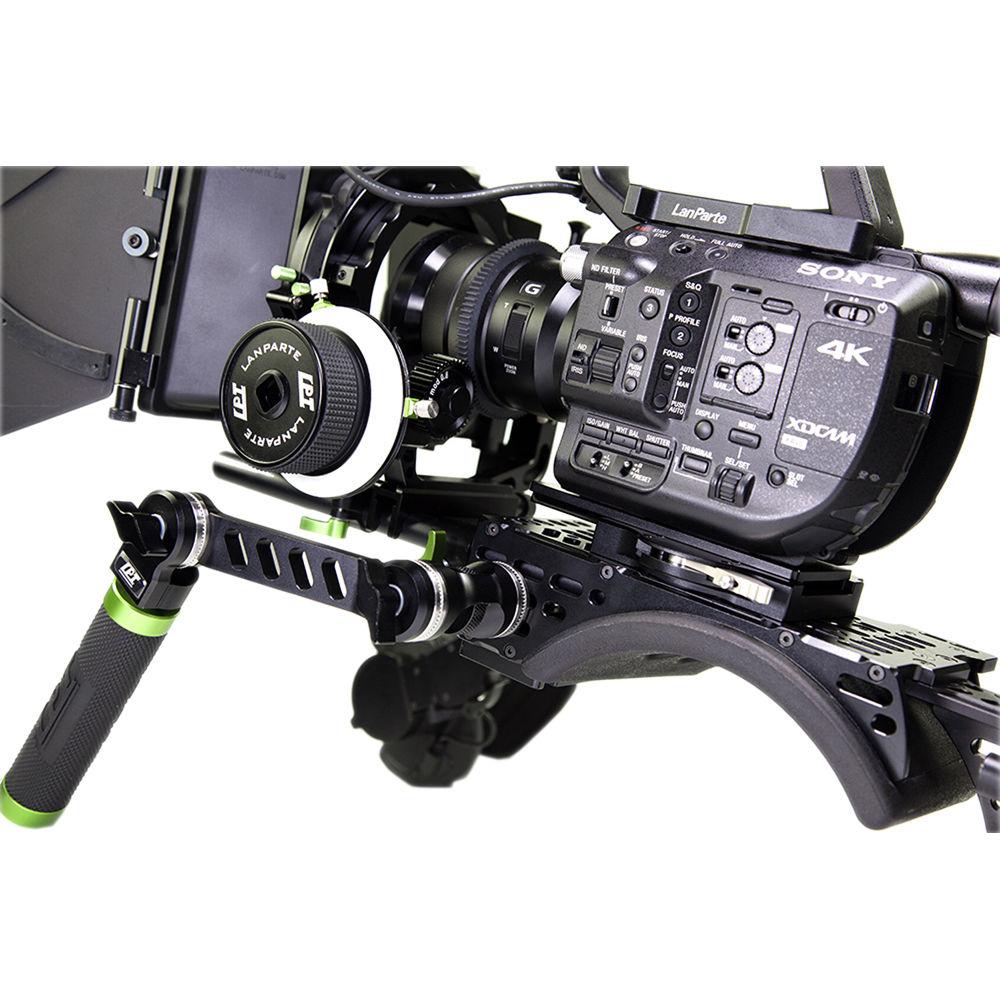

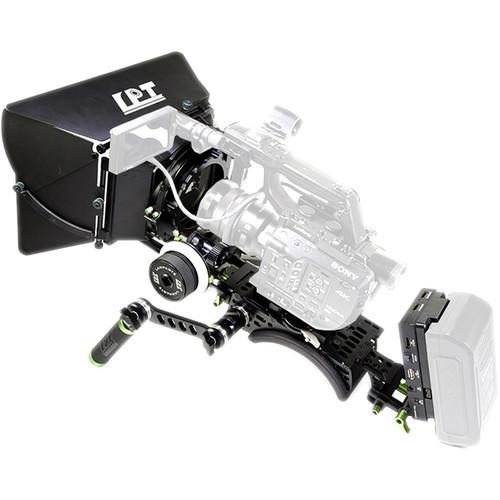

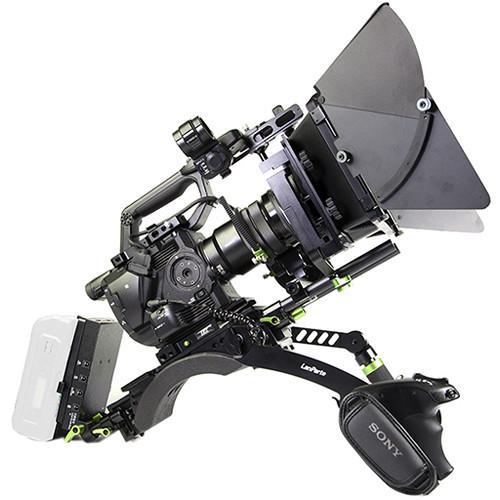

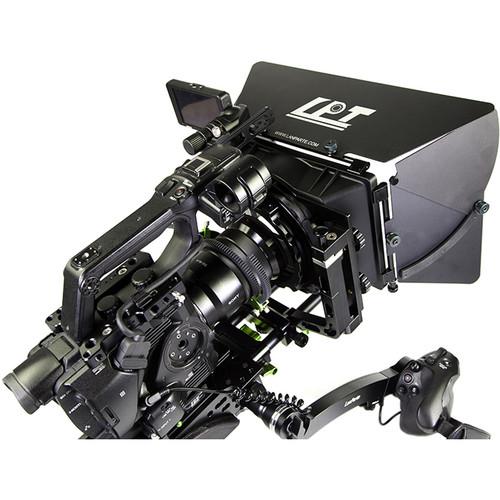

Product description The Lanparte Complete Kit for the Sony PXW-FS5 includes the FS5 Extension Arm, ARRI Rosette Handgrip, Double ARRI Rosette Lock Threaded Hole with Double Rod Clamp, Top Cheese Plate for FS5, the Magic-Arm, FS5 Monitor Extension Arm, V-Mount Shoulder Support V2, V-Mount Battery Pinch, FS5 Camera DC Power Cable, the ABS Matte Box, with Follow Focus and Gear Ring, and a Protective Case for your rig.

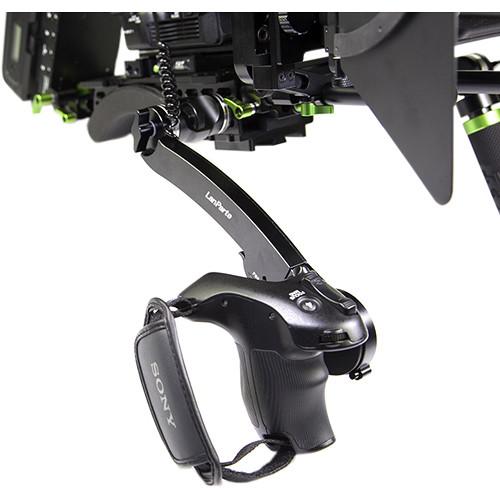

The FS5 Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip's controls.
Offering ARRI-standard rosette adapters on both sides, the 15mm rod-compatible Dual Rod Clamp allows you to attach and adjust rosette-mount handgrips on your shoulder rig. Use the Sony PXW-FS5 Utility Top Plate to add multiple accessory mounting–points to your camera. Mount a 1/4"-20 accessory to your 15mm LWS rig with the Magic Arm, and gain the flexibility to fit it in nearly any orientation you require. The EVF Extension Arm for the FS5 allows you to extend and reposition the EVF for increased viewing comfort.
Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. Power your camera rig with the VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. The DC Power Cable provides power to your FS5 via the Battery Pinch.
The MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction, making it lightweight. The Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus is a rubber gear with a standard pitch of 0.8, and a maximum diameter of 4.1". The durable and watertight ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of Lanparte DSLR camera rig kits. - Extension Arm for the Sony PXW-FS5 This LanParte Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. The extension arm adds almost 1' of length to the handgrip, and the included Arri-style rosette extension can be used to add just over 2" distance from the side of the camera rig. The rosette connection allows the arm to be positioned at whatever angle you prefer. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip's controls.
- Designed for the Sony PXW-FS5
- Fully adjustable 2" Arri-style rosette extension included
- Built-in 3-pin LANC cable maintains all handgrip controls
- Adds approximately 1' to the handgrip length, and 2" to the baseplate width
UPC: 840534107093 - Dual Rod Clamp with Rosettes Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp, from Lamparte, allows you to attach and adjust rosette-mount handgrips on your shoulder rig. The rosette adapters are 60-tooth ARRI-standard compatible and made of steel. UPC: 840534113292

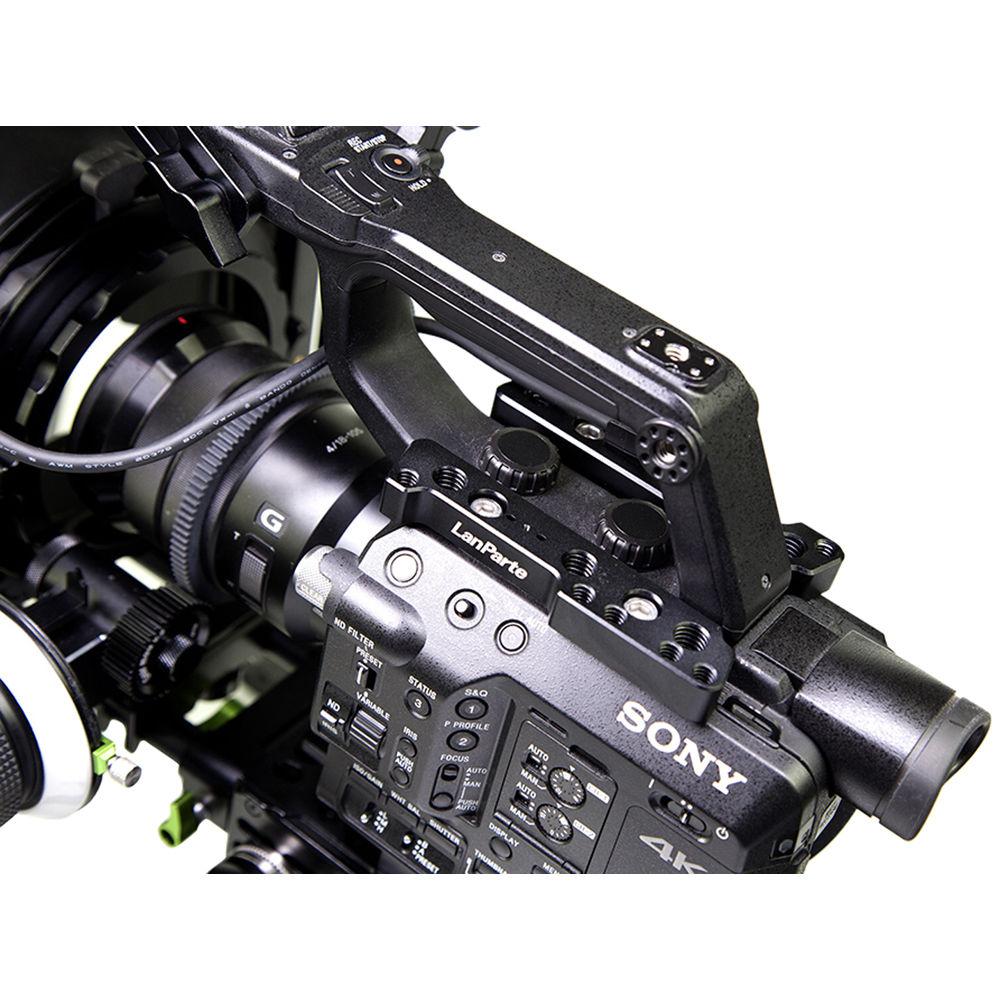

- Utility Top Plate for Sony PXW-FS5 Use the LanParte Utility Top Plate for the Sony PXW-FS5 to add multiple accessory mounting points to your camera. This cheese plate is composed of two pieces that mount to the top of the camera, fitting around the base of the original PXW-FS5 top handle. The plate features both 1/4"-20 and 3/8"-16 threaded holes. When installing the plate, the camera's EVF cable should be removed from its original location and relocated to the side of the cheese plate. UPC: 840534107116
- Magic Arm Mount a 1/4"-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.
- CNC machined aluminum construction

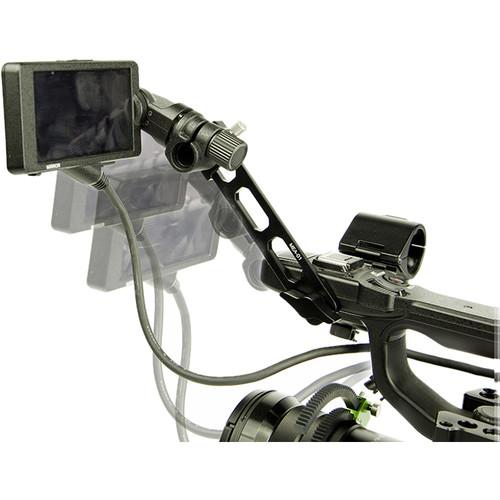

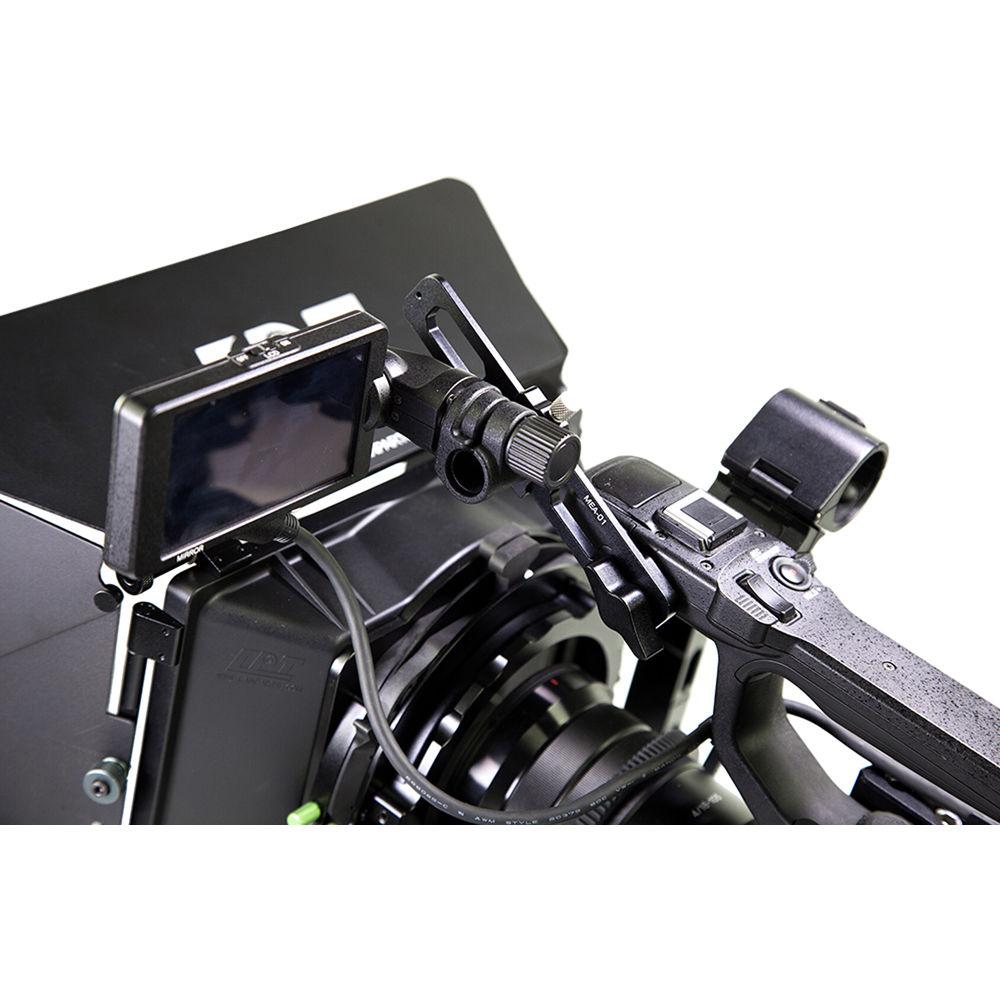

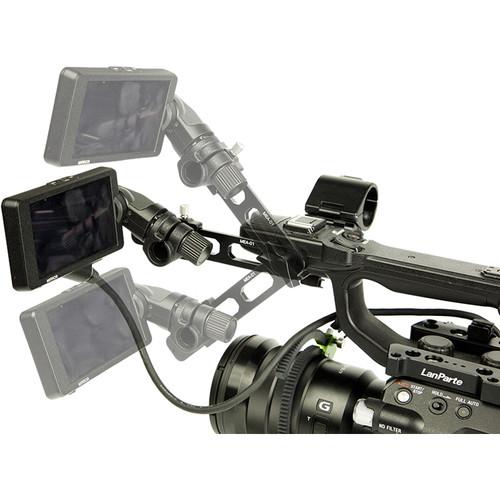

- EVF Extension Arm for Sony PXW-FS5 This LanParte EVF Extension Arm for the Sony PXW-FS5 allows you to extend and reposition the EVF for increased viewing comfort. No tools are necessary; the arm attaches to the camera's original EVF mount via a thumbscrew. Its rotatable design allows it to be positioned at multiple angles, and it slides to extend the EVF up to 4" from the mount. This lightweight arm is constructed from black-finished aluminum.
- Rotatable design increases viewing-angle options
- Extends the EVF up to 4" from its original mounting position
- Thumbscrew enables quick, tool-free installation
- Installs on the camera's original EVF mount
- Made from lightweight black-finished aluminum
UPC: 840534107109 - V-Mount Shoulder Support V2 Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.
- V-Mount lock on bottom of shoulder support
- Quick release system with safety trigger
- Mountable on VCT-14 via the tail lock
- Hollow design, lightweight at 3 lb
- VBP-01 V-Mount Battery Pinch Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.
- USB charging port for mobile devices
- Can be mounted to the back of the rig as counterweight
UPC: 840534110031 - DC Power Cable for Sony FS5 Cinema Camera Use this DC Power Cable from LanParte to provide power to your Sony PXW-FS5 camera via the LanParte V-Mount Battery Pinch (available separately). The cable can also be used with any device accepting 12V power through a 2.1 x 5.5mm port.
- Allows the use of longer-running V-Mount batteries with the Sony PXW-FS5
- Works with the LanParte V-Mount battery adapter
- Compatible with any 12 VDC device with a 2.1 x 5.5mm port
UPC: 840534110345 - MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box The LanParte MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box is a 4 x 4 matte box that fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. It features two rotating 4 x 4 filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes. The included 4 x 4 filter trays can slide in the rotating stages, allowing you to adjust their height.
The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off of filters in the matte box and flaring your image. In addition, the interior of the matte box is finished with a black anti-reflective coating to reduce reflection off the matte box back onto filters. - Lightweight Construction
- The matte box itself is made out of ABS plastic, with aluminum used for the support structure. This provides a lightweight yet sturdy unit that is appropriate for shooting hand-held or with a stabilizer rig, when every ounce counts.
- Swing Away Design
- The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods. This way you don't have to hand off the matte box to someone else, hold it under an arm or between your knees, or hang it under the rods while you work, greatly speeding your workflow and reducing the chance of dropping the matte box or having a filter tray fall out.
- Rotating 4 x 4 Filter Trays
- The matte box features two independently rotating 4 x 4 filter trays; this allows you to simultaneously rotate two filters, such as one polarizer and one graduated filter, or even two graduated filters, for creative effect. The filter stages each rotate 90° and feature a tray locking knob, which allows you to adjust the height of the filter and lock it in place. This is a useful feature when using graduated filters in your matte box. The filter trays feature a center detent, so you can easily position them exactly in the middle.
- Top & Side Flags
-
- The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don't move during the shot.
- Each side flag is made from two pieces with a pivot point that allows you to pivot the outer flap approximately 45° providing additional height so that the side flags can butt up against the top flag when it is in a raised position. The outer flap of the side flags run in a track, and a locking thumb nut allows you to lock the side flags pivot adjustment.
- Anti-Reflection Inserts
- The four included anti-reflection inserts work with your lenses. They provide a light-tight seal so that light from behind the camera cannot leak through where the lens joins the matte box and reflect off filters to flare your image.
UPC: 840534105013 - Follow Focus V2 with Hard Stops for 15mm Rods The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
- Key Features
-
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included
UPC: 840534104016 - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus from Lanparte is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1". The pin-lock tightening mechanism secures the gear ring to ensure that the follow focus gear drive has a slip-free grip on the focus ring of your camera lens. UPC: 840534104115
- ABS Protection Case for DSLR Camera Rig Kit The durable and watertight Lanparte ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of Lanparte DSLR camera rig kits. A pair of wheels and an extendable pull bar are provided for easy transport, as well as a top handle and two side handles for carrying.
- Pre-cut foam interior fits:
- DSLR with C-Arm Support
- Adjustable baseplate
- Follow focus
- Matte box
- French flags
- Top handle
- Shoulder support and power supply system
- Universal Grip
- Magic Arm
- 8" HDMI monitor

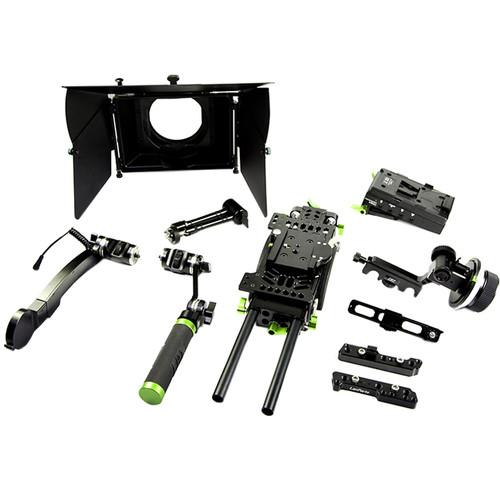

UPC: 840534112011 In the Box Bundle Items Extension Arm for the Sony PXW-FS5 vbuybvuwvccvezftcevssvtda - Locking ARRI Rosette Extension Spacer
Dual Rod Clamp with Rosettes Utility Top Plate for Sony PXW-FS5 - 4 x Plate Mounting Screws
- Limited 1-Year Warranty (USA Only)
Magic Arm EVF Extension Arm for Sony PXW-FS5 - Limited 1-Year Warranty (USA Only)
V-Mount Shoulder Support V2 VBP-01 V-Mount Battery Pinch 3 x - Yellow-Tip Camera DC Power Spring Cable for Battery Pinch (5.5/2.1mm)
- Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm)
DC Power Cable for Sony FS5 Cinema Camera MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box - 4 x Anti-Reflection Donuts
Follow Focus V2 with Hard Stops for 15mm Rods vbuybvuwvccvezftcevssvtda - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus vbuybvuwvccvezftcevssvtda ABS Protection Case for DSLR Camera Rig Kit
Also Includes - Arri Rosette Handgrip (UG-03-H)
Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Complete Kit for Sony FS5 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Extension Arm for the Sony PXW-FS5
| Material of Construction | Aluminum | | Dimensions (LxWxD) | 11.4 x 3.6 x 1.7" (29.0 x 9.1 x 4.3 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 11.6 x 3.9 x 2.2" | - Dual Rod Clamp with Rosettes
| Dimensions | 1.8 x 1.2 x 1.3" (4.5 x 3 x 3.2 cm) | | Weight | 3.5 oz (100 g) | | | | Box Dimensions (LxWxH) | 4.7 x 1.6 x 0.9" | - Utility Top Plate for Sony PXW-FS5
| Material of Construction | Aluminum | | Dimensions (LxHxD) | 4.0 x 1.0 x 0.3" (10.2 x 2.5 x 0.8 cm) | | Weight | 3.7 oz (104 g) | | | | Box Dimensions (LxWxH) | 4.5 x 1.7 x 0.6" | - Magic Arm
| Material | Rugged, anodized aluminum alloy | | Threads | 1/4"-20
3/8"-16 | | Dimensions | Height: 2.5" (63 mm)
Length Unfolded: 11" (280 mm)
Length Folded: 6.1" (155 mm) | | Weight | 11.6 oz (330 g) | | | | Box Dimensions (LxWxH) | 6.8 x 3.6 x 1.5" | - EVF Extension Arm for Sony PXW-FS5
| Material of Construction | Aluminum | | Sliding Range | 4" | | Dimensions (LxWxH) | 5.0 x 1.0 x 0.5" (12.7 x 2.5 x 1.3 cm) | | Weight | 1.8 oz (50 g) | | | | Box Dimensions (LxWxH) | 5.2 x 1.7 x 0.9" | - V-Mount Shoulder Support V2
| Dimensions | 12.0 x 3.3 x 5.0" (30.5 x 8.3 x 12.7 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 13.6 x 6.1 x 4.3" | - VBP-01 V-Mount Battery Pinch
| Connectors | Inputs:
1 x DC barrel charging
1 x HDMI splitter
Outputs:
1 x 5 VDC barrel, signal switch power
1 x 7.4 VDC barrel, DSLR power (requires adapter)
2 x 12 VDC barrel, monitor power
1 x 15 VDC barrel, V-Mount battery voltage
1 x D-Tap
1 x USB 5 VDC power
2 x HDMI splitter | | DC Output Voltage | 5, 7.4, 12, 15 VDC | | Dimensions | 10 x 7 x 4" (25.4 x 17.8 x 10.2 cm) | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 9.2 x 6.2 x 3.6" | - DC Power Cable for Sony FS5 Cinema Camera
| Length | 39.5" (100.3 cm) | | Weight | 1 oz (27 g) | | | | Box Dimensions (LxWxH) | 5.5 x 1.5 x 0.7" | - MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box
| | | Filter Type | 4 x 4 | | Total Filter Stages | 2 | | Rotating Stages | 2 Independent | | Degree of Rotation | 90° | | Materials | ABS plastic
Aluminum | | Dimensions | Matte box
W x H x D: 8.3 x 5.9 x 2.8" / 210 x 150 x 71 mm
Top Flag
Min Width: 8.3" / 210
Max Width: 13.1" / 332.4 | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 15.8 x 12.2 x 6.1" | - Follow Focus V2 with Hard Stops for 15mm Rods
| Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Fixed | | Marking Disk | Yes | | Switchable Handwheel Speed | No | | Dimensions | 7.44 x 4.31 x 3.16" / 188.97 x 109.6 x 80.25 mm | | Weight | 1.1 lb / 0.5 g | | | | Box Dimensions (LxWxH) | 9.55 x 5.75 x 4.15" | - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
| Compatibility | Any prime/zoom lens | | Material | Rubber | | Pitch | 0.8 | | Diameter | 4.1" (10.5 cm) maximum | | Length | 13.0" (33.0 cm) approx. | | Weight | 0.7 oz (20.0 g) | | | | Box Dimensions (LxWxH) | 3.0 x 2.9 x 0.55" | - ABS Protection Case for DSLR Camera Rig Kit
| Case Type | Hard Case | | Exterior Dimensions (L x W x H) | 26.4 x 19.7 x 12.2" / 67.00 x 50.00 x 31.00 cm | | | | Box Dimensions (LxWxH) | 26.0 x 21.0 x 12.5" |
