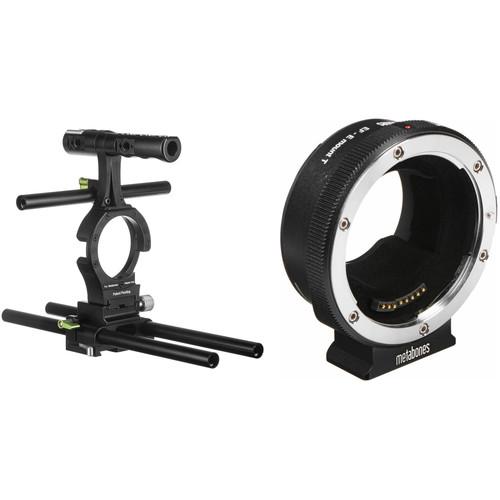

User Manual for LanParte Dragon Kit with Metabones EF to E-Mount Smart Adapter Click to enlarge the picture
Contents of the user manual for the LanParte Dragon Kit with Metabones EF
- Product category: DSLR Video Supports & Rigs LanParte
- Brand: LanParte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LanParte DSLR Video Supports & Rigs
|
User manual for the LanParte Dragon Kit with Metabones EF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LanParte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LanParte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LanParte product will considerably shorten its lifespan!
|
Product description The LanParte Dragon Kit with Metabones EF to E-Mount Smart Adapter is a stable solution for rigging up your E-mount camera with EF-mount lenses. By securing the Metabones lens adapter in the Dragon rig, all stress from the lens is removed from the camera and supported by the rig. The Metabones adapter communicates with EF mount lenses that have electronic contacts for focus and iris control. See below for more information on the individual items included in this kit. - LanParte Dragon Kit for Metabones EF to E-Mount Adapters The LanParte Dragon Kit is designed to support your camera and lenses with no strain on your camera lens mount. The circular ring in the center accepts your Metabones EF to E-mount adapter and locks it in, and then you can easily attach your camera from one end and lens from the other. You can just as easily switch the camera or lens out.
The kit is complete with a top handle, a quick release baseplate with dual 15mm rods, and an ARRI-standard dovetail plate with 1/4"-20 and 3/8"-16 threads. The top handle offers 1/4"-20 and 3/8"-16 mounting threads, a shoe mount, and a sideways 15mm rod port. A short 15mm rod and 1/4"-20 monitor mount are included for the rod port. - Key Features
-
- Locking adapter ring supporting Metabones EF to E-mount adapters
- Top handle with 1/4"-20 and 3/8"-16 threads, shoe mount, 15mm rod port, 15mm rod, and 1/4"-20 monitor mount
- Quick release baseplate with dual 15mm rods
- Dovetail plate with ARRI dovetail design and both 1/4"-20 and 3/8"-16 threads
UPC: 840534116279 - Metabones Canon EF/EF-S Lens to Sony E Mount T Smart Adapter (Fifth Generation) Bring out your Canon EF and EF-S mount lenses for use on a variety of full-frame and APS-C format Sony E-mount cameras with this Metabones EF to E Mount T Smart Adapter. Further improving on previous generations of Smart Adapters, this fifth-generation model now features a rubber gasket to protect the camera's mount from dust and moisture, offers a status notification LED light to check operation modes, and a dedicated switch that controls in-body image stabilization of select cameras. Also, this version is compatible with the Sony PXW-FS7 Mark II video camera.
This adapter is equipped with numerous capabilities thanks to the use of a high-performance 32-bit processor. The features include support for both phase-detect and contrast-detect AF systems as well as the ability to control the aperture from the camera body. Smooth iris effects are possible as well on select lenses and 5-axis stabilization is available thanks to communication of distance information with supported lenses. Also, it features a programmable function button, enables electronic (focus-by-wire) manual focusing, transmits Exif data to the camera, and works with in-lens image stabilization. Additionally, distance and zoom is displayed on certain camcorders and mirrorless cameras, auto magnify can be enabled, and it can automatically switch into APS-C mode depending on the lens used.
Beyond electronic communication, the adapter has many physical advantages as well, such as a black felt flocking on the inside of the adapter that prevents reflections. For larger lenses, there is a removable Arca-type-compatible tripod foot with a 1/4"-20 thread on the base. - Allows users to adapt a Canon EF/EF-S-mount lens to a full-frame or APS-C Sony E-mount camera.
- Electronic contacts permit transmission of data between the lens and camera enabling autofocus, auto exposure, image stabilization, aperture control from the camera body, saving Exif information, and more.
- Status notification LED light on the adapter will show the user what mode the adapter is currently in.
- Dedicated switch for controlling in-body image stabilization.
- Programmable function button for rapid access to commonly used settings and features.
- Support for phase-detect AF with the a7R II, a7 II, a6500, and a6300 cameras.
- Compatible with Sony PXW-FS7M2 (FS7 Mark II) camera.
- Smooth iris support with select Canon (2009 and later), Tamron (SP series 2013 and later), and Sigma (2016 and later) lenses.
- Enables electronic manual focusing on lenses, such as the Canon EF 85mm f/1.2L II, that use a focus-by-wire system.
- Support for distance and zoom display, auto magnify, and auto APS-C Size Capture settings on select cameras.
- Internal felt flocking prevents reflections.
- Removable Arca-type compatible tripod foot with 1/4"-20 thread.
In the Box - Dragon Kit for Metabones EF to E-Mount Adapters fbrfbtcdcwraeuscyyvzecudbfrru
- Locking Adapter Ring with Top Handle, 15mm Rod, and Monitor Mount
- Quick Release Baseplate with Dual 15mm Rods
- Dovetail Plate
- Limited 1-Year Warranty
- Metabones - Canon EF/EF-S Lens to Sony E Mount T Smart Adapter (Fifth Generation)
Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Dragon Kit with Metabones EF to E-Mount Smart Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LanParte Dragon Kit for Metabones EF to E-Mount Adapters
| | | Box Dimensions (LxWxH) | 13.1 x 10.0 x 3.9" | - Metabones Canon EF/EF-S Lens to Sony E Mount T Smart Adapter (Fifth Generation)
| | | Camera Mount | Sony E | | Lens Mount | Canon EF/EF-S | | | | Box Dimensions (LxWxH) | 4.3 x 4.3 x 2.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
