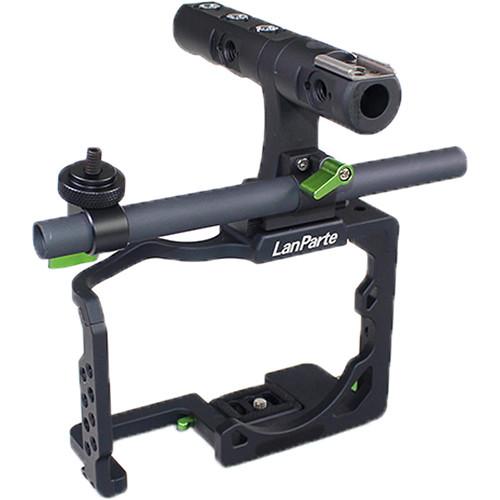

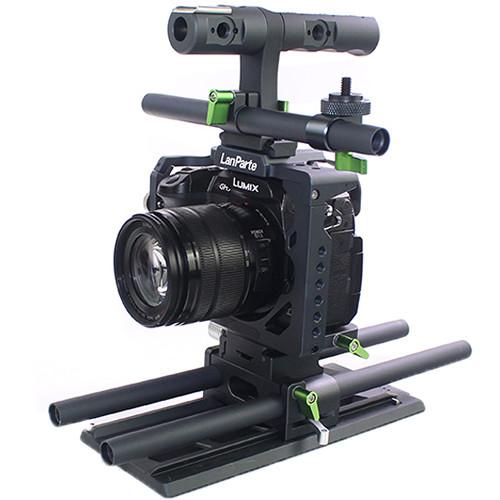

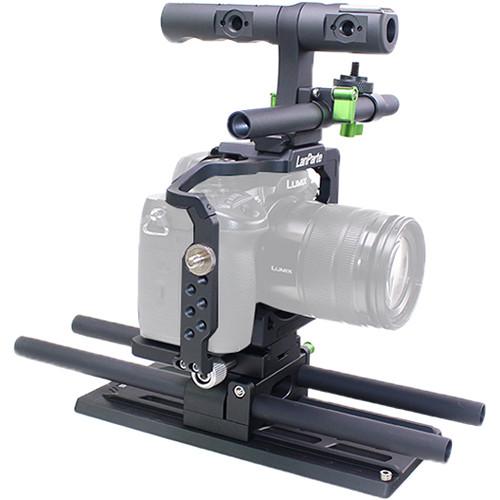

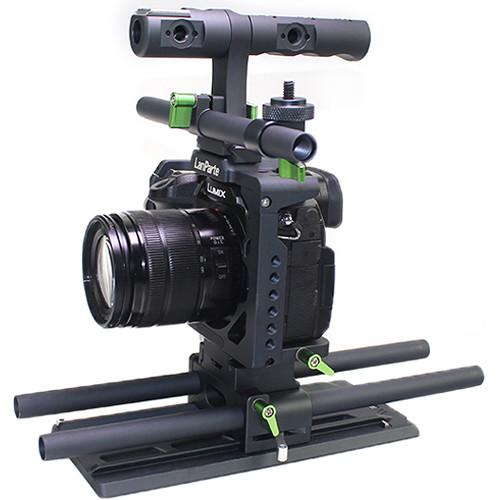

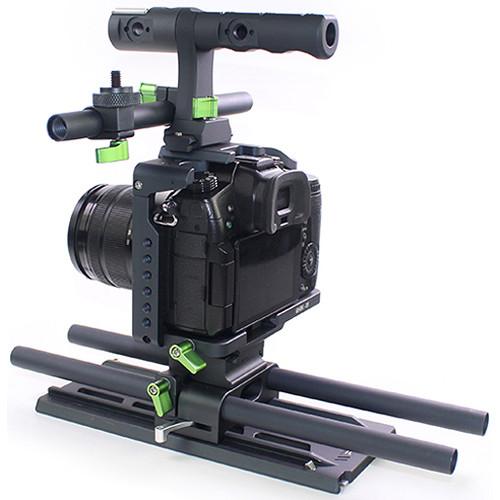

Product description Between the several components included in this system and the varied mounting options they offer, this LanParte FANS Series Cage Kit provides a comprehensive support system for the Panasonic GH5. The kit features a cage, baseplate, ARRI-standard dovetail plate, top handle, 1/4"-20 accessory mount, and 15mm rods.
The ARRI-standard dovetail plate, which secures to the bottom of the baseplate, allows you to use the system with all ARRI-standard 19mm bridgeplates, including those integrated in shoulder rigs such as the LanParte CSR-01. You'll be able to mount the entire rig onto such a shoulder rig by simply sliding it on.

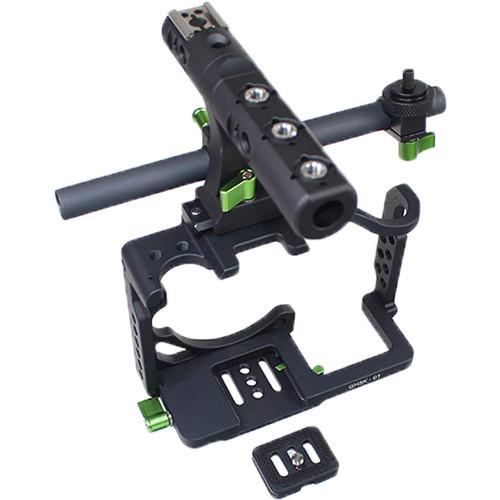

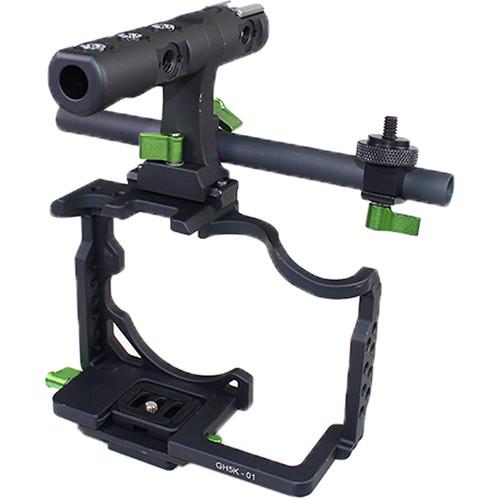

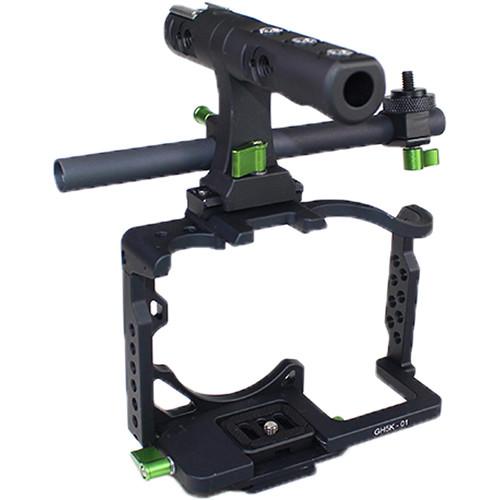

The cage features a convenient method for attaching/removing your camera. A small, Arca-Swiss-standard quick-release plate first secures to the bottom of the camera and then inserts into a slot on the cage along with the camera. The plate is rubber-padded for non-slip attachment. The cage is designed specifically for the GH5 and leaves open access to all ports and controls. It provides 1/4"-20 and 3/8"-16 threaded accessory mounting holes all around, and it also has a NATO rail integrated on top for attaching the included top handle or other NATO rail accessories.
The top handle allows you to comfortably carry the system from place to place and it also provides multiple different mounting points. It offers a cold shoe mount on top for attaching microphones or other accessories. It has ARRI-standard accessory mounts (which have safety pinholes) on the top and sides. It has a 15mm rod port for inserting an additional rod and attaching more accessories. And it also has a sideways 15mm rod clamp. The included short 15mm rod and rod-mount accessory adapter with 1/4"-20 screw secure into this rod clamp to support monitors, lights, or other 1/4"-20-mount accessories.
The baseplate offers 15mm LWS rod support, and two 12", 15mm rods are included. Both the baseplate and the dovetail plate provide 1/4"-20 and 3/8"-16 tripod-mount threaded holes on the bottom. This FANS Series Cage Kit is designed with LanParte's signature black and green color scheme. - Key Features
-
- Dedicated cage for the Panasonic GH5
- Arca-Swiss-standard quick-release camera adapter plate
- Baseplate with 15mm LWS rod support
- Dual 12", 15mm rods
- 8" ARRI-standard dovetail plate
- NATO rail-mount top handle with a cold shoe mount, 15mm rod port, 15mm rod clamp, and ARRI-standard accessory mounts
- Short 15mm rod
- 15mm rod-mount accessory adapter with 1/4"-20 screw
- 1/4"-20 and 3/8"-16 threaded mounting holes
- 1/4"-20 and 3/8"-16 tripod mounts
UPC: 840534102159 In the Box LanParte FANS Series Cage Kit for Panasonic GH5 Camera Cage Baseplate with Dual 12", 15mm Rods Top Handle Approx. 5", 15mm Rod 1/4"-20 Accessory Adapter 8" ARRI-Standard Dovetail Plate Small, Quick-Release Camera Mount Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte FANS Series Cage Kit for Panasonic GH5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLanParte GH5K-01 Specs | Rod Type | 2 x 12" (30 cm) 15 mm rods
1 x approx. 5" (13 cm) 15 mm rod | | Mount Types | 8" (20 cm) ARRI-standard dovetail
ARRI-standard accessory mounts
Acra-Swiss-standard camera adapter plate
15 mm rod-mount accessory adapter with 1/4"-20 screw
Cold shoe mount
Single 15 mm rod port
NATO rail mount
1/4"-20 and 3/8"-16 threaded mounting holes
1/4"-20 and 3/8"-16 tripod mounts | | Dimensions | 14 x 11 x 9" (36 x 28 x 23 cm) | | Weight | 5 lb (2.3 kg) | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 13.1 x 10.0 x 3.8" |
