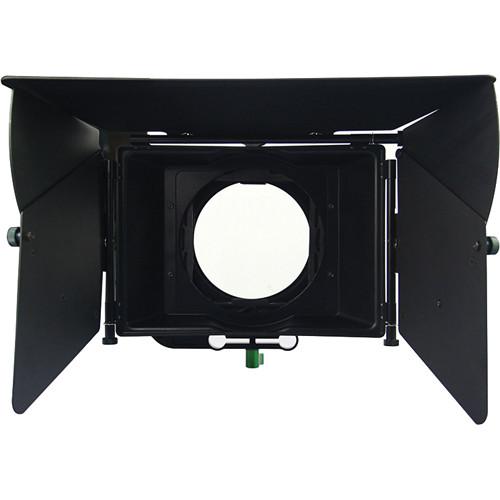

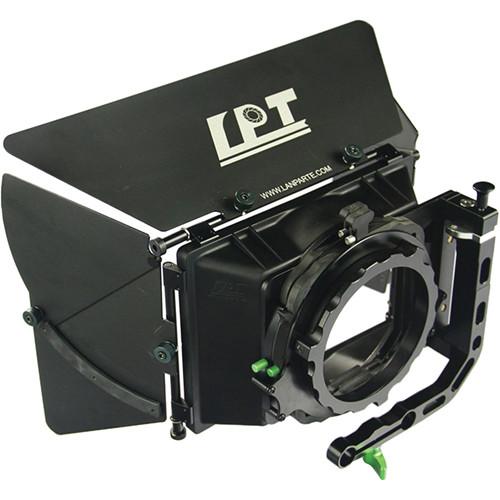

Product description The LanParte MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box is a 4 x 4 matte box that fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. It features two rotating 4 x 4 filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes. The included 4 x 4 filter trays can slide in the rotating stages, allowing you to adjust their height.

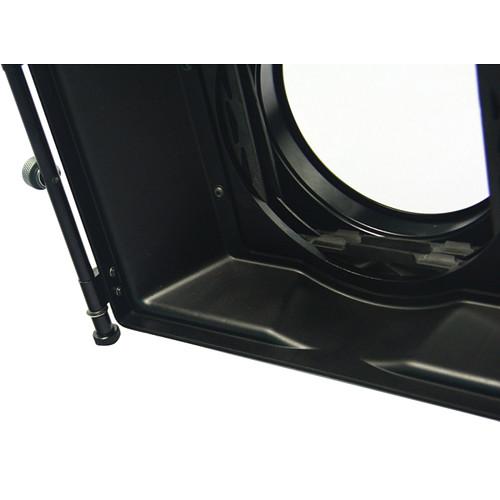

The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off of filters in the matte box and flaring your image. In addition, the interior of the matte box is finished with a black anti-reflective coating to reduce reflection off the matte box back onto filters. - Lightweight Construction
- The matte box itself is made out of ABS plastic, with aluminum used for the support structure. This provides a lightweight yet sturdy unit that is appropriate for shooting hand-held or with a stabilizer rig, when every ounce counts.
- Swing Away Design

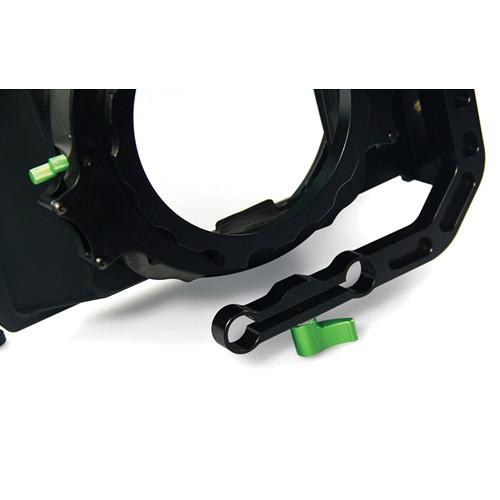

- The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods. This way you don't have to hand off the matte box to someone else, hold it under an arm or between your knees, or hang it under the rods while you work, greatly speeding your workflow and reducing the chance of dropping the matte box or having a filter tray fall out.
- Rotating 4 x 4 Filter Trays
- The matte box features two independently rotating 4 x 4 filter trays; this allows you to simultaneously rotate two filters, such as one polarizer and one graduated filter, or even two graduated filters, for creative effect. The filter stages each rotate 90° and feature a tray locking knob, which allows you to adjust the height of the filter and lock it in place. This is a useful feature when using graduated filters in your matte box. The filter trays feature a center detent, so you can easily position them exactly in the middle.
- Top & Side Flags
-

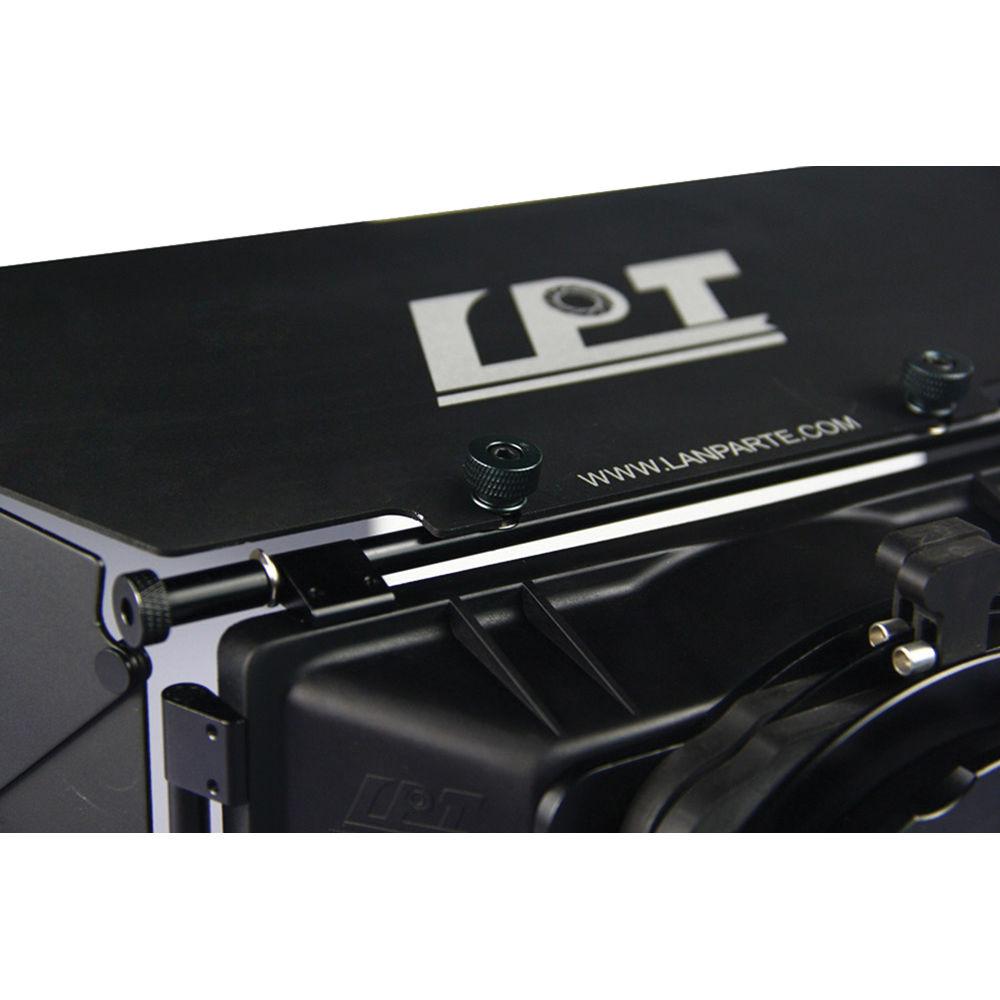

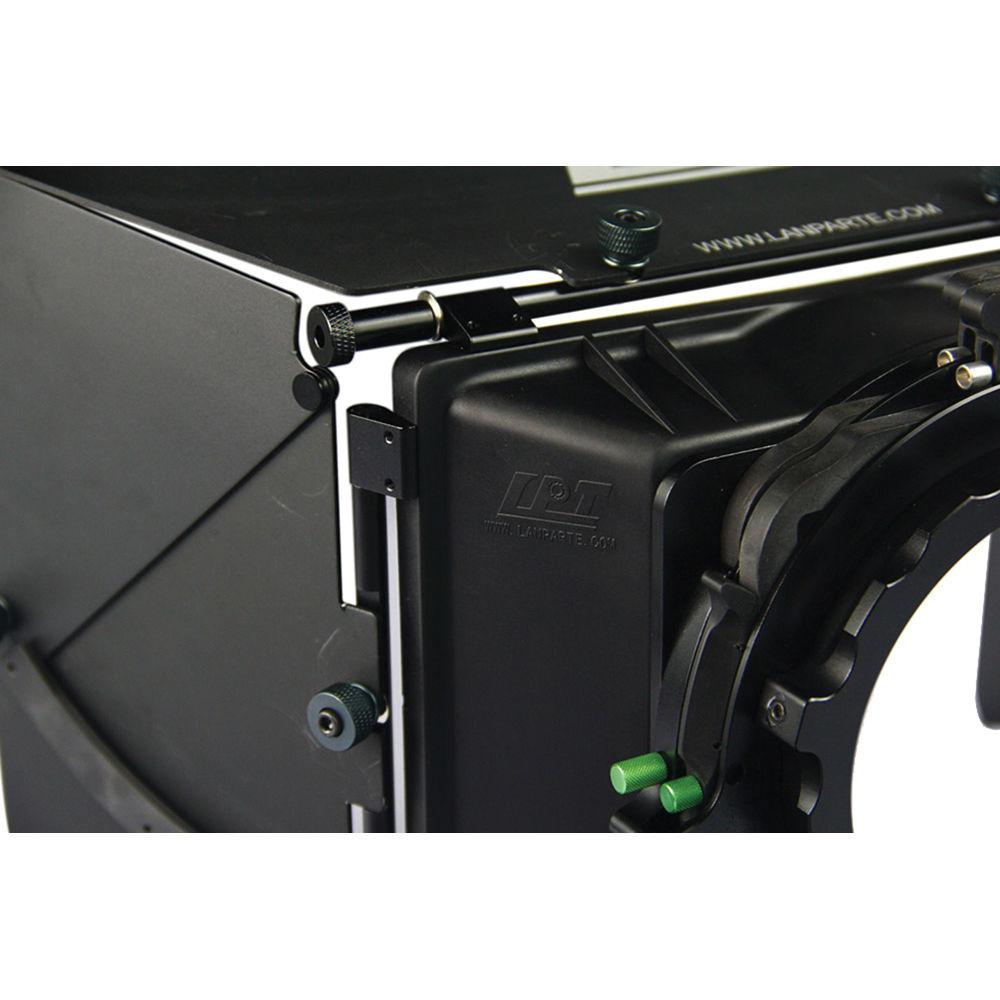

- The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don't move during the shot.
- Each side flag is made from two pieces with a pivot point that allows you to pivot the outer flap approximately 45° providing additional height so that the side flags can butt up against the top flag when it is in a raised position. The outer flap of the side flags run in a track, and a locking thumb nut allows you to lock the side flags pivot adjustment.
- Anti-Reflection Inserts
- The four included anti-reflection inserts work with your lenses. They provide a light-tight seal so that light from behind the camera cannot leak through where the lens joins the matte box and reflect off filters to flare your image.
UPC: 840534105013 In the Box LanParte MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box - 4 x Anti-Reflection Donuts
- 2 x 4 x 4 Filter Holders
- Top Flag
- 2 x Side Flags
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLanParte MB-01 Specs | | | Filter Type | 4 x 4 | | Total Filter Stages | 2 | | Rotating Stages | 2 Independent | | Degree of Rotation | 90° | | Materials | ABS plastic
Aluminum | | Dimensions | Matte box
W x H x D: 8.3 x 5.9 x 2.8" / 210 x 150 x 71 mm
Top Flag
Min Width: 8.3" / 210
Max Width: 13.1" / 332.4 | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 15.8 x 12.2 x 6.1" |
