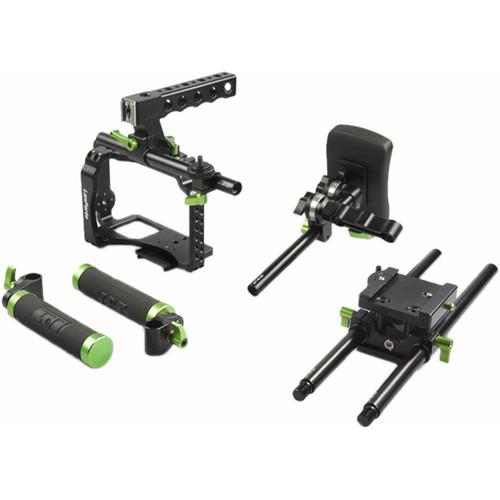

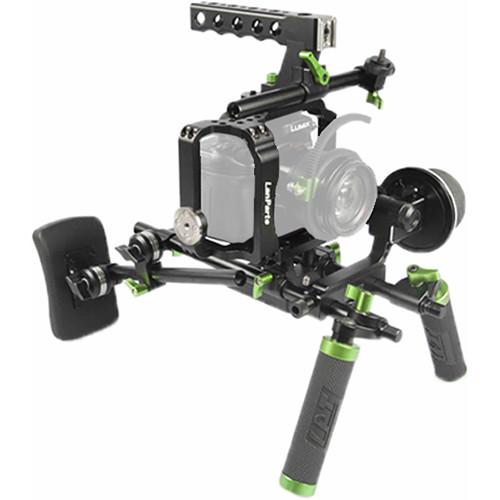

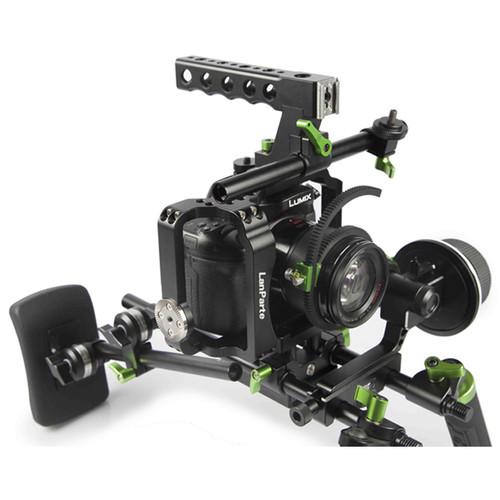

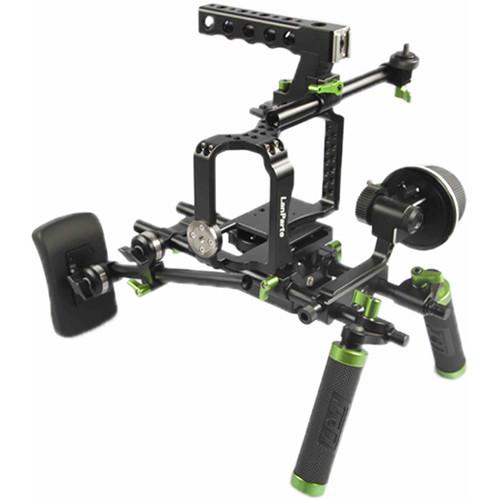

Product description The Lanparte Mirrorless Camera Basic Kit includes the MCK-01 Mirrorless Camera Basic Kit, BH-01 Handle, FF-02 Follow Focus, FFGR-02 Follow Focus Gear Ring, and CP-01 Chest Pad.

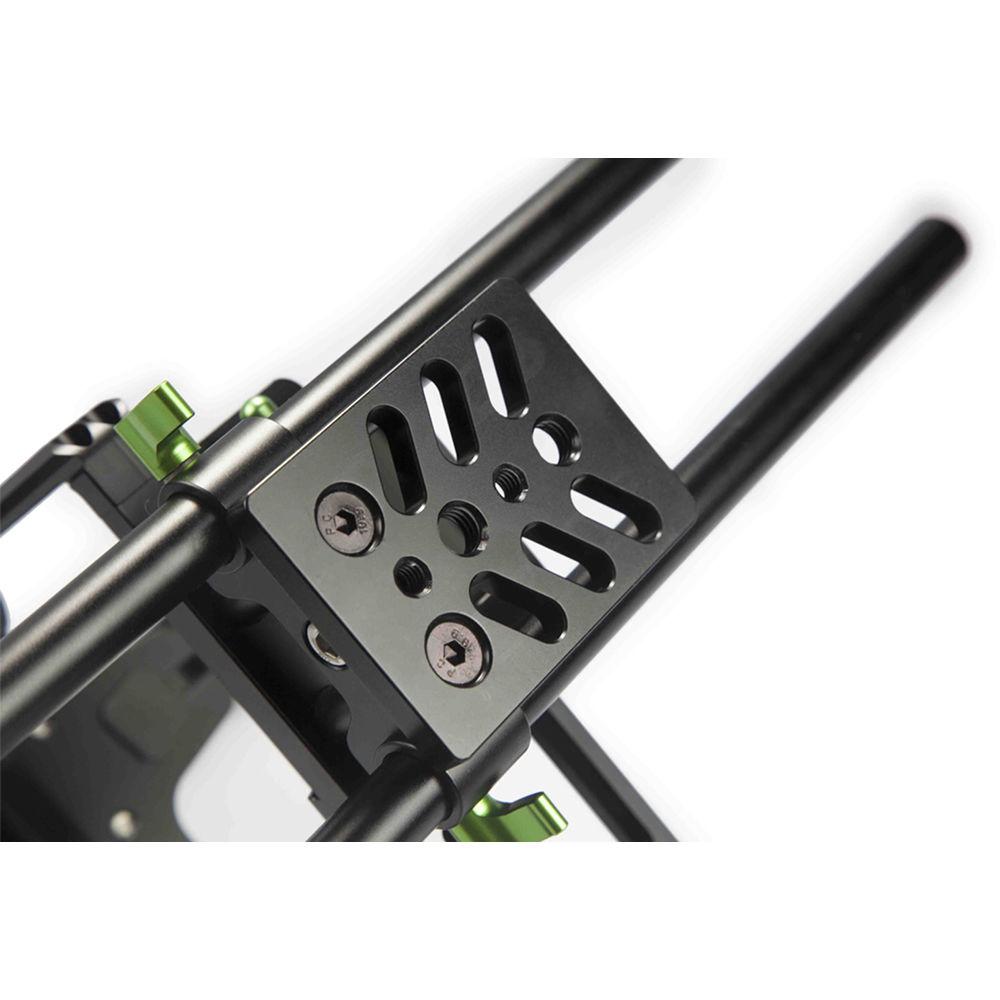

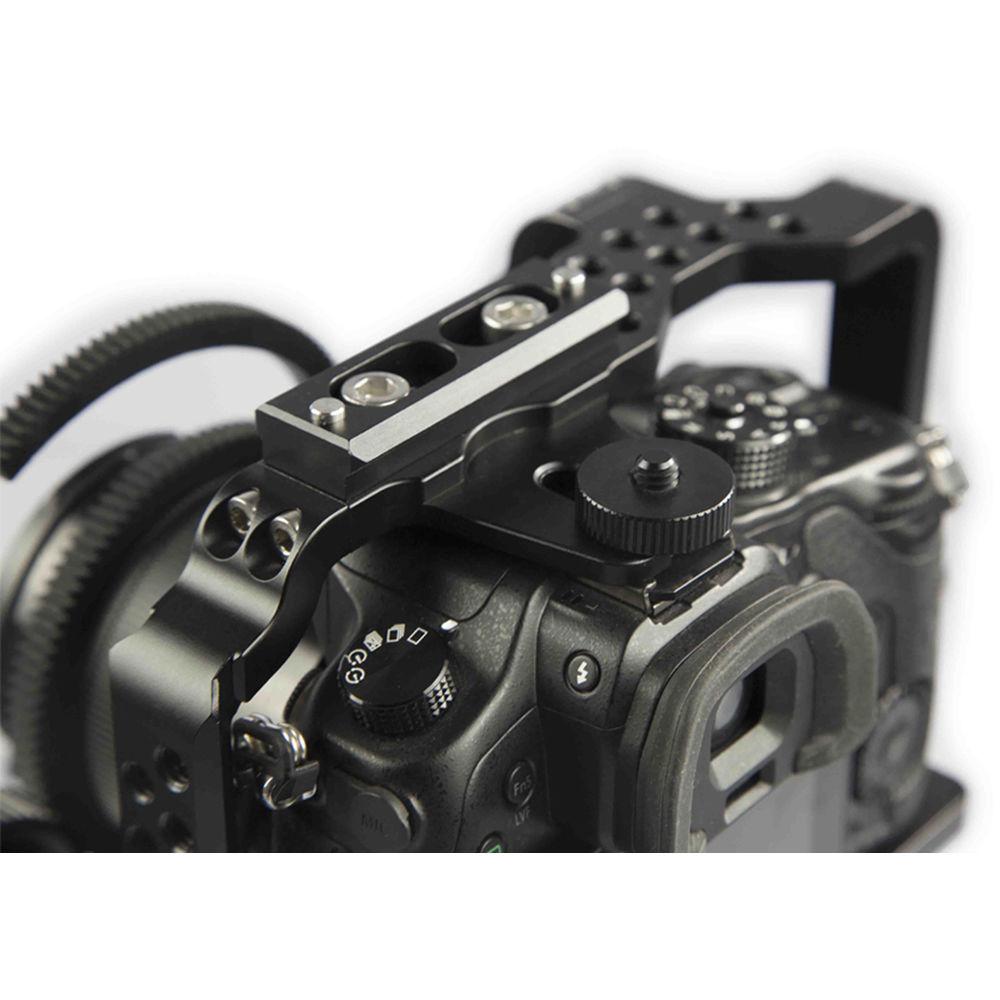

The Mirrorless Camera Basic Cage is designed for the Panasonic LUMIX GH4 and Sony a7 cameras. It comes with a baseplate and an EVF mount. The LWS baseplate supports a pair of 11.8" rods. The NATO quick release top handle attaches to the top of the cage via an included 2.4" NATO rail.
This Basic Handle pair from LanParte enables dual handgrip support with 15mm rod support rigs.The Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings.The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1".
Stabilize your rig with the Chest Pad. Using the built-in 15mm rod clamp, the chest pad secures to your rig or baseplate. When braced against your chest, the pad offers a stable point of contact to counteract shakiness. - Mirrorless Camera Basic Cage The LanParte Mirrorless Camera Basic Cage is designed for the Panasonic Lumix GH4 and Sony a7 cameras. It comes with a baseplate and an EVF mount. The LWS baseplate supports a pair of 11.8" rods. The NATO quick release top handle attaches to the top of the cage via an included 2.4" NATO rail. The top handle slides on the NATO rail and features a variety of accessory mounting options, including an integrated 15mm rod clamp for attaching an optional monitor or an EVF support bracket, such as the UVF Mount, sold separately. An integrated shoe mount is also provided, and there are 1/4"-20 and 3/8"-16 threaded holes on the grip area.
- Fits both Sony a7 and Panasonic GH4 cameras
- Specialized design prevents the blocking of buttons
UPC: 840534102081 - Basic Handle for 15mm Rod (Pair) This Basic Handle pair from LanParte enables dual handgrip support with 15mm rod support rigs. Each handle is constructed from CNC machined aluminum and features a 15mm rod clamp and non-slip silica-gel grip. UPC: 840534107024

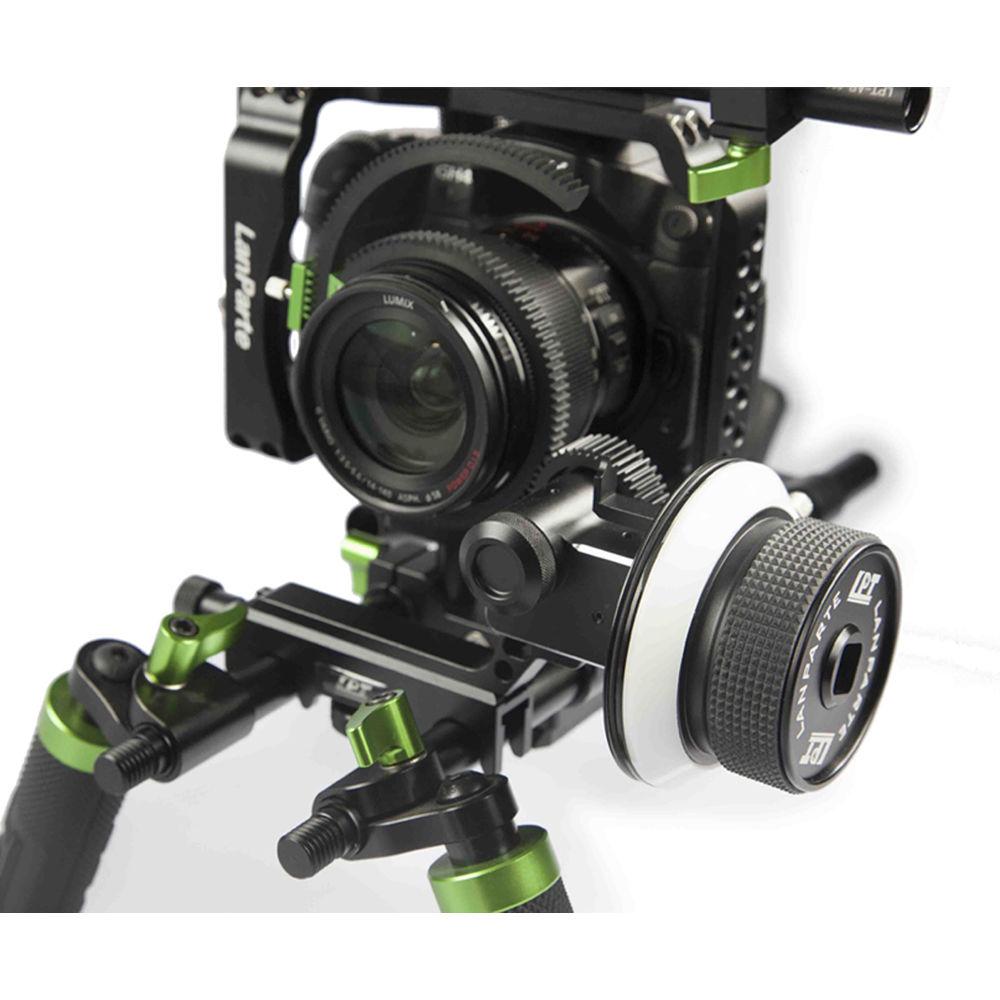

- Follow Focus V2 with Hard Stops for 15mm Rods The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
- Key Features
-
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included
UPC: 840534104016 - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus from Lanparte is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1". The pin-lock tightening mechanism secures the gear ring to ensure that the follow focus gear drive has a slip-free grip on the focus ring of your camera lens. UPC: 840534104115

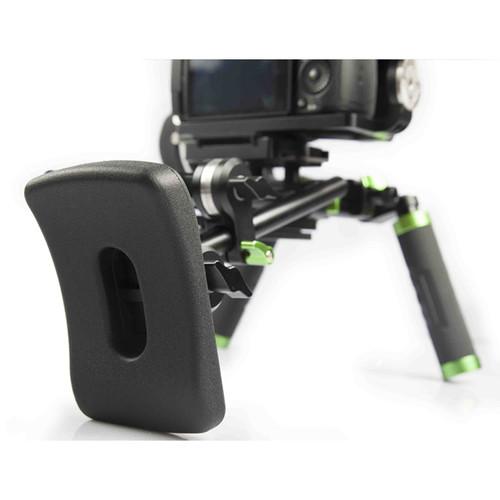

- Chest Pad Stabilize your rig with this Chest Pad from Lanparte. Using the built-in 15mm rod clamp, the chest pad secures to your rig or baseplate, and when the pad is braced against your chest, it offers a stable point of contact to counteract shakiness. The chest pad articulates on two ARRI rosettes for comfortable positioning.
- Angle adjustable via ARRI rosette
UPC: 840534108052 In the Box Bundle Items Mirrorless Camera Basic Cage eadqvcerwczzdy Basic Handle for 15mm Rod (Pair) Follow Focus V2 with Hard Stops for 15mm Rods - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus Chest Pad eadqvcerwczzdy Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Mirrorless Camera Basic Kit for Sony a7 and Panasonic GH4 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mirrorless Camera Basic Cage
| | | Threaded Holes | 1/4"-20 and 3/8"-16 | | Dimensions | 14 x 10 x 4" (35.6 x 25.4 x 10.2 cm) | | Weight | 7 lb (3.2 kg) | | | | Box Dimensions (LxWxH) | 13.25 x 10.25 x 3.8" | - Basic Handle for 15mm Rod (Pair)
| Dimensions | 7.09 x 2.76 x 1.38" (18.0 x 7.0 x 3.5 cm) | | | | Box Dimensions (LxWxH) | 7.4 x 3.6 x 1.5" | - Follow Focus V2 with Hard Stops for 15mm Rods
| Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Fixed | | Marking Disk | Yes | | Switchable Handwheel Speed | No | | Dimensions | 7.44 x 4.31 x 3.16" / 188.97 x 109.6 x 80.25 mm | | Weight | 1.1 lb / 0.5 g | | | | Box Dimensions (LxWxH) | 9.55 x 5.75 x 4.15" | - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
| Compatibility | Any prime/zoom lens | | Material | Rubber | | Pitch | 0.8 | | Diameter | 4.1" (10.5 cm) maximum | | Length | 13.0" (33.0 cm) approx. | | Weight | 0.7 oz (20.0 g) | | | | Box Dimensions (LxWxH) | 3.0 x 2.9 x 0.55" | - Chest Pad
| Dimensions | 7.9 x 3.9 x 2.0" (20 x 10 x 5 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 11.7 x 4.6 x 3.5" |
