LanParte Mirrorless Camera Complete Kit for

User Manual for LanParte Mirrorless Camera Complete Kit for Sony a7 and Panasonic GH4 Cameras

• Product category: DSLR Video Supports & Rigs LanParte
• Brand: LanParte
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LanParte DSLR Video Supports & Rigs

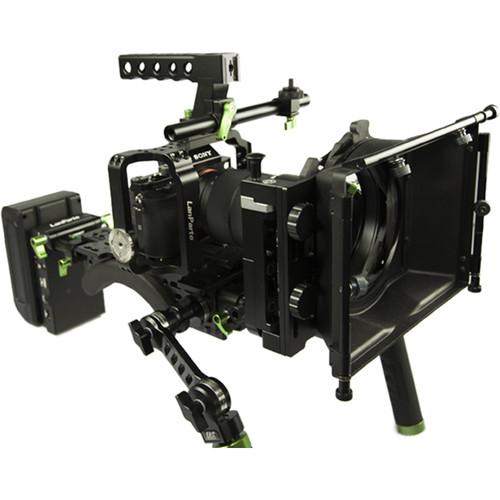

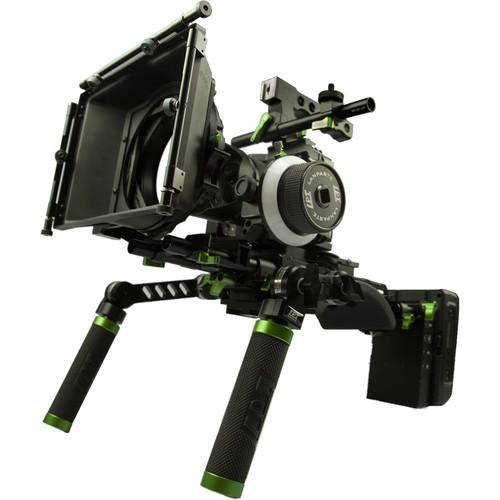

Product description

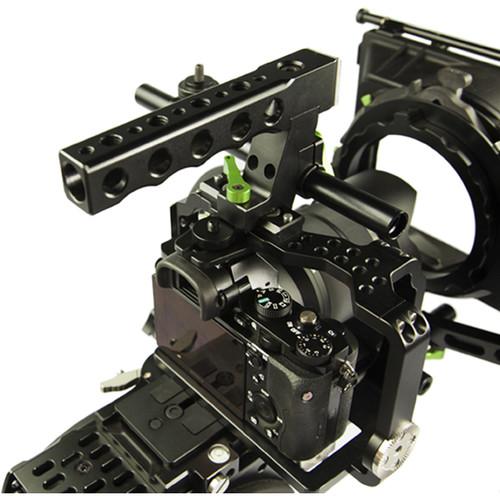

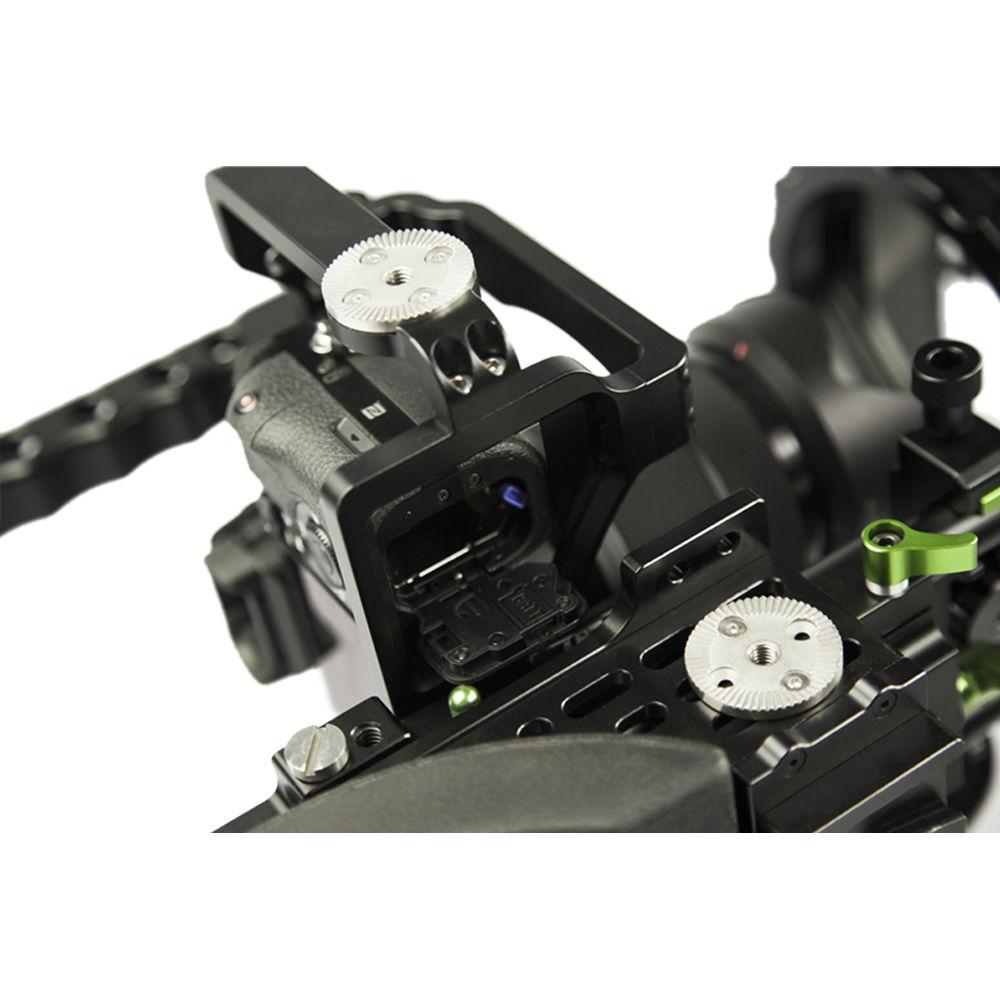

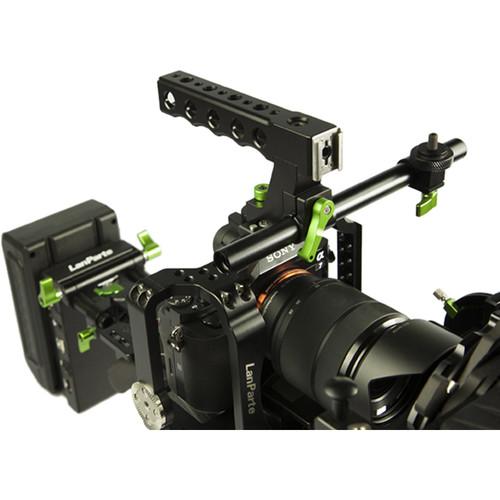

• Mirrorless Camera Basic Cage The LanParte Mirrorless Camera Basic Cage is designed for the Panasonic Lumix GH4 and Sony a7 cameras. It comes with a baseplate and an EVF mount. The LWS baseplate supports a pair of 11.8" rods. The NATO quick release top handle attaches to the top of the cage via an included 2.4" NATO rail. The top handle slides on the NATO rail and features a variety of accessory mounting options, including an integrated 15mm rod clamp for attaching an optional monitor or an EVF support bracket, such as the UVF Mount, sold separately. An integrated shoe mount is also provided, and there are 1/4"-20 and 3/8"-16 threaded holes on the grip area.
  • Fits both Sony a7 and Panasonic GH4 cameras
  • Specialized design prevents the blocking of buttons
  • Ergonomic design
  UPC: 840534102081
• MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box The LanParte MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box is a 4 x 4 matte box that fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. It features two rotating 4 x 4 filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes. The included 4 x 4 filter trays can slide in the rotating stages, allowing you to adjust their height.

  The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off of filters in the matte box and flaring your image. In addition, the interior of the matte box is finished with a black anti-reflective coating to reduce reflection off the matte box back onto filters.
  Lightweight Construction
  • The matte box itself is made out of ABS plastic, with aluminum used for the support structure. This provides a lightweight yet sturdy unit that is appropriate for shooting hand-held or with a stabilizer rig, when every ounce counts.
  Swing Away Design
  • The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods. This way you don't have to hand off the matte box to someone else, hold it under an arm or between your knees, or hang it under the rods while you work, greatly speeding your workflow and reducing the chance of dropping the matte box or having a filter tray fall out.
  Rotating 4 x 4 Filter Trays
  • The matte box features two independently rotating 4 x 4 filter trays; this allows you to simultaneously rotate two filters, such as one polarizer and one graduated filter, or even two graduated filters, for creative effect. The filter stages each rotate 90° and feature a tray locking knob, which allows you to adjust the height of the filter and lock it in place. This is a useful feature when using graduated filters in your matte box. The filter trays feature a center detent, so you can easily position them exactly in the middle.
  Top & Side Flags
  • • The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don't move during the shot.
    • Each side flag is made from two pieces with a pivot point that allows you to pivot the outer flap approximately 45° providing additional height so that the side flags can butt up against the top flag when it is in a raised position. The outer flap of the side flags run in a track, and a locking thumb nut allows you to lock the side flags pivot adjustment.
    Anti-Reflection Inserts
    • The four included anti-reflection inserts work with your lenses. They provide a light-tight seal so that light from behind the camera cannot leak through where the lens joins the matte box and reflect off filters to flare your image.
    UPC: 840534105013

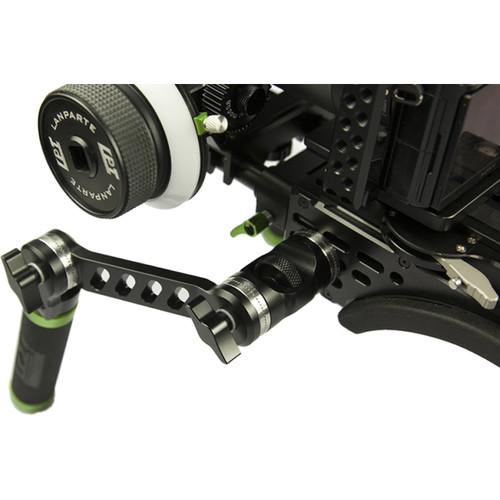

  • Follow Focus V2 with Hard Stops for 15mm Rods The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
    Key Features
    • • Clamps onto 15mm LWS rods
      • Integrated A/B hard stops
      • Copper gear and precision bearing
      • Standard 0.8 pitch drive gear included
      • Drive gear can be flipped to either side of gearbox
      • Sliding dovetail design for adjusting to different sized lenses
      • Removable magnetic marking disc
      • ARRI standard 12mm accessory port
      • CNC machined aluminum components
      • Adjustable lens gear ring included
    UPC: 840534104016
  • Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus from Lanparte is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1". The pin-lock tightening mechanism secures the gear ring to ensure that the follow focus gear drive has a slip-free grip on the focus ring of your camera lens. UPC: 840534104115

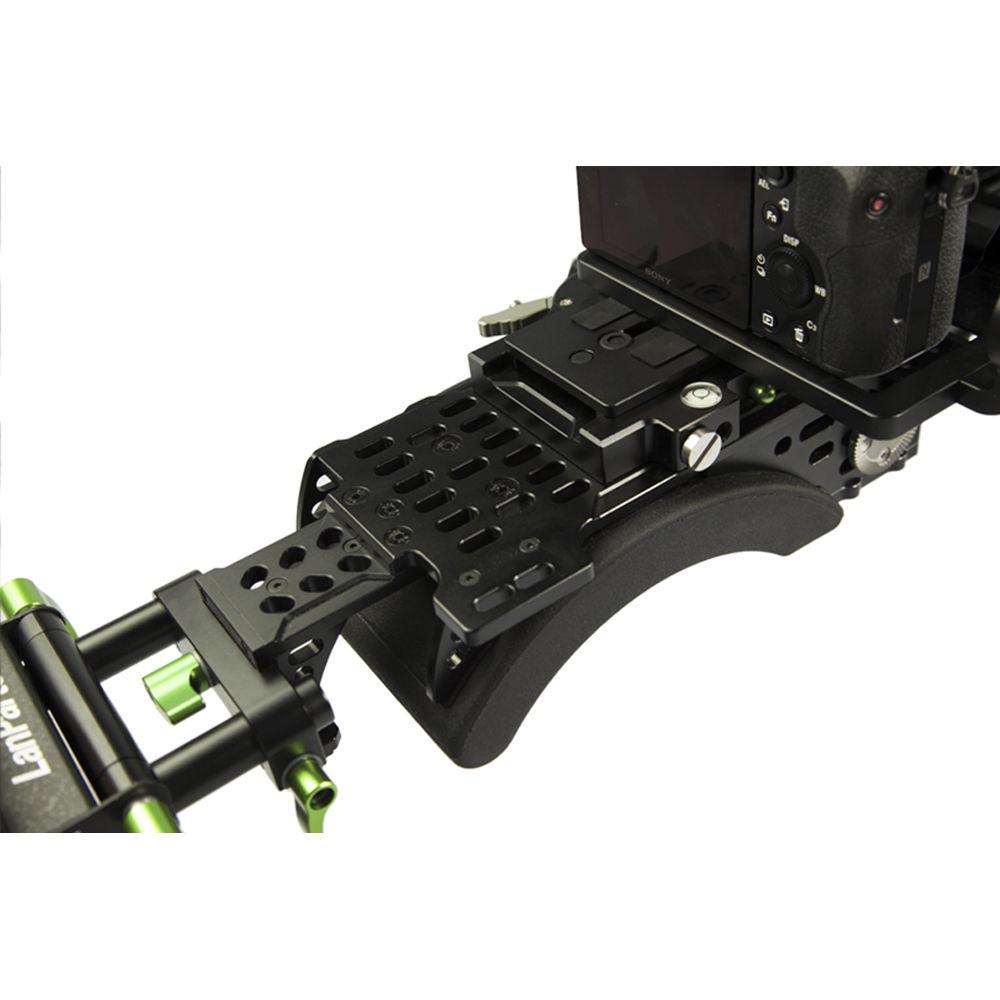

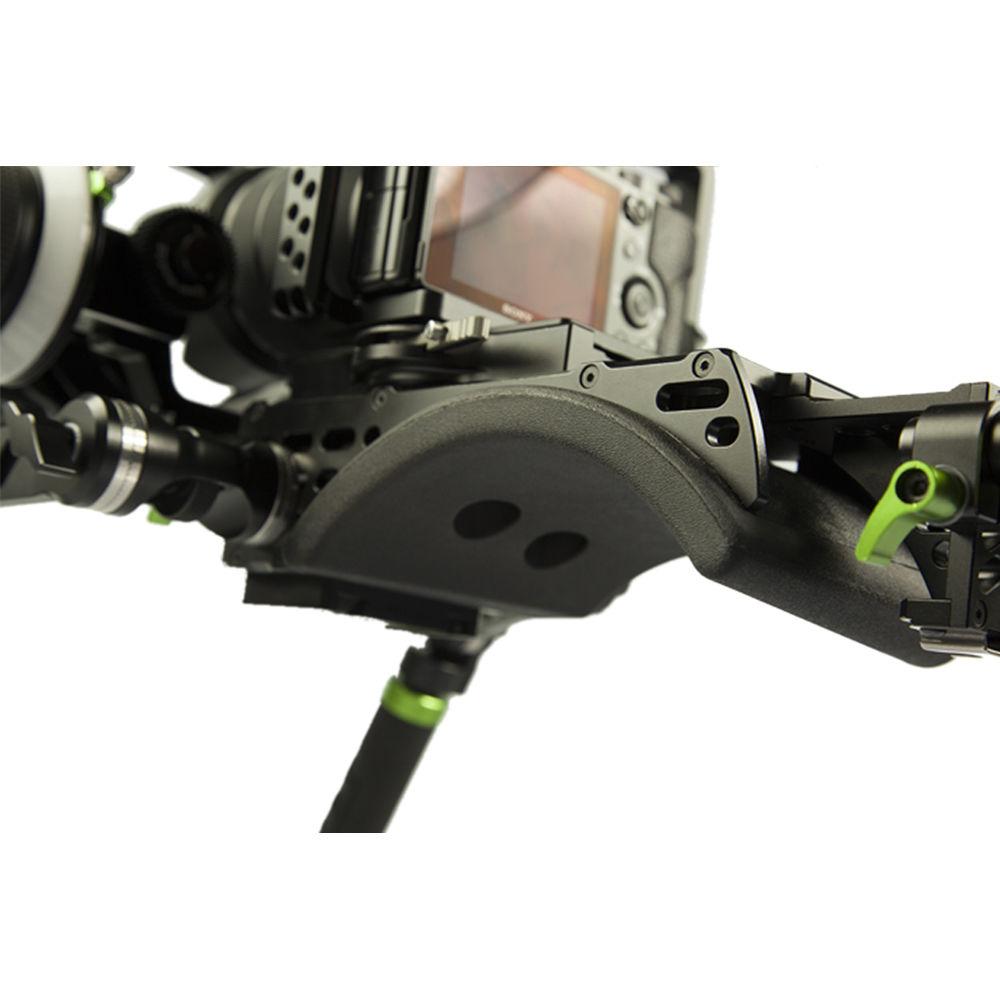

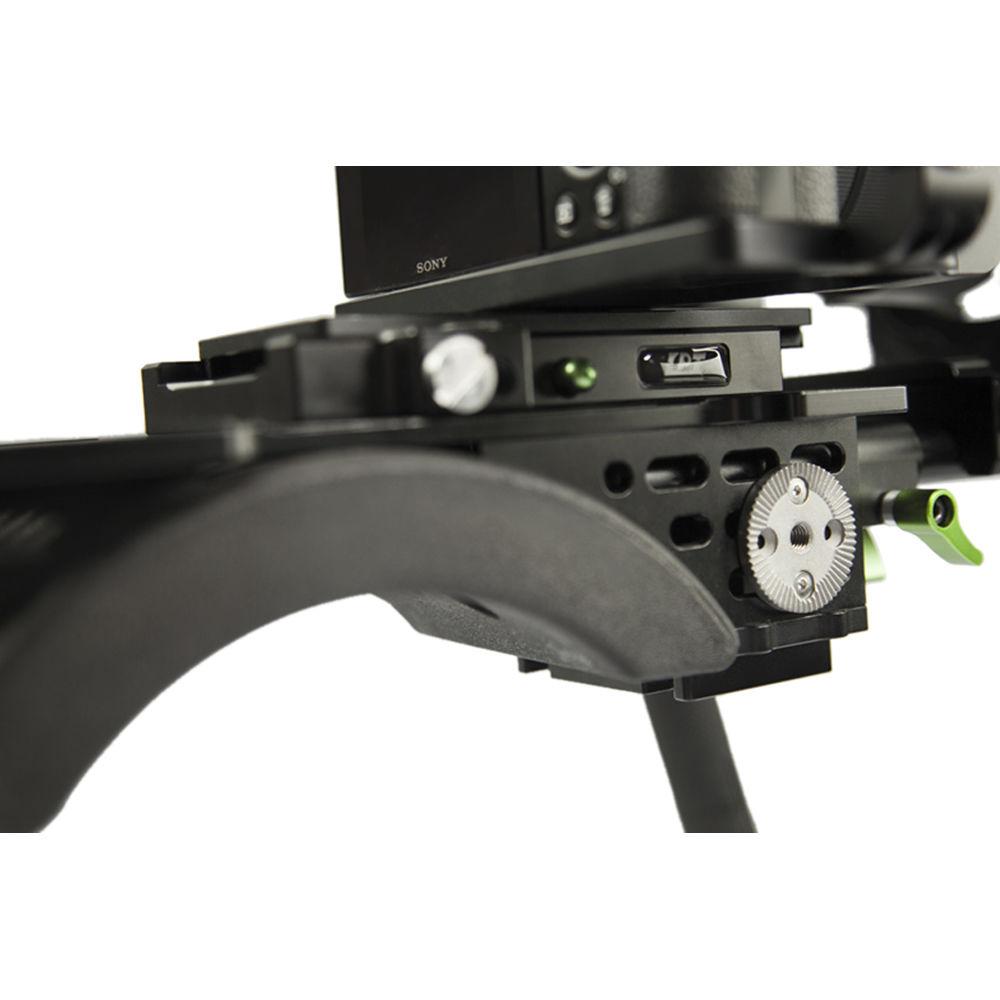

  • V-Mount Shoulder Support V2 Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.
    • V-Mount lock on bottom of shoulder support
    • Quick release system with safety trigger
    • Mountable on VCT-14 via the tail lock
    • Adjustable rod height
    • 15mm Rod connectors
    • Ergonomic shoulder pad
    • Spirit level
    • CNC machined
    • Hollow design, lightweight at 3 lb
  • 95Wh V-Mount Li-Ion Battery The V-Mount Li-Ion Battery from Lanparte powers your camera and accessories continuously and supports up to 10A loads. A D-tap output can provide power to compatible secondary accessories like lights and monitors. A side LCD on the battery conveniently displays remaining capacity so you can keep track of when you need to recharge.
    • • V-mount battery
      • D-tap power output
  • VBP-01 V-Mount Battery Pinch Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.
    • Battery charging input
    • V-Mount
    • Built-in HDMI splitter
    • 15mm rod connectors
    • USB charging port for mobile devices
    • Can be mounted to the back of the rig as counterweight
    UPC: 840534110031
  • ABS Protection Case for DSLR Camera Rig Kit The durable and watertight Lanparte ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of Lanparte DSLR camera rig kits. A pair of wheels and an extendable pull bar are provided for easy transport, as well as a top handle and two side handles for carrying.
    • Pre-cut foam interior fits:
      • DSLR with C-Arm Support
      • Adjustable baseplate
      • Follow focus
      • Matte box
      • French flags
      • Top handle
      • Shoulder support and power supply system
      • Universal Grip
      • Magic Arm
      • 8" HDMI monitor
    UPC: 840534112011
  In the Box Bundle Items Mirrorless Camera Basic Cage eadqvcerwczzdy
  • Top Handle
  • Cage
  • EVF Mount
  • LWS Baseplate
  • Limited 1-Year Warranty
  MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box eadqvcerwczzdy
  • 4 x Anti-Reflection Donuts
  • 2 x 4 x 4 Filter Holders
  • Top Flag
  • 2 x Side Flags
  • Limited 1-Year Warranty
  Follow Focus V2 with Hard Stops for 15mm Rods
  • Magnetic Marking Disc
  • 0.8 Pitch Drive Gear
  • Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
  • Limited 1-Year Warranty
  Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
  • Limited 1-Year Warranty
  V-Mount Shoulder Support V2
  • 2 x 60mm Rods (AR-60)
  • V-Mount Base Plate
  • Limited 1-Year Warranty
  95Wh V-Mount Li-Ion Battery VBP-01 V-Mount Battery Pinch
  3 x
  • Yellow-Tip Camera DC Power Spring Cable for Battery Pinch (5.5/2.1mm)
  • Red-Tip Camera DC Power Spring Cable for Battery Pinch (3.5/1.35mm)
  • AC Power Adapter
  • Limited 1-Year Warranty
  ABS Protection Case for DSLR Camera Rig Kit
  • Limited 1-Year Warranty

Also Includes

• Arri Rosette Handle (UG-03)
• All cables for Battery Pinch

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mirrorless Camera Basic Cage

  Threaded Holes	1/4"-20 and 3/8"-16
  Dimensions	14 x 10 x 4" (35.6 x 25.4 x 10.2 cm)
  Weight	7 lb (3.2 kg)

  Box Dimensions (LxWxH)	13.25 x 10.25 x 3.8"

• MB-01 4x4 Rod-Mounted DSLR Swing-Away Matte Box

  Filter Type	4 x 4
  Total Filter Stages	2
  Rotating Stages	2 Independent
  Degree of Rotation	90°
  Materials	ABS plastic Aluminum
  Dimensions	Matte box W x H x D: 8.3 x 5.9 x 2.8" / 210 x 150 x 71 mm Top Flag Min Width: 8.3" / 210 Max Width: 13.1" / 332.4
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	15.8 x 12.2 x 6.1"

• Follow Focus V2 with Hard Stops for 15mm Rods

  Included Drive Gear	0.8 MOD
  Rod Compatibility	15 mm LWS
  Number of Sides	Single-Sided
  Built-In Hardstops	2, Fixed
  Marking Disk	Yes
  Switchable Handwheel Speed	No
  Dimensions	7.44 x 4.31 x 3.16" / 188.97 x 109.6 x 80.25 mm
  Weight	1.1 lb / 0.5 g

  Box Dimensions (LxWxH)	9.55 x 5.75 x 4.15"

• Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus

  Compatibility	Any prime/zoom lens
  Material	Rubber
  Pitch	0.8
  Diameter	4.1" (10.5 cm) maximum
  Length	13.0" (33.0 cm) approx.
  Weight	0.7 oz (20.0 g)

  Box Dimensions (LxWxH)	3.0 x 2.9 x 0.55"

• V-Mount Shoulder Support V2

  Dimensions	12.0 x 3.3 x 5.0" (30.5 x 8.3 x 12.7 cm)
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	13.6 x 6.1 x 4.3"

• 95Wh V-Mount Li-Ion Battery

  Capacity	95Wh
  Dimensions	6.5 x 3.9 x 2.4" (17 x 9.9 x 6.1 cm)
  Weight	1.98 lb (0.89 kg)

• VBP-01 V-Mount Battery Pinch

  Connectors	Inputs: 1 x DC barrel charging 1 x HDMI splitter Outputs: 1 x 5 VDC barrel, signal switch power 1 x 7.4 VDC barrel, DSLR power (requires adapter) 2 x 12 VDC barrel, monitor power 1 x 15 VDC barrel, V-Mount battery voltage 1 x D-Tap 1 x USB 5 VDC power 2 x HDMI splitter
  DC Output Voltage	5, 7.4, 12, 15 VDC
  Dimensions	10 x 7 x 4" (25.4 x 17.8 x 10.2 cm)
  Weight	5 lb (2.3 kg)

  Box Dimensions (LxWxH)	9.2 x 6.2 x 3.6"

• ABS Protection Case for DSLR Camera Rig Kit

  Case Type	Hard Case
  Exterior Dimensions (L x W x H)	26.4 x 19.7 x 12.2" / 67.00 x 50.00 x 31.00 cm

  Box Dimensions (LxWxH)	26.0 x 21.0 x 12.5"
