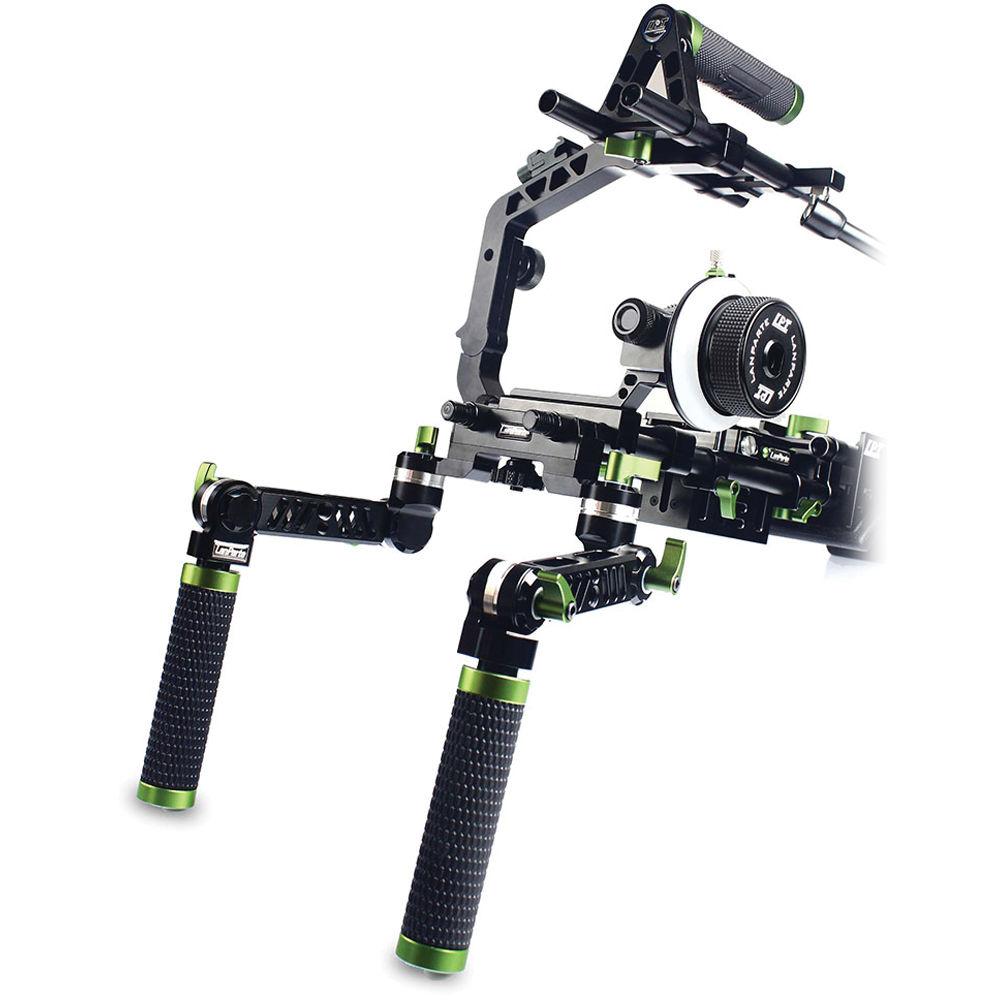

User Manual for LanParte Shoulder-Mount Combo Rig Kit with ABS Protection Case Click to enlarge the picture
Contents of the user manual for the LanParte Shoulder-Mount Combo Rig Kit with
- Product category: DSLR Video Supports & Rigs LanParte
- Brand: LanParte
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LanParte DSLR Video Supports & Rigs
 |
User manual for the LanParte Shoulder-Mount Combo Rig Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LanParte product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LanParte user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LanParte product will considerably shorten its lifespan!
|

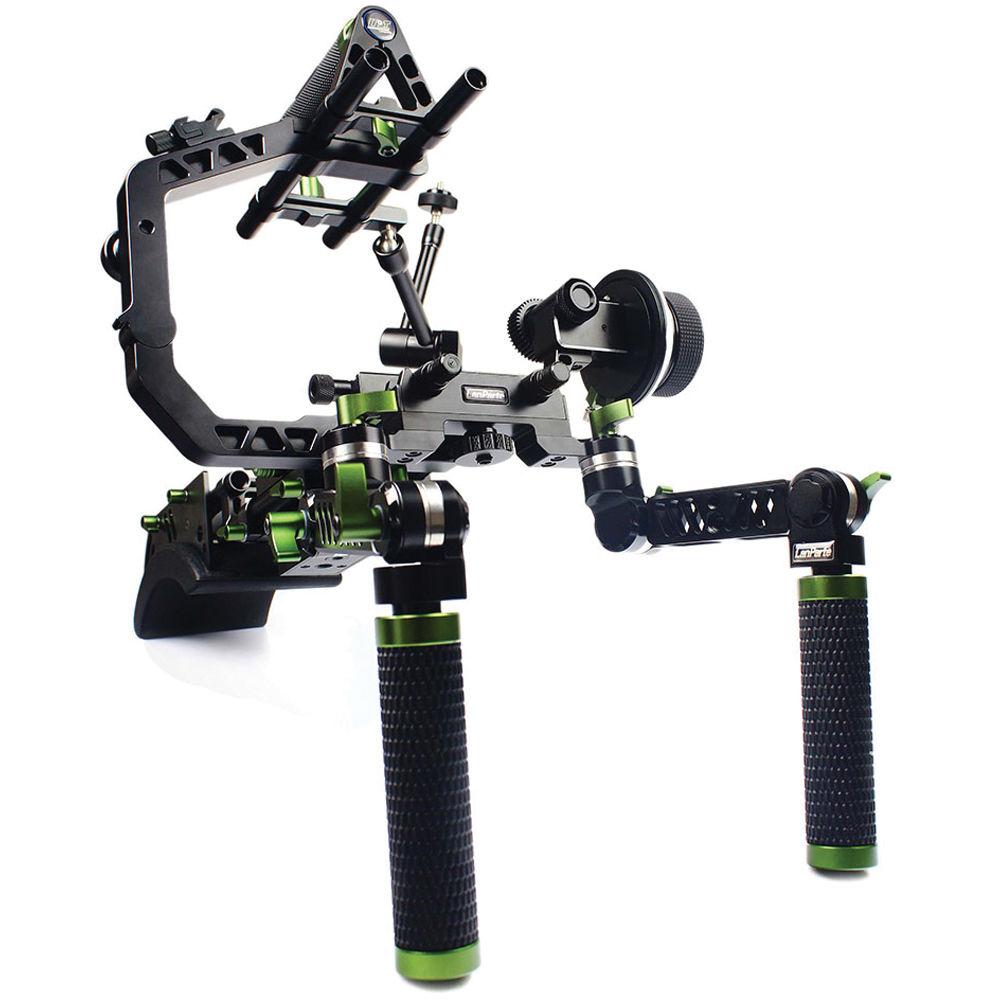

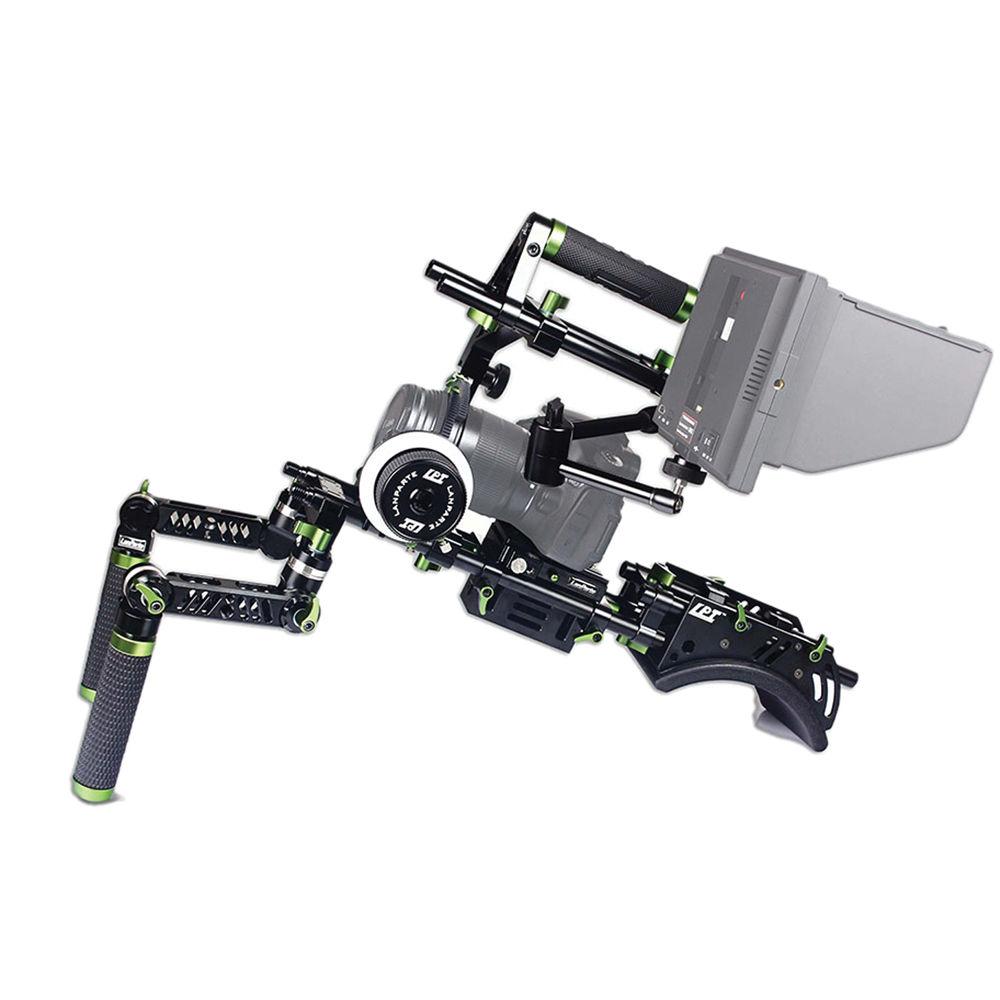

Product description The Lanparte Shoulder-Mount Combo Rig Kit with ABS Protection Case provides you with a 15mm-rod shoulder-mount solution for DSLRs and compact camcorders and a custom case to hold and protect the rig components. The rig is built around a 15mm rod bridge plate and a C-shaped support arm. A pair of 11.8" 15mm rods support an included follow focus and Universal Grip V2, which is an adjustable dual handle system that lets you position each rubberized handgrip at the desired height, angle, and distance from the rods. To complete the shoulder-mounted rig, a shoulder support with 7.9" 15mm rods is included, which attaches to the rear of the rig using a height riser clamp. This lets you position the camera slightly above or slightly below the level of the shoulder pad.
Your camera attaches to the bridge plate via a 1/4"-20 or 3/8"-16 screw. It offers 1.6" of height adjustment and features a quick-release camera plate for easy removal of your camera from the rig. The C-shaped support arm is also height adjustable and can swing open to the side when changing lenses. It mounts onto the rods included with the bridge plate and provides additional 15mm rod clamps at the top for adding an included top handle via a pair of 7.8" rods. In addition to the top handle, rods on top of the rig are useful for adding accessories such as the included Magic Arm for mounting an EVF or monitor.

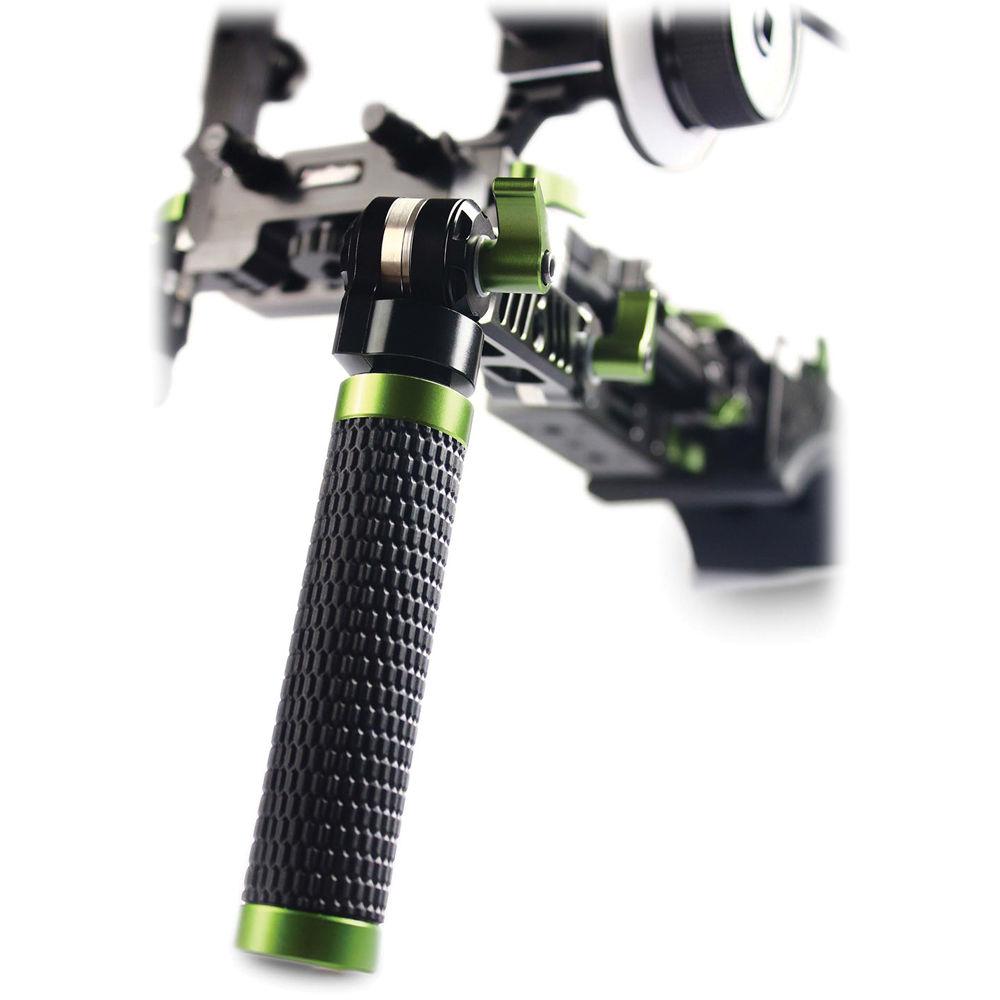

Both the Universal Grip V2 and follow focus utilize a clamping design that lets you attach them to the 15mm rods without having to remove other optional rod-mounted accessories, such as a matte box. The follow focus features integrated A and B hard stops that let you set start/end points on DSLR lenses with continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gear box. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included.
Please see the links below for more information on the components of this kit. - Bridge Plate The Lanparte Bridge Plate features a height-adjustable baseplate with dual 15mm LWS rod clamps and a quick-release camera plate. The height of the baseplate is adjustable up to 1.6" by loosening a single knob, allowing you to achieve proper lens height when using a matte box or follow focus. A pair of 11.8" long 15mm rods come included.
The quick-release plate features a dovetail design that slides or drops onto the baseplate, locking into place using a release lever. The plate includes 1/4"-20 and 3/8"-16 camera screws, with threads on the side of baseplate provided for storing the unused screw. A safety lock prevents the plate from sliding off the baseplate when attached. For mounting on tripods and other equipment, there are 1/4"-20 and 3/8"-16 threaded holes on the bottom of the baseplate. -
- Baseplate with 1.6" height adjustment
- 15mm LWS rod clamps threaded ends for rod extension
- Pair of 11.8" 15mm rods included
- Quick-release dovetail plate with 1/4"-20 and 3/8"-16 screws
- Release lever with integrated safety trigger
- 1/4"-20 and 3/8"-16 holes for storing unused camera screw
- Bubble level
- 1/4"-20 and 3/8"-16 tripod screws
- CNC machined aluminum construction
UPC: 840534106027 C-Arm Add more accessories to your camera with the C-Arm from Lanparte. By arching over the top of your camera setup, the C-Arm effectively provides a second set of 15mm rods for attaching useful gadgets such as follow focus motors, articulating arms, recorders, monitors, and more. An integrated shoe-mount can hold a light, a microphone, or other accessory. The top portion folds away from the camera for easier lens changes. To accommodate different camera heights, the top rod section is adjustable to achieve the proper rod-to-optical-center distance. - C-shaped support with 1/4 and 3/8" threads
- Hollowed-out design makes it lightweight at 10 oz
- You can attach a shoe mount (not included) onto it
UPC: 840534109011 Top Handle for 15mm Rods The Lanparte Top Handle is designed for camera cages and rigs that use or accept 15mm LWS rods positioned above the camera. It is constructed from CNC machined aluminum and features a dual 15mm rod clamp and a non-slip silica-gel grip. A pair of 7.87" long aluminum rods come included. UPC: 840534107031 Universal Grip V2 for 15mm Rods The Lanparte Universal Grip V2 is an adjustable dual handle system for 15mm LWS rod support rigs. Each handle features three points of adjustment, letting you position each handgrip at the desired height, angle, and distance from the rods. Silica-gel surface on the handles provide a comfortable, non-slip grip. For easy attachment and removal of the system without having to remove other rod-mounted accessories, the Universal Grip V2 utilizes a quick release 15mm rod clamp, which locks in place using a single lever. -
- Three points of adjustment for grip placement
- Spring-loaded steel spindle joint locking system
- Quick release 15mm rod clamp with single tightening lever
- 1/4"-20 and 3/8"-16 threaded holes on each arm for mounting accessories
- CNC-machined aluminum construction
- Hollowed-out design to reduce weight

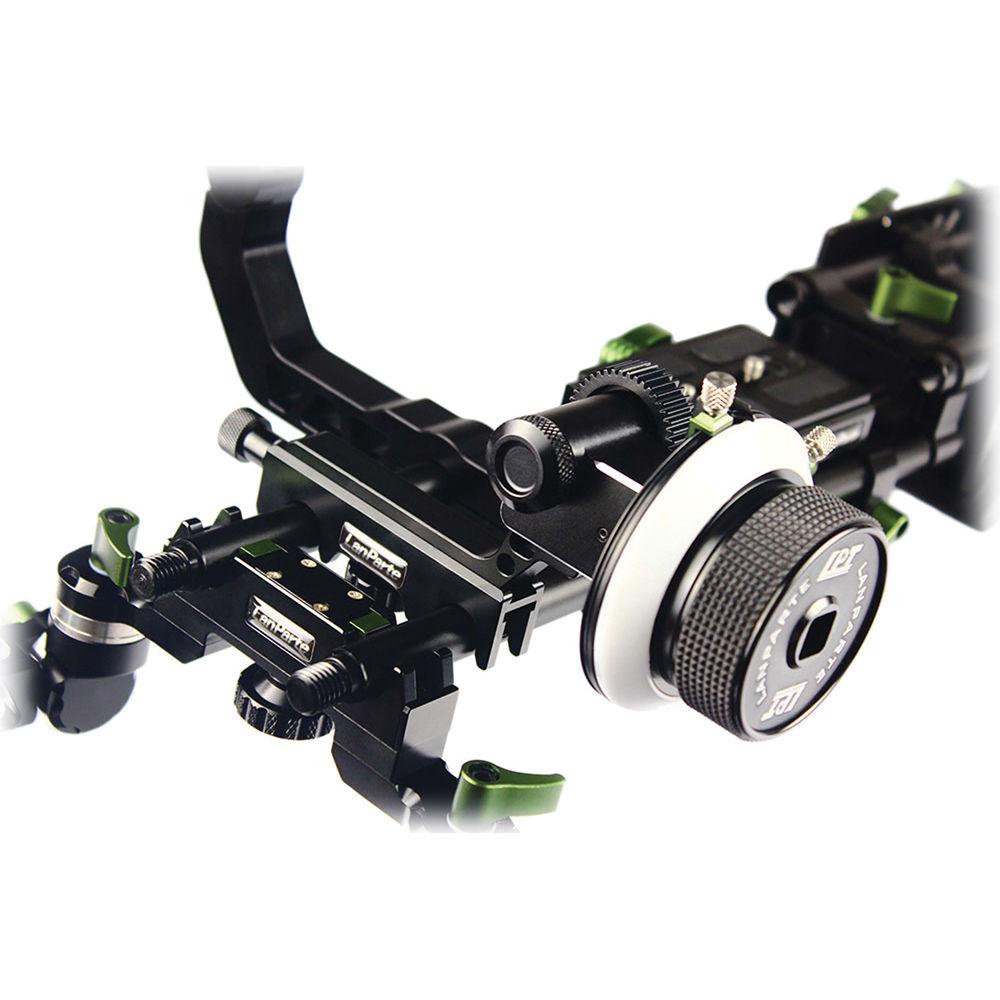

UPC: 840534107048 Follow Focus V2 with Hard Stops for 15mm Rods The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings. - Key Features
-
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included
UPC: 840534104016 Magic Arm Mount a 1/4"-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast. - CNC machined aluminum construction
Shoulder Support for DSLR Camera Rig Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories. - Compatible with 15mm rod systems
- Power supply system can be mounted on it
- A standard Height Raiser Clamp is included
- Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
- Hollow design makes unit lightweight at 21.9 oz
UPC: 840534108014 Offset Clamp Use the Lanparte Offset Clamp to offset the shoulder mount from the rest of your 15mm LWS rig, allowing your camera to be within your line-of-sight for checking focus and composition without the aid of an external monitor or EVF. - Offsets base plate from shoulder pad
- Two double 15mm rod clamps
- Hollow design saves weight

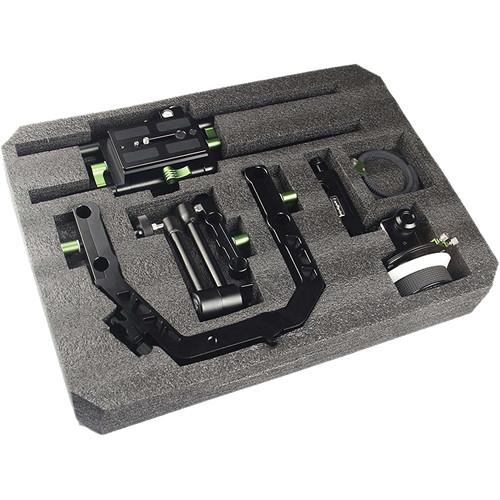

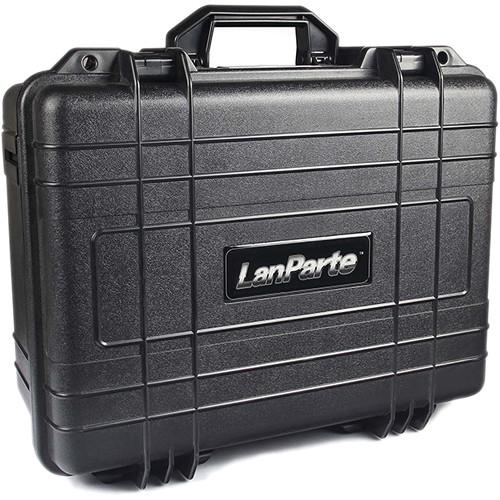

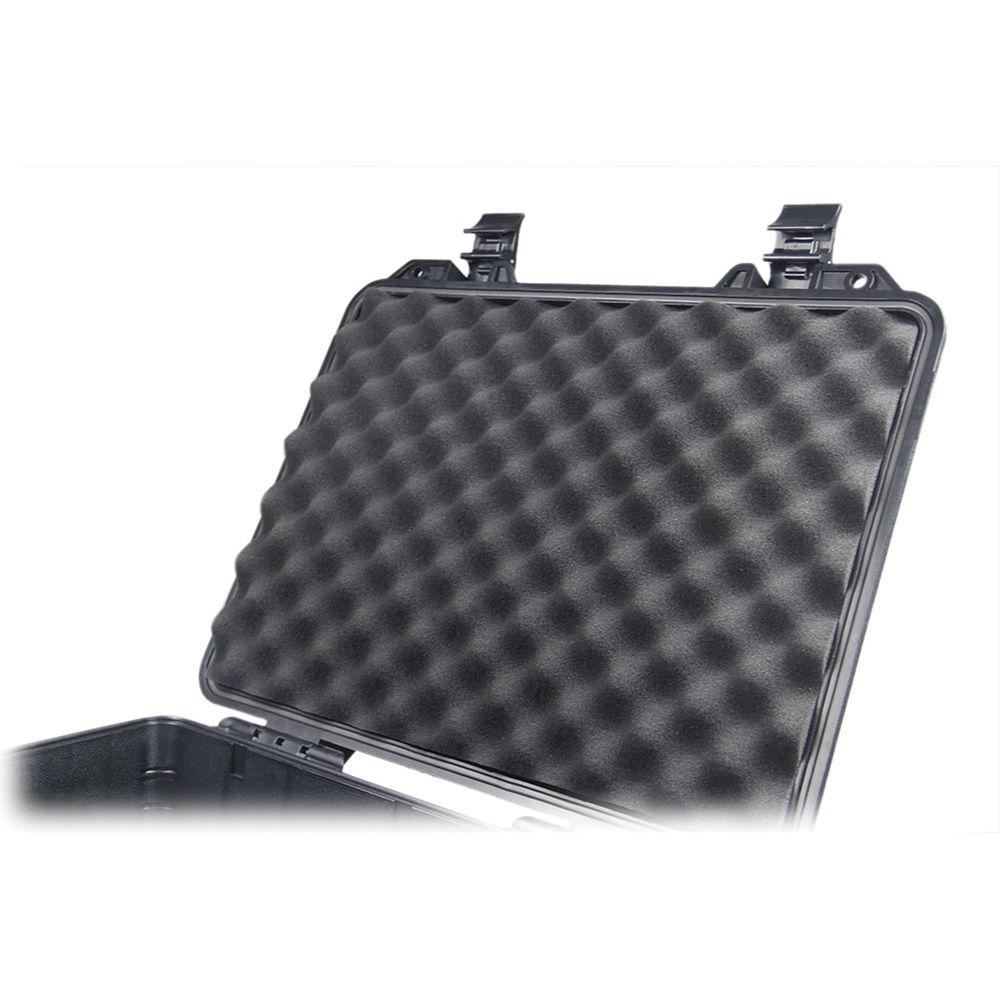

UPC: 840534113063 ABS Protection Suitcase for DSLR Camera Rig Kit The watertight Lanparte ABS Protection Suitcase features a hard ABS exterior and two custom-cut, stacking foam insert layers designed to hold and protect key components of Lanparte DSLR camera rig kits. A top handle is provided for easy carrying of the case. - Top foam layer fits:
- Bridgeplate (BP-02)
- Follow Focus (FF-02)
- Adjustable Gear Ring (FFGR-02)
- C-Arm Support (CA-01)
- Magic Arm (MA-01)

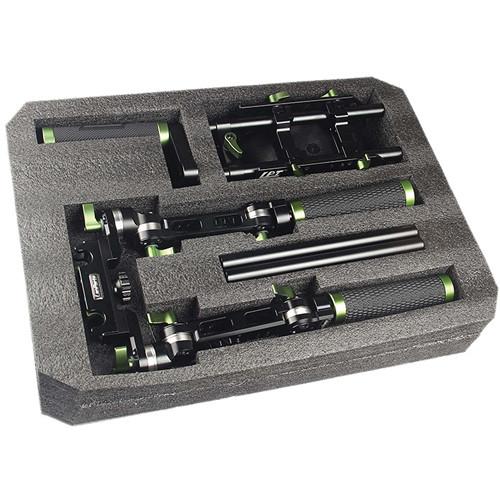

Bottom foam layer fits: - Universal Grip (UG-02)
- Top Handle (TH-01)
- Shoulder Support Pad (SS-01)
UPC: 840534112028 In the Box Bundle Items Bridge Plate davvtsyyczcydwcvxbzzuxvbexvruzbfaxtxa - QRP-02 Quick Release Plate
2 x - 15mm Aluminum Rod (Pair, 11.8")
C-Arm Top Handle for 15mm Rods - 15mm Aluminum Rod (Pair, 7.9")
Universal Grip V2 for 15mm Rods Follow Focus V2 with Hard Stops for 15mm Rods - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
Magic Arm Shoulder Support for DSLR Camera Rig - 15mm Aluminum Rod (Pair, 7.9")
Offset Clamp ABS Protection Suitcase for DSLR Camera Rig Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Shoulder-Mount Combo Rig Kit with ABS Protection Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bridge Plate
| Camera Screw(s) | 1/4"-20 and 3/8"-16 | | Mounting Interface | V-lock
1/4"-20 and 3/8"-16 threaded holes | | Rod Length | 11.8" / 300 mm | | Height Adjustment Range | 1.6" / 40 mm | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | 1.6 lb / 0.73 kg (including rods) | | | | Box Dimensions (LxWxH) | 15.9 x 6.4 x 3.7" | - C-Arm
| Accessory Mount Threads | 1/4", 3/8" | | Dimensions | 7.2 x 9.3 x 0.8" (18.3 x 23.7 x 2.0 cm) | | Weight | 19 oz (540 g) | | | | Box Dimensions (LxWxH) | 9.9 x 8.0 x 1.9" | - Top Handle for 15mm Rods
| 15mm Rod Length | 2 x 7.87" (20 cm) | | Dimensions (LxWxH) | 5.57 x 3.11 x 3.78" (141.5 x 79.0 x 96.05 mm) (excluding rods) | | Weight | 11.5 oz (325 g) (including rods) | | | | Box Dimensions (LxWxH) | 8.5 x 4.2 x 3.2" | - Universal Grip V2 for 15mm Rods
| Accessory Mounting Threads | 2 x 3/8"-16 (one on each arm)
1 x 1/4"-20 (one on each arm) | | Dimensions (WxHxD) | 8.9 x 13.5 x 1.2" / 22.6 x 34.3 x 3.0 cm | | Weight | 2.46 lb / 1.12 kg | | | | Box Dimensions (LxWxH) | 15.3 x 8.65 x 2.5" | - Follow Focus V2 with Hard Stops for 15mm Rods
| Dimensions (WxHxD) | 7.44 x 4.31 x 3.16" (188.97 x 109.60 x 80.25 mm) | | Weight | 1.12 lb (0.51 g) | | | | Box Dimensions (LxWxH) | 9.55 x 5.75 x 4.15" | - Magic Arm
| Material | Rugged, anodized aluminum alloy | | Threads | 1/4"-20
3/8"-16 | | Dimensions | Height: 2.5" (63 mm)
Length Unfolded: 11" (280 mm)
Length Folded: 6.1" (155 mm) | | Weight | 11.6 oz (330 g) | | | | Box Dimensions (LxWxH) | 6.8 x 3.6 x 1.5" | - Shoulder Support for DSLR Camera Rig
| Material | Aluminum alloy, rubber pad | | Dimensions | 7.9 x 4.3 x 4.5" (20.0 x 10.9 x 11.3 cm) | | Weight | 21.9 oz (620.0 g) | | | | Box Dimensions (LxWxH) | 8.6 x 4.7 x 3.5" | - Offset Clamp
| Vertical Offset | 1.77" (45 mm) | | Horizontal Offset | 4.13" (105 mm) | | Dimensions | 7.2 x 0.6 x 3.1" (18.3 x 1.5 x 7.8 cm) | | Weight | 3.5 oz (100 g) | | | | Box Dimensions (LxWxH) | 8.55 x 5.3 x 0.85" | - ABS Protection Suitcase for DSLR Camera Rig Kit
| Case Type | Hard Case | | Exterior Dimensions (L x W x H) | 18.62 x 15.20 x 8.11" / 47.3 x 38.6 x 20.6 cm | | | | Box Dimensions (LxWxH) | 18.9 x 15.7 x 8.8" |
