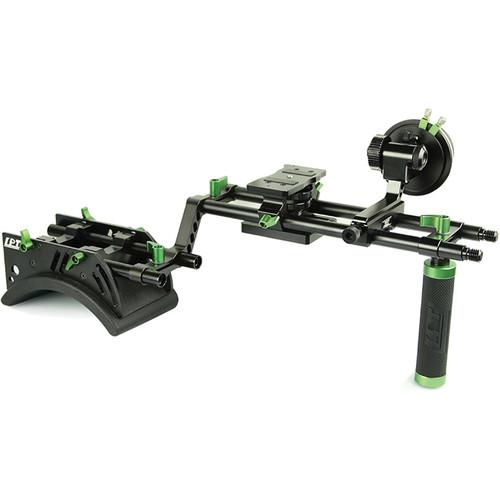

LanParte Single Handle DSLR Camera Rig

User Manual for LanParte Single Handle DSLR Camera Rig Kit

• Product category: DSLR Video Supports & Rigs LanParte
• Brand: LanParte
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LanParte DSLR Video Supports & Rigs

Product description

• Single Handle for 15mm Rods The Lanparte Single Handle allows for single-handed support of 15mm LWS rod shoulder rigs, leaving your other hand free to focus the lens or adjust camera settings as you shoot. It is constructed from CNC machined aluminum and features a non-slip silica-gel grip and a dual rod clamp that places the handle directly below a pair of 15mm rods. UPC: 840534107017
• Follow Focus V2 with Hard Stops for 15mm Rods The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
  Key Features
  • • Clamps onto 15mm LWS rods
    • Integrated A/B hard stops
    • Copper gear and precision bearing
    • Standard 0.8 pitch drive gear included
    • Drive gear can be flipped to either side of gearbox
    • Sliding dovetail design for adjusting to different sized lenses
    • Removable magnetic marking disc
    • ARRI standard 12mm accessory port
    • CNC machined aluminum components
    • Adjustable lens gear ring included
  UPC: 840534104016

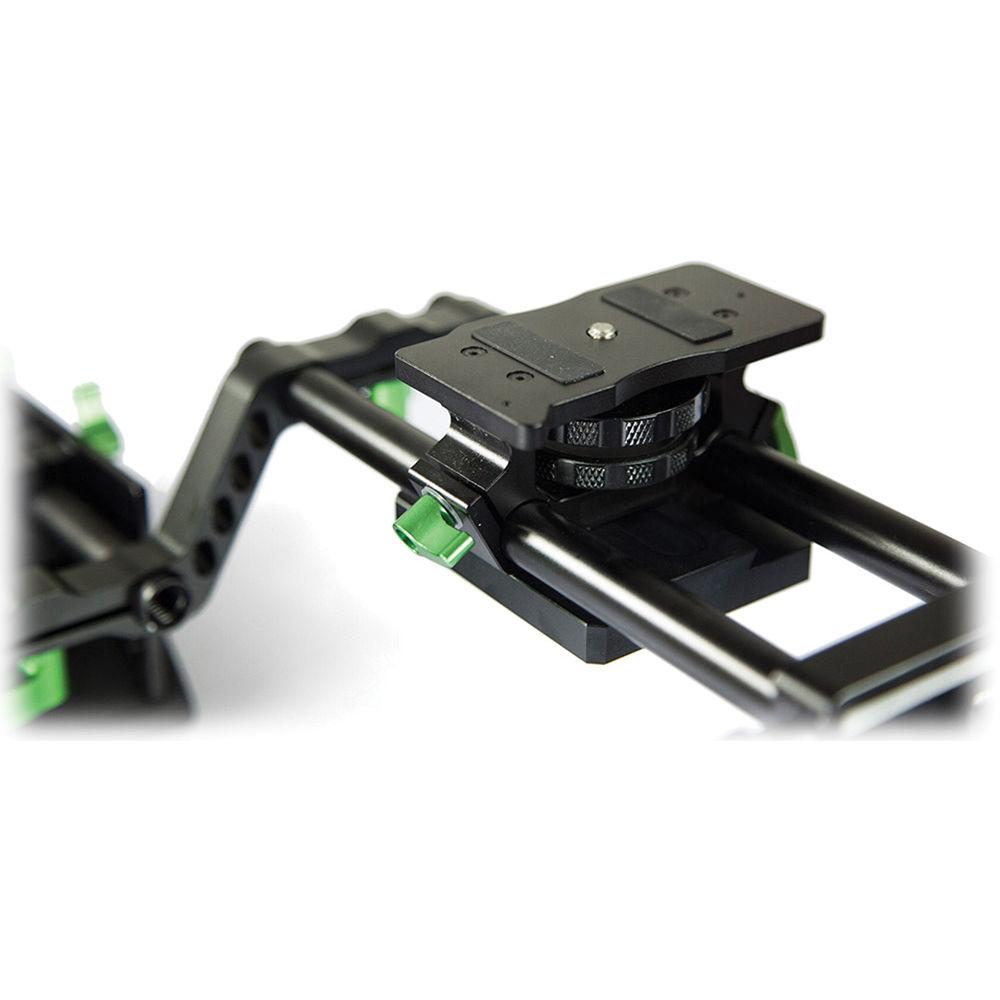

• Quick Release Baseplate The Quick Release Baseplate from Lanparte is a quick-release baseplate designed to be used with a standard 15mm rod system. The bottom of the plate features 1/4" and 3/8" threads for tripod mounting. Two 11.8" aluminum rods are included.
  • Lightweight at 19.4 oz
  • For 15mm rod system
  • 1/4" and 3/8" camera screw threads under plate for tripod mounting
• Shoulder Support for DSLR Camera Rig Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories.
  • Ergonomic design
  • Compatible with 15mm rod systems
  • Power supply system can be mounted on it
  • A standard Height Raiser Clamp is included
  • Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
  • Hollow design makes unit lightweight at 21.9 oz
  • Precision CNC machined
  UPC: 840534108014

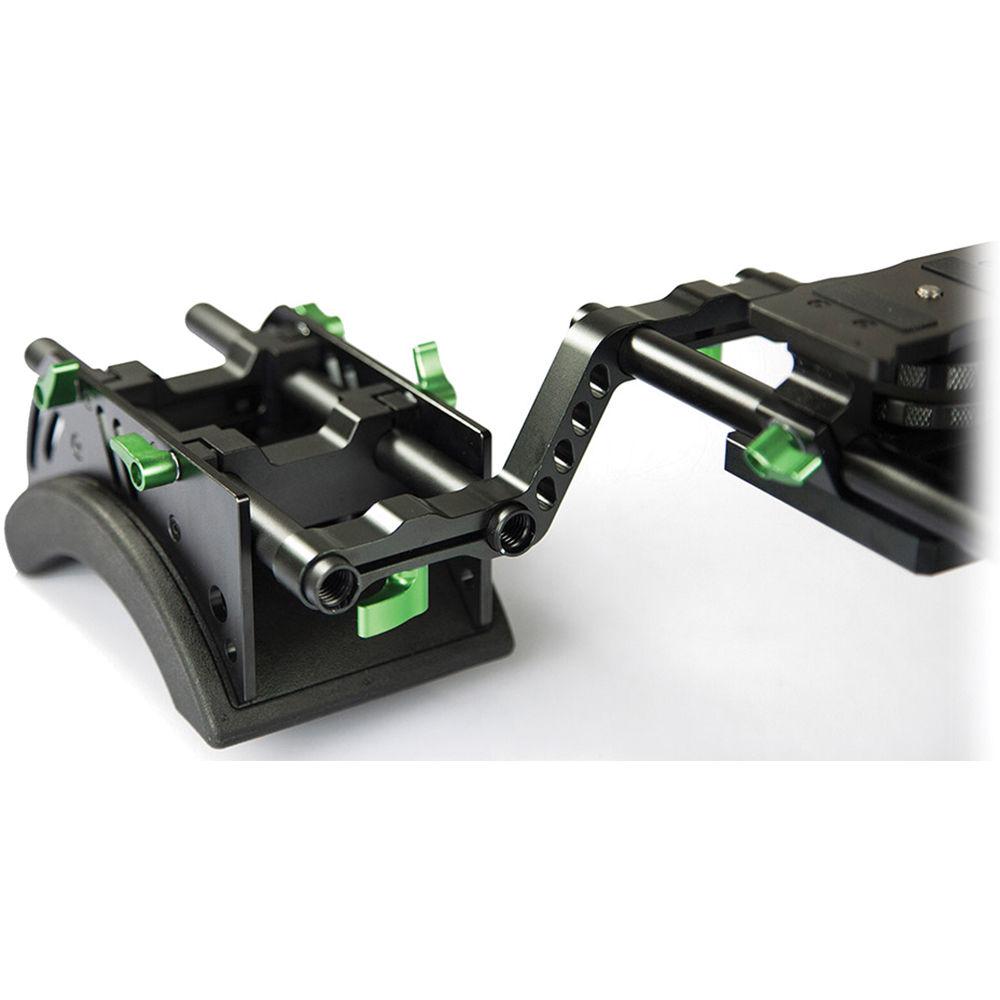

• Offset Clamp Use the Lanparte Offset Clamp to offset the shoulder mount from the rest of your 15mm LWS rig, allowing your camera to be within your line-of-sight for checking focus and composition without the aid of an external monitor or EVF.
  • Offsets base plate from shoulder pad
  • Two double 15mm rod clamps
  • Hollow design saves weight
  • Streamlined knob
  • CNC machined
  UPC: 840534113063

• Limited 1-Year Warranty

• Magnetic Marking Disc

• 0.8 Pitch Drive Gear

• Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus

• Limited 1-Year Warranty

• 2 x Aluminum Rods (11.8")

• Limited 1-Year Warranty

• Height Raiser Clamp

• 15mm Aluminum Rod (Pair, 7.9")

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Single Handle for 15mm Rods

  Dimensions (HxWxD)	6.8 x 3.1 x 1.2" (17.3 7.8 x 3.1 cm)
  Weight	6.3 oz (180 g)

  Box Dimensions (LxWxH)	7.5 x 3.6 x 1.5"

• Follow Focus V2 with Hard Stops for 15mm Rods

  Dimensions (WxHxD)	7.44 x 4.31 x 3.16" (188.97 x 109.60 x 80.25 mm)
  Weight	1.12 lb (0.51 g)

  Box Dimensions (LxWxH)	9.55 x 5.75 x 4.15"

• Quick Release Baseplate

  Rod System	15 mm
  Thread Size	1/4" and 3/8"
  Dimensions	12.6 x 5.1 x 2.4" (32 x 13 x 6 cm)
  Weight	19.4 oz (550 g)

  Box Dimensions (LxWxH)	10.2 x 8.3 x 5.9"

• Shoulder Support for DSLR Camera Rig

  Material	Aluminum alloy, rubber pad
  Dimensions	7.9 x 4.3 x 4.5" (20.0 x 10.9 x 11.3 cm)
  Weight	21.9 oz (620.0 g)

  Box Dimensions (LxWxH)	8.6 x 4.7 x 3.5"

• Offset Clamp

  Vertical Offset	1.77" (45 mm)
  Horizontal Offset	4.13" (105 mm)
  Dimensions	7.2 x 0.6 x 3.1" (18.3 x 1.5 x 7.8 cm)
  Weight	3.5 oz (100 g)

  Box Dimensions (LxWxH)	8.55 x 5.3 x 0.85"
