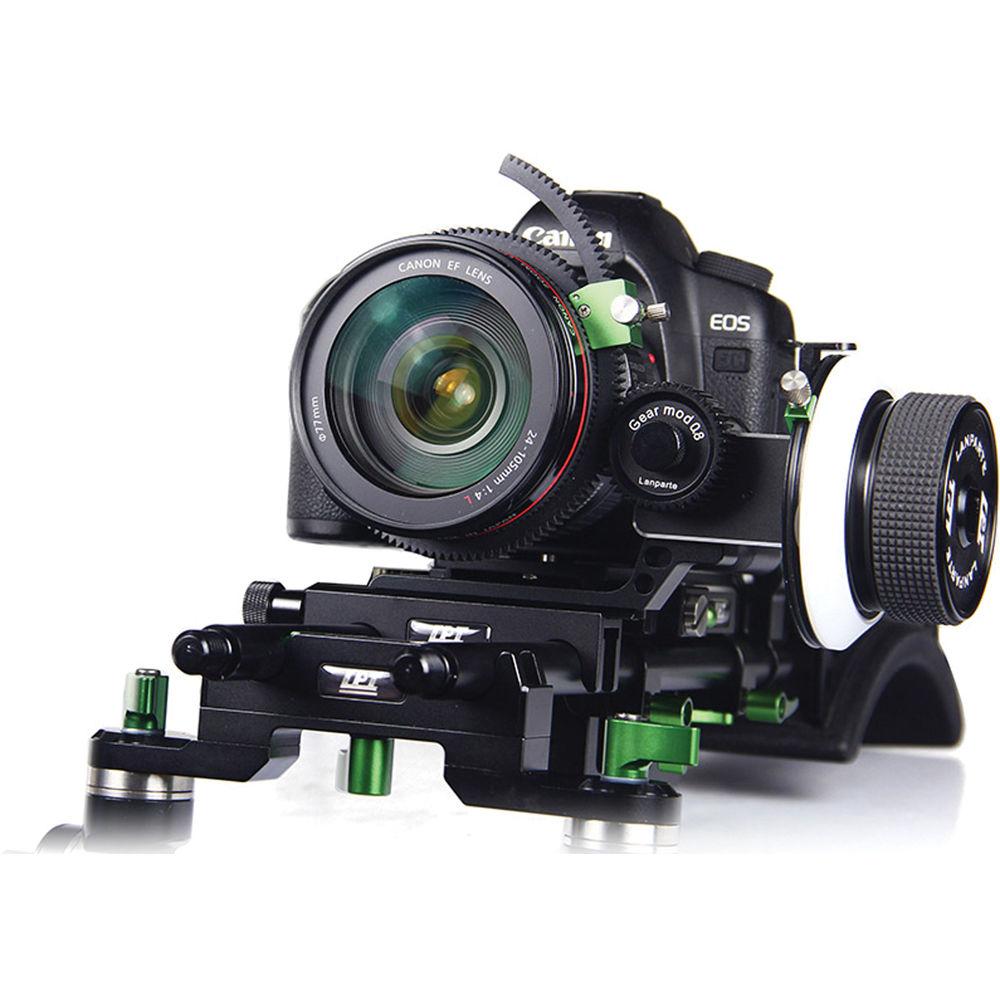

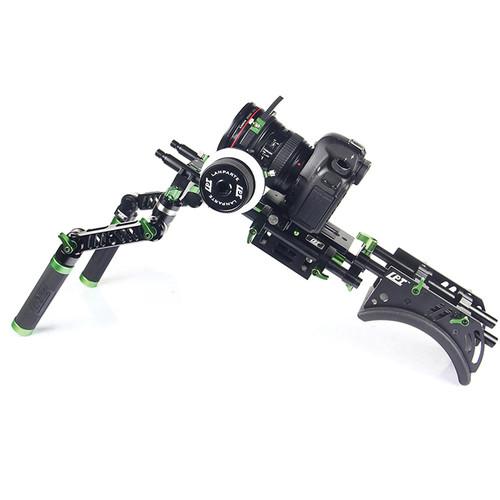

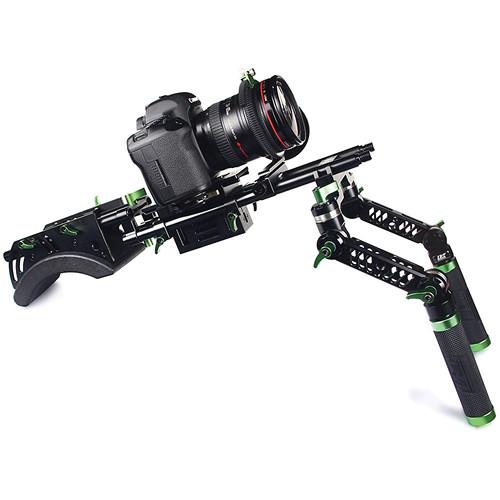

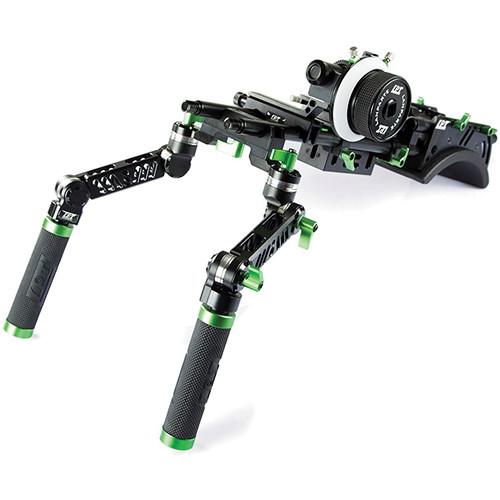

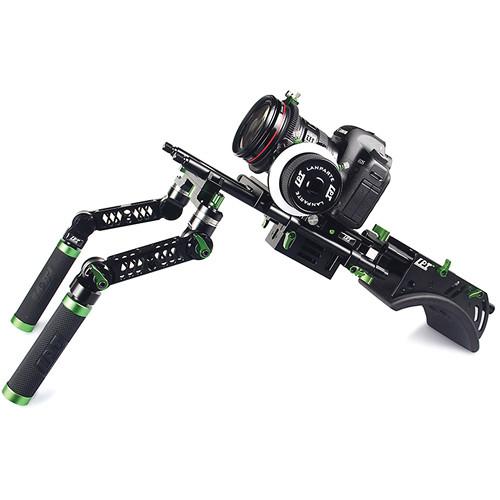

Product description The Lanparte Starter DSLR Camera Rig Kit is a 15mm-rod shoulder-mount solution for DSLRs or mirrorless cameras and comes complete with a clamp-on follow focus and a height-adjustable bridge plate. The bridge plate includes a pair of 11.8" 15mm rods to support the follow focus and a Universal Grip V2, which is an adjustable dual handle system that lets you position each rubberized handgrip at the desired height, angle, and distance from the rods. To complete the shoulder-mounted rig, a shoulder support with 7.9" 15mm rods is included, which attaches to the rear of the rig using a height riser clamp. This lets you position the camera slightly above or slightly below the level of the shoulder pad.
Both the Universal Grip V2 and follow focus utilize a clamping design that lets you attach them to the 15mm rods without having to remove other optional rod-mounted accessories, such as a matte box. The follow focus features integrated A and B hard stops that let you set start/end points on DSLR lenses with continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gear box. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included.

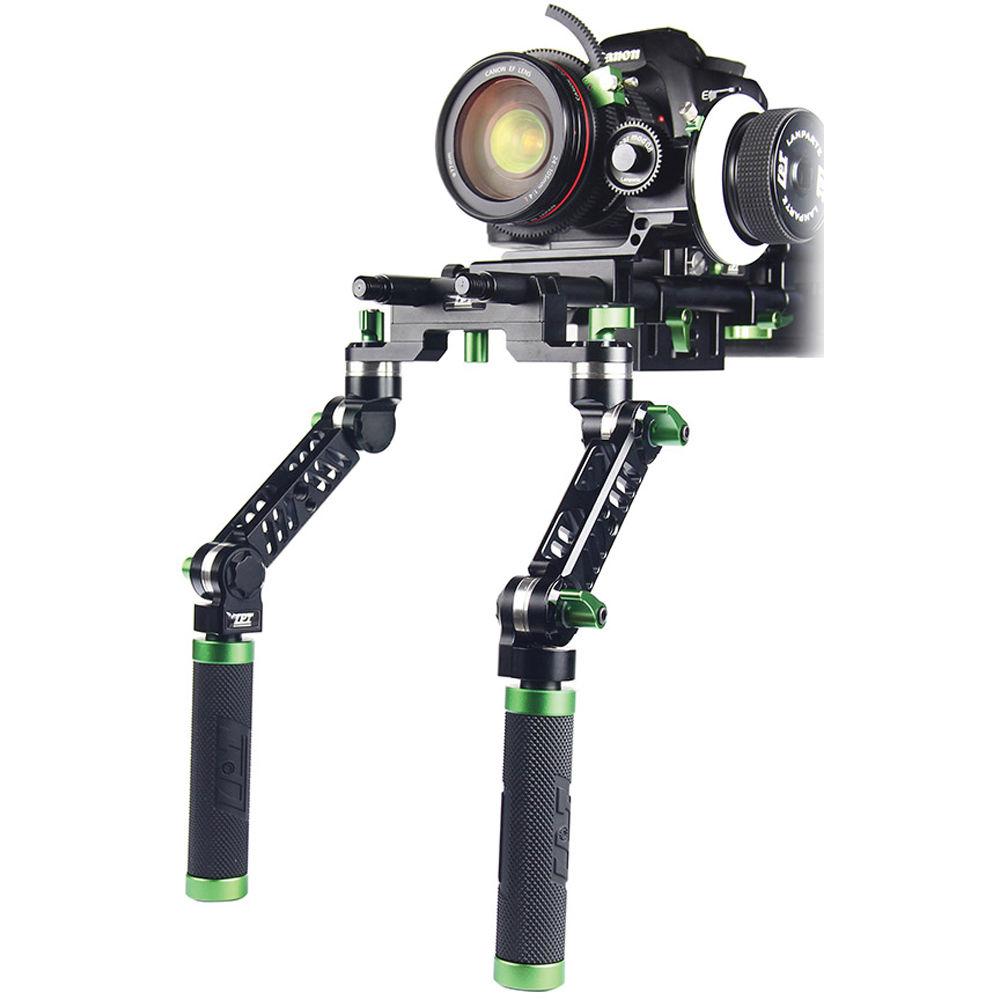

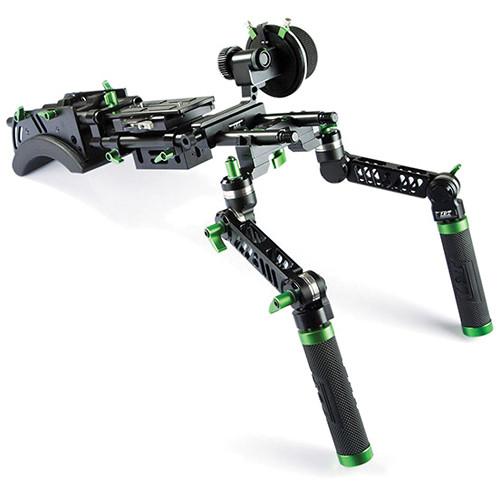

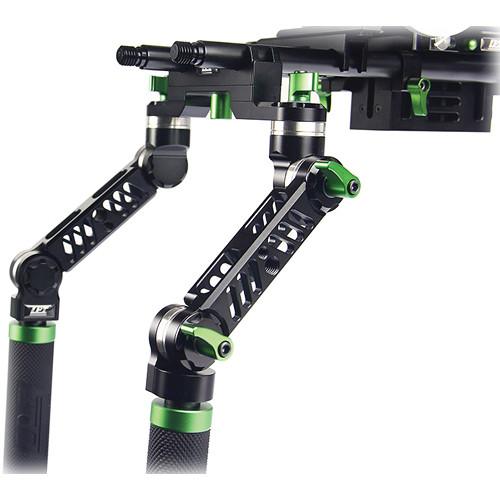

Please see the links below for more information on the components of this kit. - Universal Grip V2 for 15mm Rods The Lanparte Universal Grip V2 is an adjustable dual handle system for 15mm LWS rod support rigs. Each handle features three points of adjustment, letting you position each handgrip at the desired height, angle, and distance from the rods. Silica-gel surface on the handles provide a comfortable, non-slip grip. For easy attachment and removal of the system without having to remove other rod-mounted accessories, the Universal Grip V2 utilizes a quick release 15mm rod clamp, which locks in place using a single lever.
-
- Three points of adjustment for grip placement
- Spring-loaded steel spindle joint locking system
- Quick release 15mm rod clamp with single tightening lever
- 1/4"-20 and 3/8"-16 threaded holes on each arm for mounting accessories
- CNC-machined aluminum construction
- Hollowed-out design to reduce weight
UPC: 840534107048 - Follow Focus V2 with Hard Stops for 15mm Rods The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
- Key Features
-
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included

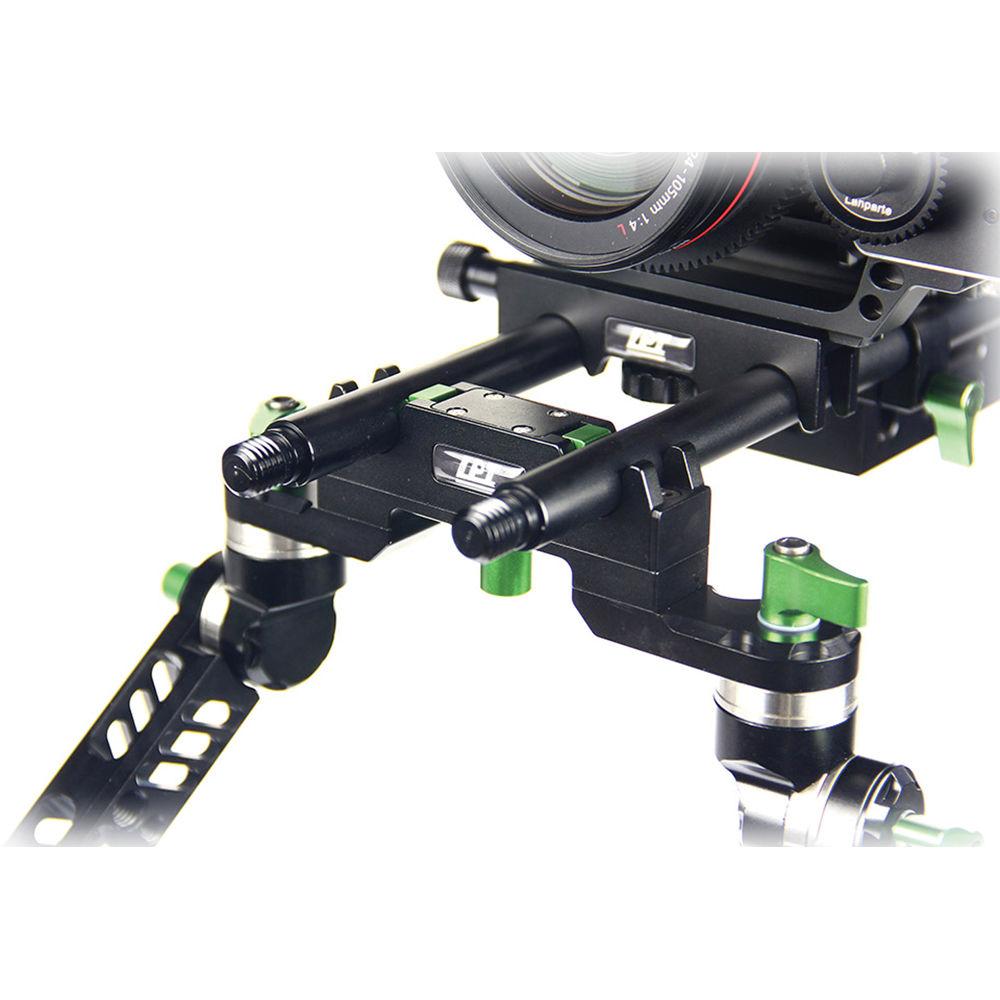

UPC: 840534104016 - Bridge Plate The Lanparte Bridge Plate features a height-adjustable baseplate with dual 15mm LWS rod clamps and a quick-release camera plate. The height of the baseplate is adjustable up to 1.6" by loosening a single knob, allowing you to achieve proper lens height when using a matte box or follow focus. A pair of 11.8" long 15mm rods come included.
The quick-release plate features a dovetail design that slides or drops onto the baseplate, locking into place using a release lever. The plate includes 1/4"-20 and 3/8"-16 camera screws, with threads on the side of baseplate provided for storing the unused screw. A safety lock prevents the plate from sliding off the baseplate when attached. For mounting on tripods and other equipment, there are 1/4"-20 and 3/8"-16 threaded holes on the bottom of the baseplate. -
- Baseplate with 1.6" height adjustment
- 15mm LWS rod clamps threaded ends for rod extension
- Pair of 11.8" 15mm rods included
- Quick-release dovetail plate with 1/4"-20 and 3/8"-16 screws
- Release lever with integrated safety trigger
- 1/4"-20 and 3/8"-16 holes for storing unused camera screw
- Bubble level
- 1/4"-20 and 3/8"-16 tripod screws
- CNC machined aluminum construction

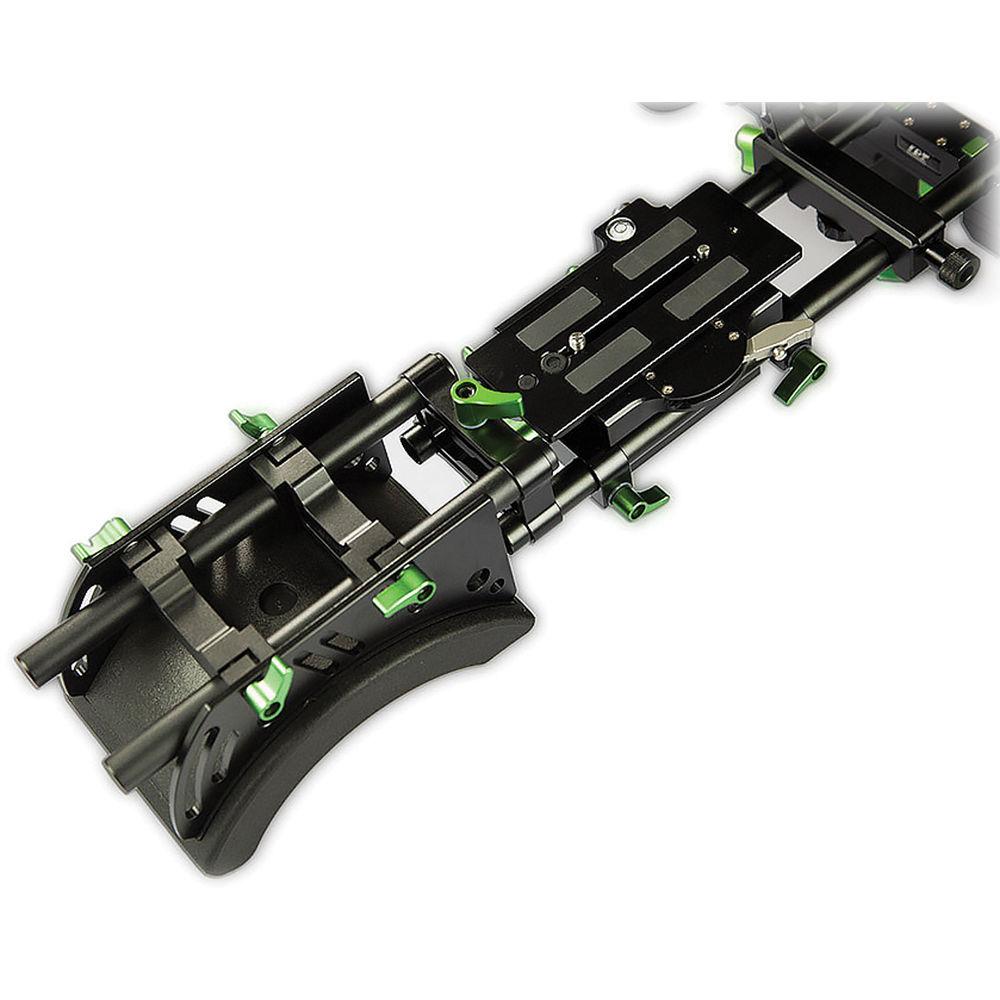

UPC: 840534106027 Shoulder Support for DSLR Camera Rig Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories. - Compatible with 15mm rod systems
- Power supply system can be mounted on it
- A standard Height Raiser Clamp is included
- Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
- Hollow design makes unit lightweight at 21.9 oz
UPC: 840534108014 Offset Clamp Use the Lanparte Offset Clamp to offset the shoulder mount from the rest of your 15mm LWS rig, allowing your camera to be within your line-of-sight for checking focus and composition without the aid of an external monitor or EVF. - Offsets base plate from shoulder pad
- Two double 15mm rod clamps
- Hollow design saves weight
UPC: 840534113063 In the Box Bundle Items Universal Grip V2 for 15mm Rods zfzavxqxvvusfucdzuzfvcswze Follow Focus V2 with Hard Stops for 15mm Rods zfzavxqxvvusfucdzuzfvcswze - Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus
Bridge Plate - QRP-02 Quick Release Plate
2 x - 15mm Aluminum Rod (Pair, 11.8")
Shoulder Support for DSLR Camera Rig - 15mm Aluminum Rod (Pair, 7.9")
Offset Clamp Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Starter DSLR Camera Rig Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Universal Grip V2 for 15mm Rods
| Accessory Mounting Threads | 2 x 3/8"-16 (one on each arm)
1 x 1/4"-20 (one on each arm) | | Dimensions (WxHxD) | 8.9 x 13.5 x 1.2" / 22.6 x 34.3 x 3.0 cm | | Weight | 2.46 lb / 1.12 kg | | | | Box Dimensions (LxWxH) | 15.3 x 8.65 x 2.5" | - Follow Focus V2 with Hard Stops for 15mm Rods
| Dimensions (WxHxD) | 7.44 x 4.31 x 3.16" (188.97 x 109.60 x 80.25 mm) | | Weight | 1.12 lb (0.51 g) | | | | Box Dimensions (LxWxH) | 9.55 x 5.75 x 4.15" | - Bridge Plate
| Camera Screw(s) | 1/4"-20 and 3/8"-16 | | Mounting Interface | V-lock
1/4"-20 and 3/8"-16 threaded holes | | Rod Length | 11.8" / 300 mm | | Height Adjustment Range | 1.6" / 40 mm | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | 1.6 lb / 0.73 kg (including rods) | | | | Box Dimensions (LxWxH) | 15.9 x 6.4 x 3.7" | - Shoulder Support for DSLR Camera Rig
| Material | Aluminum alloy, rubber pad | | Dimensions | 7.9 x 4.3 x 4.5" (20.0 x 10.9 x 11.3 cm) | | Weight | 21.9 oz (620.0 g) | | | | Box Dimensions (LxWxH) | 8.6 x 4.7 x 3.5" | - Offset Clamp
| Vertical Offset | 1.77" (45 mm) | | Horizontal Offset | 4.13" (105 mm) | | Dimensions | 7.2 x 0.6 x 3.1" (18.3 x 1.5 x 7.8 cm) | | Weight | 3.5 oz (100 g) | | | | Box Dimensions (LxWxH) | 8.55 x 5.3 x 0.85" |
