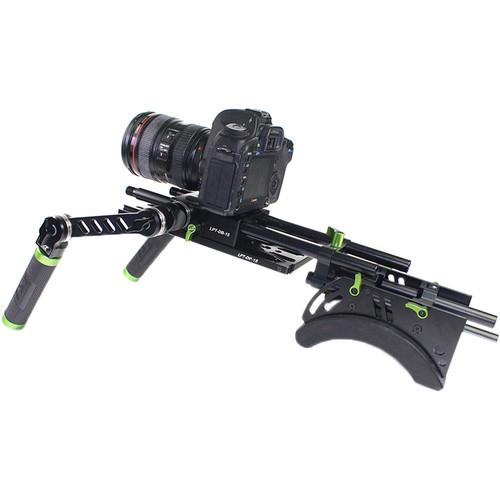

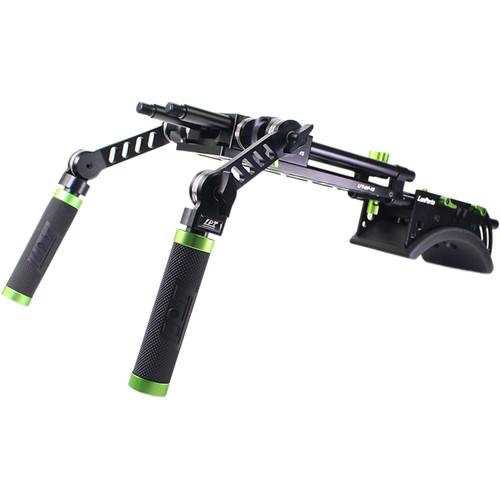

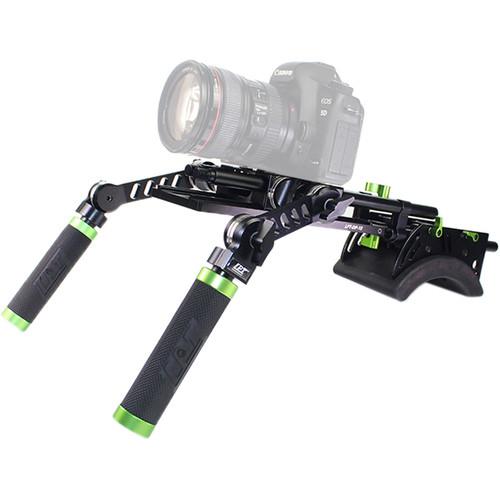

Product description The Starter Rig Kit from LanParte is a versatile setup that incorporates a dovetail baseplate and shoulder support, allowing for an easy transition between studio configuration and shoulder rig. The ARRI rosette arms are also included for the security of handling your equipment. The Starter Rig Kit also features a dovetail long plate that allows users to quickly adjust the counterbalance and change the configuration. - Height Raiser Clamp If your rig requires a height offset, the Lanparte Height Raiser Clamp has 2 sets of 15mm LWS rod clamps. This allows you to raise the height of parts of your rig or place 15mm components on top of one another. For example, you can place a shoulder pad directly beneath a 15mm camera baseplate for a shorter rig with better balance.
- Connects shoulder pad to base plate
UPC: 840534113032 - Rosette Handgrip (Pair) This Rosette Handgrip pair from Lanparte enables two-handed support with any camera, baseplate, or accessory with ARRI standard rosettes. Each handle features a non-slip rubber grip and a short extension arm that lets you position the handle at the desired height and angle.
-
- CNC macnined aluminum construction
- ARRI standard M6 thread
- Rubber grip

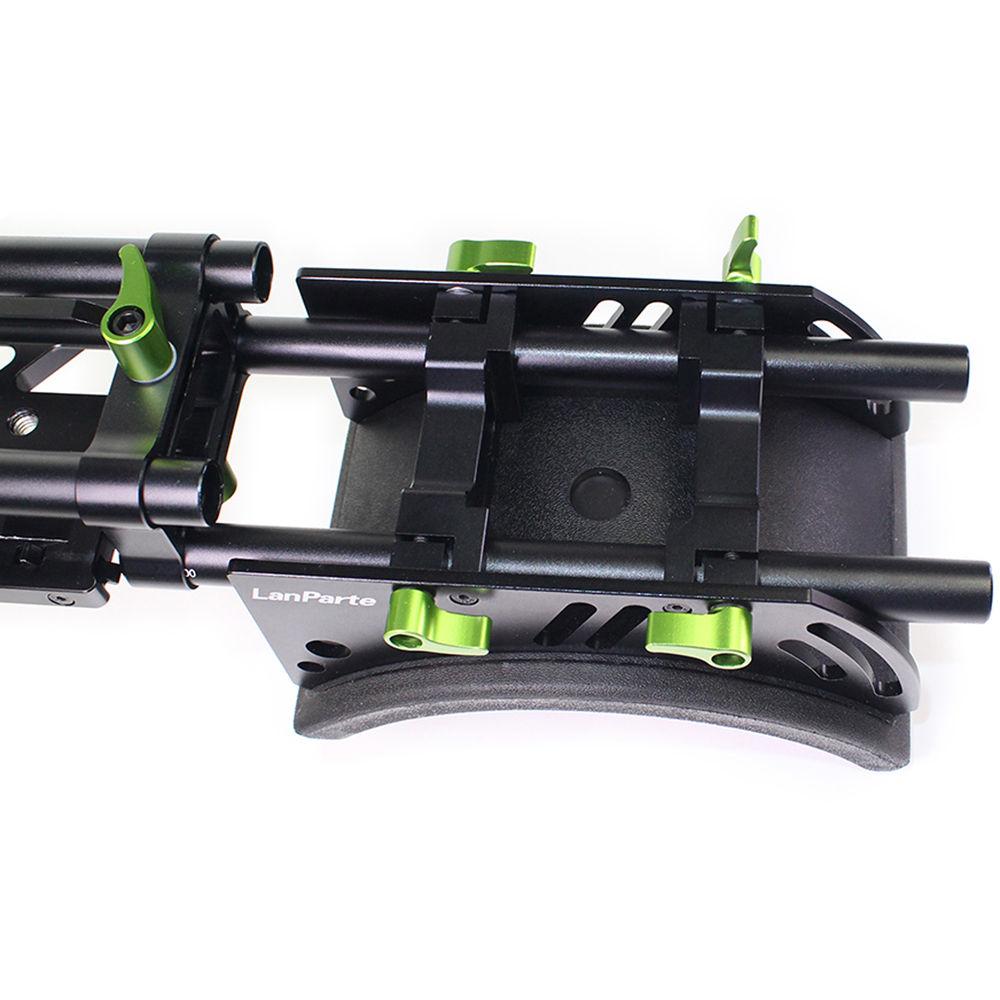

UPC: 840534107086 - Shoulder Support for DSLR Camera Rig Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories.
- Compatible with 15mm rod systems
- Power supply system can be mounted on it
- A standard Height Raiser Clamp is included
- Compatible with Offset Clamp and Adjustable Offset Clamp (sold separately)
- Hollow design makes unit lightweight at 21.9 oz

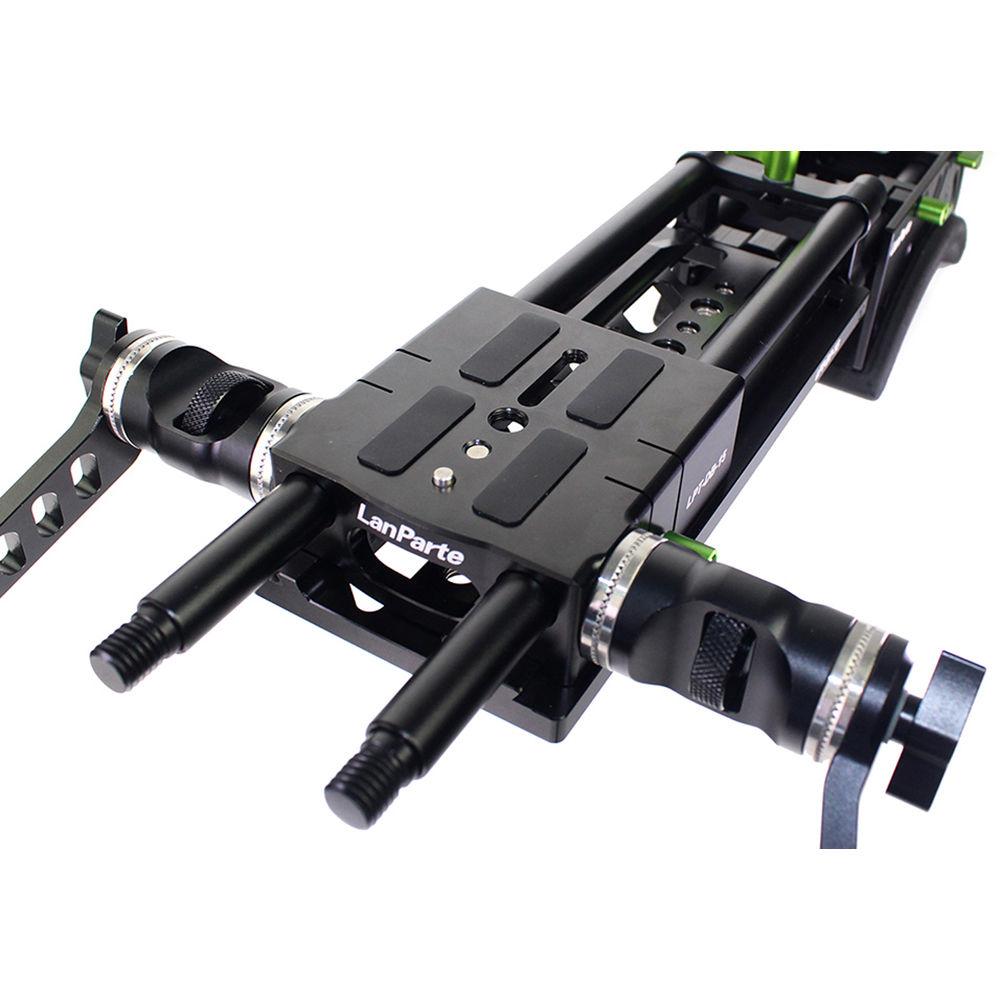

UPC: 840534108014 - Dovetail Baseplate with 15mm Rods The Dovetail Baseplate with 15mm Rods from Lanparte is a dovetail baseplate that attaches to the bottom of your camera to facilitate mounting and releasing it from your fluid head. The Dovetail Baseplate comes with a Short Dovetail Plate, and two 11.8" long 15mm aluminum rods. The Dovetail Baseplate can be matched with the Lanparte Quick Release Plate and features an Arri rosette lock on each side for attaching handles.
- Arri rosette lock on each side
- Dovetail Plate The Dovetail Plate from Lanparte is a dovetail plate with a dovetail connector that you can slide your base plate and rig onto. The dovetail plate can mount onto any tripod via its standard 1/4" and 3/8" screw holes. A quick release trigger allows you to remove the camera rig from the tripod quickly and easily, and a limit screw prevents the camera from sliding out. The dovetail plate is compatible with 15mm film industry standard rod systems.
- Lightweight at 0.7 lb due to hollowed out design
- Quick release trigger to easily remove from tripod
- Limit screw safety feature to ensure that your camera doesn't fall
In the Box Bundle Items Height Raiser Clamp waautrevbbzsedfdyztytsyutt Rosette Handgrip (Pair) Shoulder Support for DSLR Camera Rig - 15mm Aluminum Rod (Pair, 7.9")
Dovetail Baseplate with 15mm Rods - 15mm Aluminum Rod (Pair, 11.8")
- Short Tripod Dovetail Plate
Dovetail Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the LanParte Starter Rig Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Height Raiser Clamp
| Material | Alluminum alloy | | Rod Diameter | 15 mm | | Height | Clamps: 1.2" (30 mm) center to center | | Dimensions | 3.3 x 0.8 x 3.1" (8.5 x 2.0 x 8.0 cm) | | Weight | 2.5 oz (70 g) | | | | Box Dimensions (LxWxH) | 4.2 x 4.1 x 0.8" | - Rosette Handgrip (Pair)
| | | Box Dimensions (LxWxH) | 12.8 x 5.0 x 2.4" | - Shoulder Support for DSLR Camera Rig
| Material | Aluminum alloy, rubber pad | | Dimensions | 7.9 x 4.3 x 4.5" (20.0 x 10.9 x 11.3 cm) | | Weight | 21.9 oz (620.0 g) | | | | Box Dimensions (LxWxH) | 8.6 x 4.7 x 3.5" | - Dovetail Baseplate with 15mm Rods
| Rod Mounts | 15 mm | | Dimensions | 11.8 x 3.4 x 1.2" (30.0 x 8.7 x 3.0 cm) | | Weight | 0.93 lb (0.42 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 5.8 x 2.3" | - Dovetail Plate
| Dimensions | 9.8 x 3.5 x 0.6" (25.0 x 9.0 x 1.5 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 9.1 x 3.8 x 0.8" |
