LanParte URSA Mini Basic Shoulder Kit

User Manual for LanParte URSA Mini Basic Shoulder Kit

• Product category: Camcorder Supports & Rigs LanParte
• Brand: LanParte
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for LanParte Camcorder Supports & Rigs

Product description

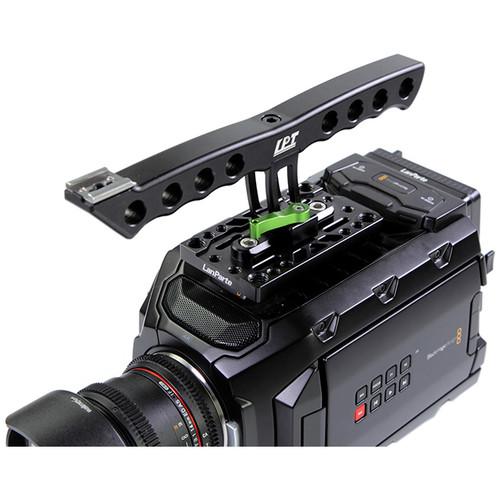

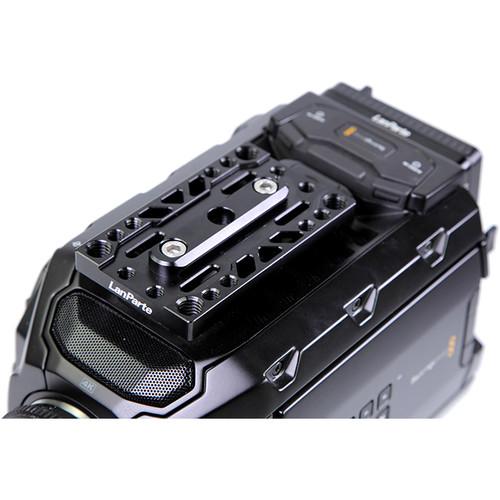

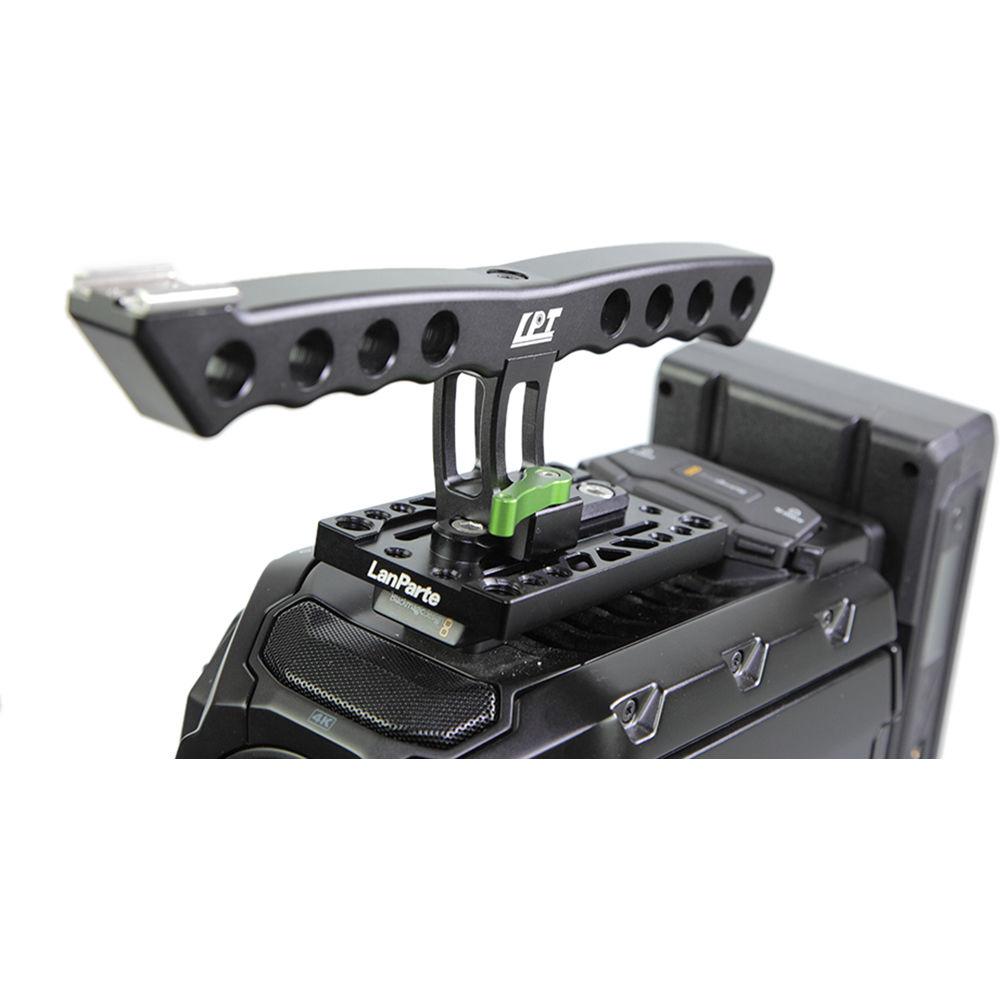

• Top Handle/Cheese Plate for URSA Mini Use this Top Handle/Cheese Plate combination from LanParte with your URSA Mini. Both the handle and its cheese plate base offer multiple 1/4"-20 and 3/8"-16 holes, maximizing your accessory-mounting choices. The cheese plate mounts to the top of the camera, and the top handle attaches to the cheese plate via a locking NATO rail connector. The handle is T-shaped, offering a more secure grip design than the original URSA Mini handle. Other features include hollow aluminum construction to minimize weight, and a front cold shoe mount.
  • Multiple 1/4"-20 and 3/8"-16 mounts for easy accessory mounting
  • Mounting holes are on both the handle and its cheese plate base
  • A cold shoe mount is placed at the front of the handle
  • The top handle attaches to the cheese plate easily via a NATO rail connector with lever
  • Hollow aluminum construction for reduced weight
  UPC: 840534107130

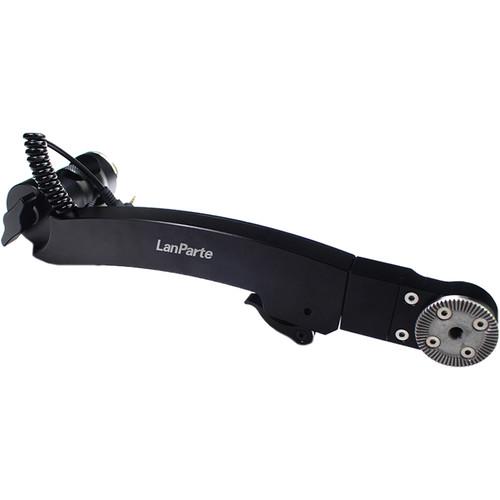

• Extension Arm for the URSA Mini This LanParte Extension Arm is specifically designed to work with the original handgrip of the URSA Mini and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. The extension arm adds almost 1' of length to the handgrip, and the included Arri-style rosette extension can be used to add just over 2" distance from the side of the camera rig. The rosette connection allows the arm to be positioned at whatever angle you prefer. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip's controls.
  • Designed for the URSA Mini
  • Fully adjustable 2" Arri-style rosette extension included
  • Built-in 3-pin LANC cable maintains all handgrip controls
  • Adds approximately 1' to the handgrip length, and 2" to the baseplate width
  • Aluminum construction
  UPC: 840534107123
• Dual Rod Clamp with Rosettes Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp, from Lamparte, allows you to attach and adjust rosette-mount handgrips on your shoulder rig. The rosette adapters are 60-tooth ARRI-standard compatible and made of steel. UPC: 840534113292
• V-Mount Shoulder Support V2 Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.
  • V-Mount lock on bottom of shoulder support
  • Quick release system with safety trigger
  • Mountable on VCT-14 via the tail lock
  • Adjustable rod height
  • 15mm Rod connectors
  • Ergonomic shoulder pad
  • Spirit level
  • CNC machined
  • Hollow design, lightweight at 3 lb
• 15mm Aluminum Rod (Pair, 9.8") Mount accessories to your rig with this pair of 9.8" 15mm Aluminum Rods from Lanparte. This rod set is extendable via integrated 12mm threading on the rod ends, allowing for separately available extension screws to be used to mount more threaded rods.
  • Extendable with optional LPT-V2-059 Screw
  • Bevel-edged
  • Anodic oxidation surface treatment
  • Glossy finish
  UPC: 840534113148

• Limited 1-Year Warranty (USA Only)

• Locking ARRI Rosette Extension Spacer

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 60mm Rods (AR-60)

• V-Mount Base Plate

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Top Handle/Cheese Plate for URSA Mini

  Material of Construction	Aluminum
  Mounting Holes	Multiple 1/4"-20 & 3/8"-16 mounts
  Accessory Shoe	1 x Cold shoe mount
  Dimensions (LxWxH)	12.8 x 4.9 x 2.5" (32.5 x 12.4 x 6.4 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	12.9 x 5.0 x 2.6"

• Extension Arm for the URSA Mini

  Material of Construction	Aluminum
  Dimensions (LxWxD)	11.6 x 3.6 x 2.1" (29.5 x 9.1 x 5.3 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	11.6 x 3.7 x 2.2"

• Dual Rod Clamp with Rosettes

  Dimensions	1.8 x 1.2 x 1.3" (4.5 x 3 x 3.2 cm)
  Weight	3.5 oz (100 g)

  Box Dimensions (LxWxH)	4.7 x 1.6 x 0.9"

• V-Mount Shoulder Support V2

  Dimensions	12.0 x 3.3 x 5.0" (30.5 x 8.3 x 12.7 cm)
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	13.6 x 6.1 x 4.3"

• 15mm Aluminum Rod (Pair, 9.8")

  Material	Aluminum
  Rod Diameter	15 mm
  Thread Size	12 mm
  Length	9.8" / 250 mm
  Weight	2.0 oz / 57 g

  Box Dimensions (LxWxH)	10.25 x 1.5 x 0.7"
