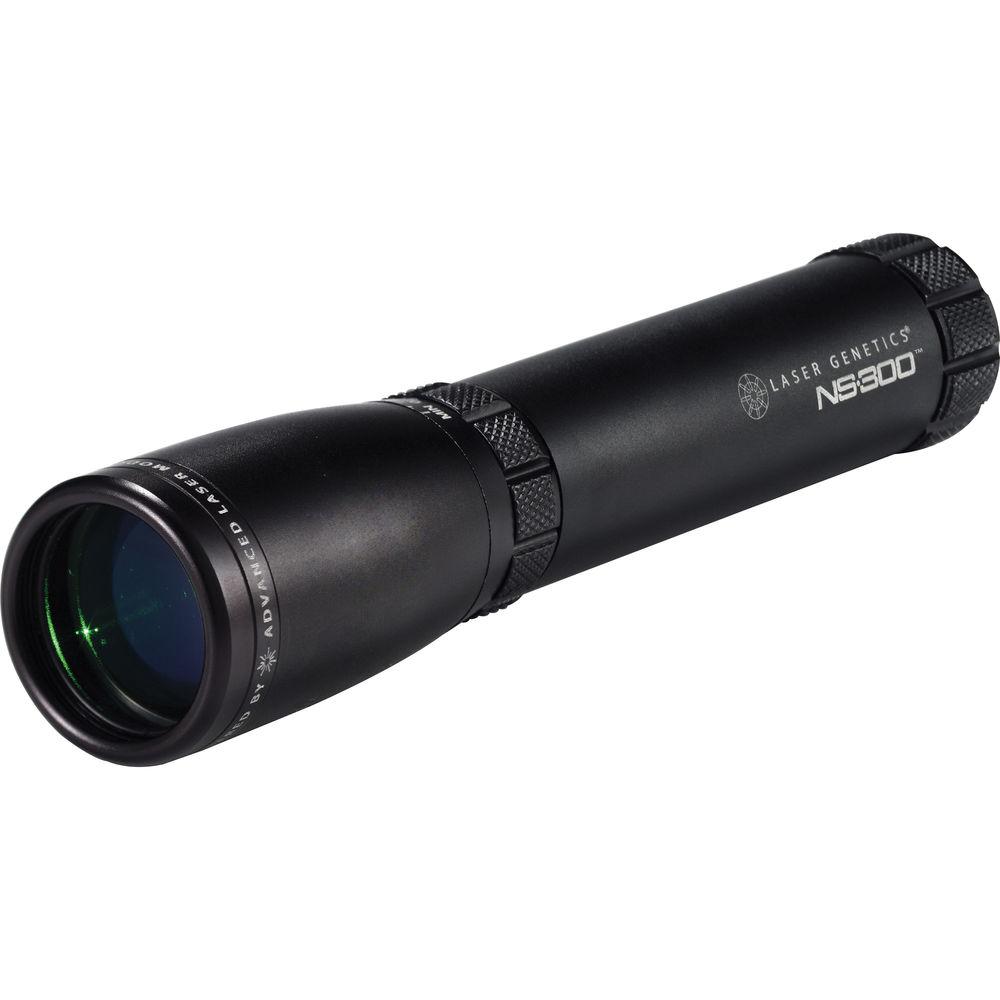

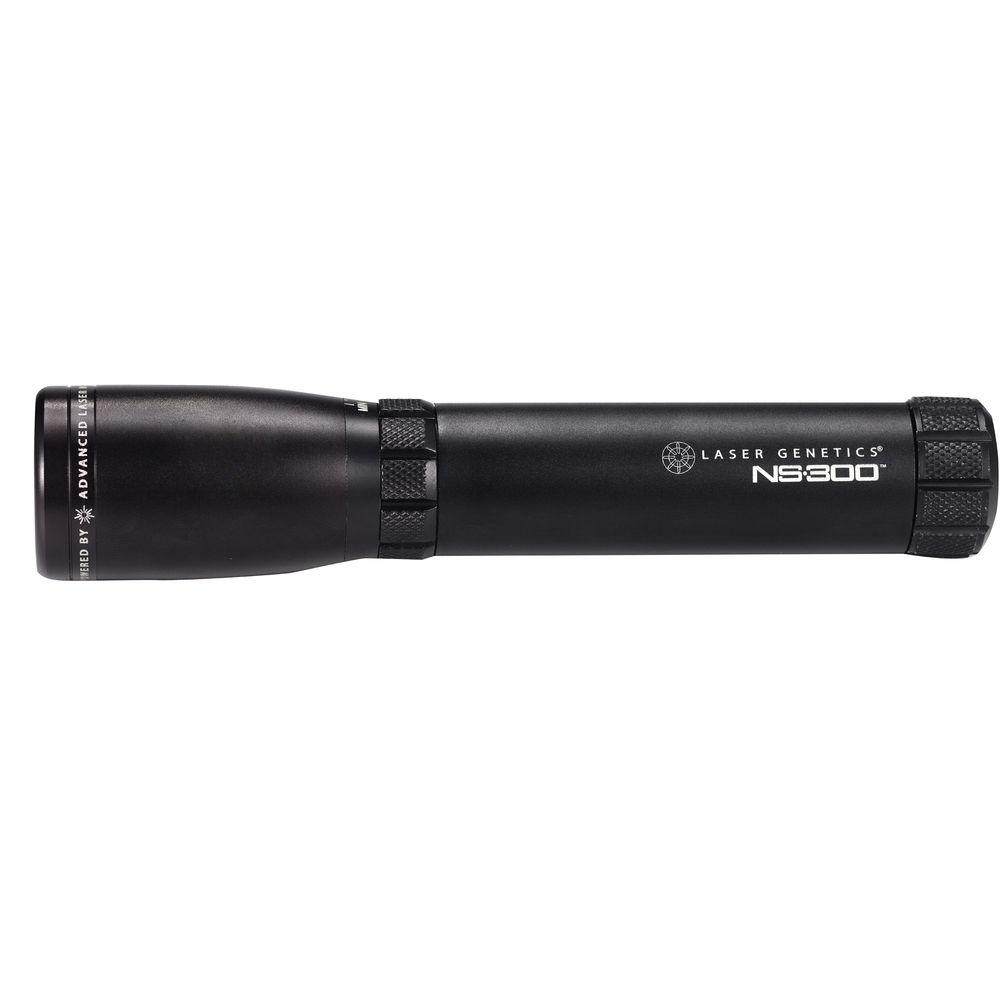

User Manual for Laser Genetics LG-NS300-SZ Subzero 520nm Green Laser Designator Click to enlarge the picture
Contents of the user manual for the Laser Genetics LG-NS300-SZ Subzero 520nm Green
- Product category: Weapon & Tactical Lights Laser Genetics
- Brand: Laser Genetics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laser Genetics Weapon & Tactical Lights
 |
User manual for the Laser Genetics LG-NS300-SZ Subzero 520nm Green contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laser Genetics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laser Genetics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laser Genetics product will considerably shorten its lifespan!
|
Product description Laser Genetics designed the LG-NS300-SZ Subzero 520nm Green Laser Designator to give hunters a versatile and stealthy illumination tool for low-light and night-time use. Its green light is highly visible to the human eye and easily seen without affecting night-adjusted vision but invisible to many species of animals, allowing you to clearly see them without alerting them to your presence. A collimator uses a system of three fully multicoated lenses to focus the beam from a wide 5.5" flood to a tight 1" spot. This model of the NS300 is outfitted with the proprietary Subzero system that enables its use in temperatures as low as -4°F without loss of intensity or power.To withstand a lifetime of outdoor service, the LG-NS300-SZ Subzero features a lightweight and durable aluminum alloy housing with a corrosion and scratch-resistant anodized finish. The designator is equipped with a mount for 1" main-tubes that allows you to mount on top of your scope for easy use. A simple click-type tailcap switch provides easy activation, and an included remote pressure switch can be easily installed in place of the stock switch and enables its use without moving your hands from the firing position. The housing is O-ring sealed to be waterproof, and the head is nitrogen filled which prevents fogging on the inside of the lens to ensure maximum light transmission when moving between extreme temperature variations. - Performance
-
- Class II visible laser
- Wavelength: 520nm
- 18mW peak power output
- Adjustable beam from 1 to 5.5"
- 0.5-0.6 mrad beam divergence
- Green wavelength is easy for humans to see but invisible to many animal species
- Collimator uses a system of three fully multi-coated lenses to focus the beam from a wide flood to a tight point
- Anti-reflection fully multicoated glass lenses for increased light transmission
- Subzero system enables use in subzero temperatures without loss of intensity or power
- Switching
-
- Location: Tailcap
- Type: Pushbutton
- Constant-on mode only
- Includes remote pressure switch with 10" (25.4 cm) coiled cable
- Construction
-
- Lightweight and durable aluminum housing
- Corrosion and scratch-resistant anodized finish
- Nitrogen filled head eliminates lens fogging
- Runs on one user-supplied CR123 battery
- Mount
-

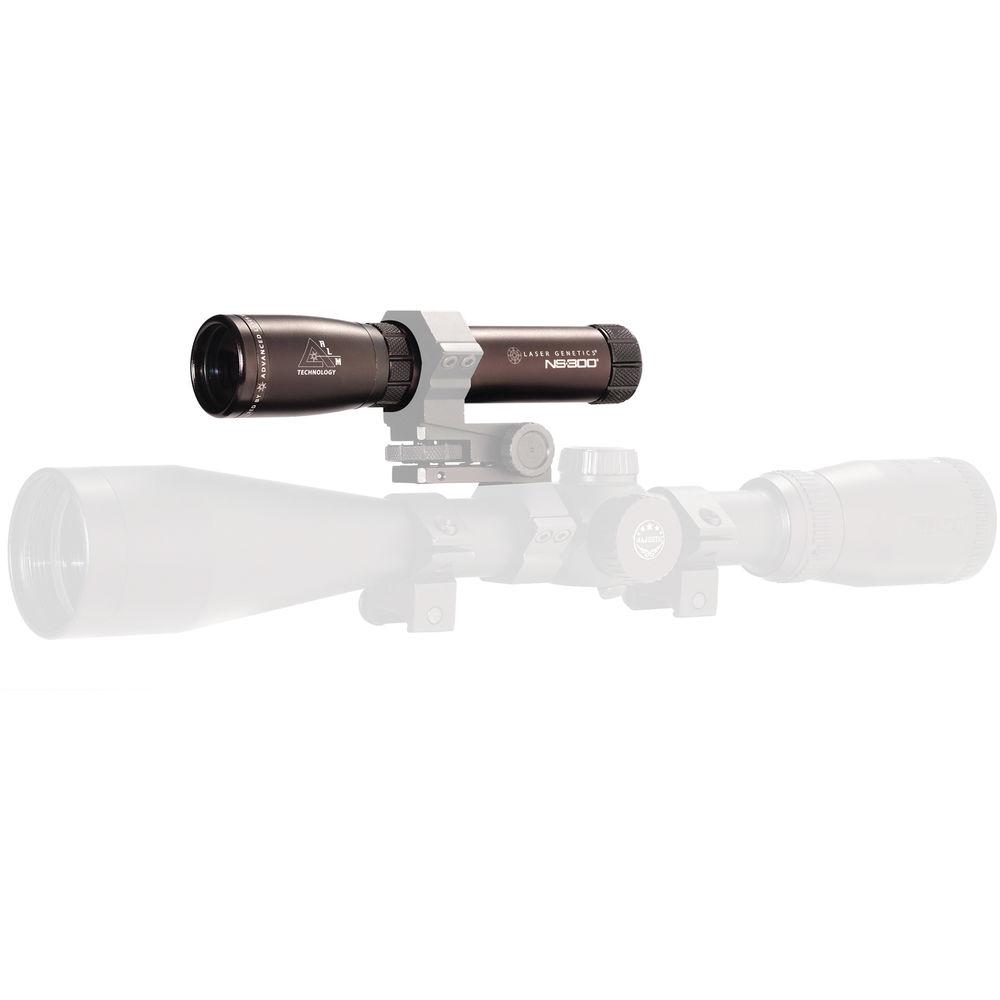

- Mounts on 1" scope main-tube
- 5 MOA windage and elevation adjustment range
- 1" diameter body enables the use of 1" scope mounts for more mounting options
UPC: 793676067476 In the Box Laser Genetics LG-NS300-SZ Subzero 520nm Green Laser Designator Cleaning Kit Scope Mount Remote Pressure Switch Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laser Genetics LG-NS300-SZ Subzero 520nm Green Laser Designator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaser Genetics NS300 Specs | Type | Class II visible green laser | | Wavelength | 520 nm | | Output Power | 18 mW | | Beam Size | 1.0 - 5.5" / 2.6 - 14.0 cm | | Beam Divergence | 0.5 - 0.6 mrad | | Mount | 1" scope mount | | Material | Aluminum alloy | | Power | 1 x CR123 battery | | Waterproofing | Waterproof | | Temperature Range | Operating: -4 to 122 °F / -20 to 50°C
Storage: -40 to 185°F / -40 to 85°C | | Dimensions | Head: 1.3" / 3.2 cm
Body: 1.0" / 2.5 cm
Length: 6.1" / 15.5 cm | | Weight | 6.0 oz / 170 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 11.9 x 4.5 x 3.2" |
