Lauten Audio Atlantis FC-387 Multi-Voicing FET

Search your instruction manual in PDF to download

User Manual for Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone

Click to enlarge the picture
Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Contents of the user manual for the Lauten Audio Atlantis FC-387 Multi-Voicing FET
  • Product category: Large Diaphragm Condenser Lauten Audio
  • Brand: Lauten Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lauten Audio Large Diaphragm Condenser

Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone
User manual for the Lauten Audio Atlantis FC-387 Multi-Voicing FET contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lauten Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!



Product description

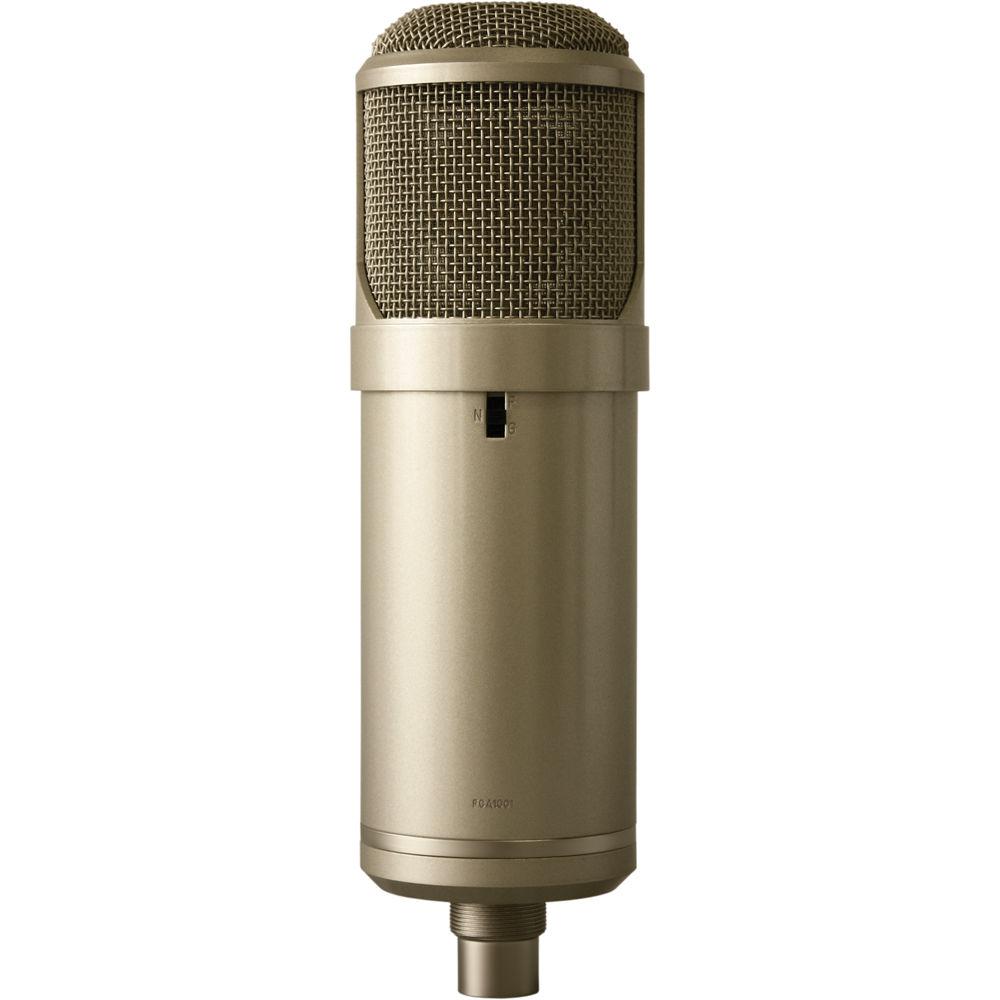

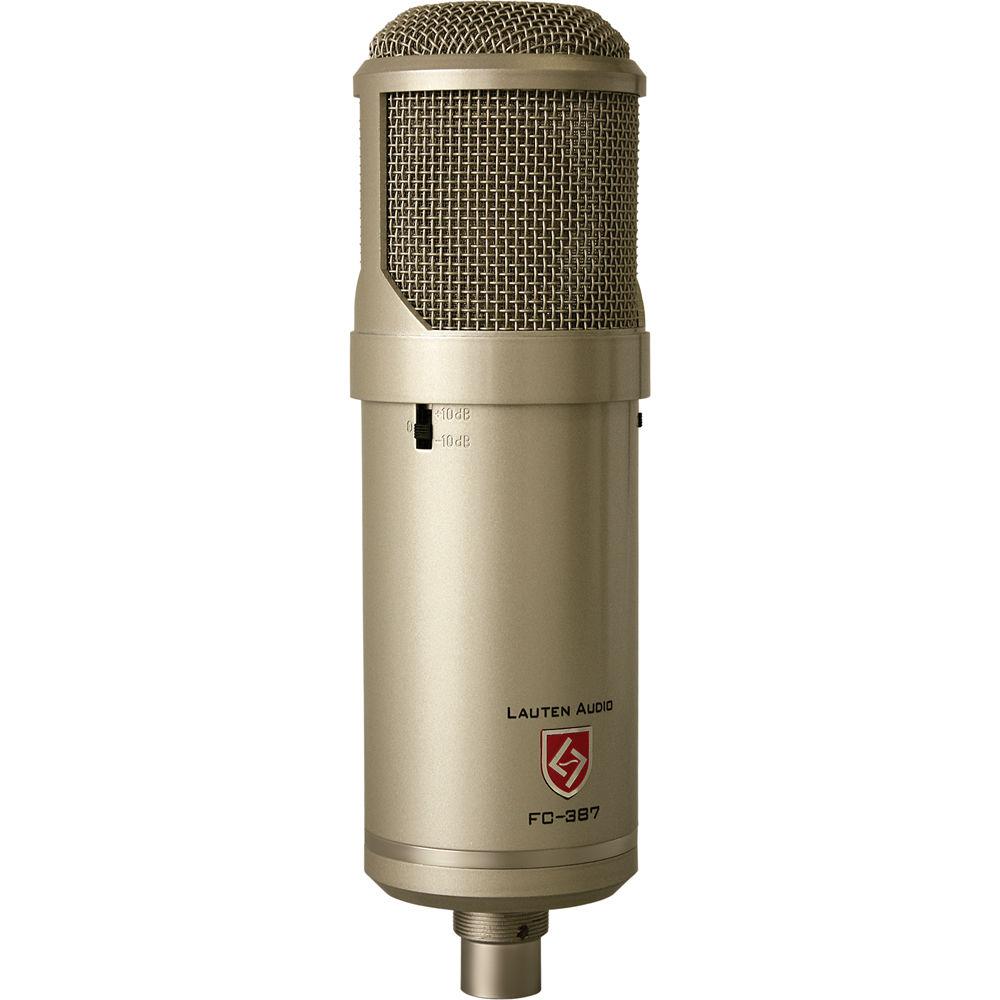

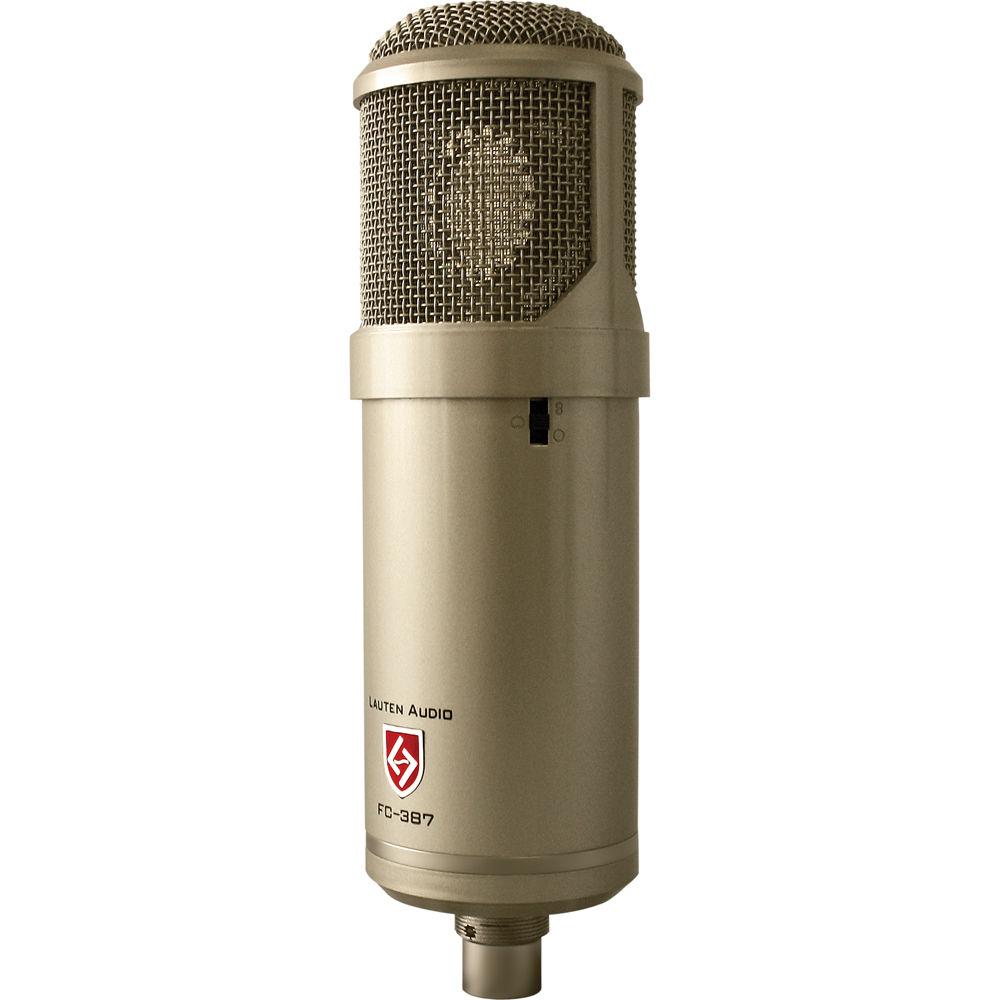

The Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone from Lauten Audio features a solid-state low-noise FET circuit, custom wound output transformers, and a 31.25mm dual-diaphragm capsule. It requires +48V of phantom power to operate, has a frequency response of 20Hz to 20KHz, can handle a maximum SPL of 130dB, and offers cardioid, omni, and figure-of-eight polar pickup patterns.

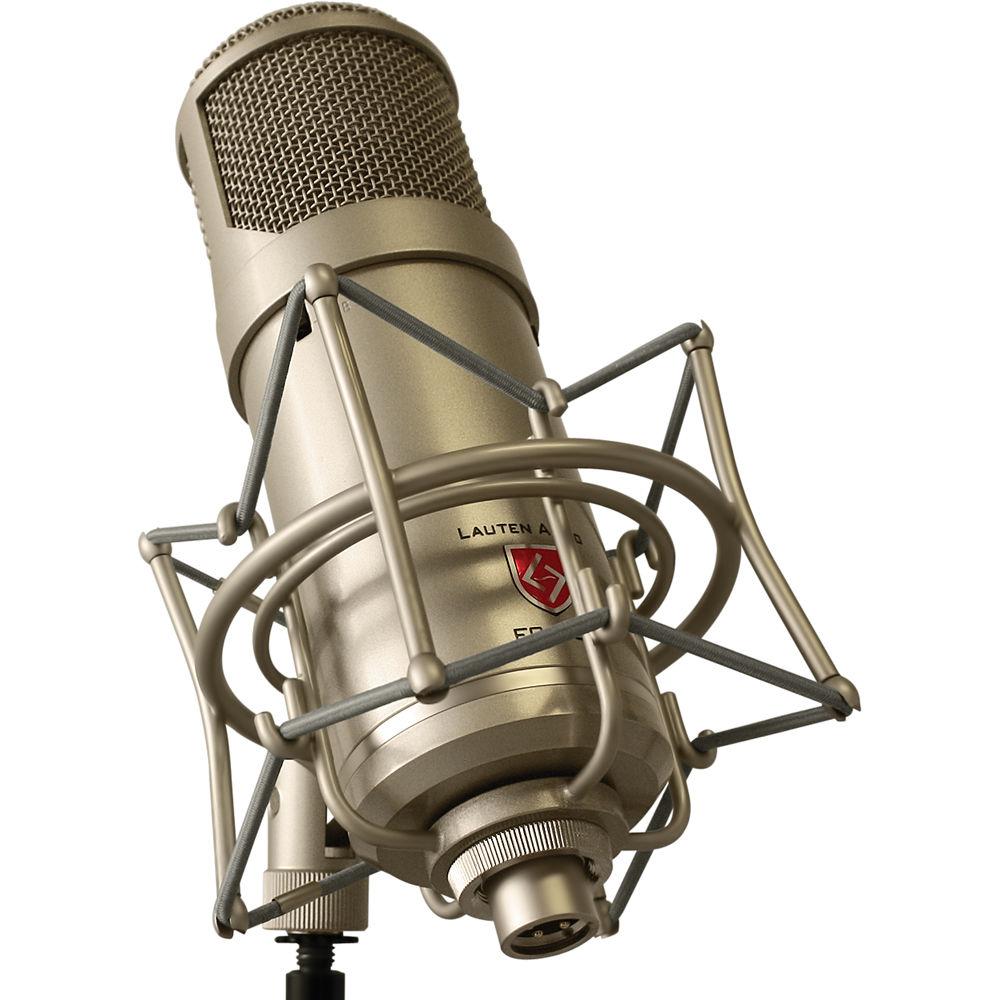

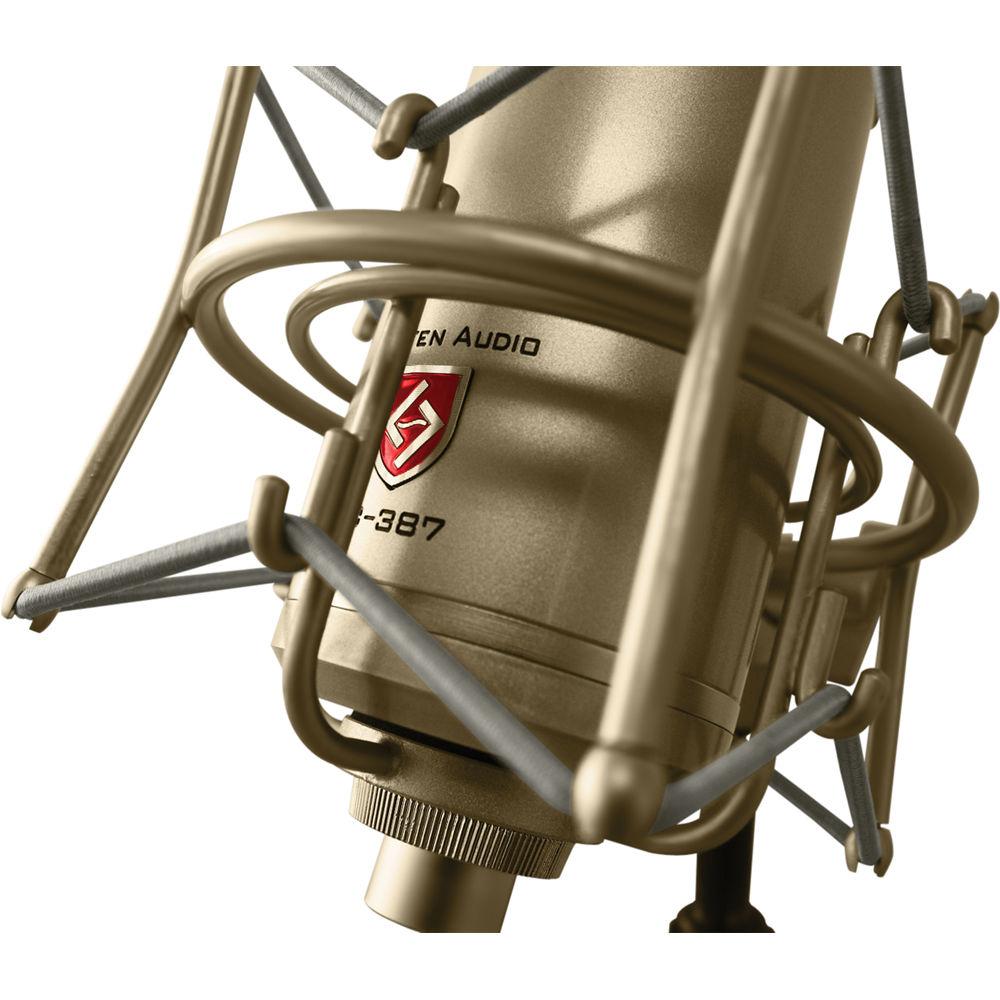

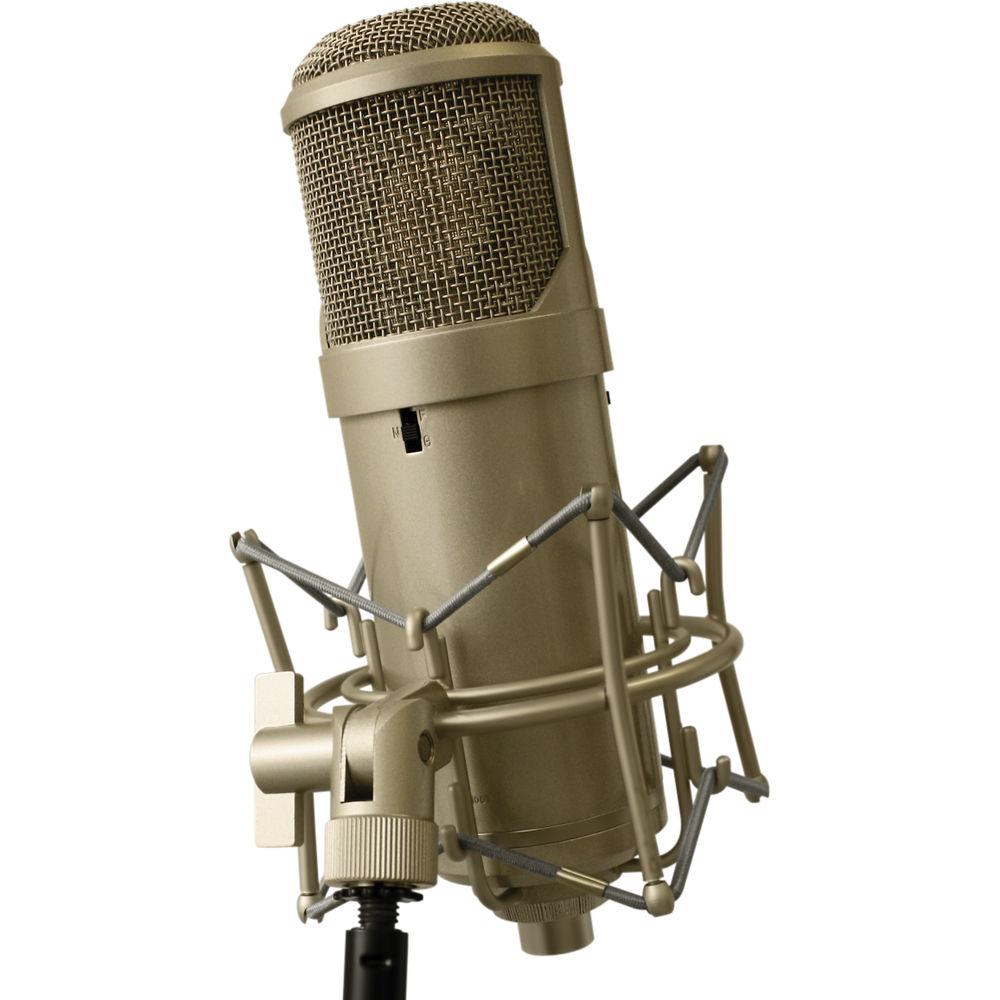

A timbre switch adjusts the frequency response of the microphone between forward, normal, and gentle modes to achieve different tonalities and serve a range of recording applications. A three state gain switch offers +10dB of boost, flat, or -10dB pad for adjusting the relation between microphone and preamplifier as well as accommodating quiet or loud sources. The microphone comes with a shockmount and a wooden storage box.
  • Multi-voicing switch for three distinct timbres
  • Cardioid, omni, and figure-eight polar patterns
  • Low noise FET
  • High resolution capacitors
  • Custom wound output transformer

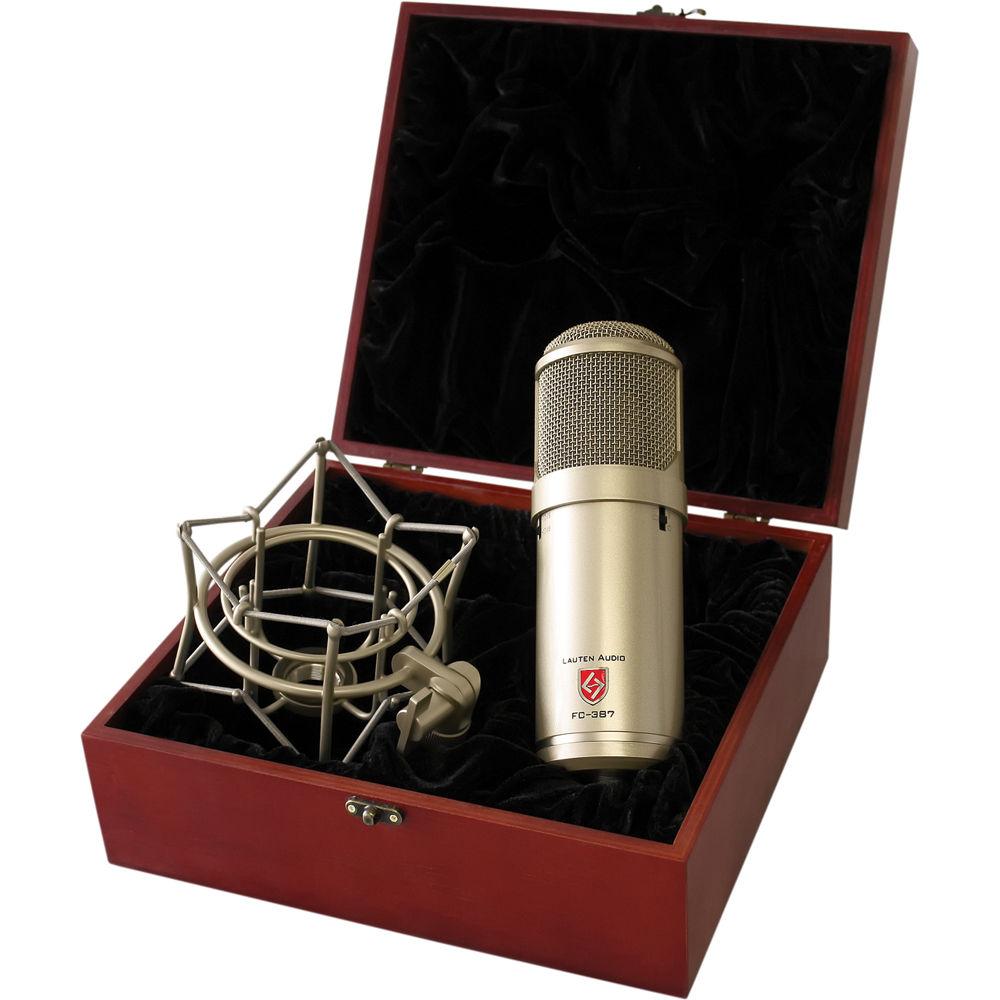

UPC: 639266328315 In the Box Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone
  • Shock Mount
  • Wood Box
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lauten Audio Atlantis FC-387 Multi-Voicing FET Studio Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lauten Audio FC-387 Specs

    Operating Principle Pressure Gradient
    Transducer Condenser
    Diaphragm 1.23" / 31.25 mm
    Polar Pattern Cardioid, Figure-8, Omnidirectional
    Pattern Selection Switched
    Frequency Range 20 Hz to 20 kHz
    Equivalent Noise Level 12 dB A-Weighted
    Maximum SPL 130 dB SPL
    Pad -10 dB
    THD 1%
    Impedance 200 Ohms
    Sensitivity 16 mV/Pa
    Operating Voltage 48 V
    Package Weight 7.15 lb
    Box Dimensions (LxWxH) 14.0 x 12.1 x 6.4"
