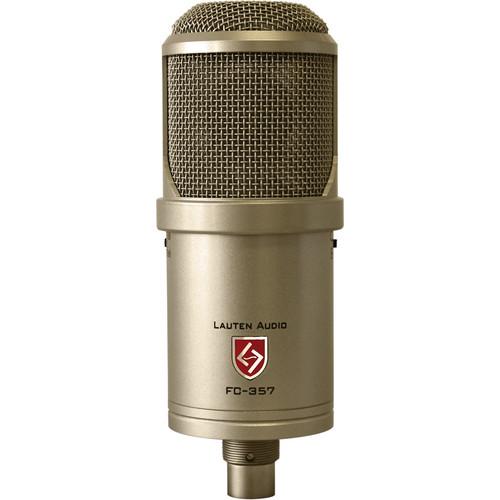

User Manual for Lauten Audio Clarion FC-357 Large-Diaphragm FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Lauten Audio Clarion FC-357 Large-Diaphragm FET
- Product category: Large Diaphragm Condenser Lauten Audio
- Brand: Lauten Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lauten Audio Large Diaphragm Condenser
 |
User manual for the Lauten Audio Clarion FC-357 Large-Diaphragm FET contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lauten Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!
|

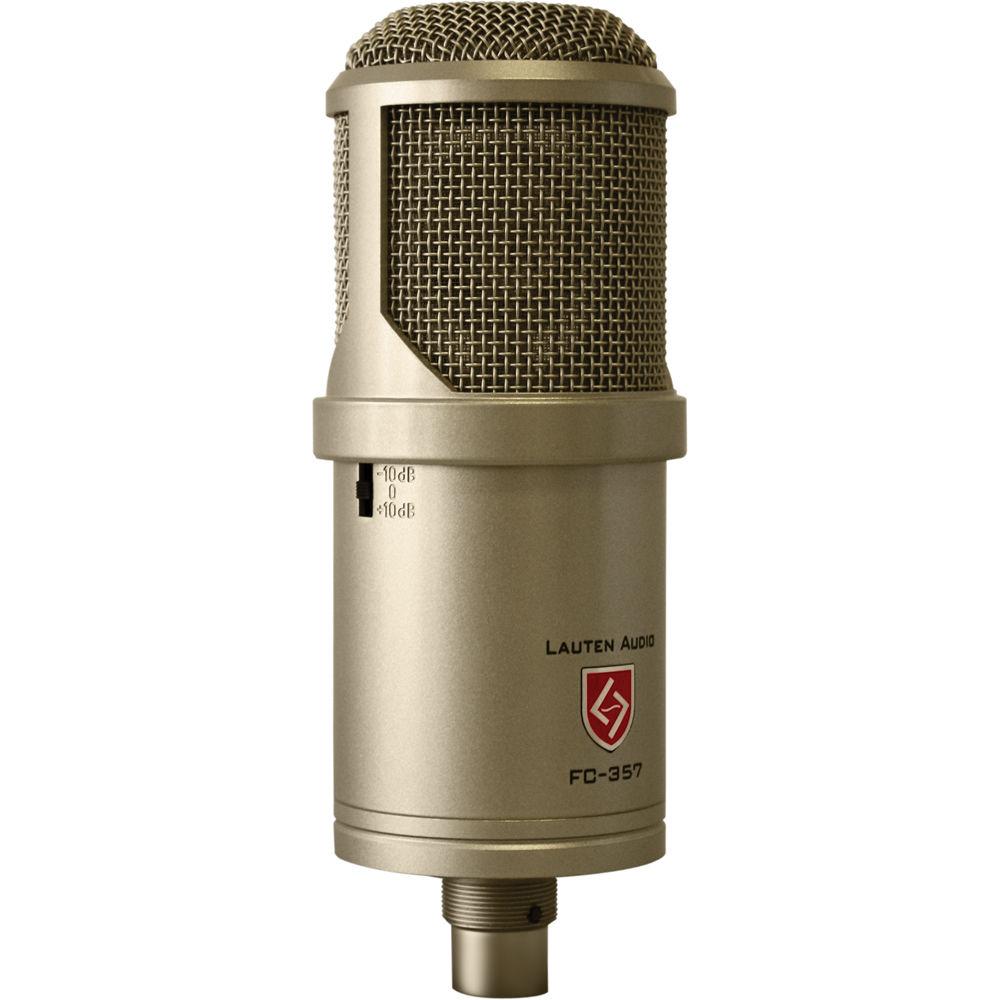

Product description The Clarion FC-357 Multi-Pattern Large-Diaphragm FET Condenser Microphone from Lauten Audio features a custom designed 28.25mm dual diaphragm capsule for accurately capturing sound produced from the source. The microphone's electronics include a low-noise FET and custom-wound output transformer that work together to provide you with an authentic and classic sound with a modern touch. The three-position attenuation and gain switch offer a -10 dB pad and a +10 dB boost to make the mic less dependent on your preamps gain. - Ribbon-like top-end on electric guitars
- Tuned to tame sibilant sources

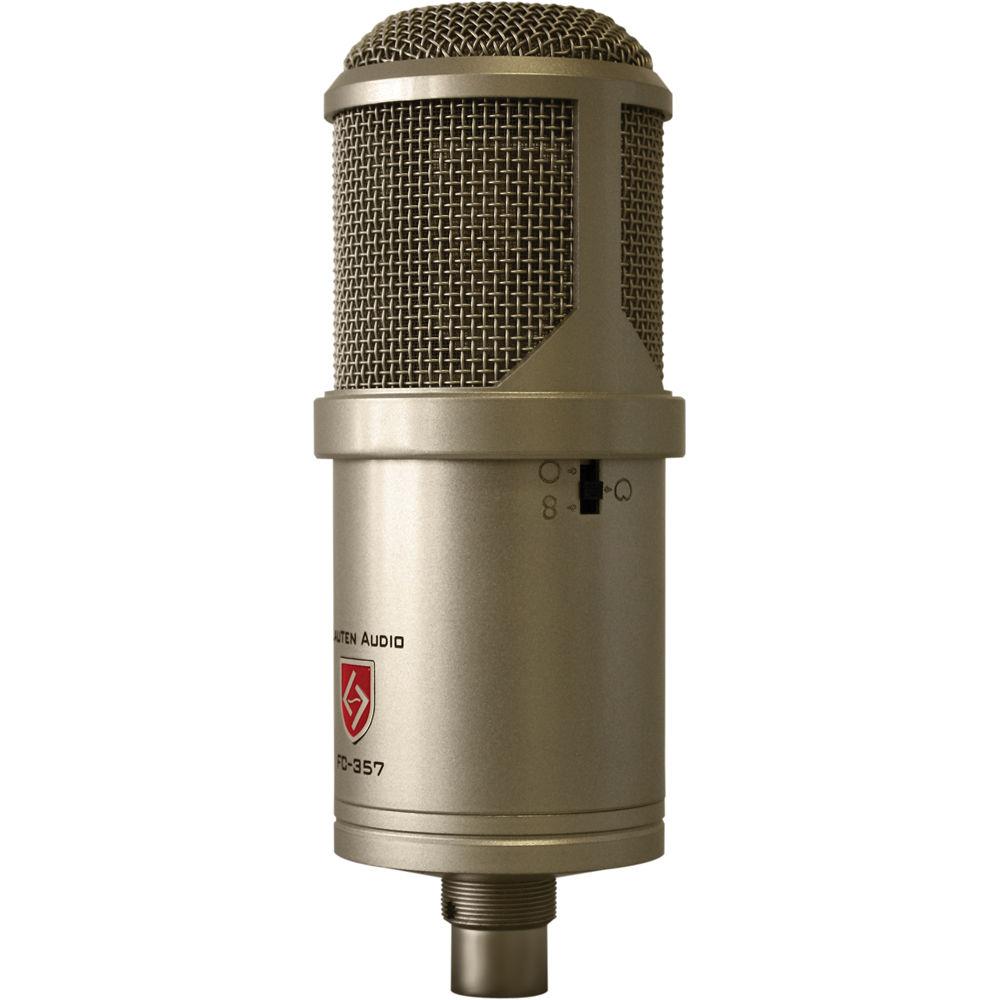

- Cardioid, omni, and figure-of-eight polar pattern switch
- High resolution capacitors
- Custom wound output transformer

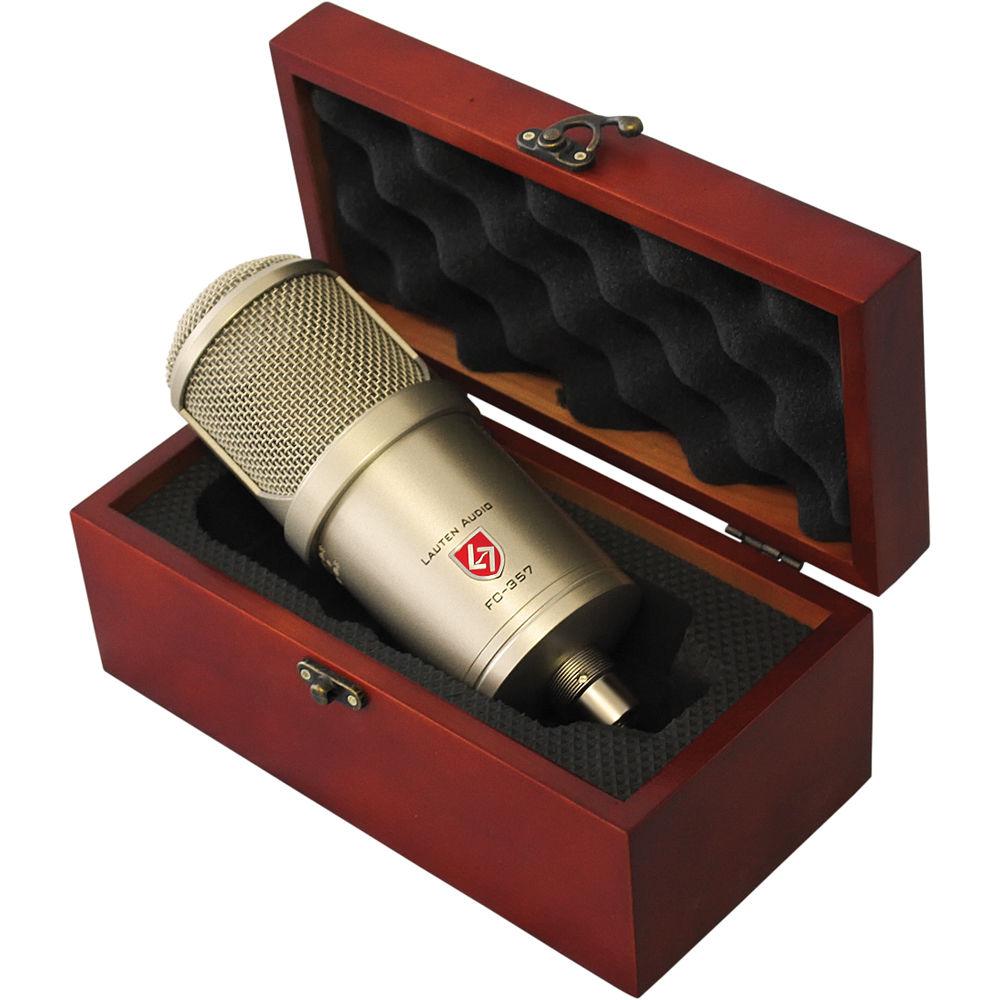

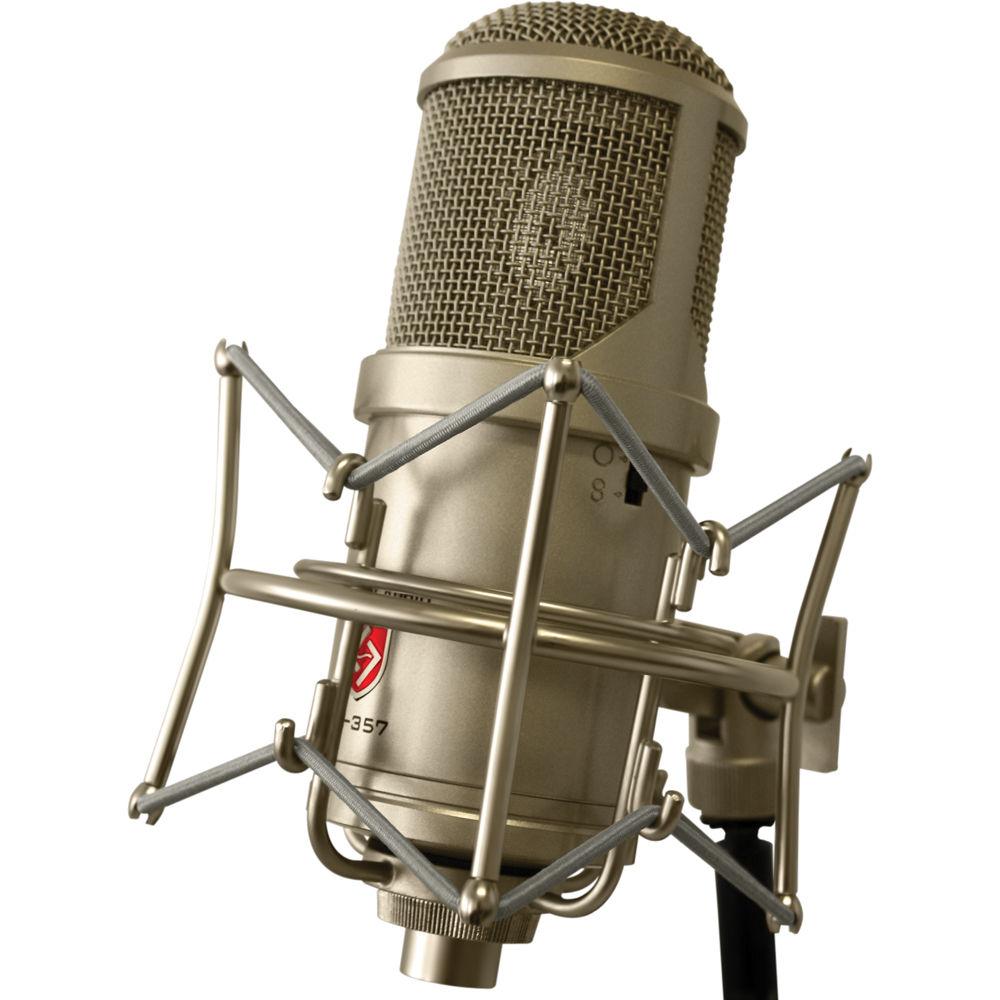

UPC: 639266328322 In the Box Lauten Audio Clarion FC-357 Large-Diaphragm FET Condenser Microphone Shock Mount Wood Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lauten Audio Clarion FC-357 Large-Diaphragm FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLauten Audio FC-357 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.11" / 28.25 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 25 Hz to 20 kHz | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 130 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | 16 mV/Pa at 1000 Hz | | Dynamic Range | 120 dB | | Operating Voltage | 48 V | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 18.7 x 8.3 x 6.7" |
