User Manual for Lauten Audio Eden LT-386 Multi-Voicing Dual Large-Diaphragm Vacuum Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Lauten Audio Eden LT-386 Multi-Voicing Dual
- Product category: Tube Microphones Lauten Audio
- Brand: Lauten Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lauten Audio Tube Microphones
 |
User manual for the Lauten Audio Eden LT-386 Multi-Voicing Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lauten Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!
|

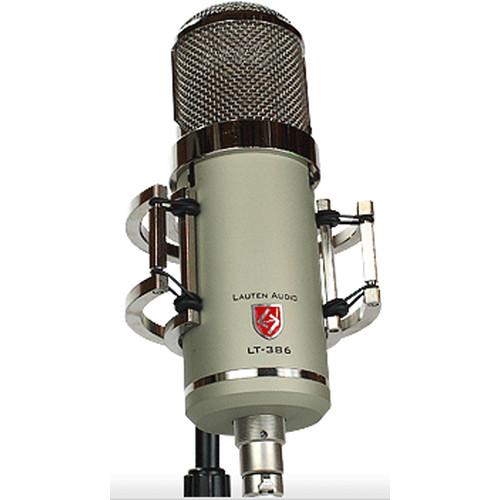

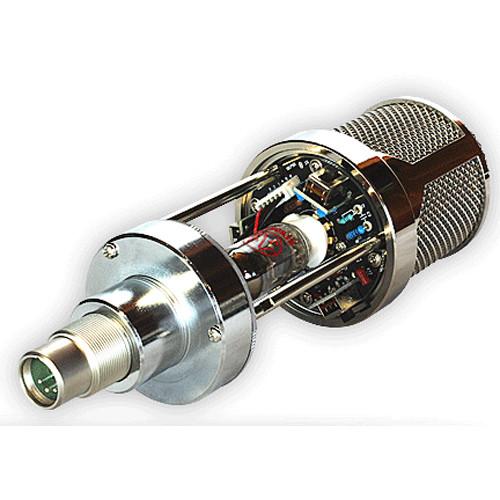

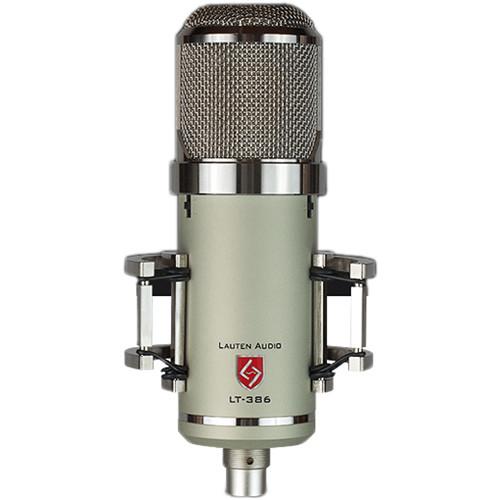

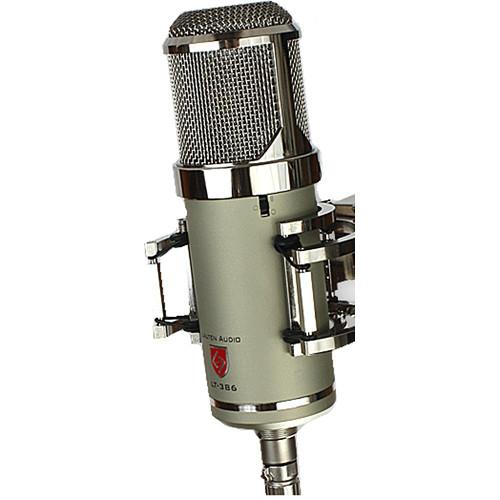

Product description The Lauten Audio Eden LT-386 Multi-Voicing Dual Large-Diaphragm Vacuum Tube Condenser Microphone is designed for studio recording. The circuit utilizes an extra large 31.25mm dual-diaphragm capsule, a NOS military-grade pentode vacuum tube, a transformer-less tube output stage, and a vacuum tube isolation design to reduce component temperatures and internal noise. The extra-large capsule and harmonics provided by the vacuum tubes produce a sound that is suitable for a range of sources such as vocals, drum overheads, pianos, and more. The dual-diaphragm design enables variable 9-step omni, cardioid, and figure-8 polar pickup patterns with a frequency response of 20 Hz to 20 kHz. The unit comes with a shockmount, a microphone cable, a dedicated power supply, a wood storage box, and a hard travel case. - Three-stage multi-voicing switch for three distinct timbres - forward, neutral, and gentle
- Polar pattern switch on mic body for selecting between cardioid, omnidirectional, and figure-8 pickup patterns
- Vocal and kick-drum shaping 2-stage high-pass filter
- 100-240 VAC switching power supply included
- Custom 5-conductor mic cable (20' length) and power cable included
- Aluminum hard case (17.5 x 12.0 x 8.0") included for safe transport
UPC: 641752949492 In the Box Lauten Audio Eden LT-386 Multi-Voicing Dual Large-Diaphragm Vacuum Tube Condenser Microphone Suspension Mount 20' Microphone Cable 100-240 VAC Switchable Power Supply Power Cable Aluminum Hard Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lauten Audio Eden LT-386 Multi-Voicing Dual Large-Diaphragm Vacuum Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLauten Audio LAUTEDENLT386 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.23" / 31.25 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 120 dB SPL | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 16 mV/Pa | | Dynamic Range | 120 dB | | | | Output Connectors | 1 x 3-Pin XLR
1 x 5-Pin XLR | | Cable Length | 20' / 6.1 m | | Operating Voltage | 6 to 110 V | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Length | 9.45" / 240 mm | | Diameter | 2.99" / 76 mm | | Weight | 2.20 lb / 1 kg | | | | Package Weight | 16.3 lb | | Box Dimensions (LxWxH) | 19.5 x 14.0 x 9.25" |
