User Manual for Lauten Audio FET Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Lauten Audio FET Studio Condenser Microphone
- Product category: Large Diaphragm Condenser Lauten Audio
- Brand: Lauten Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lauten Audio Large Diaphragm Condenser
 |
User manual for the Lauten Audio FET Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lauten Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!
|

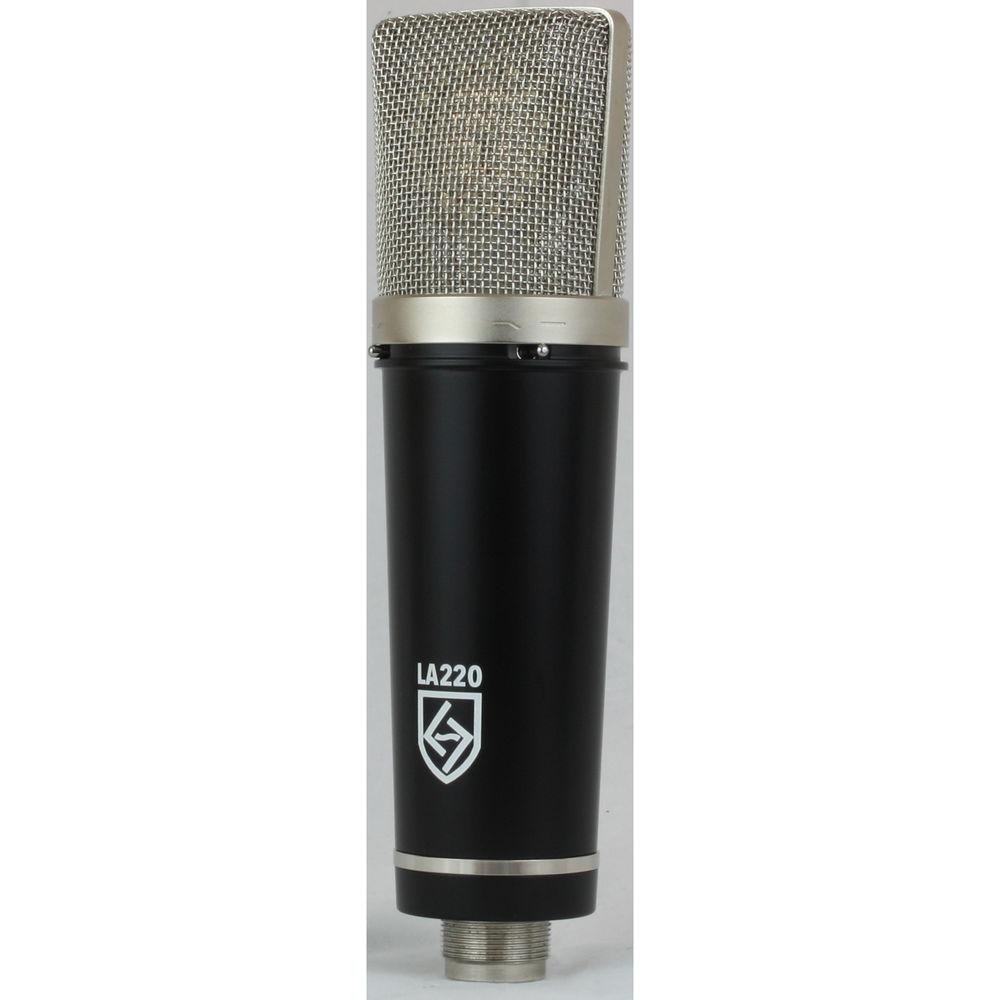

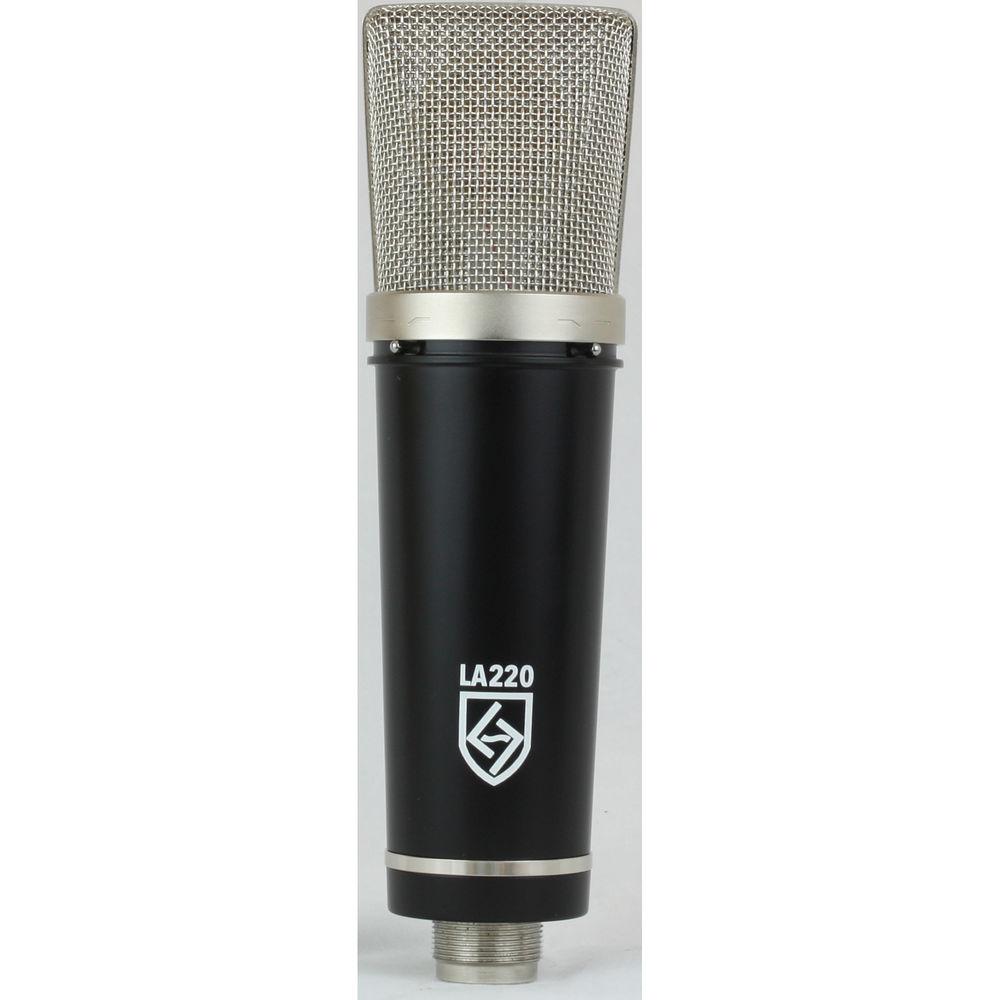

Product description The black FET Studio Condenser Microphone from Lauten Audio is a professional and versatile microphone for studio vocal and instrument recording. At its core, the microphone features an ultra-low-noise JFET amplifier, a 1″ pressure-gradient true-condenser capsule with cardioid polar pattern, independent 120 Hz low-cut and 12 kHz high-cut filters, and a transformer-balanced output. The low-cut filter helps reduce boomy lows or low-end room rumble; the high-cut filter helps to tame bright rooms and sources. The above features help you to achieve high-quality recordings, regardless of your skill level. - Professional-level vocal and instrument condenser microphone
- Suitable for creating vibrant modern vocals
- High-cut filter tames bright sources
- Low-cut filter removes room rumble and muddiness
- Ultra-low-noise USA JFET amplifier for pristine solid-state sound
- Vintage-inspired transformer-balanced output
- Two independent filter switches are located on the front of the microphone and are easy to engage
- Polypropylene capacitors and resistor
- Comes equipped with a spider shockmount to isolate the microphone from vibrations such as a tapping foot or outside rumble from street noise
- <15 dB-A self-noise level
- Selectable, independent 120 Hz low-cut & 12 kHz high-cut filters
UPC: 641752949539 In the Box Lauten Audio FET Studio Condenser Microphone (Black) Shockmount Limited 1-Year Warranty Limited 90-Day Warranty on Shockmount Table of Contents
|
Upload User Manual
Have you got an user manual for the Lauten Audio FET Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLauten Audio LA-220 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | Cardioid: 130 dB SPL RMS | | THD | 0.5% | | Impedance | Cardioid: 200 Ohms | | Sensitivity | Cardioid: 16 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.4 x 8.7 x 3.4" |
