User Manual for Lauten Audio LS-208 Front-Address Large Diaphragm Condenser Microphone

Click to enlarge the picture
Lauten Audio LS-208 Front-Address Large Diaphragm Condenser Microphone Contents of the user manual for the Lauten Audio LS-208 Front-Address Large Diaphragm
  • Product category: Large Diaphragm Condenser Lauten Audio
  • Brand: Lauten Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lauten Audio Large Diaphragm Condenser

Lauten Audio LS-208 Front-Address Large Diaphragm Condenser Microphone Lauten Audio LS-208 Front-Address Large Diaphragm Condenser Microphone
User manual for the Lauten Audio LS-208 Front-Address Large Diaphragm contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lauten Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!



Product description

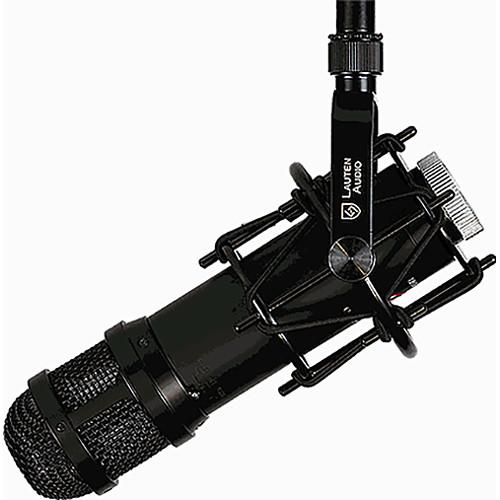

The LS-208 Front-Address Large Diaphragm Condenser Microphone from Lauten Audio is a professional microphone that offers a wide frequency response and a dynamic range that can handle loud sound sources without the need for attenuation. It can be used to capture audio for studio, live sound, broadcast recording, and sound reinforcement applications.The LS-208 microphone is powered by 48V phantom power and can handle 135 dB SPL due to its JFET transistor circuit design with balanced transformer output. This gives engineers the ability to capture brilliant recordings of dynamic instruments and environments without sacrificing sound quality. The independent multistage high- and low-cut filters help balance recordings at the microphone and aid in successfully capturing the performance, which reduces the need for mixing.In addition, the LS-208 microphone is fully accessorized and ships with the following: spider shock mount with threaded nut and adjustable elbow joint, hard mount with threaded nut and adjustable elbow joint, foam windscreen to protect the transducer element from plosives, wind, and debris, and a hard case that fits all accessories and is built tough for the rigors of the road.
  • Full 120 dB (135 dB total) of dynamic range without the need of additional attenuation
  • Wide frequency response and studio quality sound
  • Excellent off-axis sound rejection
  • Independent 2-stage low- and high-cut frequency switches
  • Internally shock-mounted, pressure-gradient condenser element
  • Both spider shock mount and hard mount included

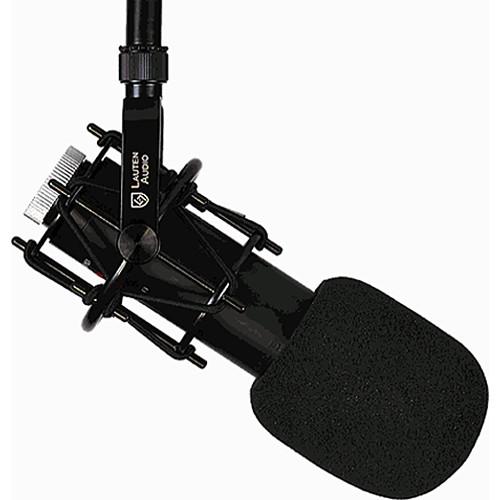

  • Includes foam windscreen for plosive and wind rejection
UPC: 641752949553 In the Box Lauten Audio LS-208 Front-Address Large Diaphragm Condenser Microphone
  • Spider Shock Mount
  • Hard Mount with Threaded Nut and Adjustable Elbow Joint
  • Foam Windscreen
  • Rugged Road Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lauten Audio LS-208 Front-Address Large Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lauten Audio LS-208 Specs

    Sound Field Mono
    Operating Principle Pressure Gradient
    Transducer Condenser
    Polar Pattern Cardioid
    Frequency Range 20 Hz to 20 kHz
    Equivalent Noise Level 15 dB A-Weighted
    Maximum SPL 135 dB SPL Peak
    Impedance 150 Ohms
    Sensitivity 5 mV/Pa
    Low-Cut Filter 50 to 120 dB
    8 to 10 dB
    Dynamic Range 135 dB A-Weighted
    Output Connectors 1 x 3-Pin XLR
    Operating Voltage 48 V
    Length 7.5" / 19.05 cm
    Diameter 1.98" / 50.29 mm
    Weight 1.05 lb / 0.48 kg
    Package Weight 6.39 lb
    Box Dimensions (LxWxH) 14.3 x 12.4 x 6.9"
