User Manual for Lauten Audio LS-308 Noise Rejecting, High-Dynamic Range Large Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Lauten Audio LS-308 Noise Rejecting, High-Dynamic
- Product category: Large Diaphragm Condenser Lauten Audio
- Brand: Lauten Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lauten Audio Large Diaphragm Condenser
 |
User manual for the Lauten Audio LS-308 Noise Rejecting, High-Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lauten Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!
|
Product description - Teaser | LS-308 | Noise Rejecting, High-Dynamic Range, Large Diaphragm Condenser Microphone

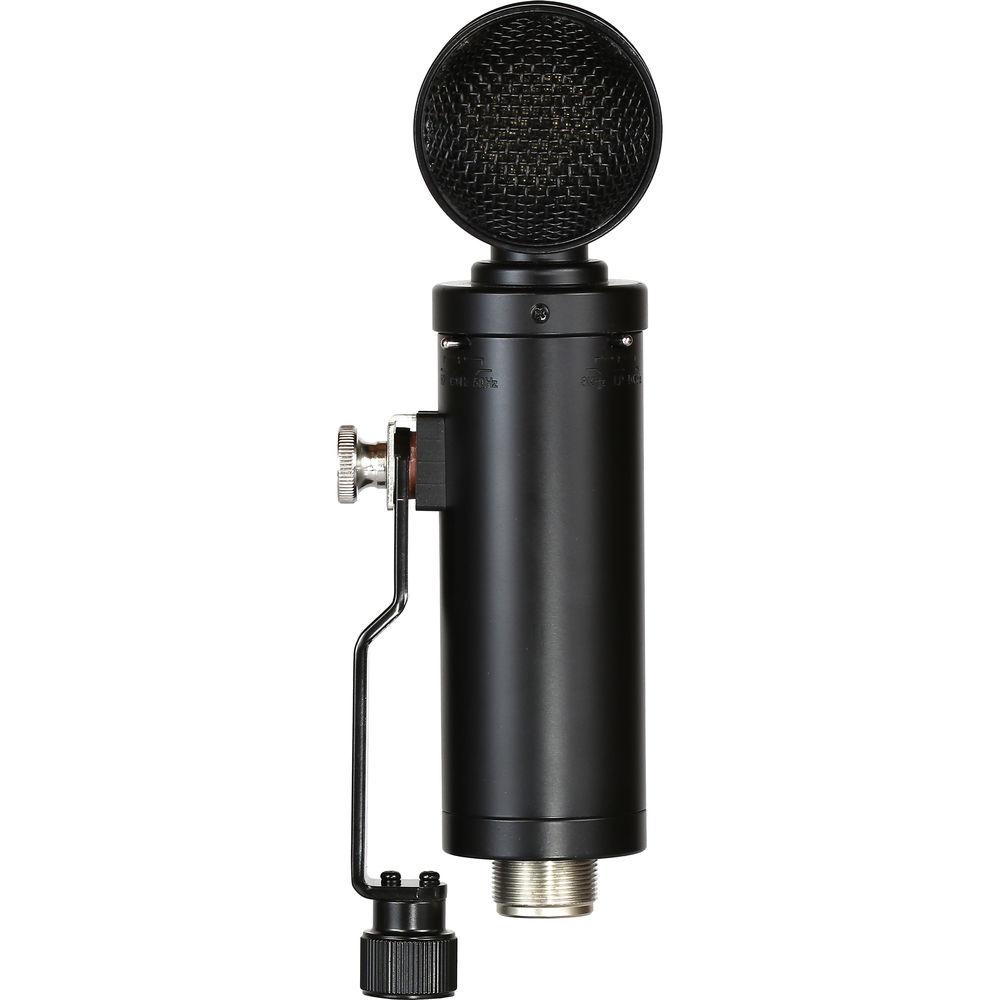

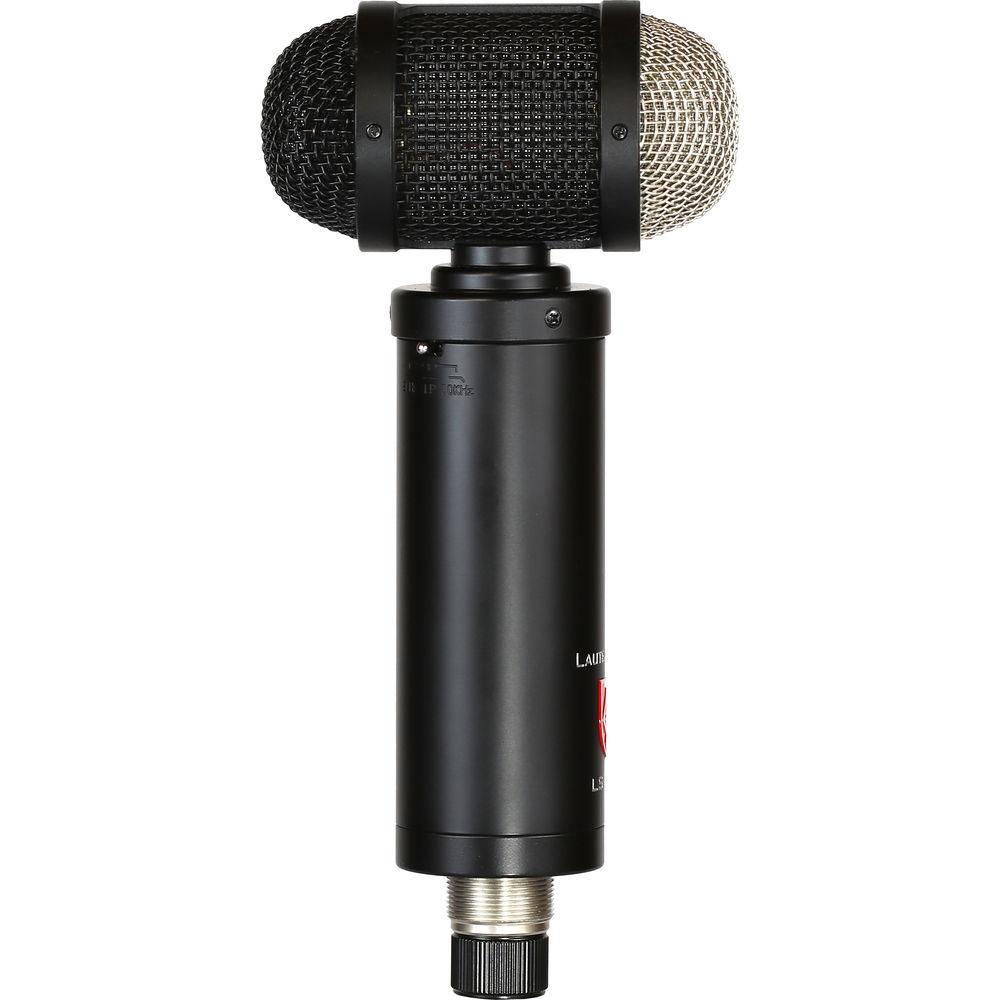

The LS-308 Noise Rejecting, High-Dynamic Range Large Diaphragm Condenser Microphone from Lauten Audio is a cardioid microphone with 270° off-axis frequency rejection that is designed for use in studio, broadcast, and sound reinforcement environments. It can be used to capture audio when sources—drums, guitars, vocals—are in very close proximity and when isolation of those sources is difficult.The LS-308 microphone is constructed from high-quality components and outfitted with frequency-shaping high- and low-cut filters. It is powered by 48V phantom power and equipped with a 3-pin XLR connector. The capsule is internally shock-mounted and includes a removable swing-arm mount with 135° of movement, a hard mount with threaded nut and adjustable elbow joint, a foam windscreen, and a hard case that fits all the accessories. - Full 120 dB (135 dB total) of dynamic range
- Excellent off-axis sound rejection
- Independent 2-stage low & high-cut filters
- Internally shock-mounted pressure dual-gradient condenser element
- 3-pin XLR output connector

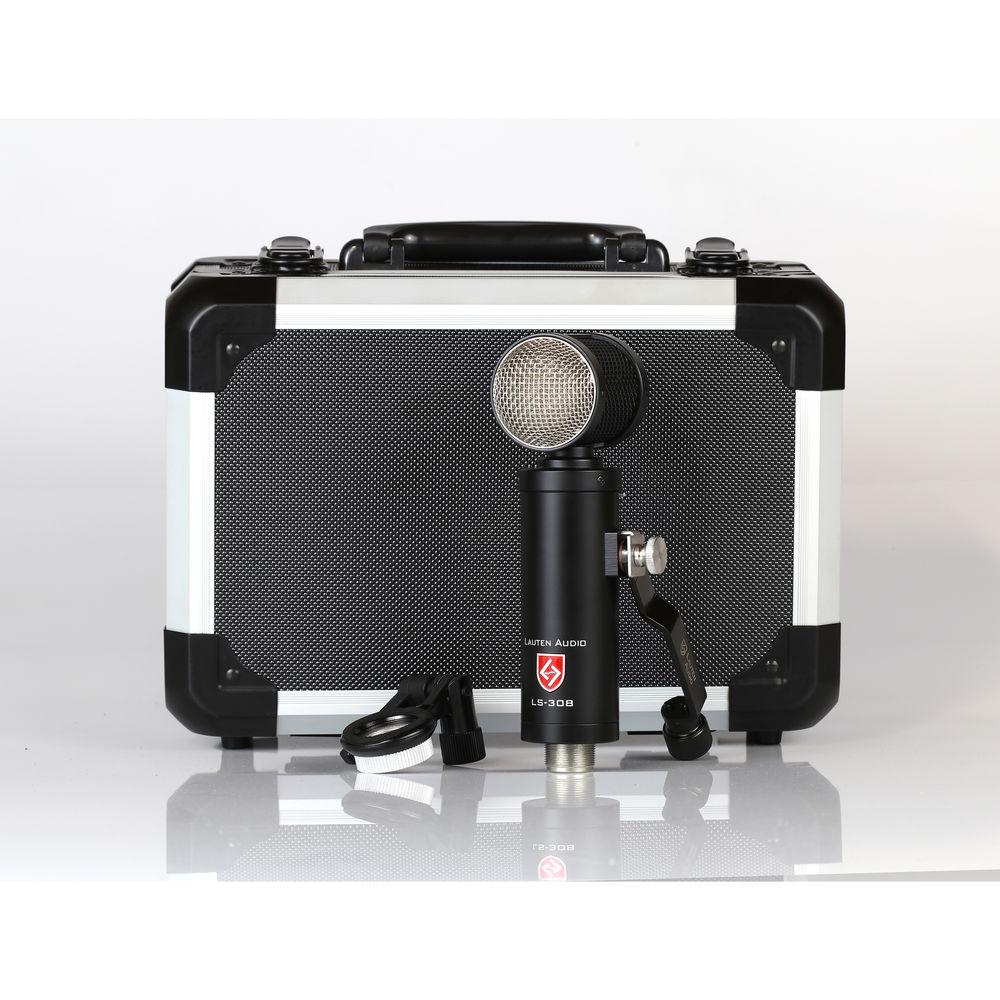

In the Box Lauten Audio LS-308 Noise Rejecting, High-Dynamic Range Large Diaphragm Condenser Microphone Hard Mount Windscreen Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lauten Audio LS-308 Noise Rejecting, High-Dynamic Range Large Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLauten Audio LS-308 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 135 dB SPL Peak | | Sensitivity | 1.5 mV/Pa | | Low-Cut Filter | 50 to 120 dB @ 8 kHz to 10 kHz | | Dynamic Range | 135 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 7.25" / 18.41 cm | | Diameter | 2.46" / 62.48 mm | | Weight | 1.25 lb / 0.57 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
