User Manual for Lauten Audio Series Black LA-120 Small-Diaphragm FET Condenser Microphone Pair Click to enlarge the picture
Contents of the user manual for the Lauten Audio Series Black LA-120 Small-Diaphragm
- Product category: Small Diaphragm Condenser Lauten Audio
- Brand: Lauten Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lauten Audio Small Diaphragm Condenser
 |
User manual for the Lauten Audio Series Black LA-120 Small-Diaphragm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lauten Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lauten Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lauten Audio product will considerably shorten its lifespan!
|

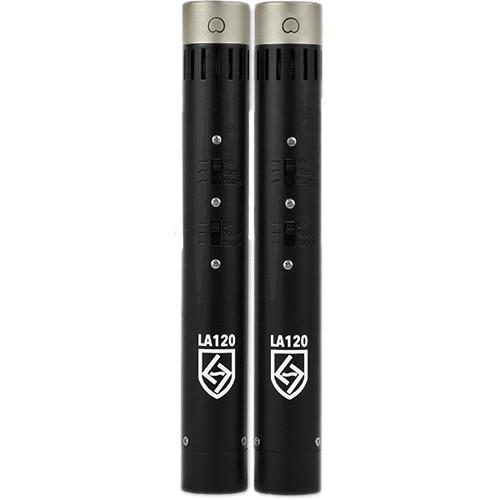

Product description The Series Black LA-120 Small-Diaphragm FET Condenser Microphone Pair from Lauten Audio features two microphones with ultra-low-noise JFET amplifiers, interchangeable 17mm pressure-gradient condenser cardioid and omnidirectional capsules, and electronically balanced outputs. Each mic has a 50 to 150 Hz low-cut filter, to reduce boomy lows or low-end room rumble, and a 10 to 15 kHz high-cut filter, to help tame bright rooms and sources. The combination of these two, with easy-to-engage switches, eliminates the common problems in home-, basement-, or bedroom-recording environments. -
- Small-diaphragm FET true pressure-gradient condenser

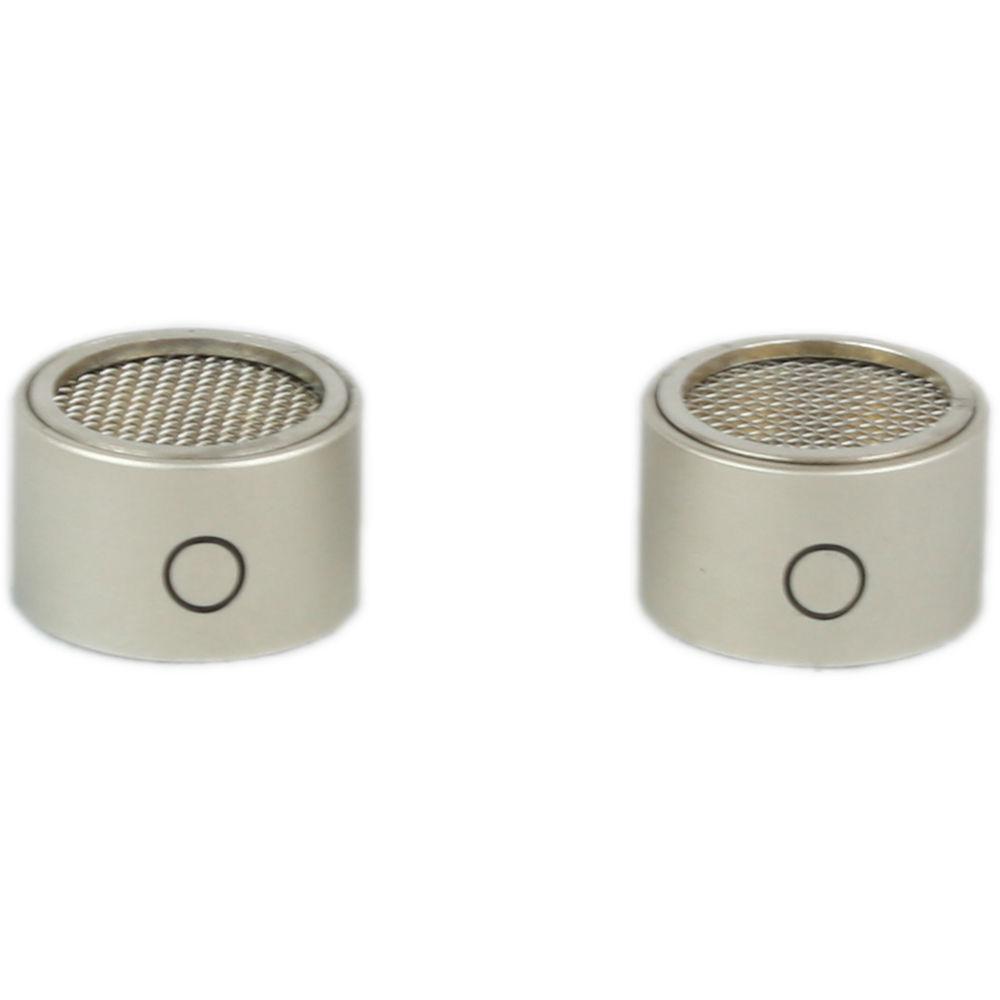

- Swappable 17mm cardioid and omnidirectional capsules
- Independent, selectable 50 to 150 Hz low-cut filter and 10 to 15 kHz high-cut filter
- Up to 15 dBA self-noise
- Built with polypropylene capacitors and resistors
- Sold as a pair, with two hard mount clips
- Includes an omnidirectional and cardioid capsule for each mic

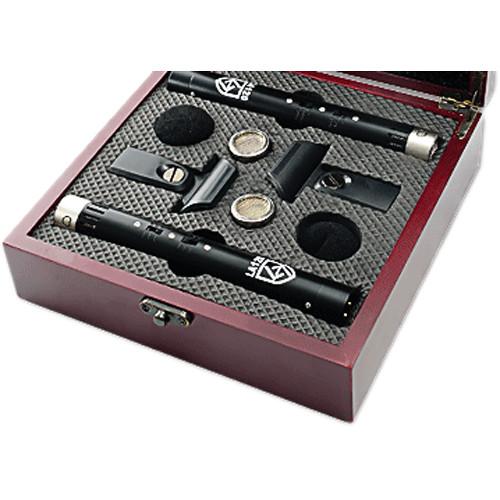

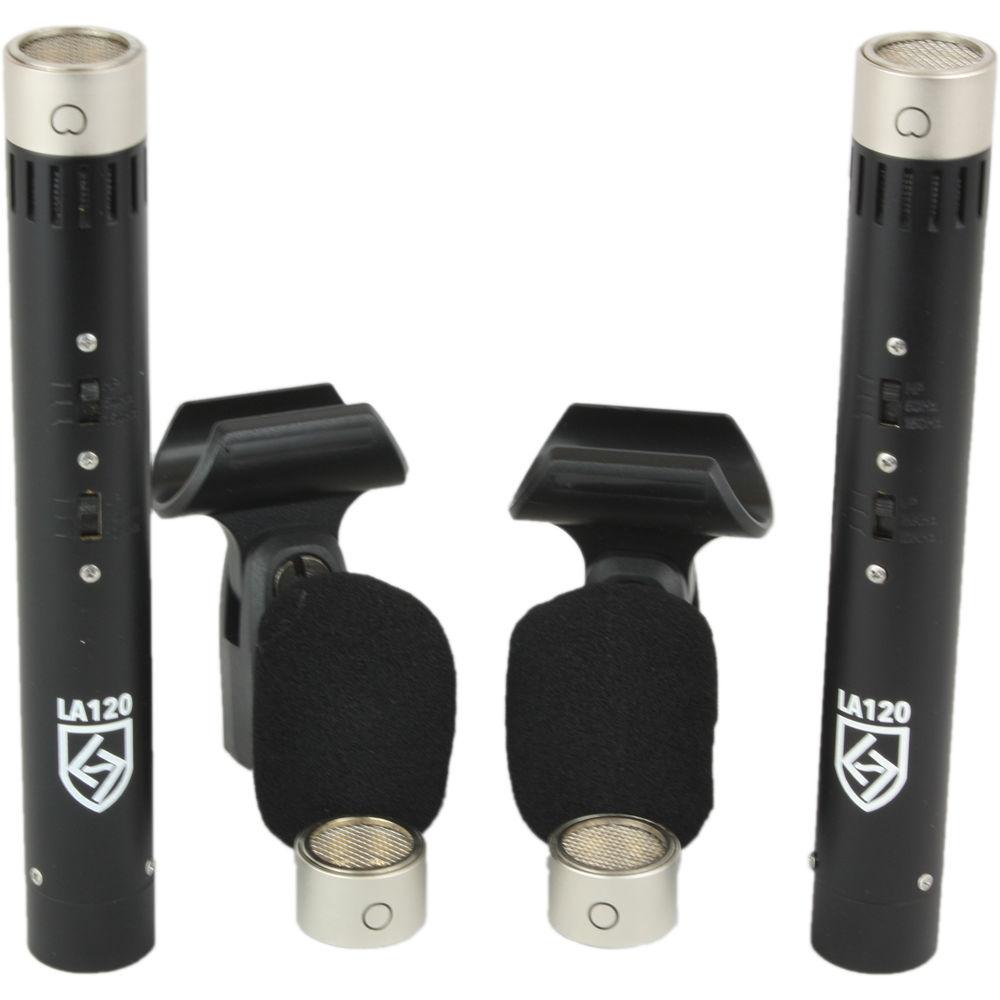

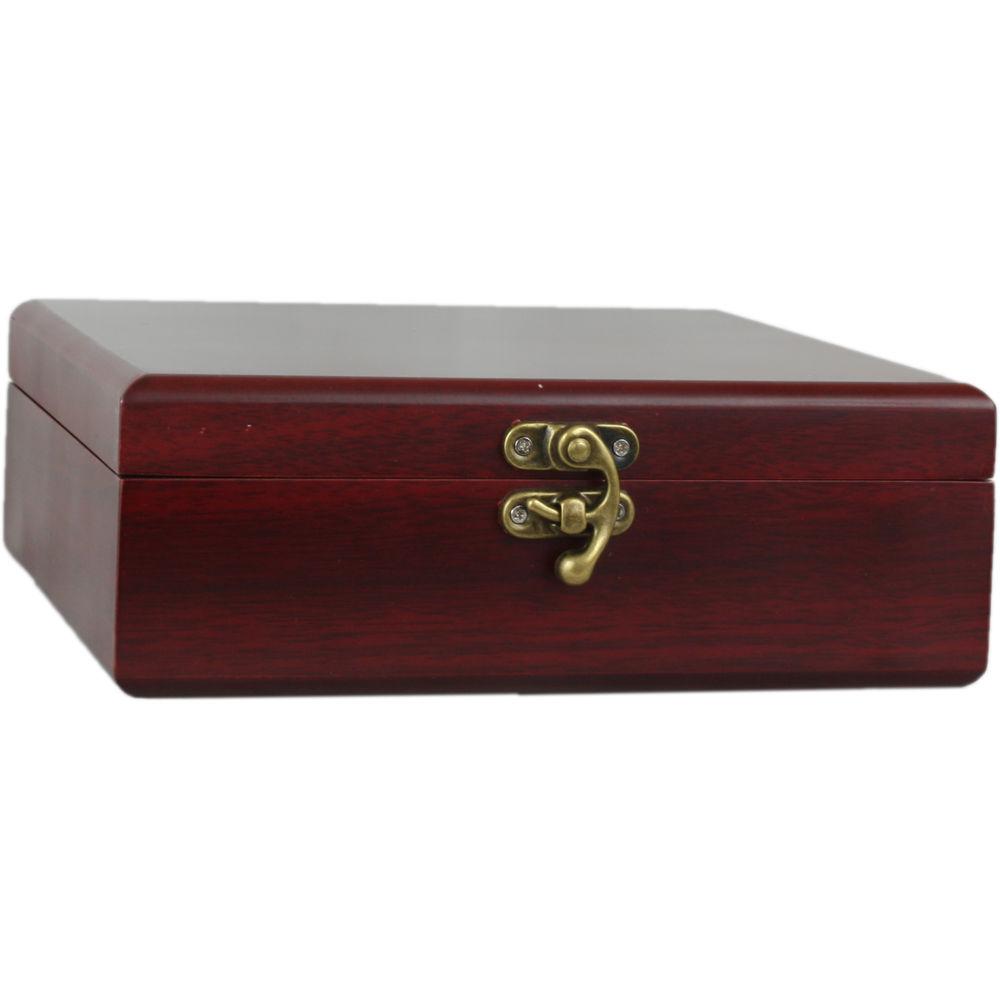

UPC: 641752949546 In the Box Lauten Audio Series Black LA-120 Small-Diaphragm FET Condenser Microphone Pair 2 x Hard Mount Clips 2 x Omnidirectional Capsules 2 x Cardioid Capsules 2 x Foam Windscreens Wood-Style Box Limited 1-Year Warranty Limited 90-Day Warranty on Mounts and Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lauten Audio Series Black LA-120 Small-Diaphragm FET Condenser Microphone Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLauten Audio LA-120 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid, Omnidirectional Swappable | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 130 dB SPL At 1 kHz | | THD | 0.5% | | Load Impedance | 200 Ohms | | Sensitivity | 10 mV/Pa | | Low-Cut Filter | @ 50 Hz
@ 100 Hz
@ 150 Hz | | Dynamic Range | 120 dB Minimum | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 8.0 x 7.7 x 3.1" |
