User Manual for LawMate 720p Slim Black Box Covert Camera & Audio Recorder Click to enlarge the picture
Contents of the user manual for the LawMate 720p Slim Black Box Covert
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate 720p Slim Black Box Covert contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

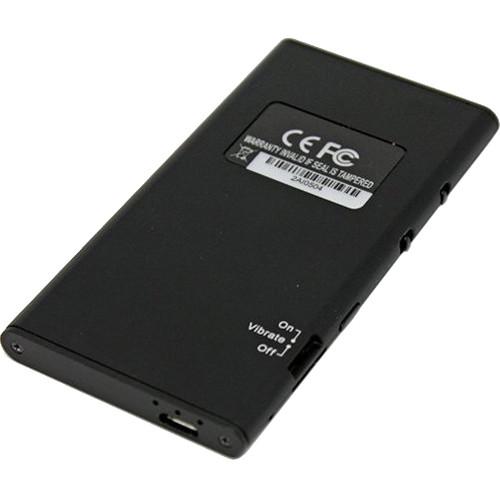

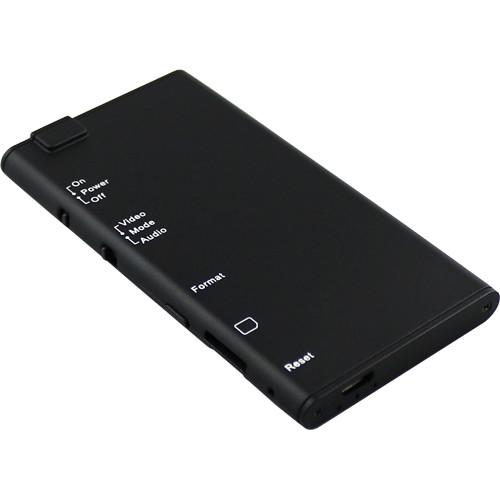

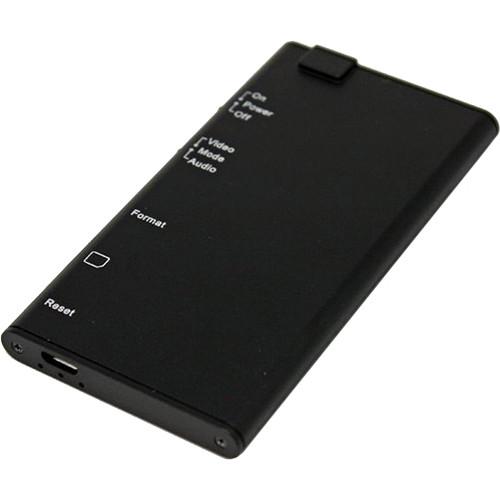

Product description The 720p Slim Black Box from LawMate conceals a camera module and an audio recorder for covert video surveillance. The built-in camera captures 1280 x 720 resolution video at up to 30 fps. This black box can be hidden in your wallet, notebook, or newspaper. It comes with a 16GB microSD card which can be inserted into the built-in slot. - Standalone video and audio recorder
- Small and thin enough to fit in any place
- Easy to hide in your wallet, notebook, or newspaper
- Works perfectly for meetings and indoor recording
- Put it in your car center console for in-car recording
- Records up to 280 minutes of audio
- Battery-powered for up to 140 minutes
- Can be powered using a power bank as well
- User-friendly vibration alert and LED indicators to show device status

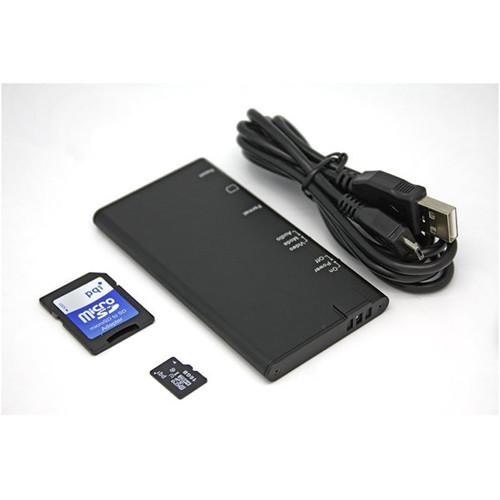

UPC: 703624460655 In the Box LawMate 720p Slim Black Box Covert Camera & Audio Recorder USB Cable 16GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate 720p Slim Black Box Covert Camera & Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-BC10 Specs | Image Sensor | 1/4" progressive CMOS sensor | | Sensor Resolution | 1280 x 960 | | Sensor Sensitivity | 3.3 lux at f/2.8 | | Lens | 3.7mm f/2.8 | | Angle of View | 67° | | Video Compression | H.264, MPEG-4 | | Video File Format | AVI | | Recording Mode | Continuous | | Video Recording Resolution | 1280 x 720 | | Frame Rate | Up to 30 fps | | Audio Compression | WAVE | | Audio File Formats Supported | WAV | | Memory Card | Supports up to 16 GB microSD card (included) | | Memory Capacity | Up to 5 hours of recording | | Recording Time | Video: 1.6 GB/30 minutes
Audio: 38 MB/30 minutes | | Data Interface | Micro-USB 2.0 | | Date & Time Stamp | YYYY.MM.DD HH:MM:SS | | Battery Type | 3.7 V, 750 mA rechargeable lithium-polymer | | Battery Life | Continuous Video Recording: 140 minutes
Continuous Audio Recording: 280 minutes | | Power Input | 5 VDC | | Power Consumption | Video: 220 to 260 mA
Audio: 140 mA | | Charging Time | 120 minutes (600 mA) | | Alerts | Vibration Alert: Power on/off, recording, low battery | | LED Indicators | Blue: Power on
Red: Recording on
Green: Charging
Blinking Red: No card inserted / card full | | Dimensions | 3.7 x 2.0 x 0.4" (95 x 50 x 10 mm) | | Weight | 1.4 oz (39 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
