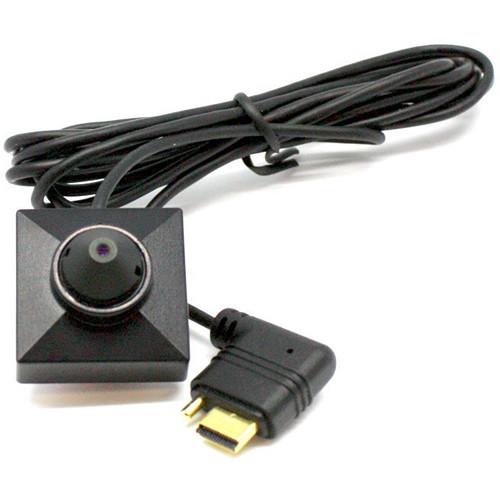

User Manual for LawMate BU-18HD 1080p Button Screw Camera with Cone Lens Click to enlarge the picture
Contents of the user manual for the LawMate BU-18HD 1080p Button Screw Camera
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate BU-18HD 1080p Button Screw Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

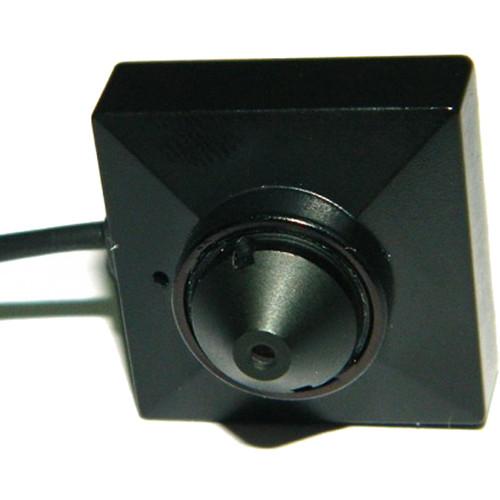

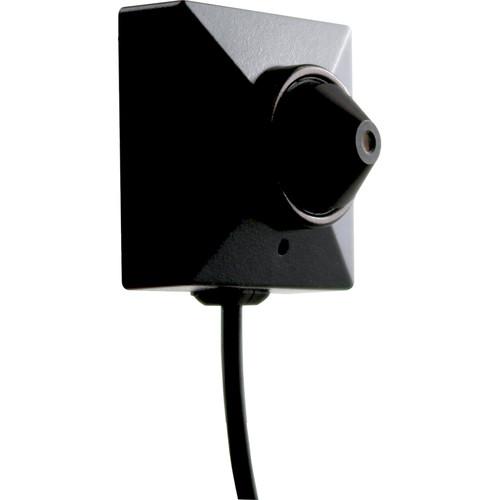

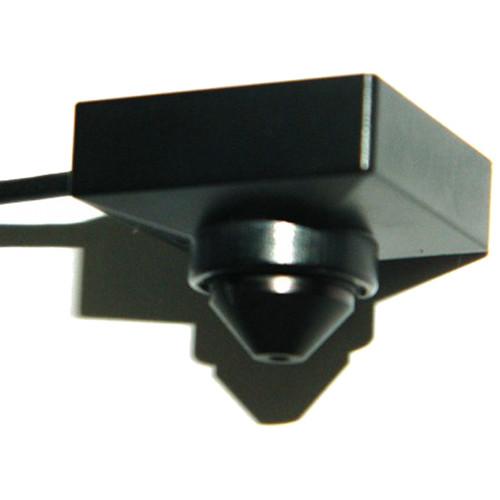

Product description The BU-18HD 1080p Button/Screw Camera with Cone Lens from LawMate features a 1/2.9" progressive CMOS sensor for capturing full HD videos. It also features a 4.3mm fixed focal lens with 78° angle of view. To connect the camera to the DVR540W DVR (not included), you simply need to plug the camera's micro USB end into the "Camera In" port on the DVR. - 0.03 lux at f/2.0 (50 IRE) low light sensitivity
- Compatible with DVR540W DVR
UPC: 703624459109 In the Box LawMate BU-18HD 1080p Button/Screw Camera with Cone Lens Button Screw Kit 9.8' Double Coated Tape DIY Lens Cover Button Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate BU-18HD 1080p Button Screw Camera with Cone Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate BU-18HD CONE Specs | Image Sensor | 1/2.9" progressive CMOS | | Electronic Shutter | 1/8 to 1/30,000 sec | | Depth | Depth of View: 19.7" to infinity (50 cm to infinity) | | Angle of View | 78° | | Focal Length | 4.3mm | | Aperture | f/2.0 | | Sensitivity | 0.03 lux at f/2.0 | | Resolution (H x V) | 1920 x 1080 | | Sensor Resolution | 2000 x 1121 | | Pixel Size | 2.8 μm x 2.8 μm | | Video Output | 12C data | | Power Input | 3.3 VDC ±5% | | Power Consumption | 220 mA | | Storage Temperature | -22 to 176°F (-30 to 80°C) | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions | 1.0 x 1.0 x 0.9" (2.5 x 2.5 x 2.4 cm) | | Weight | 0.6 oz (18 g) |
