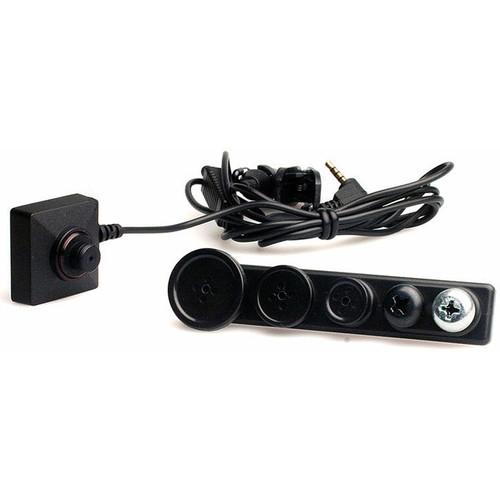

User Manual for LawMate BU-19 Button-Type Wired CCD Covert Camera Kit Click to enlarge the picture
Contents of the user manual for the LawMate BU-19 Button-Type Wired CCD Covert
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
|
User manual for the LawMate BU-19 Button-Type Wired CCD Covert contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|
Product description The LawMate BU-19 Button-Type Wired CCD Covert Camera Kit has the capability to be a button or a screw lens, thus creating a suitable camera for any secret operation. This CCD camera set has interchangeable lenses that can be quickly changed between a button and a screw. It features a Sony 1/3" HAD II CCD sensor and 4.3mm fixed lens for capturing videos at a maximum resolution of 700 TVL. - Sony 1/3" 960H HAD II CCD sensor captures videos at a maximum resolution of 700TVL
- Minimum illumination of 0.005 lux at f/1.2
- Miniature size at 0.8 x 0.4 x 0.8"
- Cable jack for quick installation
- Built-in high gain microphone
- Interchangeable button lenses and screws
UPC: 703624459093 In the Box LawMate BU-19 Button-Type Wired CCD Covert Camera Kit Covert Button/Screw Lens Extra Matching Buttons and Screws Battery Holder Switching Cable 3M Double Coated Tape DIY Lens Cover Button Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate BU-19 Button-Type Wired CCD Covert Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate BU-19 Specs | Video System | NTSC and PAL | | Picture Elements | H x V
NTSC: 976 x 494
PAL: 976 x 582 | | Resolution | 700 TVL | | Image Sensor | Sony 1/3" 960H HAD II CCD | | S/N Ratio | More than 54 dB (AGC off) | | Min Illumination | 0.005 lux at f/1.2 (50IRE) | | Shutter | Electronic Shutter: NTSC: 1/60 to 1/100,000 sec
PAL: 1/50 to 1/100,000 sec | | Video Output | 1 Vp-p composite at 75 Ohms | | Audio Output | 2 Vp-p (maximum), Impedance: 10 kOhms | | Mic Sensitivity | Yes | | Focal Length | 4.3mm | | Angle of View | 78° | | Input Voltage | 5 VDC/-0.5 V | | Current | 180 mA | | Dimensions (W x H x L) | 0.8 x 0.4 x 0.8" (22 x 12 x 22 mm) | | Weight | 0.7 oz (22 g) |
