User Manual for LawMate Button with 2MP Covert Camera Click to enlarge the picture
Contents of the user manual for the LawMate Button with 2MP Covert Camera
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate Button with 2MP Covert Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

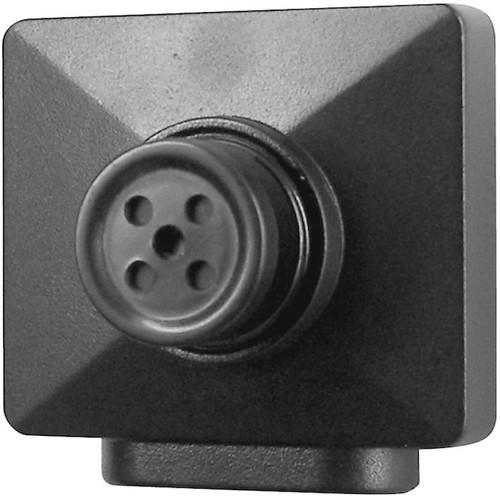

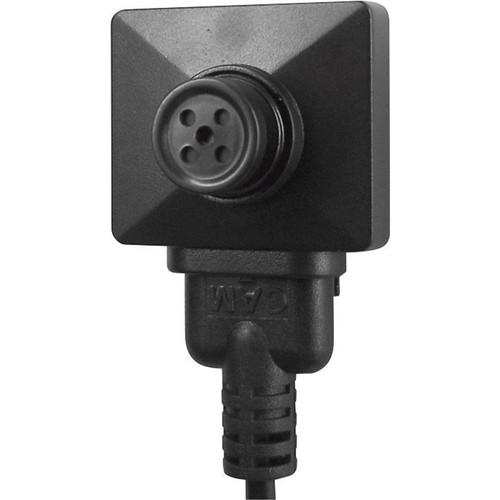

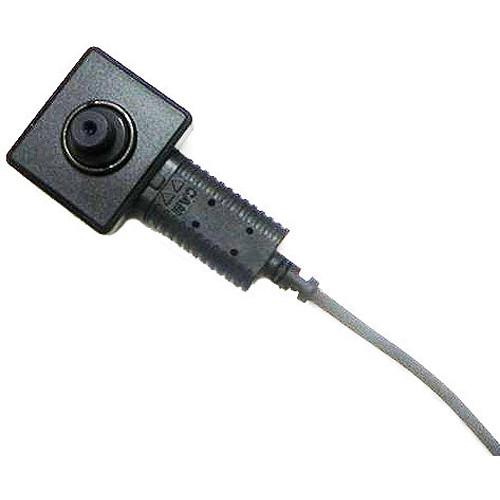

Product description The Button with 2MP Covert Camera from LawMate features a 1/2.8" progressive-scan Sony CMOS sensor to capture 1920 x 1080 resolution and 2MP still images. It has an external microphone and USB connection, and comes with a button set to offer a variety of styles of buttons to fit your needs. It is designed for use with LawMate Series DVRs. - Miniature covert camera hidden in button
- 2MP 1/2.8" progressive-scan CMOS sensor
- 1920 x 1080 resolution recording and 2MP still images

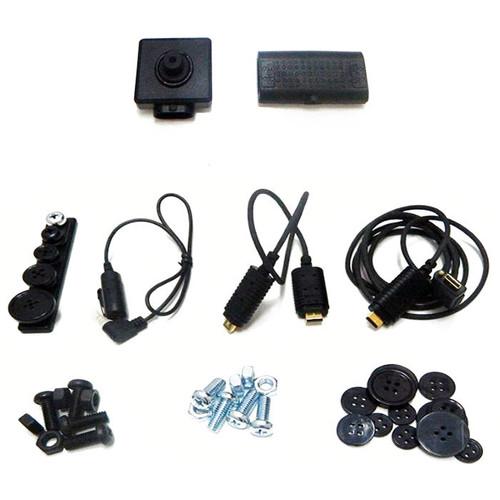

UPC: 703624459116 In the Box LawMate Button with 2MP Covert Camera 43" Camera Cable 12" Camera Cable External Microphone Button Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate Button with 2MP Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate CMD-BU20U Specs | Video Resolution | > 1200 TVL | | Pixel Size | 2.8 x 2.8 um | | Resolution | 1920 x 1080 | | Image Sensor | Sony 1/2.8" progressive-scan CMOS | | Illumination | 0.08 lux, f/2.0 (50 IRE) | | Aperture | f/2.0 | | Lens Diameter | 4.3mm | | Angle of View | 78° | | Depth of Field | 20" (51 cm) | | Electronic Shutter | 1/8 to 1/30,000 | | Video Output | RAW Dana | | Audio Output | 2 Vpp (maximum) | | Impedance | 10 kOhms | | AGC | > 52 db (AGC off) | | S/N Ratio | 36 dB maximum | | Power Supply Voltage | 3.3 VDC +/- 5% | | Power Current | 200 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 20 to 90% | | Storage Temperature | -22 to 176°F (-30 to 80°C) | | Dimensions | 1.2 x 1.2 x 0.8" (30 x 30 x 20 mm) | | Weight | 0.35 oz (10 g) |
