User Manual for LawMate Headphones with 1080p Covert Wi-Fi Camera Click to enlarge the picture
Contents of the user manual for the LawMate Headphones with 1080p Covert Wi-Fi
- Product category: Hidden Cameras LawMate
- Brand: LawMate
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LawMate Hidden Cameras
 |
User manual for the LawMate Headphones with 1080p Covert Wi-Fi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LawMate product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LawMate user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LawMate product will considerably shorten its lifespan!
|

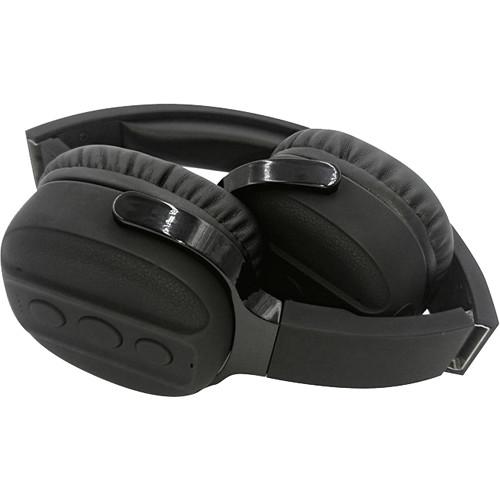

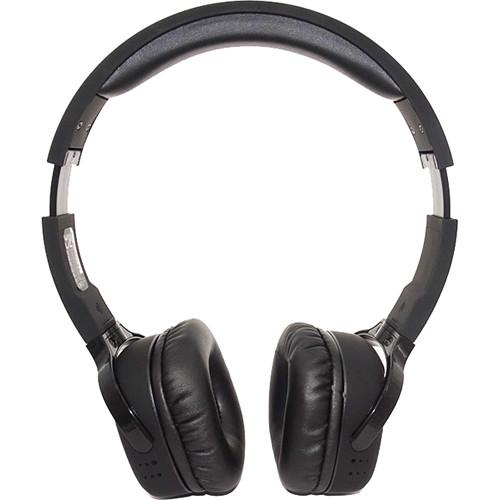

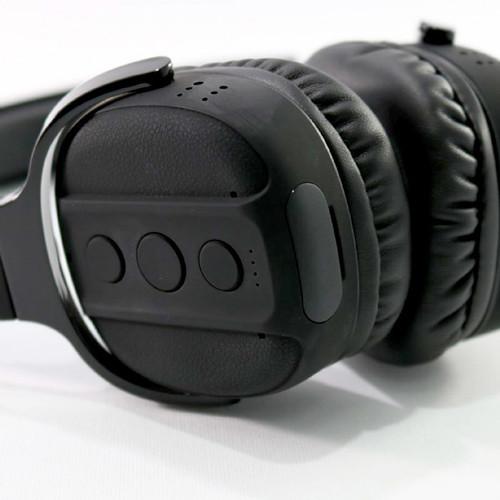

Product description The Headphones with 1080p Covert Wi-Fi Camera from LawMate uses a 1/3" progressive scan CMOS sensor and a 4mm fixed lens to discreetly capture 1920 x 1080 resolution video at 30 fps from a 66° field of view. Additionally, this device captures still images at up to 5MP resolution.
This covert device is equipped with an 802.11b/g/n Wi-Fi receiver. A built-in rechargeable battery delivers battery life of up to 120 minutes for continuous recording. An onboard memory card slot accepts microSD cards up to 32GB. A 16GB microSD card is included. Additionally, this device has 4GB of internal storage. The PV Cam Viewer app allows for remote viewing and control from your iOS or Android mobile device. - Functional headphones that enable you to listen to music while covertly recording video
- PV Cam Viewer app for iOS and Android
- Manual, continuous, and motion detection recording
- Up to 120 minutes record time with overwrite functions
- MOV, JPG, and MP3 (WAV) file formats
- Date and time stamp enables precise documentation of captured footage
- LED indicators for status
- Includes two USB cables for power and data transfer, a headphone stand, and a 16GB microSD card

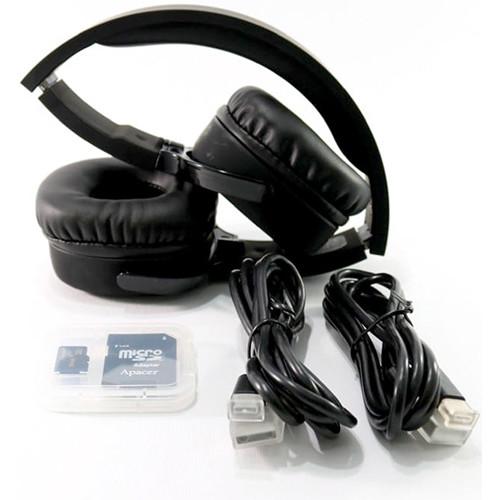

UPC: 703624459765 In the Box LawMate Headphones with 1080p Covert Wi-Fi Camera 2 x USB Cable Headphone Stand 16GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate Headphones with 1080p Covert Wi-Fi Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-EP10W Specs | | | Image Sensor | 1/3" Progressive Scan CMOS Sensor | | Sensor Resolution | 2304 x 1536 | | Minimum Illumination | 3.3 Lux at f/2.0 | | Aperture | f/3.2 | | Focal Length | 4mm | | Field of View | 66° | | | | Codec | H.264, JPEG | | File Format | MOV, JPG | | Recording Mode | Continuous and Motion Detection | | Recording Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps | | Photo Capture Resolution | 5 MP (2952 x 1944) | | | | File Format | MP3 (WAV) | | Internal Memory | 4 GB (For MP3 Storage Only) | | Data Interface | Micro-USB 2.0 | | Power Input | USB 5 V | | Power Consumption | 18 to 25 mA | | | | Wi-Fi Connectivity | 802.11b/g/n | | Protocol | RTSP | | | | microSD Support | Supports microSD Cards up to 32 GB, 16 GB Card Included | | Data Interface | Mini-USB 2.0 | | | | Mobile App | PV Cam Viewer for iOS and Android | | Date/Time Stamp | Yes | | Snapshot | Recording and Video Playback via Smartphone | | LED Indicators | Yes | | Power Input | 5 VDC | | Power Consumption | Video: 340 to 400 mA (Wi-Fi +80 mA) | | Charging Time | 150 Minutes (580 mA x 2) | | Battery Input | 3.7 VDC, 1100 mA High Polymer Battery (XK503040 x 2) | | Battery Life | With Wi-Fi On: 100 Minutes Continuous Recording
With Wi-Fi Off: 120 Minutes Continuous Recording | | Recording Time | 160 Minutes at 1920 x 1080 resolution | | Alerts | Vibration Alerts for Power On/Off, Recording, and Low Battery | | Dimensions | 6.1 x 7 x 2.9" / 155 x 178 x 74.2 mm | | Weight | 6.7 oz / 190 g |
