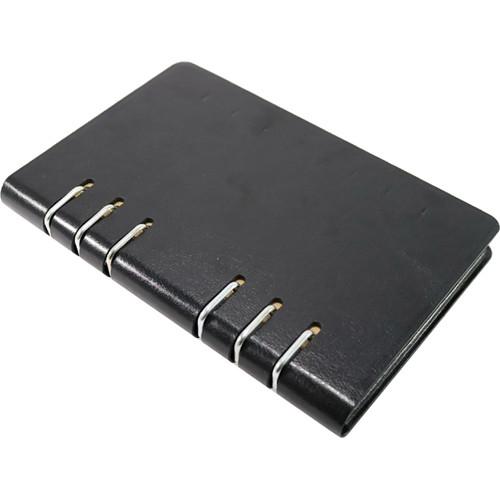

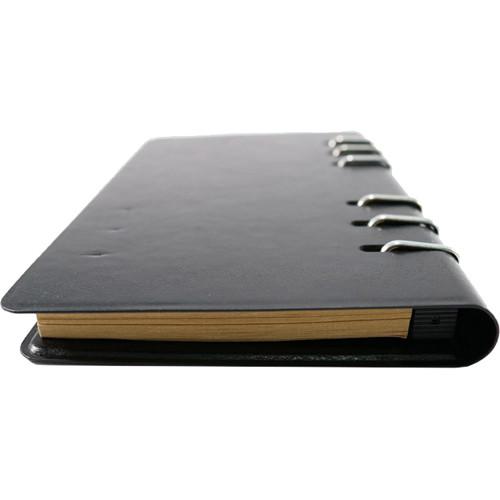

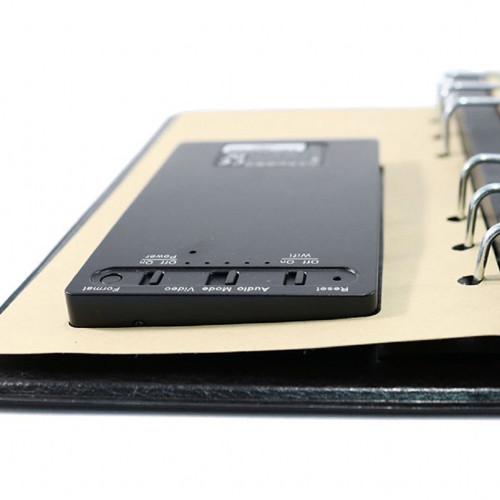

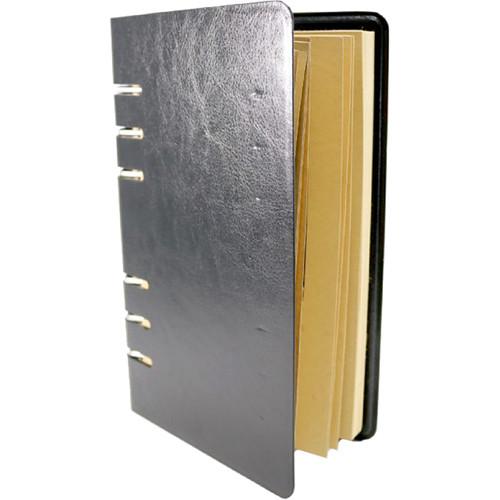

Product description The Notebook Planner with 1080p Covert Wi-Fi Camera from LawMate uses a 1/3" progressive scan CMOS sensor and a 4mm fixed lens to discreetly capture 1920 x 1080 resolution video at 30 fps from a 66° field of view. Additionally, this device captures audio and still images at up to 5MP resolution.
This covert device is equipped with an 802.11b/g/n Wi-Fi receiver. A built-in rechargeable battery delivers battery life of up to 210 minutes for video recording or 900 minutes for audio recording. An onboard memory card slot accepts microSD cards up to 32GB. A 16GB microSD card is included. The PV Cam Viewer app allows for remote viewing and control from your iOS or Android mobile device. - Provides covert video, audio, and still image capture
- Up to 210 minutes of continuous video and 900 minutes of audio recording
- Date and time stamp enables precise documentation of captured footage
- Manual, normal, and motion detection recording modes
- Livestream video from up to 20' away
- H.264, JPEG, and PCM codecs
- MOV, JPG, and WAV file formats

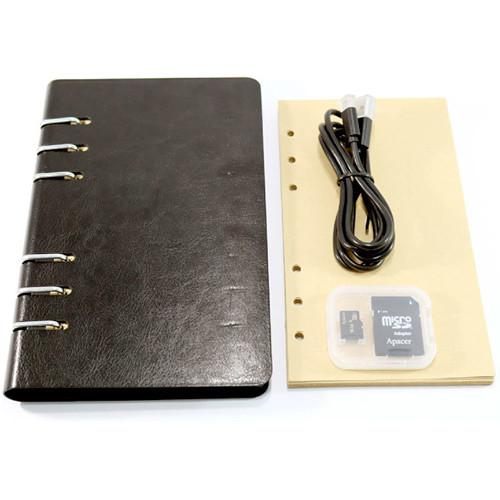

UPC: 703624459772 In the Box LawMate Notebook Planner with 1080p Covert Wi-Fi Camera USB Cable 16GB microSD Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LawMate Notebook Planner with 1080p Covert Wi-Fi Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLawMate PV-NB10W Specs | | | Image Sensor | 1/3" Progressive Scan CMOS Sensor | | Sensor Resolution | 2304 x 1536 | | Sensor Sensitivity | 3.3 Lux at f/2.0 | | Aperture | f/3.2 | | Focal Length | 4mm | | Field of View | 66° | | | | Codec | H.264, JPEG | | File Format | MOV, JPG | | Recording Mode | Manual
Normal and Motion Detection Recording Modes via App | | Recording Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps | | Photo Capture Resolution | 5 MP (2952 x 1944) | | | | Codec | PCM | | File Format | WAV | | | | microSD Support | Supports microSD Cards up to 32 GB, 16 GB Card Included | | Data Interface | Micro-USB 2.0 | | | | Wi-Fi Connectivity | 802.11b/g/n | | Protocol | RTSP | | | | Mobile App | PV Cam Viewer for iOS and Android | | Date/Time Stamp | Yes | | Snapshot | Recording and Video Playback via Smartphone | | LED Indicators | Yes | | Power Input | 5 VDC | | Power Consumption | Video: 350 to 380 mA (Wi-Fi +80 mA)
Voice: 90 mA | | Charging Time | 150 Minutes (680 mA) | | Battery Input | 3.7 VDC, 1400 mA Polymer Battery (XK504355) | | Battery Lifetime | Video Recording: 150 to 210 Minutes
Audio Recording: 900 Minutes | | Dimensions | 9.6 x 5.1 x 1" / 244 x 130 x 25 mm | | Weight | 10.8 oz / 306 g |
